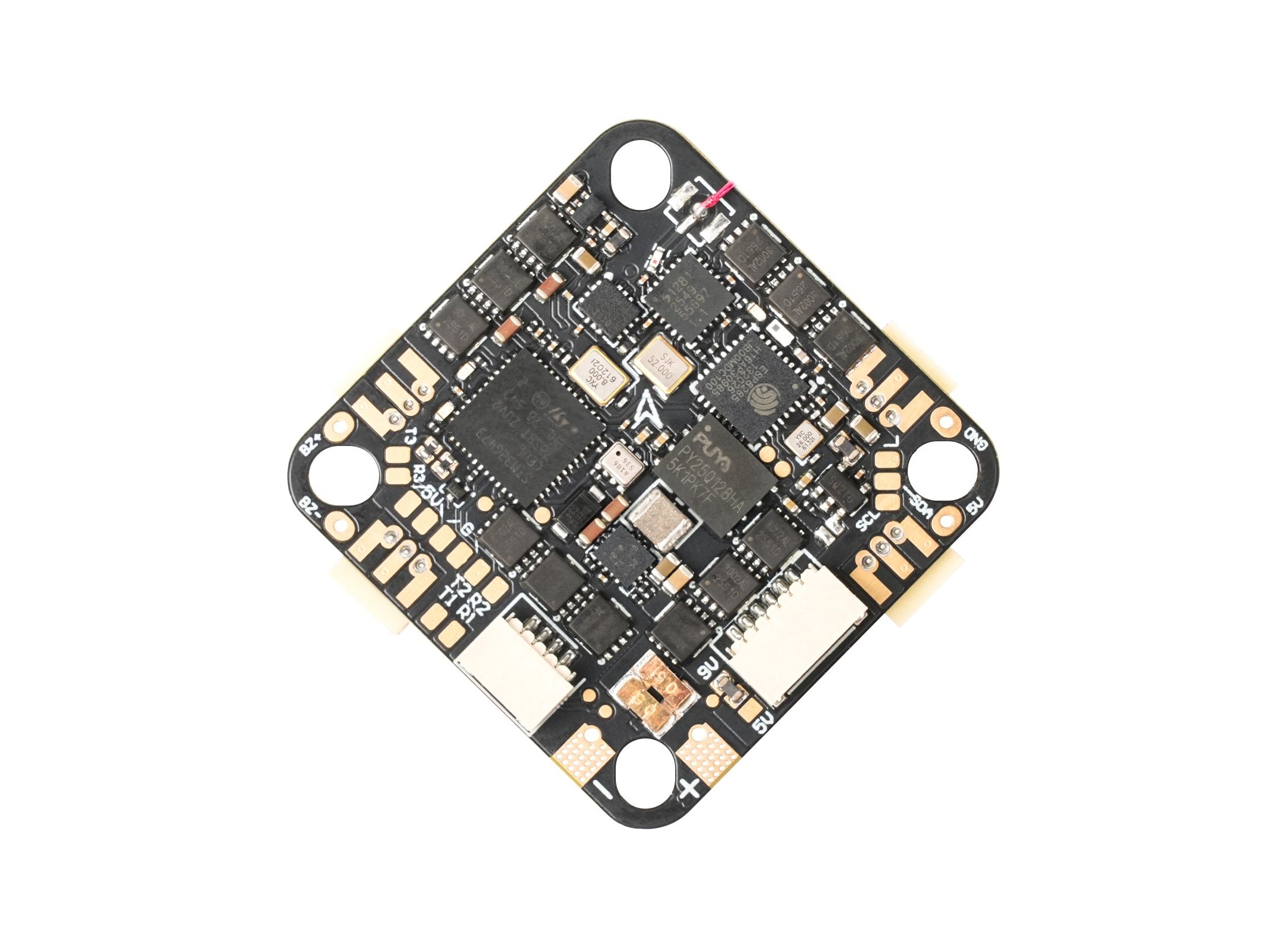

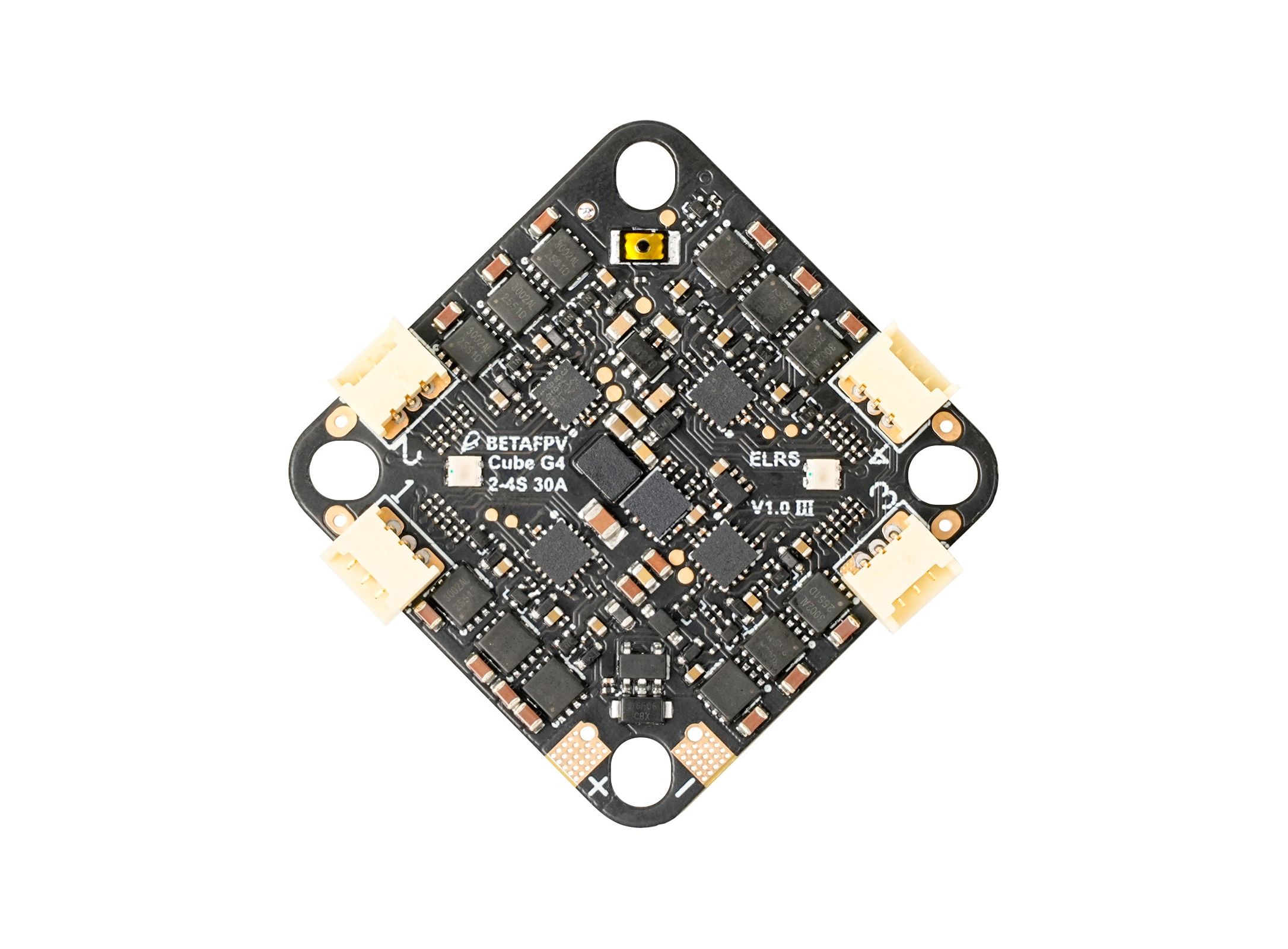

BETAFPV Cube 2-4S Brushless Flight Controller — 3IN1
FPV flight controller. Check the supply voltage, mounting dimensions and firmware compatibility.
Selected configuration: 3IN1
Package contents depend on the selected configuration. Shared gallery photographs may show other colors or packages.
Technical Specifications
|
|
Cube 2-4S 30A FC |
F4 2-3S 20A FC |
|
MCU |
STM32G473CEU6 |
STM32F405RGT6 |
|
MCU Frequency |
168MHz |
|
|
OSD |
/ |
|
|
Blackbox Memory |
16MB |
|
|
RX |
Onboard serial ELRS 2.4GHz |
|
|
VTX |
Support HD VTX |
|
|
Circuit Board Thickness |
1.2mm |
1.0mm |
|
ESC |
Continuous 30A |
Continuous 20A |
|
Motor Connector |
Gold plated JST1.25 |
JST1.25 |
|

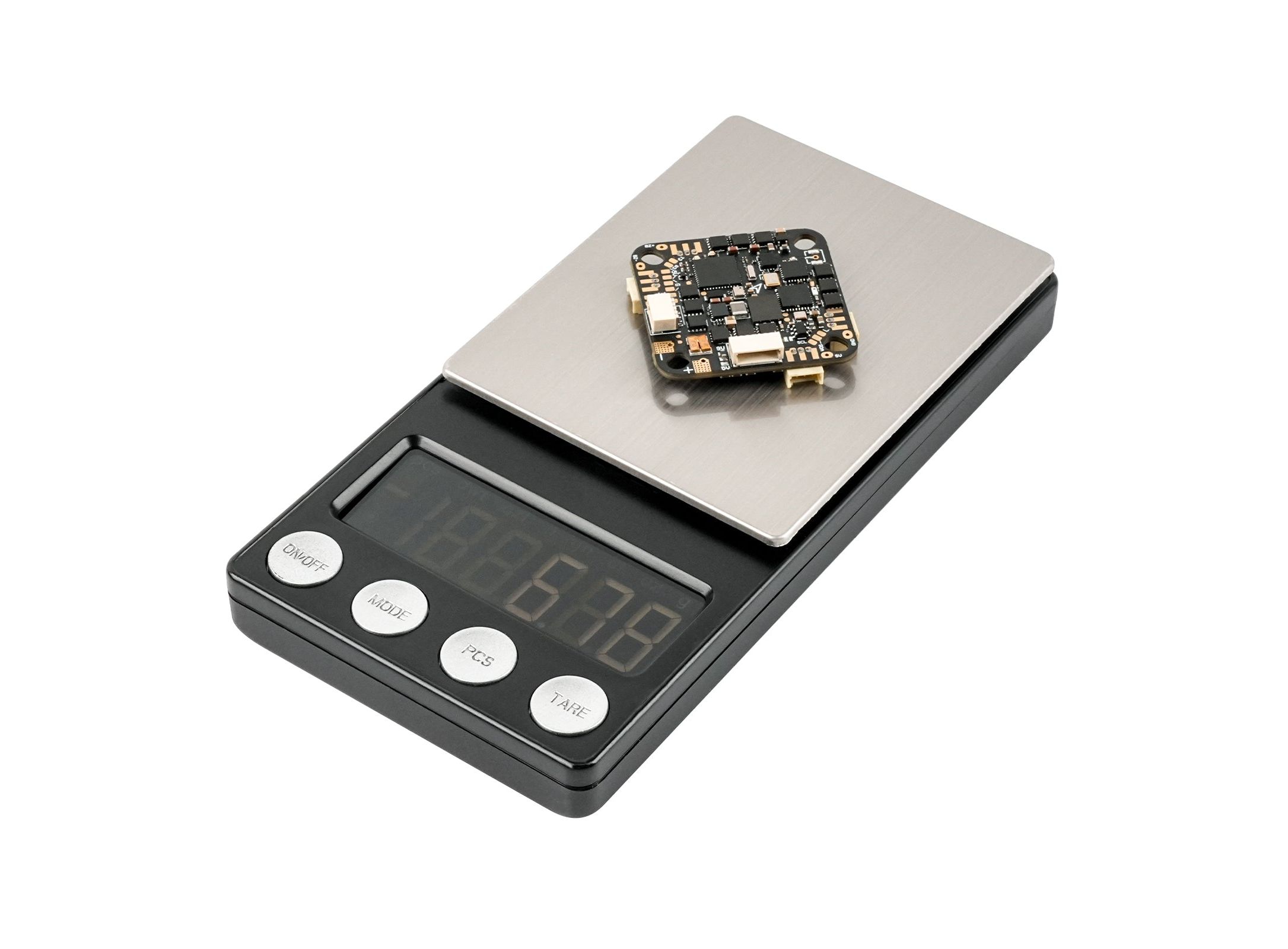

Weight (VTX antenna excluded) |
6.8±0.2g |
5.7±0.2g |
