Description

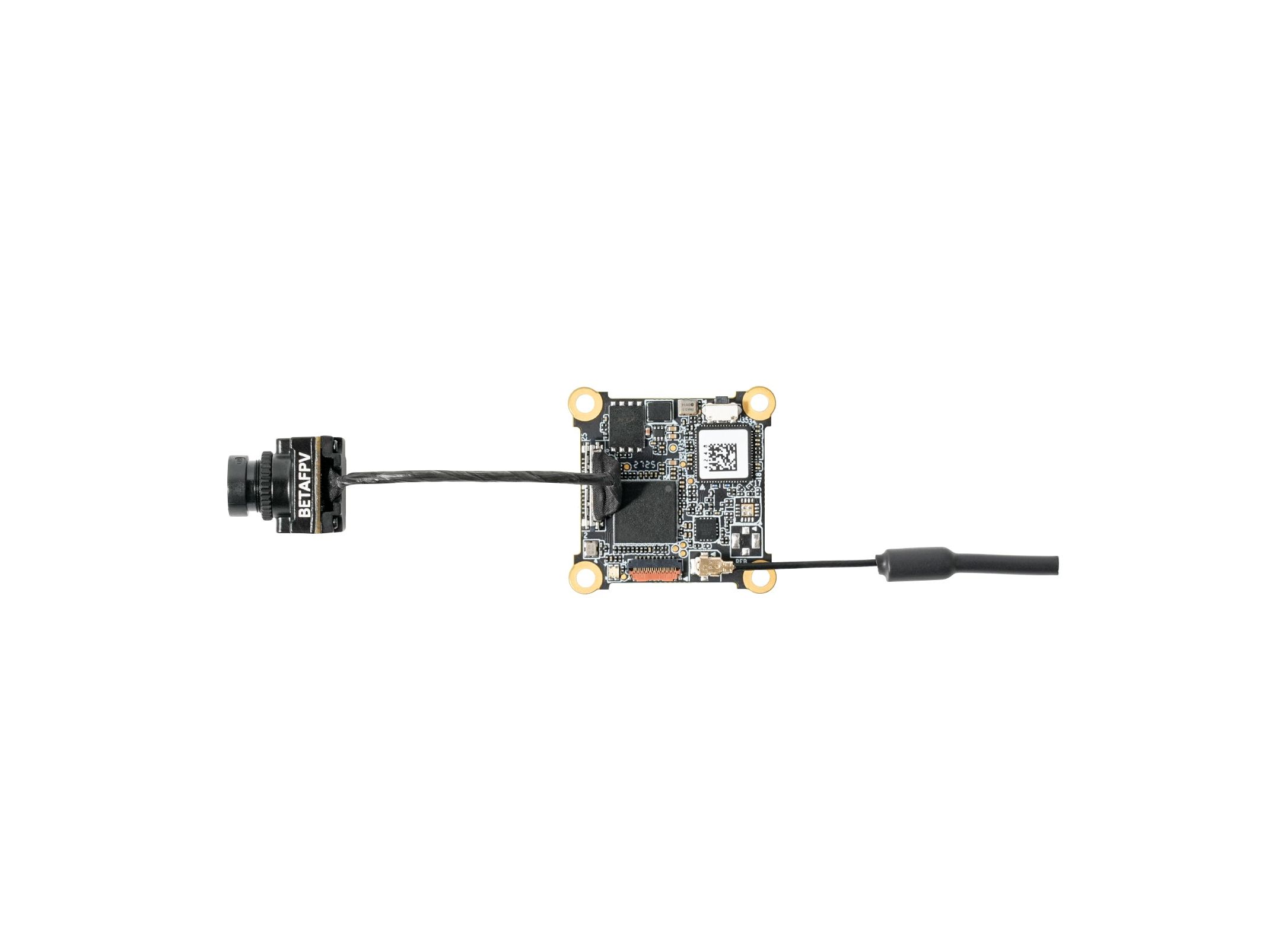

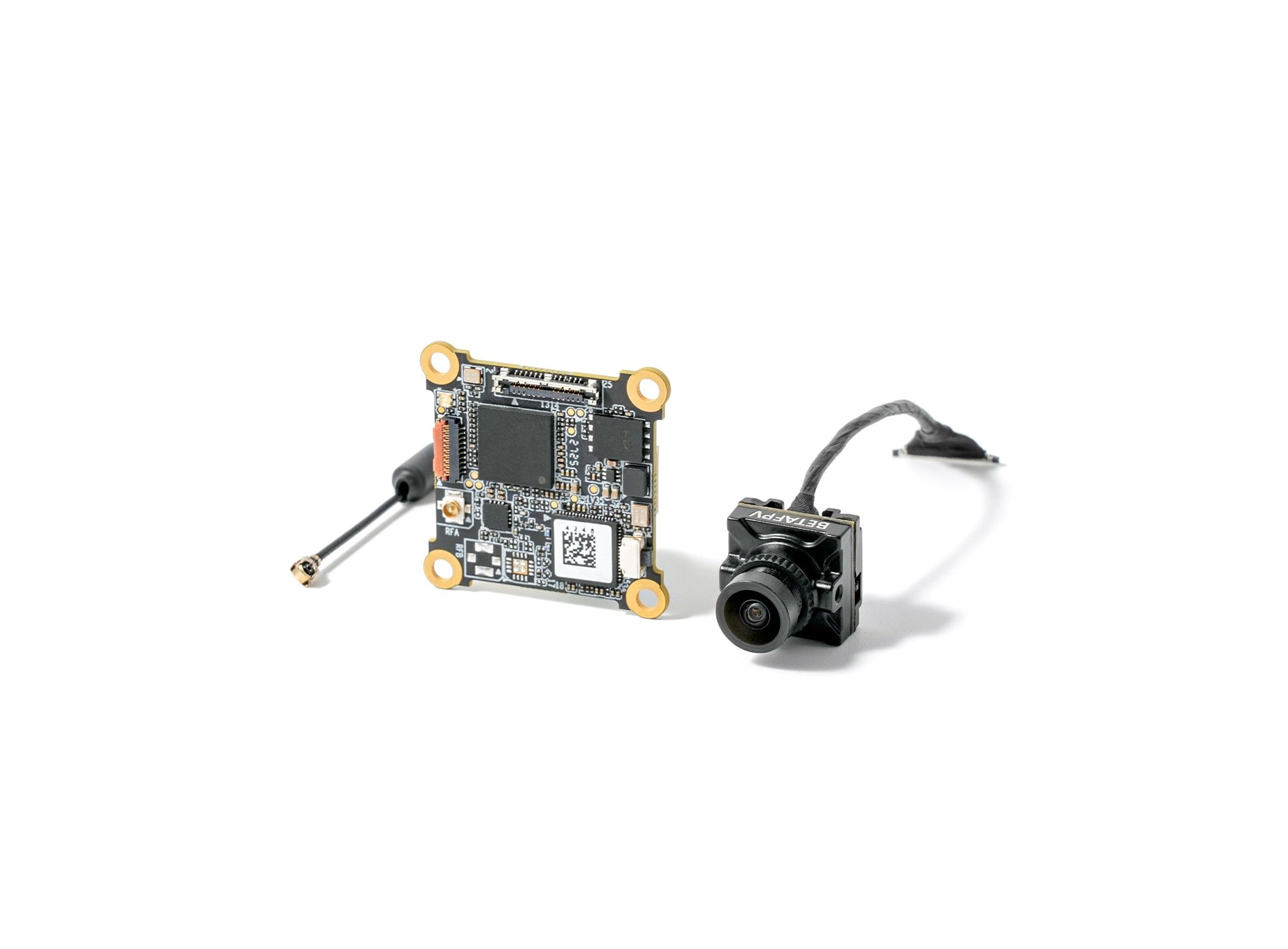

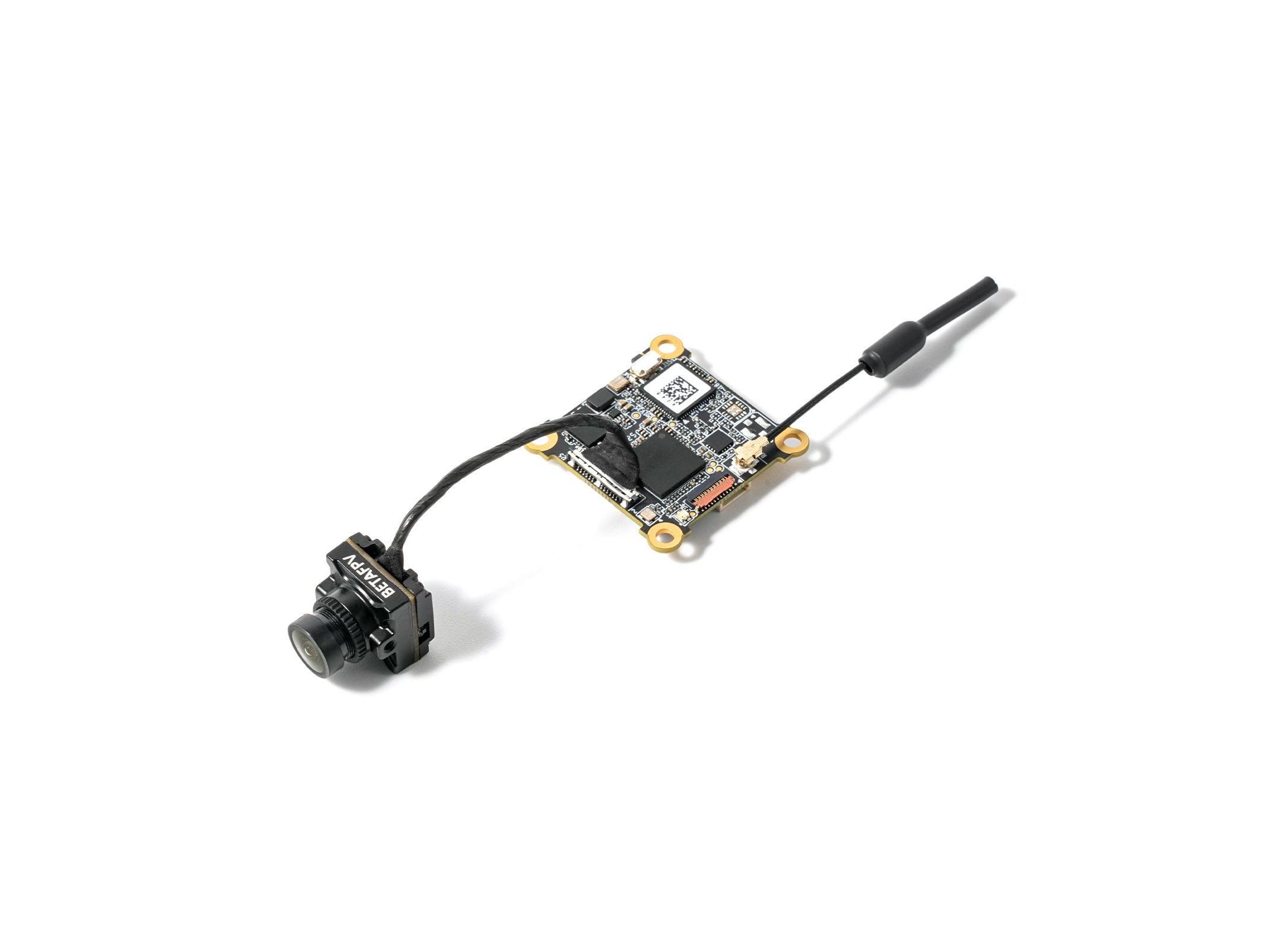

BETAFPV P1 Air Unit HD VTX
Hardware for video or data links in compatible FPV systems. Check interfaces, power supply and package contents.
Selected configuration: BETAFPV P1 Air Unit HD VTX
Package contents depend on the selected configuration. Shared gallery photographs may show other colors or packages.
Technical Specifications
|
Air Unit |
|
|

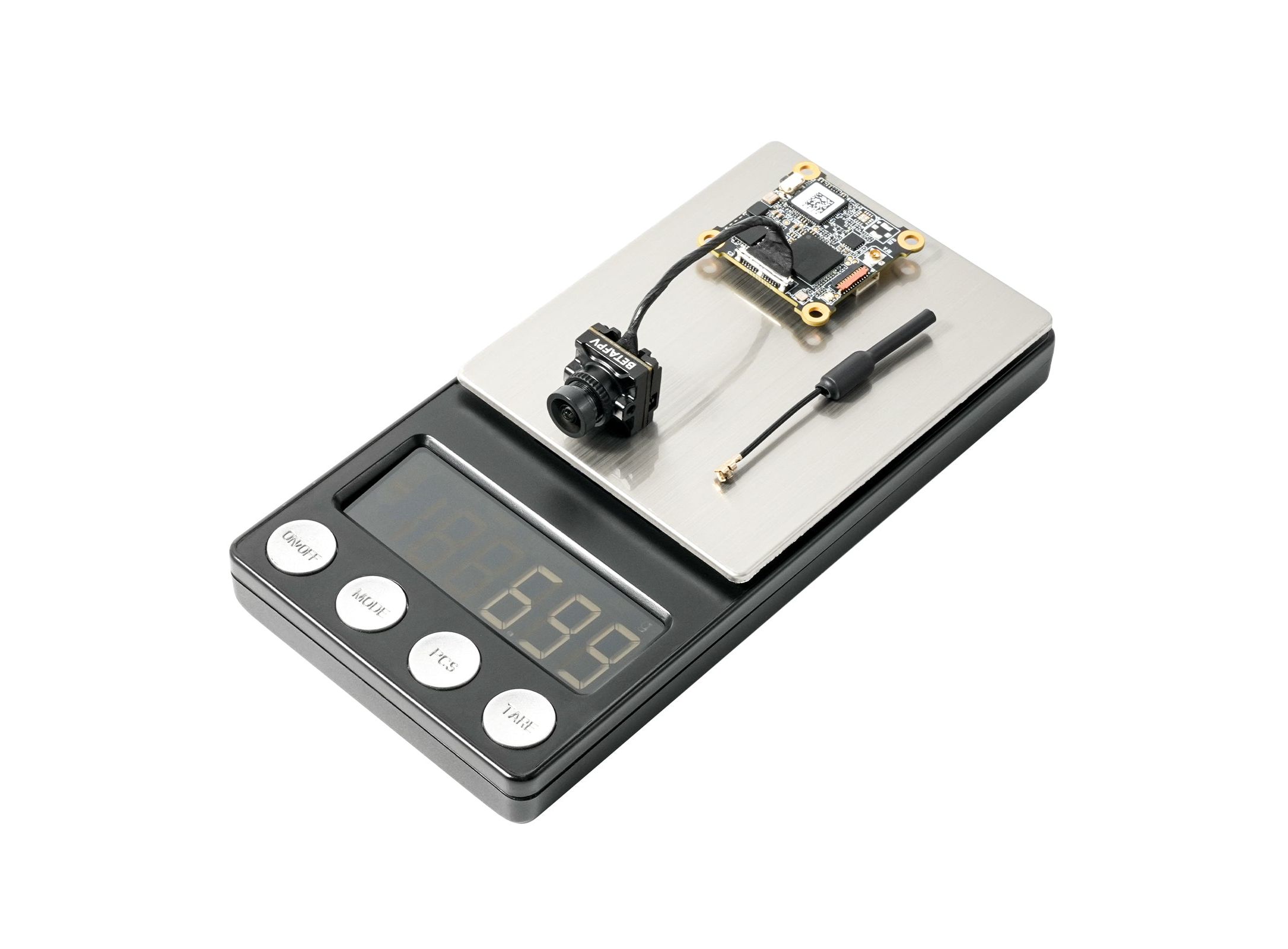

Weight |
Air Unit (Camera excluded): Approx. 3.61g
Air Unit (Camera included): Approx. 6.5g
Antenna: Approx. 0.44g
|
|
Mounting Hole Size |
25.5*25.5mm |
|
Mounting Hole Diameter |
ø2.5mm |
|
Dimensions (L*W*H) |
Air Unit: 30*30*5.5mm
Camera: 14*14*17mm
|
|
Ports |
SH 1.0 6-pin (FC)
SH 1.0 4-pin (USB) |
|
VTX |
|
|
Frequency |
5.1-5.9 GHz |
|
Effective lsotropic Radiated Power (EIRP) |
＜200mW (FCC/SRRC)
<25mW (CE)
|
|
Video Transmission Range |
>5km
|
|
Video Transmission Latency |
Approx. 60ms |
|
Live View Quality |
1080p@60fps |
|
Bandwidth |
10MHz |
|
Antenna |
Single antenna |
|
Channels |
3 |
|
Camera |
|
|
Mounting Width |
14mm |
|
Mounting Hole |
M2 |
|
Image Sensor |
1/2.9'' CMOS |
|
Lens |
Field of View (FOV): 170° |
|
Video Format |
MP4 |
|
Max Video Transmission Bitrate |
20Mbps |
|
OSD |
Canvas mode |
|
Firmware |
|
|
Input Voltage |
5V |
|
Operating Temperature |
-10℃ to 40℃ |
|
Compatibility |
|
|
Supported FC |
Betaflight FC & BETAFPV FC |
| Ground Station | Air Unit | Actions Required |
| V1 | V1 | Update both to V2 |
| V1 | V2 | Update ground station to V2 |
| V2 | V1 | Downgrade ground station to V1, then update both to V2 |
| V2 | V2 | Ready to use |
Features
Brand:
BETAFPV
