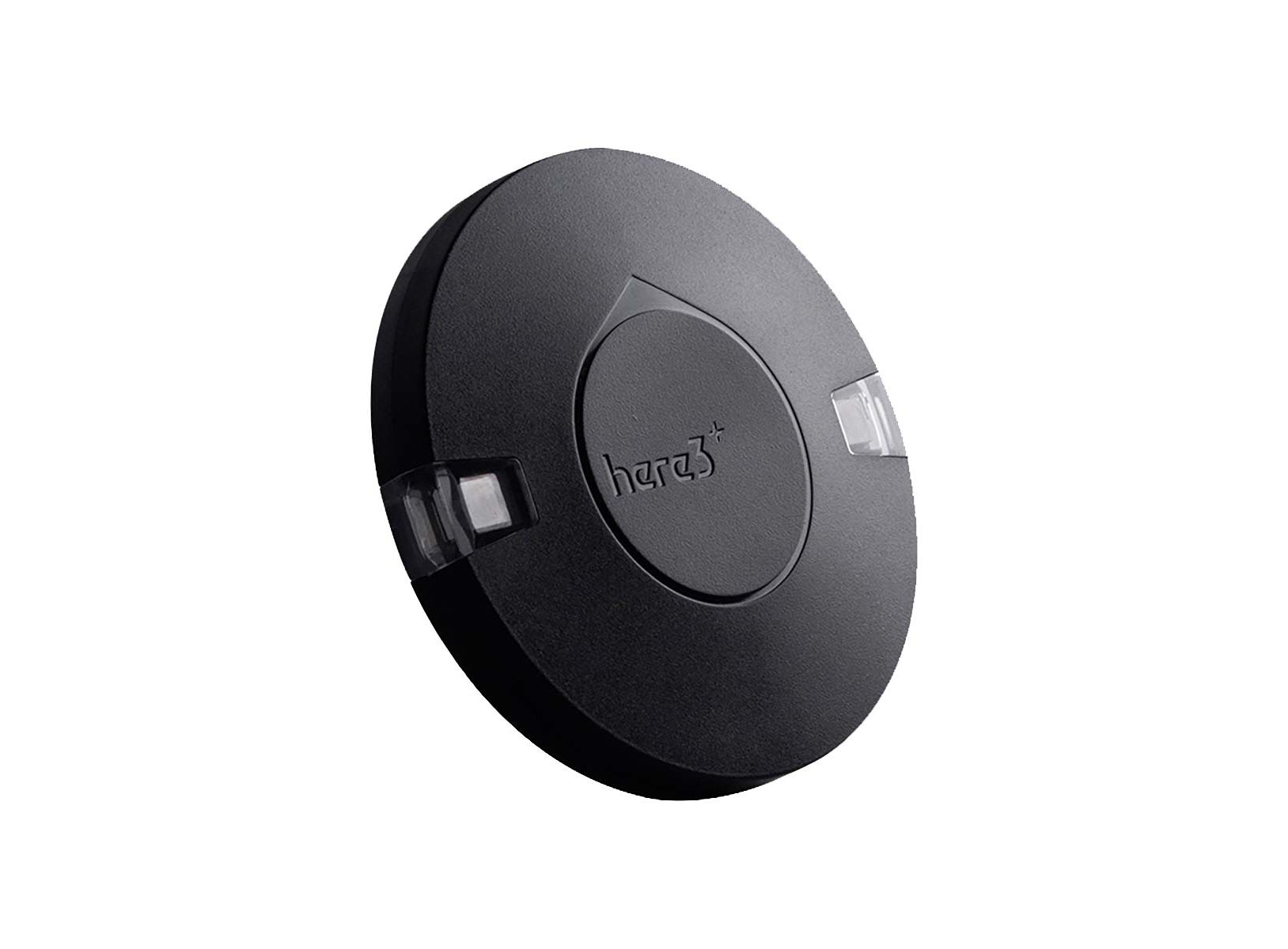

CubePilot Here 3+ with iStand CAN GNSS

CUB-WDM-13676
Hover on image to enlarge
Out of stock at supplier
16.674,84 ₺ + VAT 20.009,81 ₺ VAT included Estimated deliveryUsually 9–25 business days
Ask a question

Minimum quantity for "CubePilot Here 3+ with iStand CAN GNSS" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT
20.009,81 ₺
Deposit at order (50%)
10.004,91 ₺
Balance on delivery (50%)
10.004,90 ₺

This payment breakdown is based on the displayed price of one item.

GNSS / RTK hardware for satellite positioning. Check the model specifications for base or rover operation.

Selected configuration: CubePilot Here 3+ with iStand CAN GNSS

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

Contact us for available payment options.

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Contact us for the products and parts you need.

Description

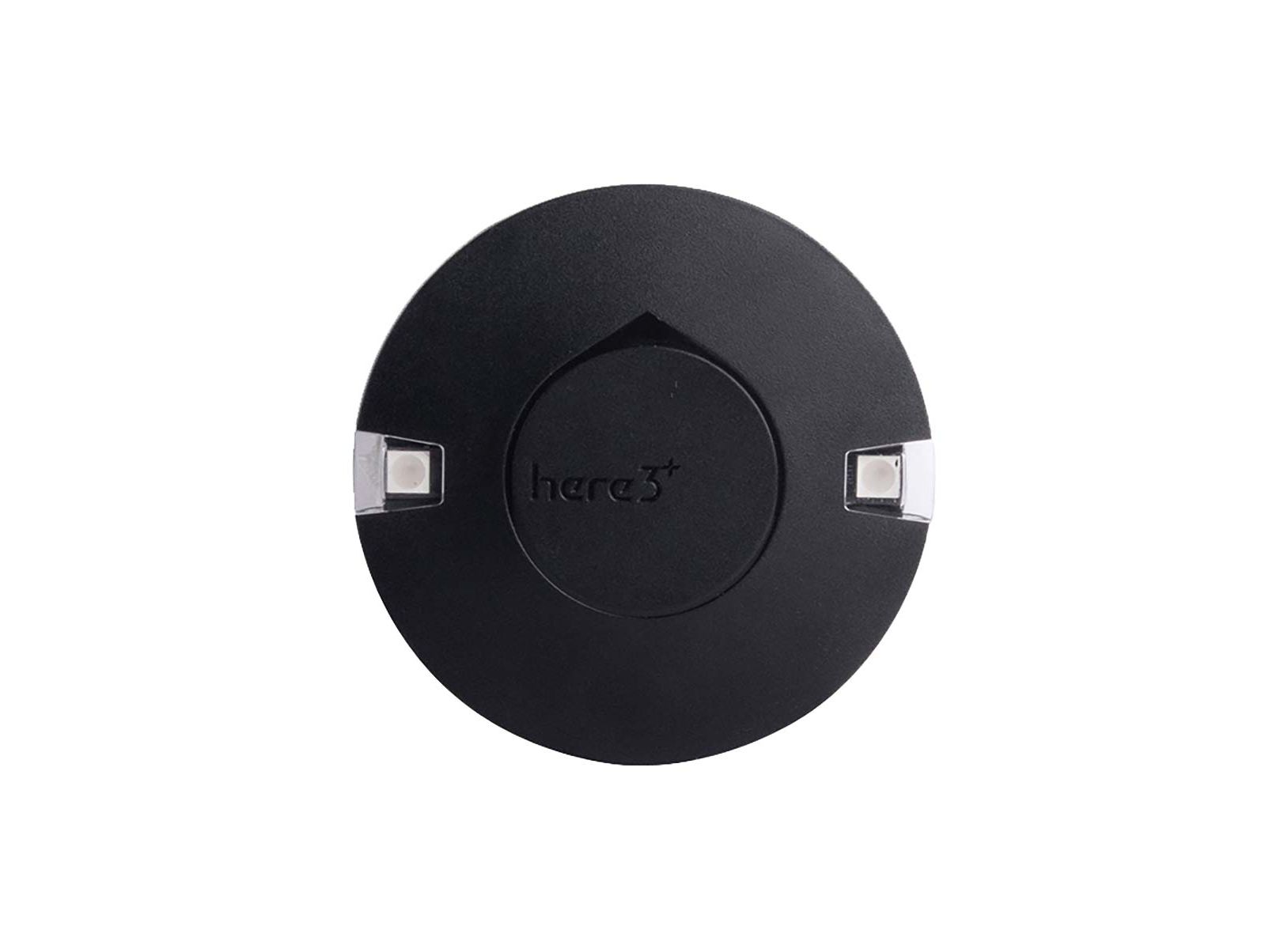

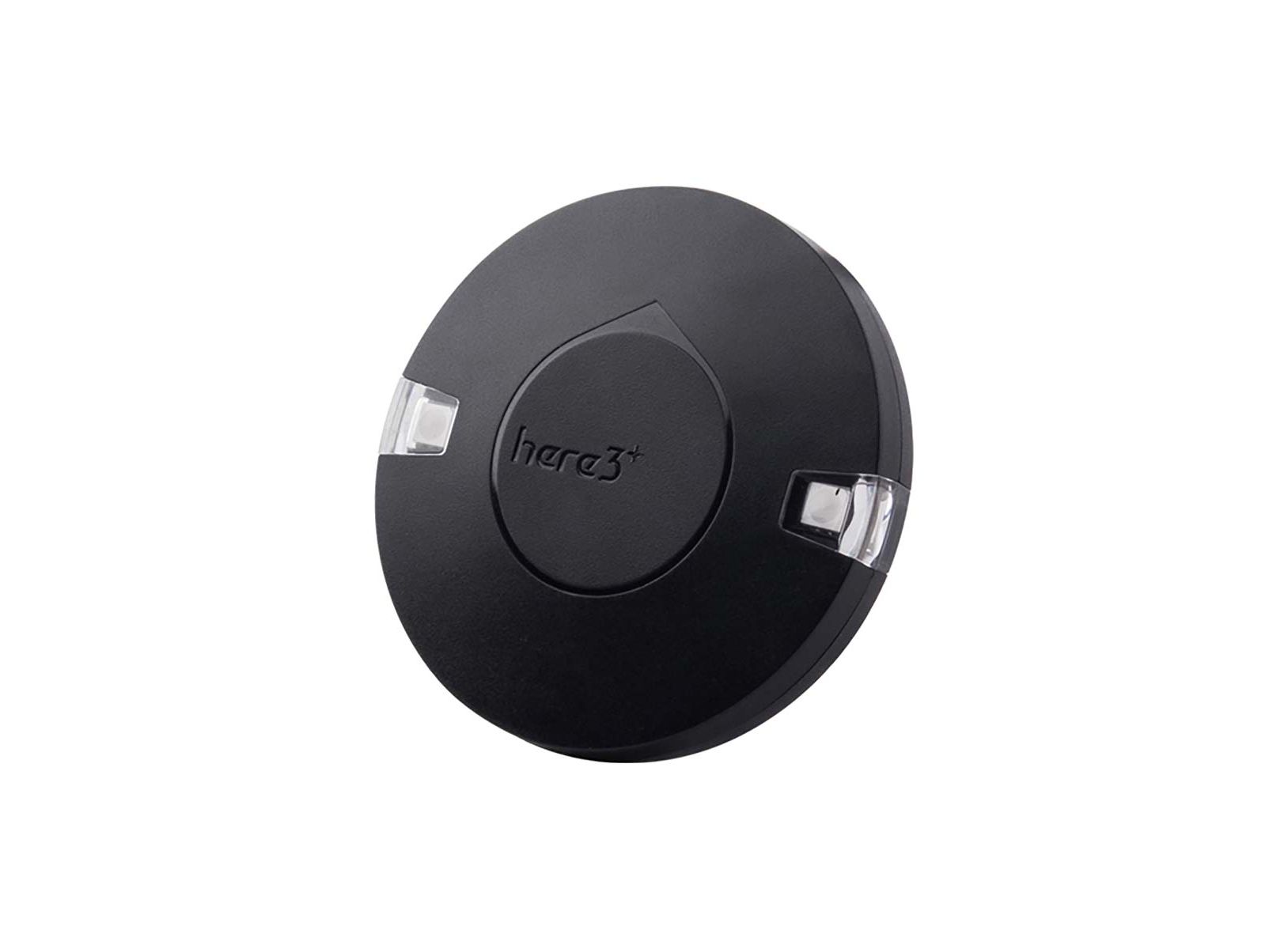

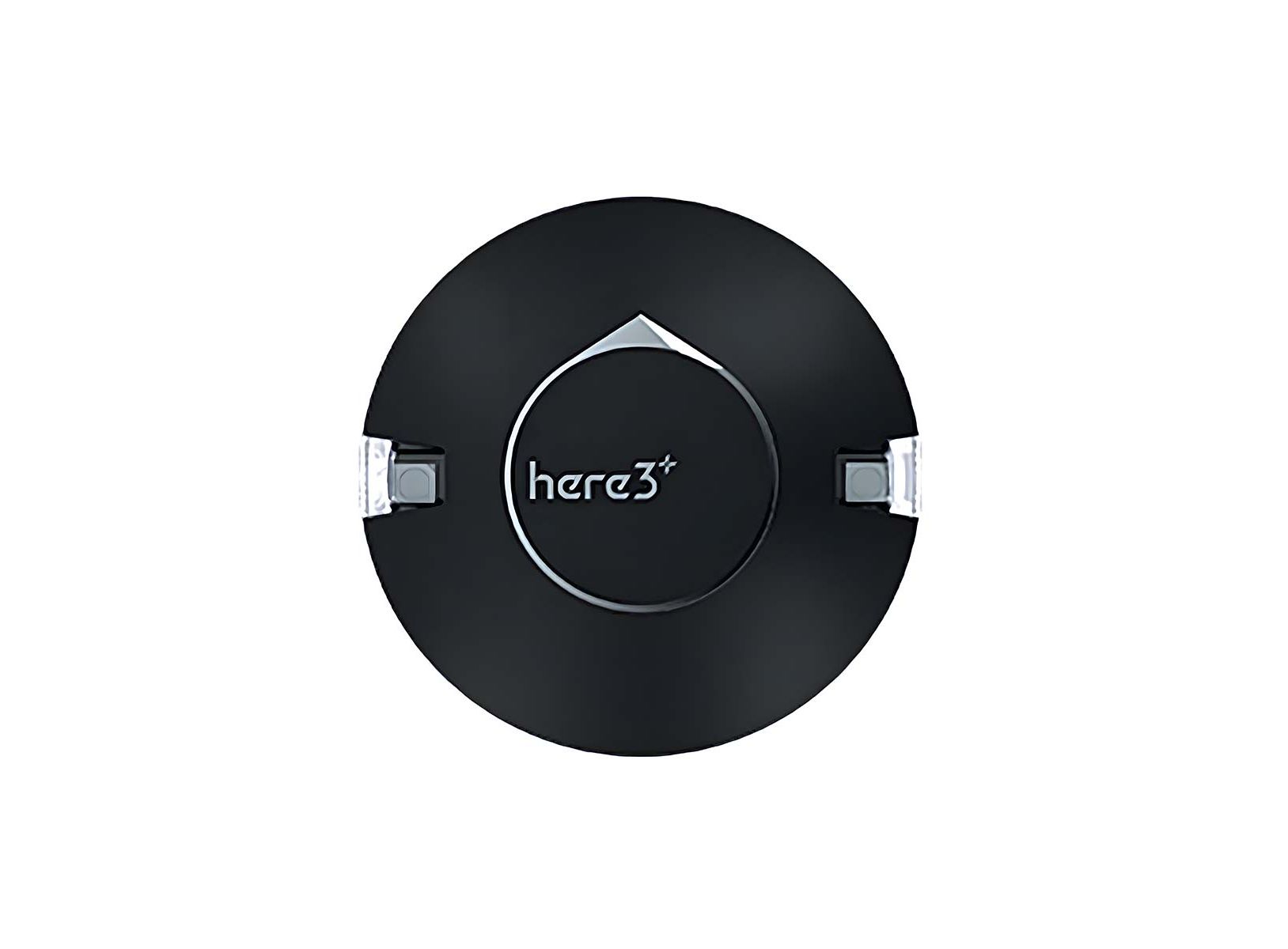

CubePilot Here 3+ with iStand CAN GNSS

GNSS / RTK hardware for satellite positioning. Check the model specifications for base or rover operation.

Selected configuration: CubePilot Here 3+ with iStand CAN GNSS

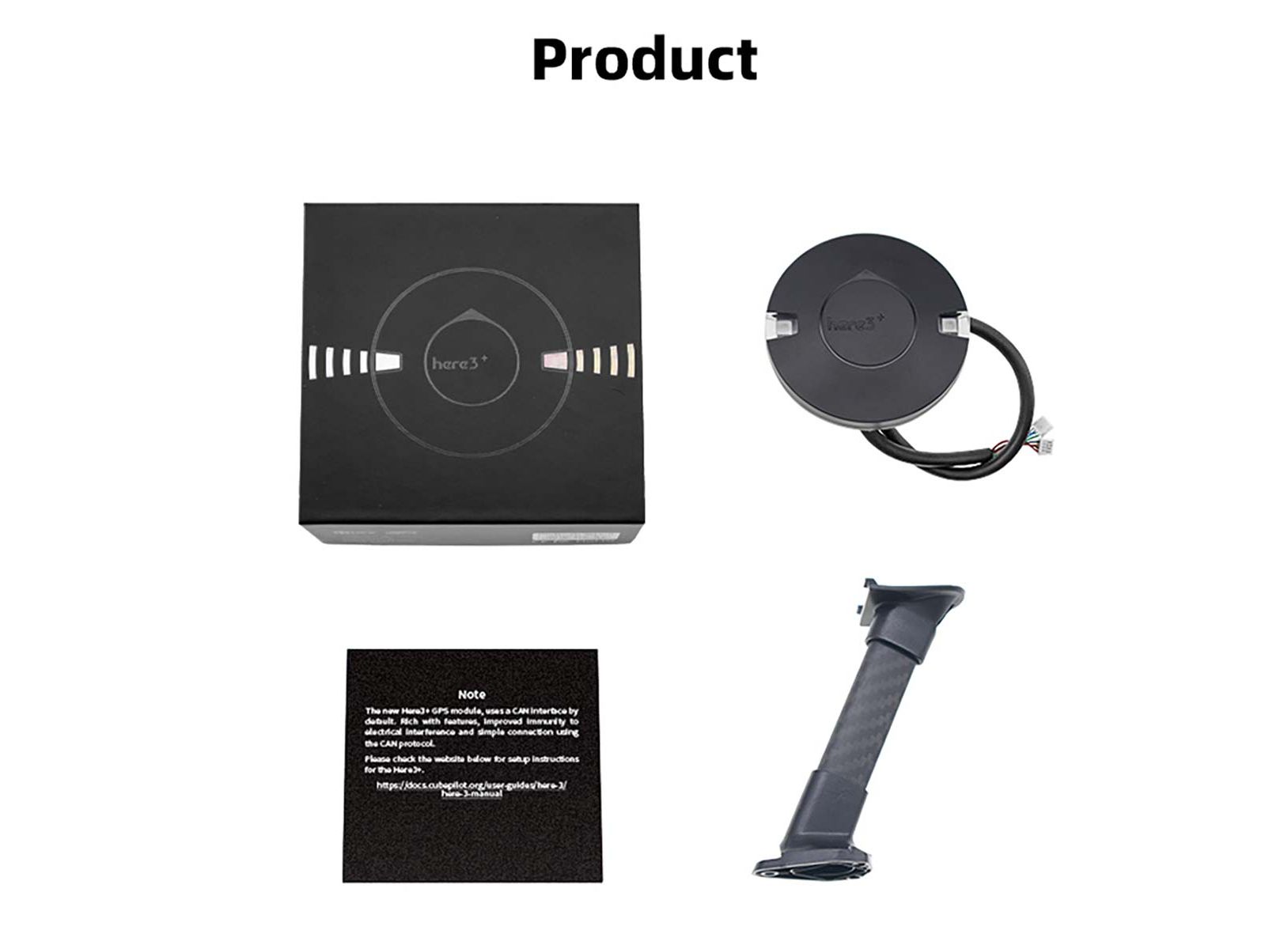

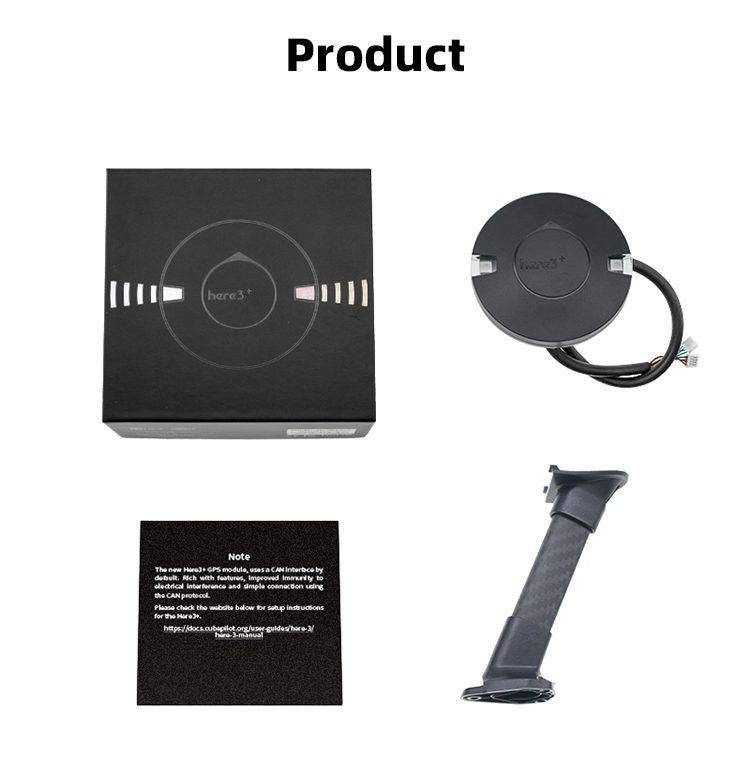

Contents depend on the selected item. Shared images may show other colors, versions or packages.

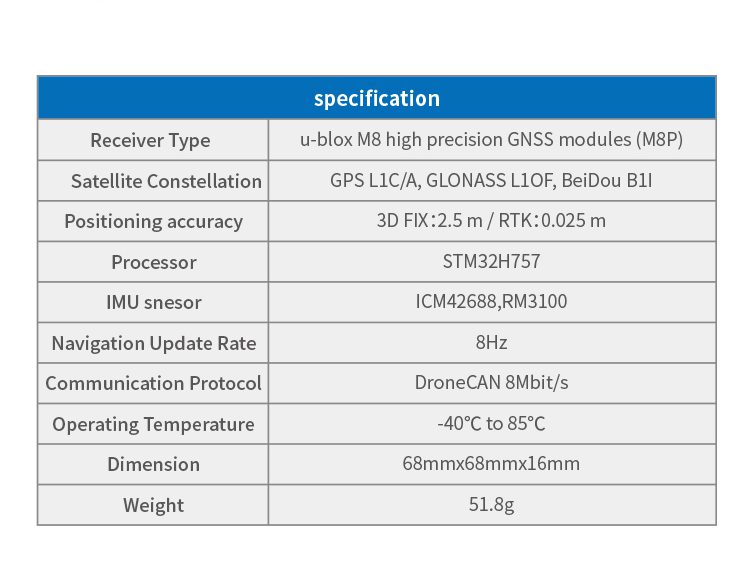

Technical Specifications

Model Here 3 GNSS Here3+

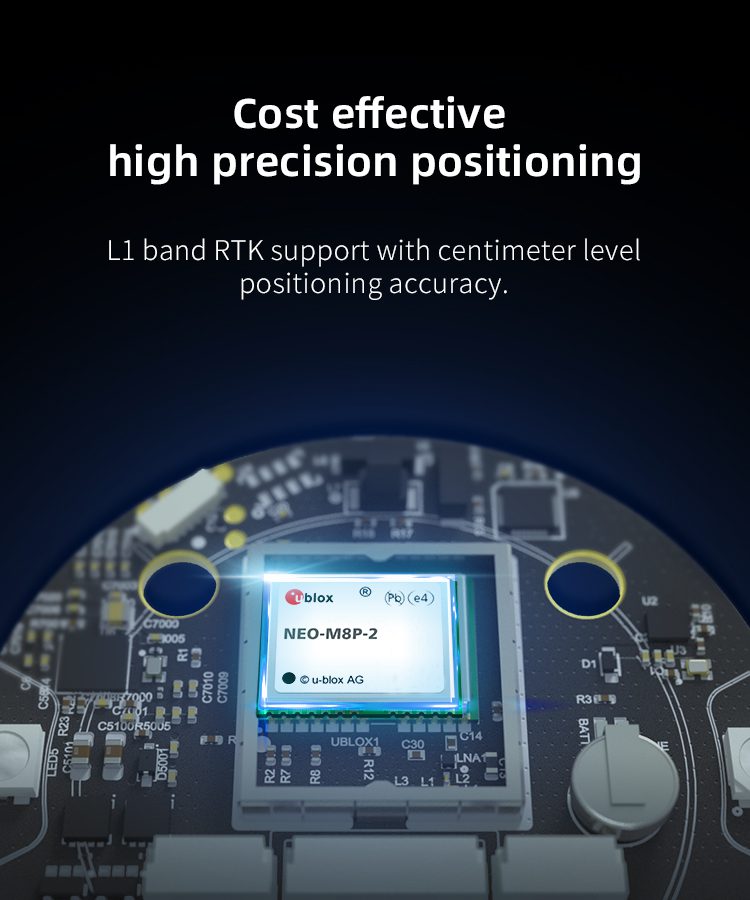

Receiver Type u-blox high precision GNSS modules (M8P-2) u-blox high precision GNSS modules (M8P-2)
Satellite Constellation GPS L1C/A, GLONASS L1OF, BeiDou B1I GPS L1C/A, GLONASS L1OF, BeiDou B1I
Positioning accuracy 3D FIX: 2.5 m / RTK: 0.025 m 3D FIX: 2.5 m / RTK: 0.025 m

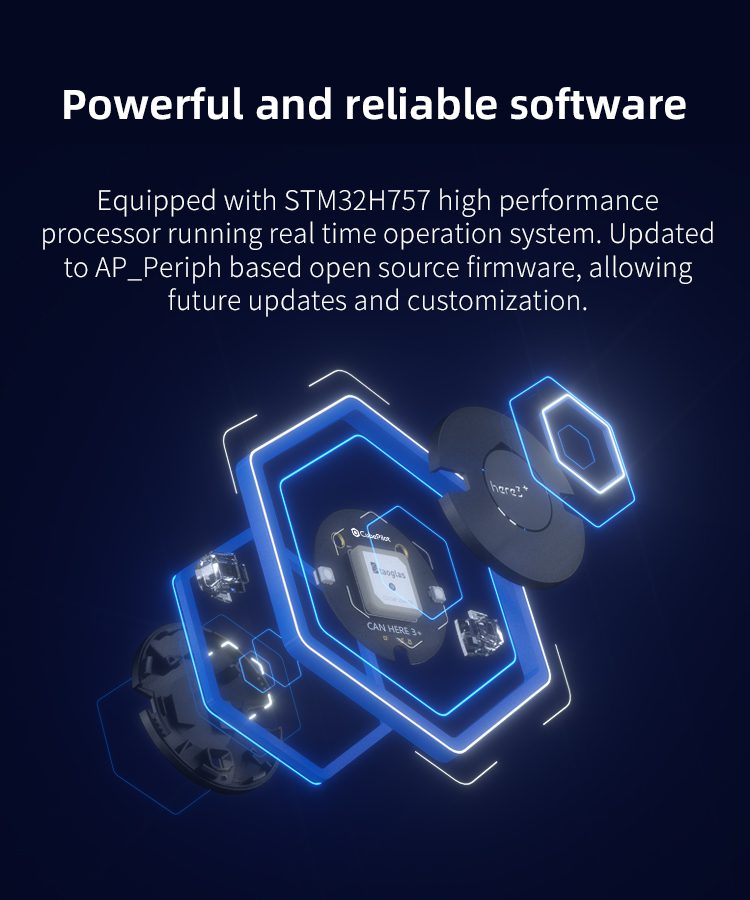

Processor STM32F302 STM32H757

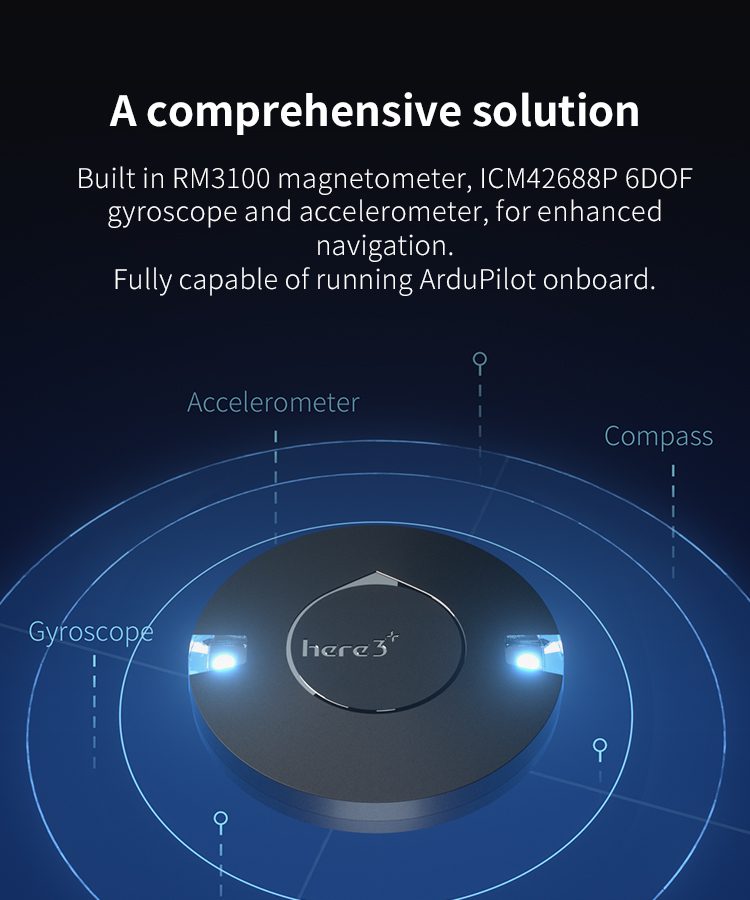

IMU sensor ICM20948 ICM42688,RM3100
Navigation Update Rate 8 Hz 8 Hz
Communication Protocol DroneCAN 1Mbit/s DroneCAN 8Mbit/s
Operating Temperature -40℃ to 85℃ -40℃ to 85℃
Dimension 68mmx68mmx16mm 68mmx68mmx16mm
Weight 48.8g 51.8g

Product Details and Technical Images

CubePilot Here 3+ with iStand CAN GNSSCubePilot Here 3+ with iStand CAN GNSSCubePilot Here 3+ with iStand CAN GNSSCubePilot Here 3+ with iStand CAN GNSSCubePilot Here 3+ with iStand CAN GNSSCubePilot Here 3+ with iStand CAN GNSSCubePilot Here 3+ with iStand CAN GNSS
Features
Brand:
CubePilot
