RadioMaster XR1 Nano Multi-Frequency ExpressLRS Receiver — Dual-Band / FCC

Home/Radio Controllers & Receivers/RC Receivers/RadioMaster XR1 Nano Multi-Frequency ExpressLRS Receiver — Dual-Band / FCC

CODE:RMS-OFF-46486320447680

Hover on image to enlarge

Sourced to Order

1.176,07 ₺ + VAT 1.411,48 ₺ VAT included Estimated deliveryUsually 9–25 business days

Region:

FCC LBT

Antenna Type:

2.4GHz Dual-Band Sub-G 900MHz

Ask a question

Minimum quantity for "RadioMaster XR1 Nano Multi-Frequency ExpressLRS Receiver — Dual-Band / FCC" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

This payment breakdown is based on the displayed price of one item.

Receiver for compatible radio-control systems. Check protocol, frequency and connector compatibility before ordering.

Selected configuration: Dual-Band / FCC

CODE	Region	Antenna Type	Price
RMS-OFF-46486320480448	FCC	2.4GHz	1.176,07 ₺ + VAT 1.411,48 ₺ VAT included
RMS-OFF-46981630591168	LBT	2.4GHz	1.176,07 ₺ + VAT 1.411,48 ₺ VAT included
RMS-OFF-46486320447680	FCC	Dual-Band	1.176,07 ₺ + VAT 1.411,48 ₺ VAT included
RMS-OFF-46981630558400	LBT	Dual-Band	1.176,07 ₺ + VAT 1.411,48 ₺ VAT included
RMS-OFF-46486320513216	FCC	Sub-G 900MHz	1.176,07 ₺ + VAT 1.411,48 ₺ VAT included
RMS-OFF-46981630623936	LBT	Sub-G 900MHz	1.176,07 ₺ + VAT 1.411,48 ₺ VAT included

DroneStore Benefits

Pay 50% when ordering and the remaining 50% upon delivery.

Earn reward points with your purchases.

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

We are here to support you after your purchase.

Description

Receiver for compatible radio-control systems. Check protocol, frequency and connector compatibility before ordering.

Selected configuration: Dual-Band / FCC

Contents depend on the selected item. Shared images may show other colors, versions or packages.

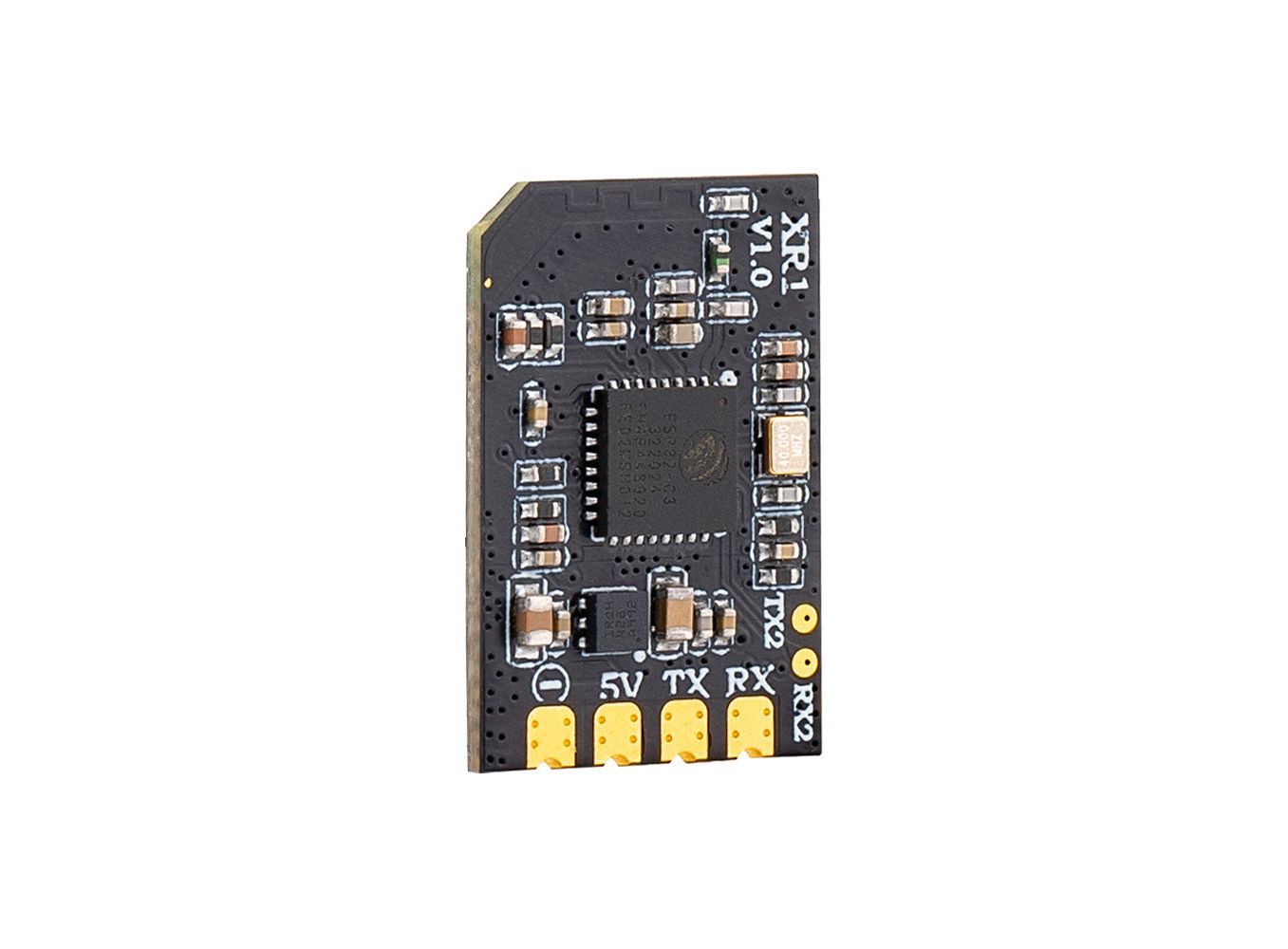

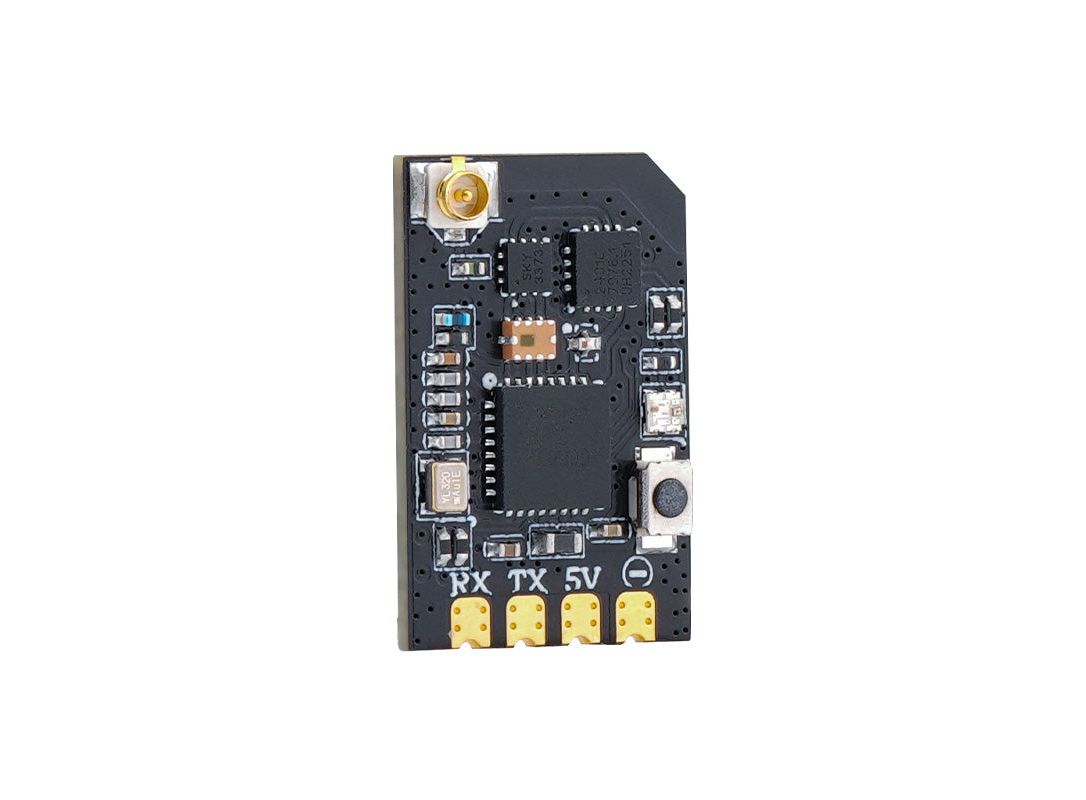

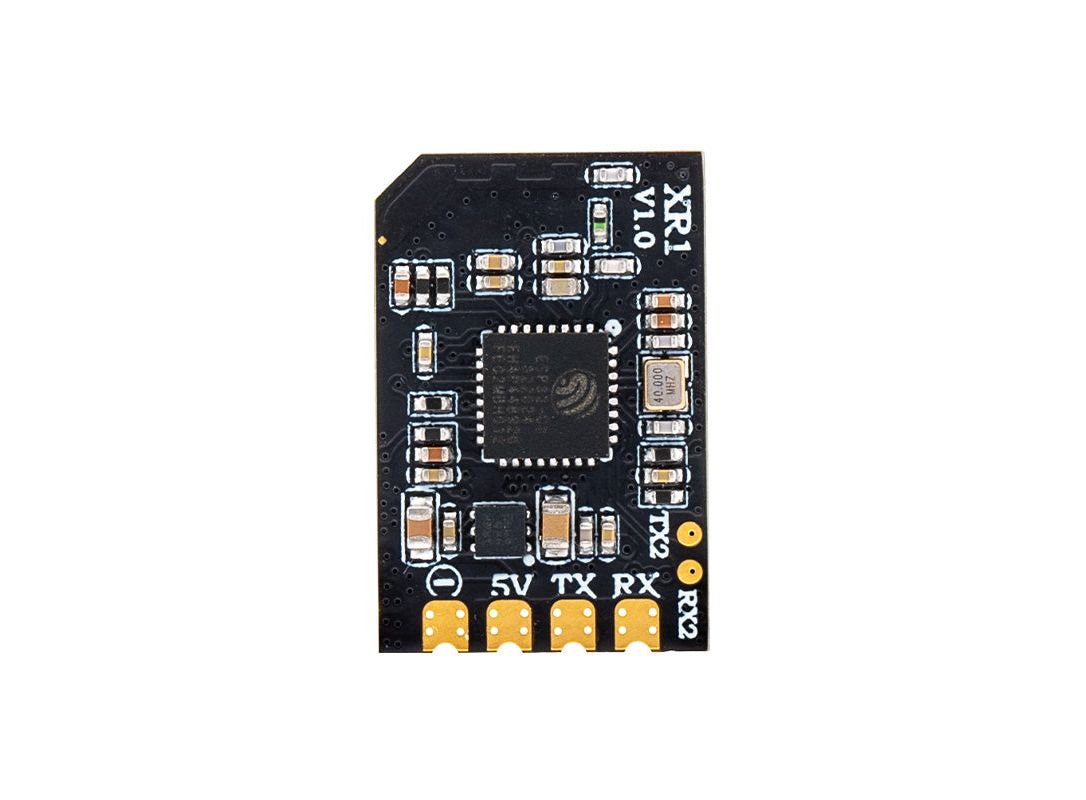

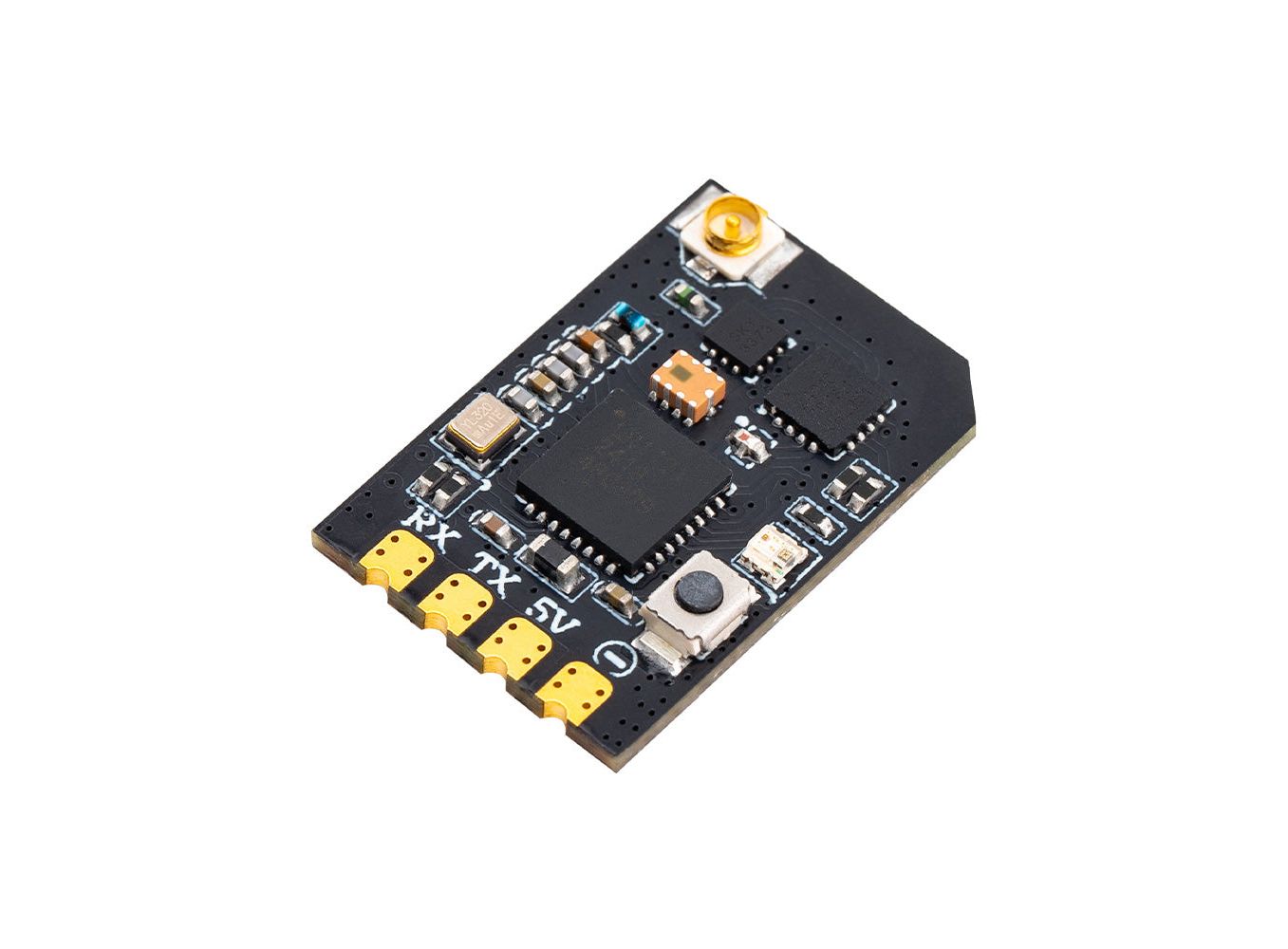

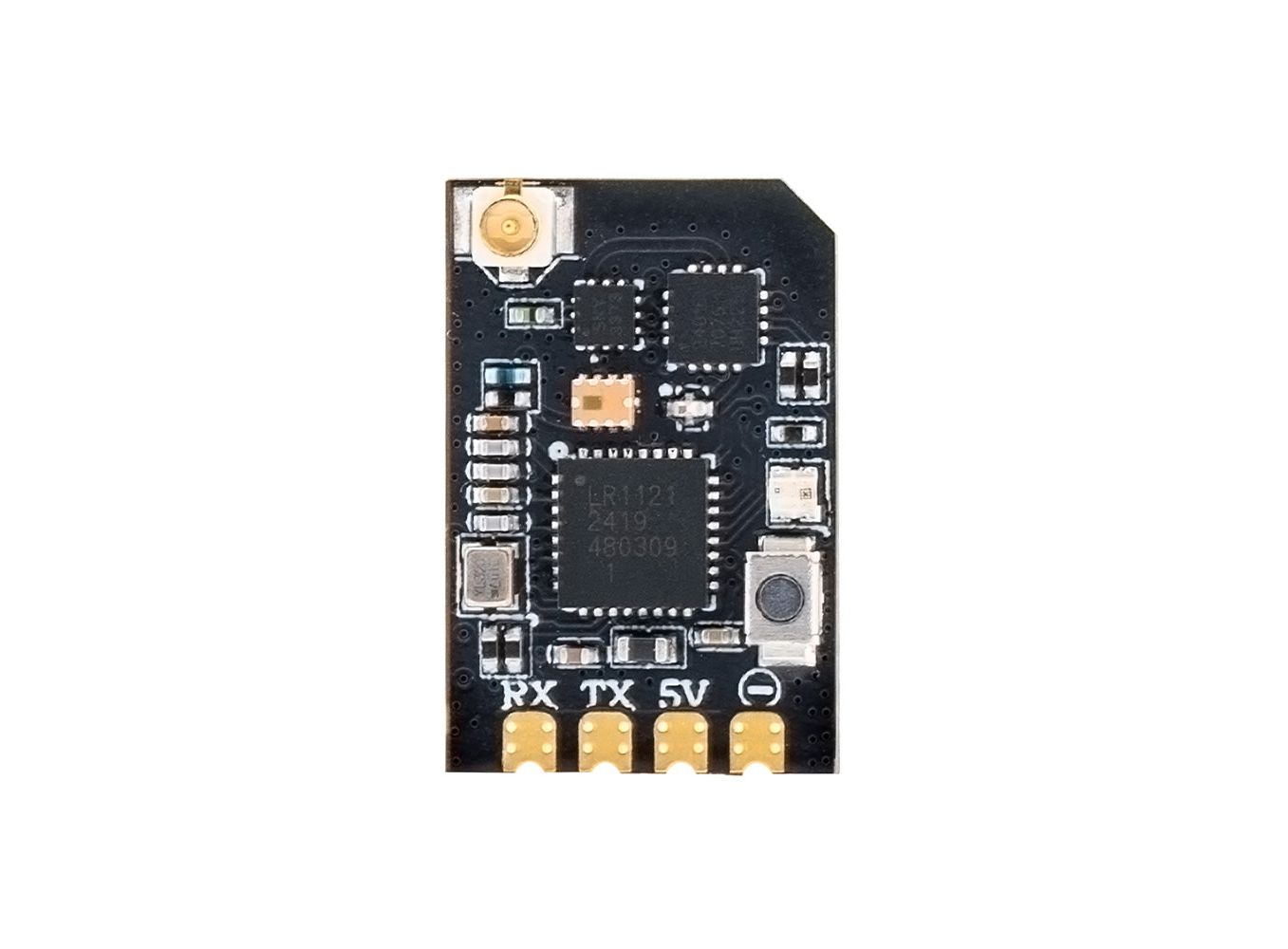

Item: XR1 Nano Multi-Frequency ExpressLRS Receiver
Type: ISM2.4 or CE868
MCU: ESP32C3
RF chip: Semtech LR1121
RF connector: IPEX-1

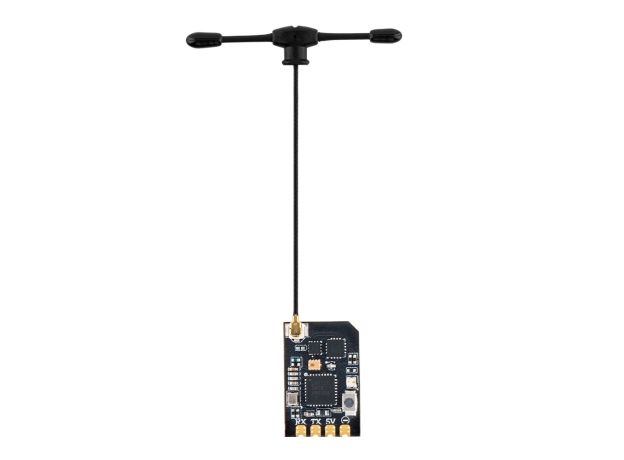

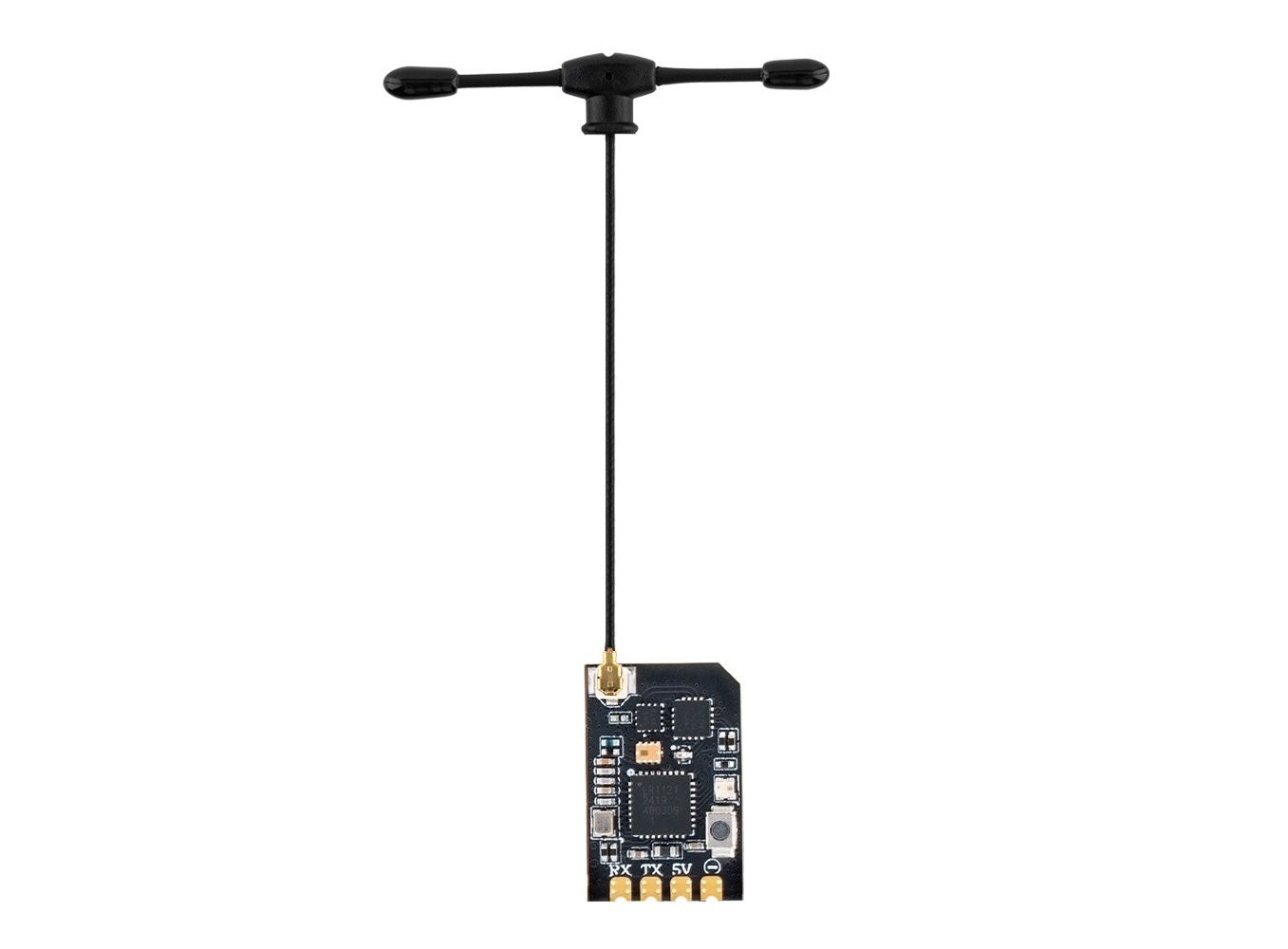

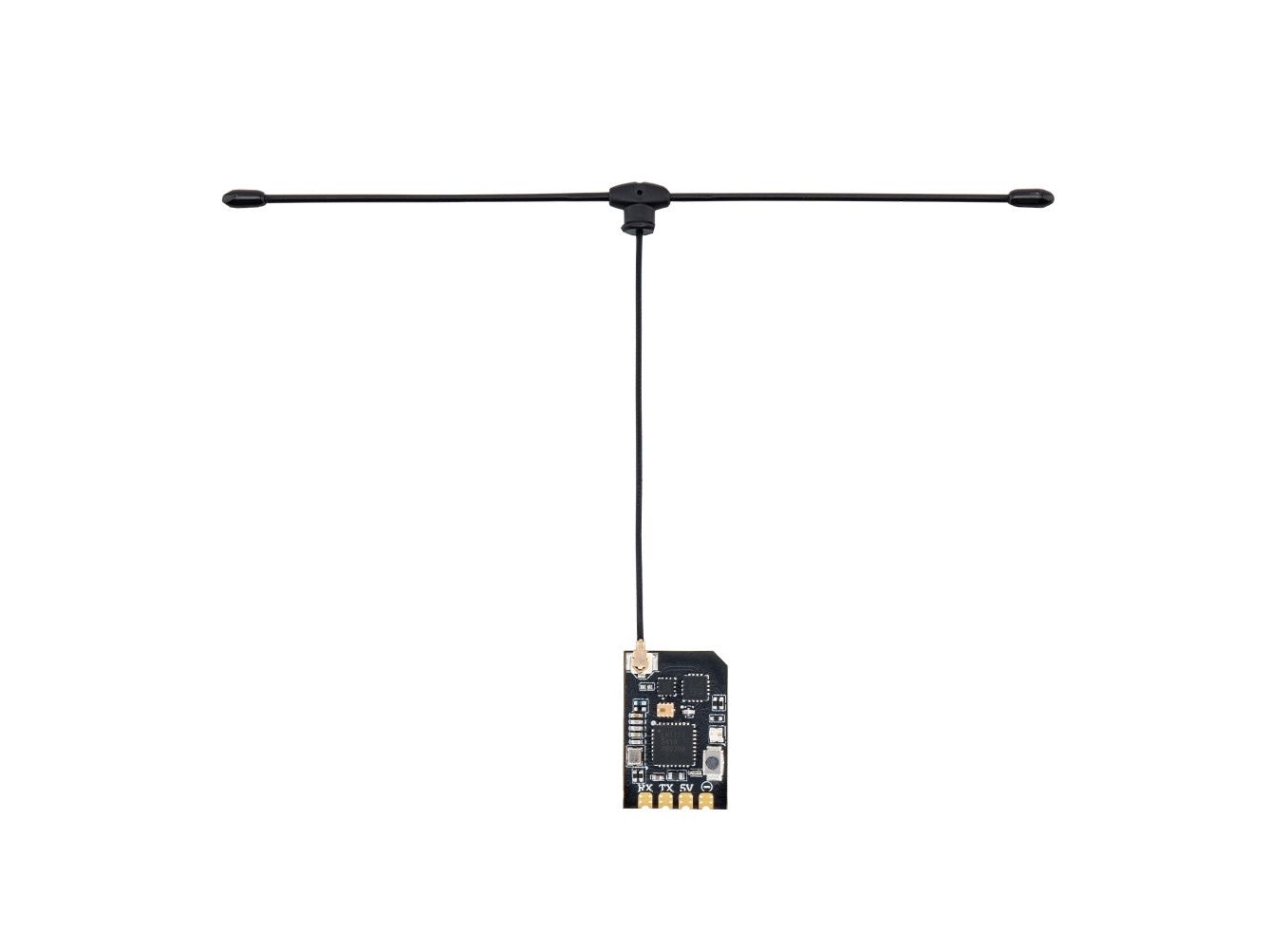

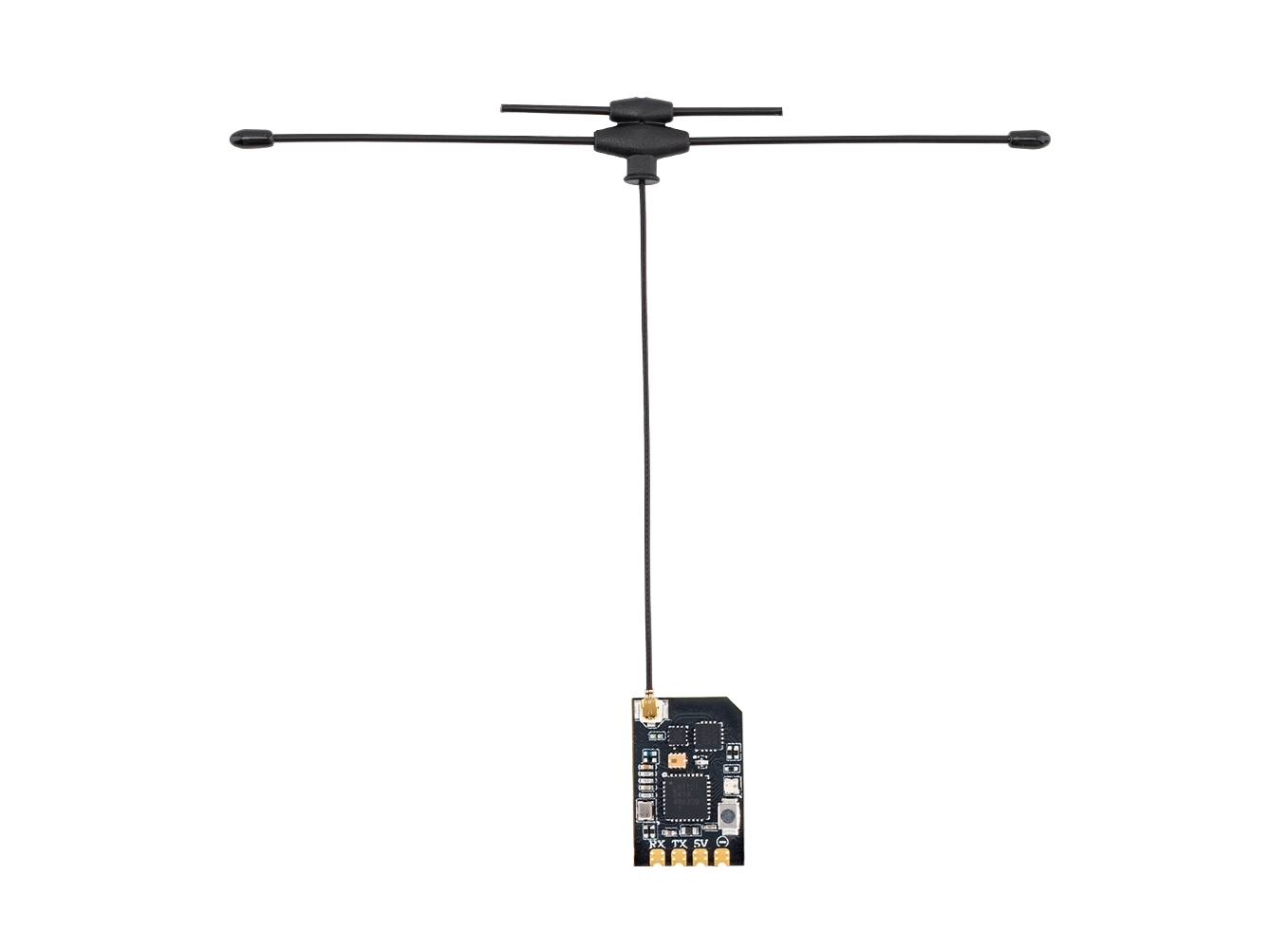

Antenna: 1x T-Antenna (Either 2.4GHz, 900Mhz or Dual-band depending on selected package)
Frequency Range: 2.4GHz or Sub-G 900MHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz / K1000Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 1.0g (without antenna)
Dimension: 20mm * 13mm * 3mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target: RadioMaster XR1 2.4/900 RX
Bus interface 1: CRSF
Bus interface 2: UART

Features
