Introduction:

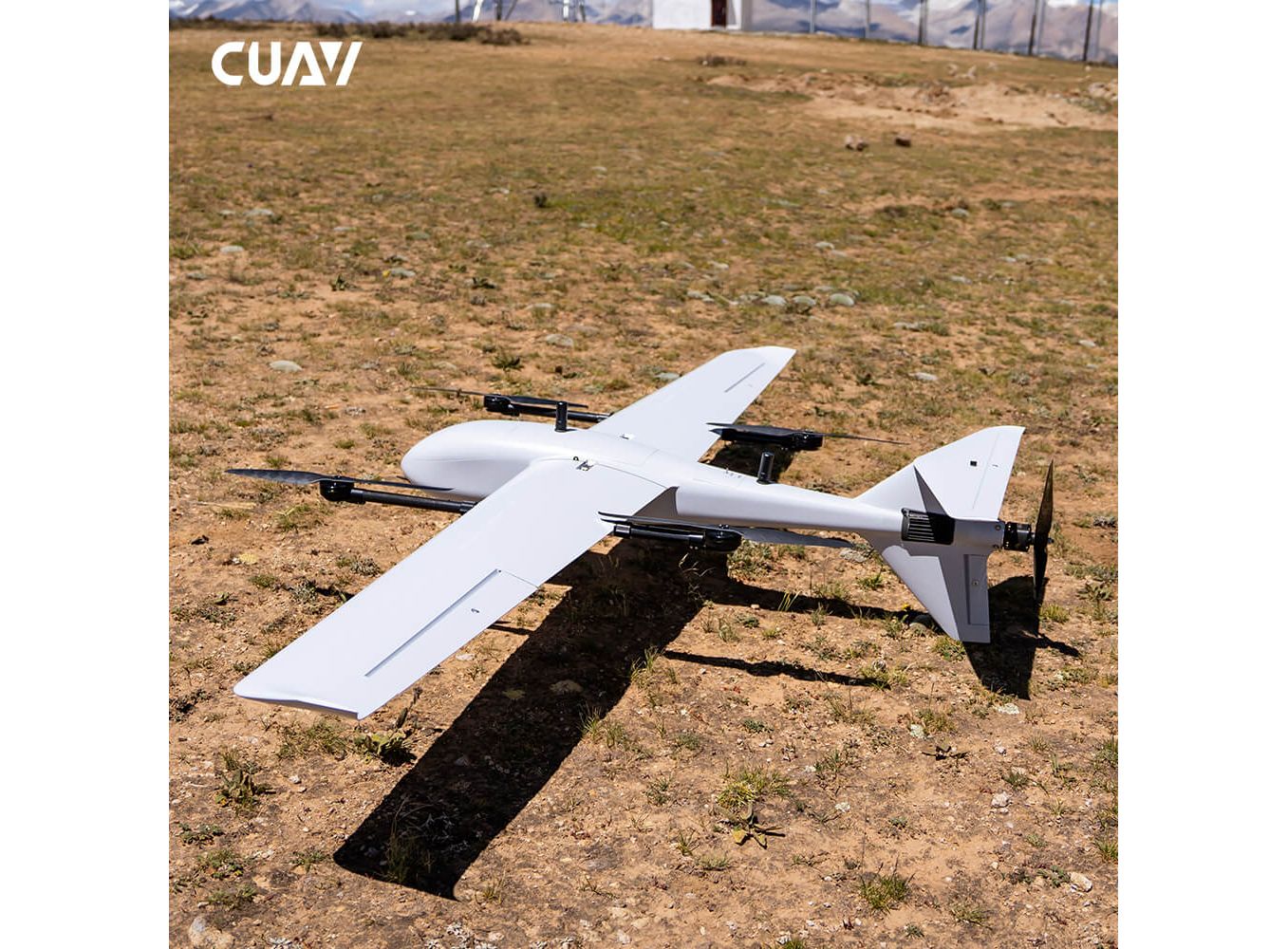

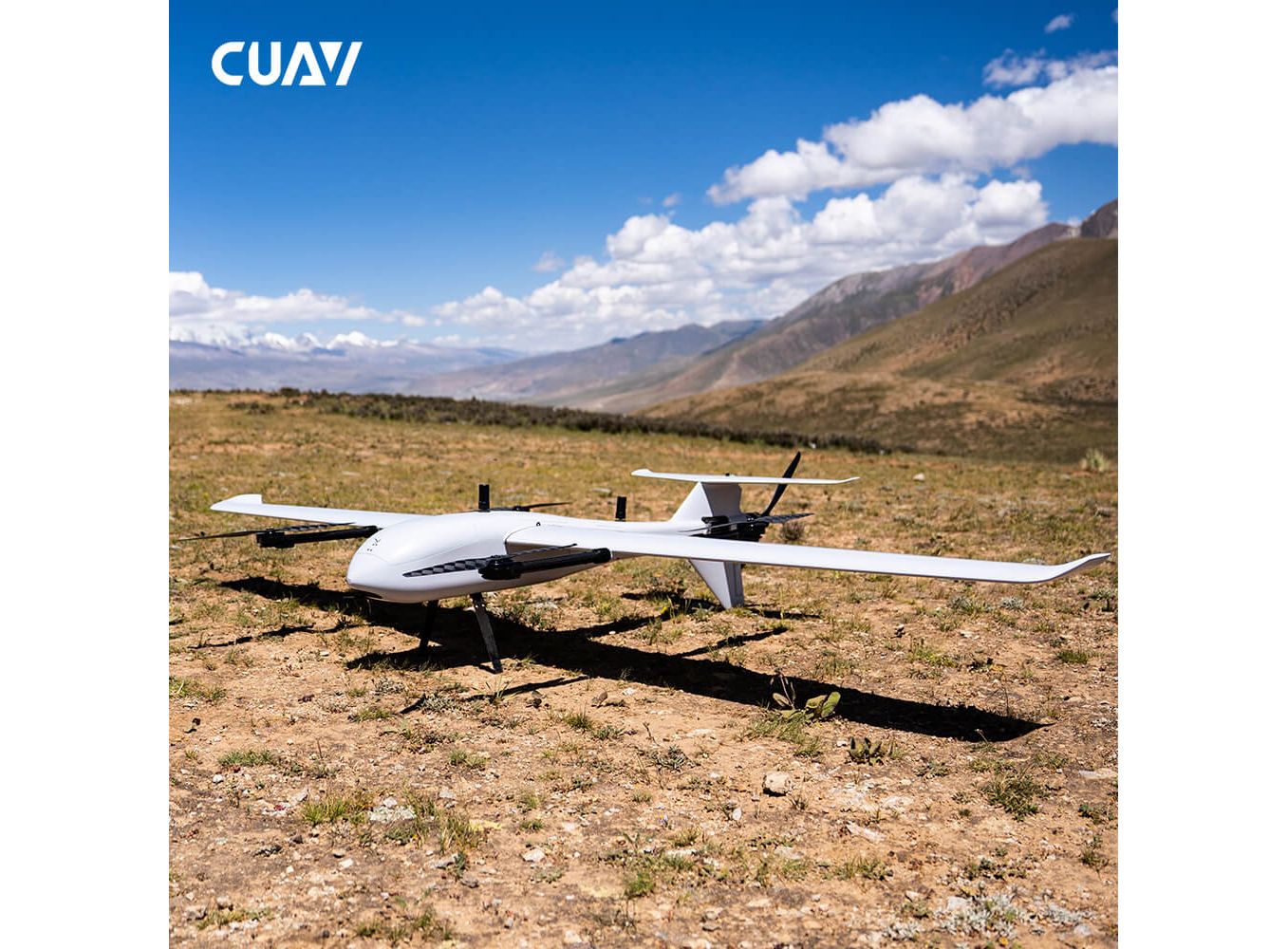

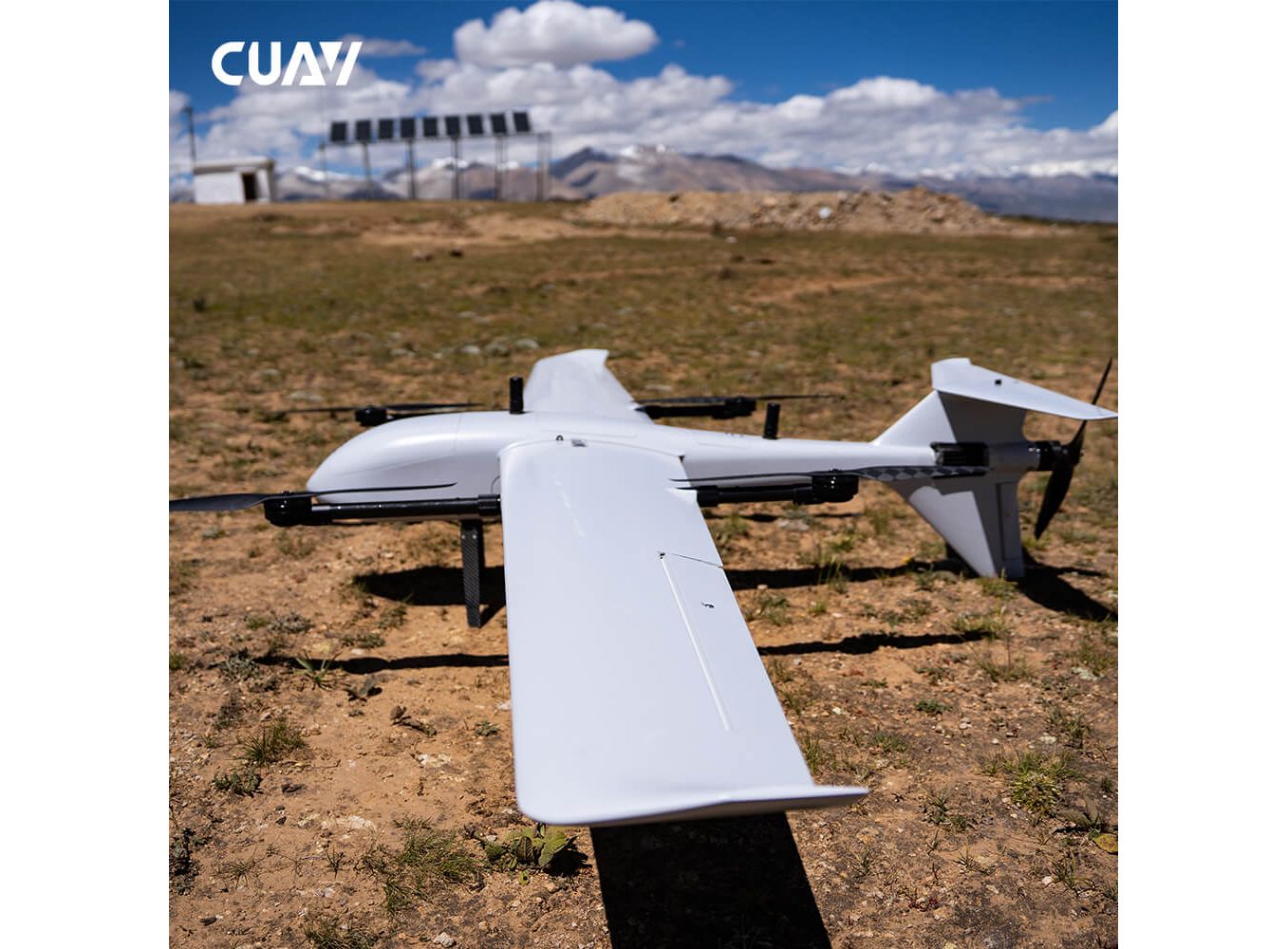

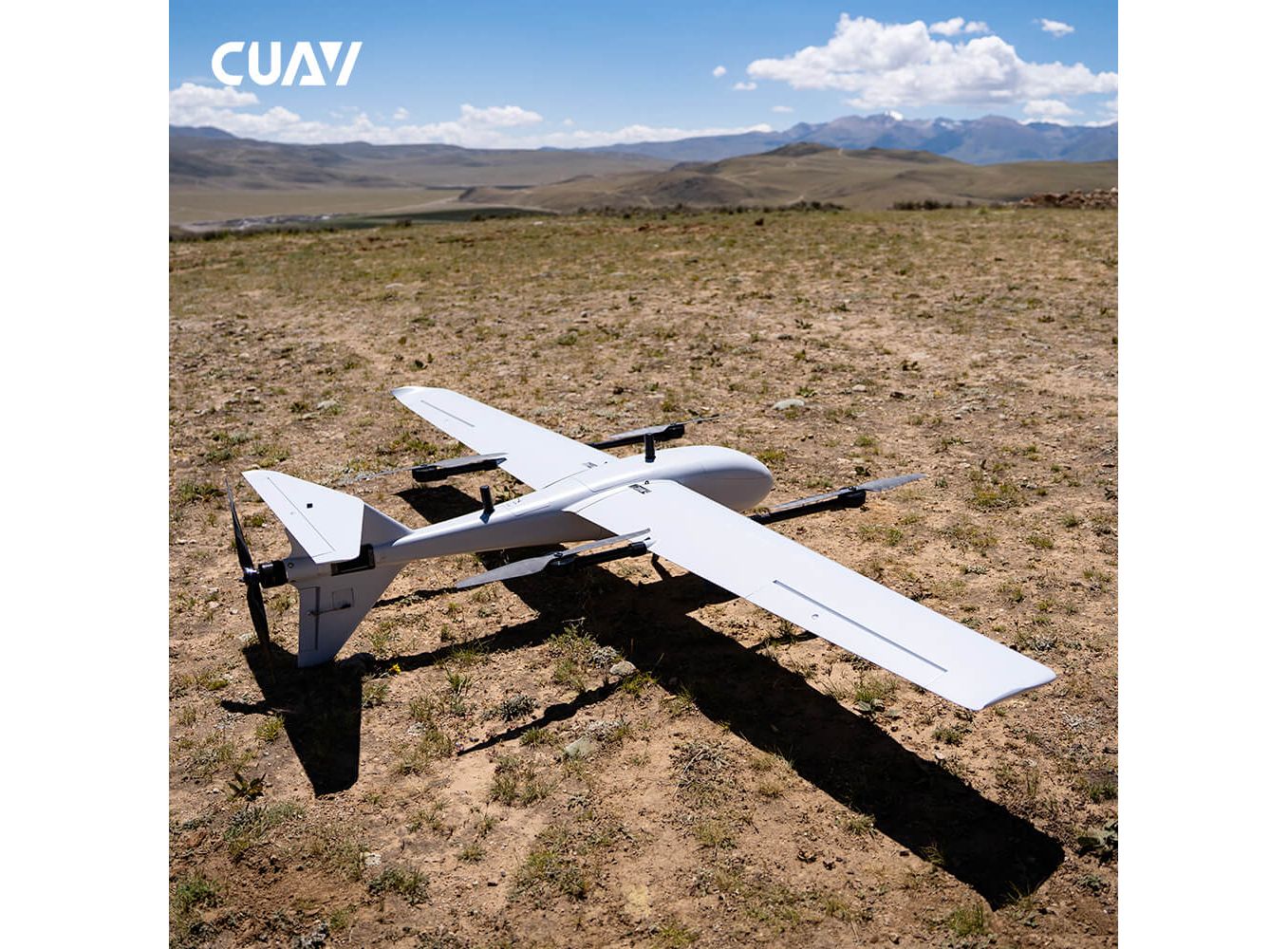

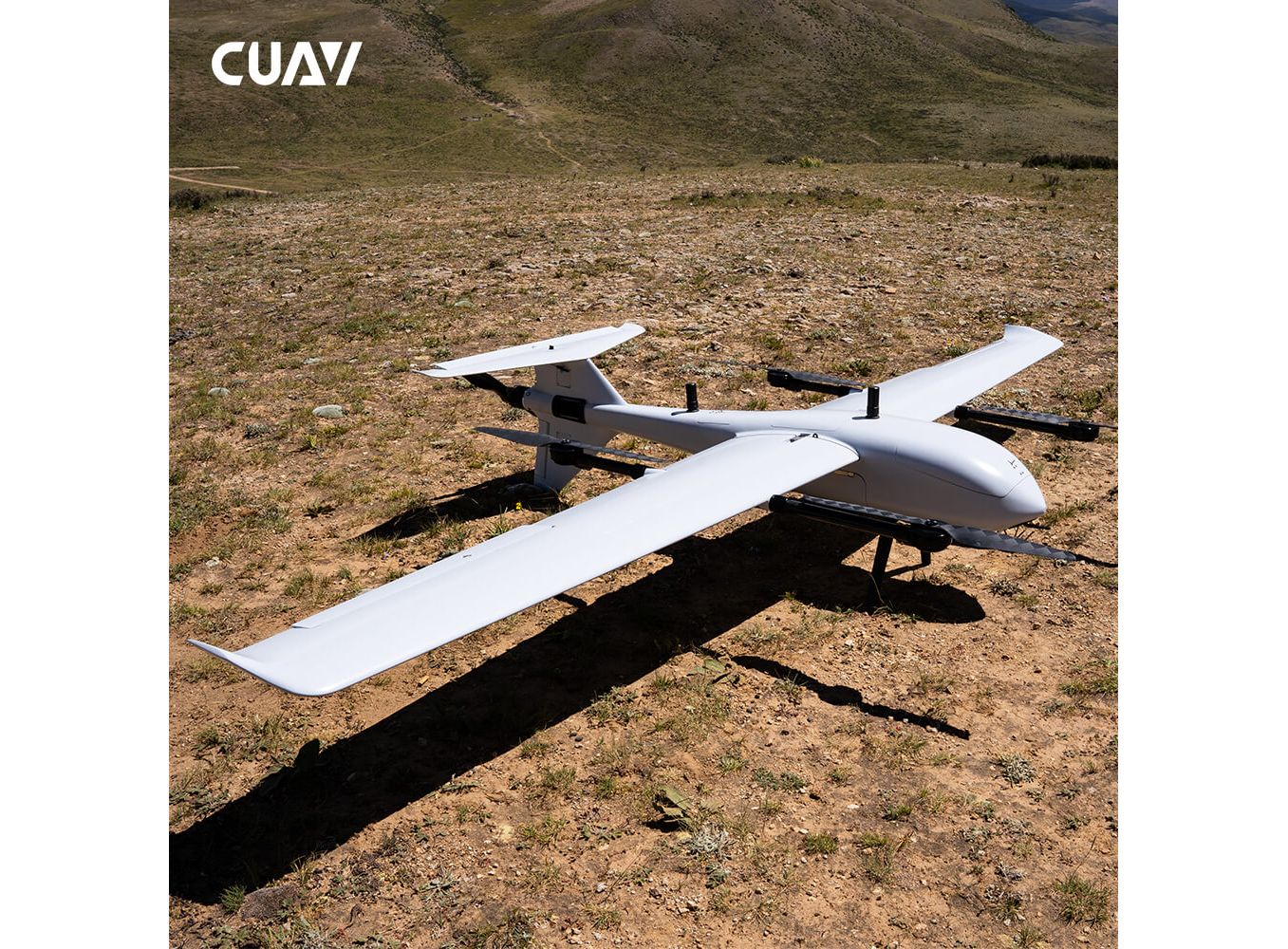

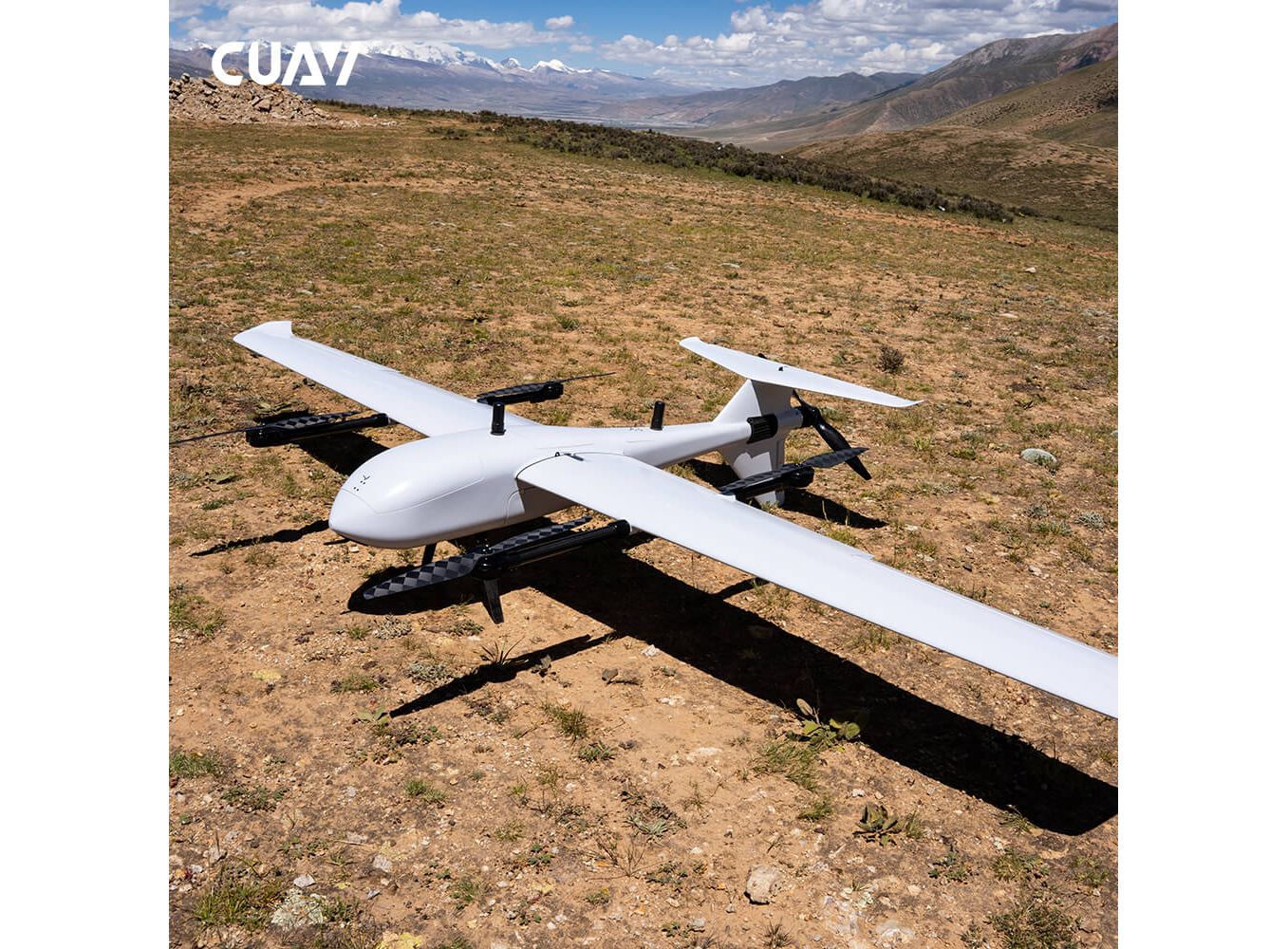

The new generation Raefly VT290 composite VTOL UAV, with a fluid design, has significantly reduced flight drag. Split design, support tool-free quick disassembly. Equipped with a passive cooling air channel, the maximum support 5kg load, equipped with a quick disassembly load tank, fast replacement task mount, improves the comprehensive application experience of aerial surveying and mapping, wide-area inspection, material delivery, and other application fields.

Raefly VT290 VTOL UAV Description:

Raefly VT290 Electric VTOL UAV Main Feature and Description:

• Lightweight Design, 5kg Payload
• Fluid Design with Small Resistance & Long Endurance
• Pushback Motor Design, High Efficiency, and Good Vision
• High Quality Intelligent Components, Safeguarding Flight Safety

Quick disassembly design portable storage

The fuselage adopts a split design, which can be quickly installed without a screwdriver. The aviation plug can be inserted for a long time without affecting its fastening. The upgraded folding and storage design improves operational efficiency. efficiency and makes the transportation more portable

High Strength Carbon Pipes

The connection of the wing is made of customized high-strength carbon pipeswhich maintain a good wing condition under a 5kg payload.

High Quality Intelligent Components Safeguarding Flight Safety

• Autopilot controller supports inertial navigation, enabling intelligent navigation without GPS*
• Automatic ice melting and drainage SKYE intel-ligent airspeed meter
• DronCAN ESC, real-time monitoring of electrical regulation temperature and other states

Dual Antenna Estimate Yaws Fearless of Strong Magnetic Environments

The Raefly VT290 is equipped with a dual antenna heading module instead of a magnetic compass. Fearless of magnetic field interference caused by internal equipment and external environment, abandoning complex compass calibration procedures

Lightweight Design, 5kg payload

The wingspan of Raefly VT290 is 2900mm. The larger wingspan provides the aircraft with greater lift. At the same time, the fuselage is made of light weightand high strength carbon fiber composite material, which makes the maximum payload up to 5kg

Fluid Design with Small Resistance & Long Endurance

The Raefly VT290 has a fluid design that incorporates aerodynamic design. The flight resistance is small, and the endurance range is up to 370km.

Pushback Motor Design High Efficiency and Good Vision

Pushback motor design with low KV, large pitch propellers for higher motor efficiency without blocking the camera view

Press and Push to Change the Payload

Raefly VT290 adopts a quick disassembly payload cabin, which can quickly replace the load, cope with different operation scenarios, and realize a machine with multiple applications

Multifunctional Vertical Tail Design

The vertical tail of the Raefly VT290 is cleverly designed to prevent the tail propeller from touching the ground, and also serves as a tripod, and the internal space is reserved for installing the link antenna
