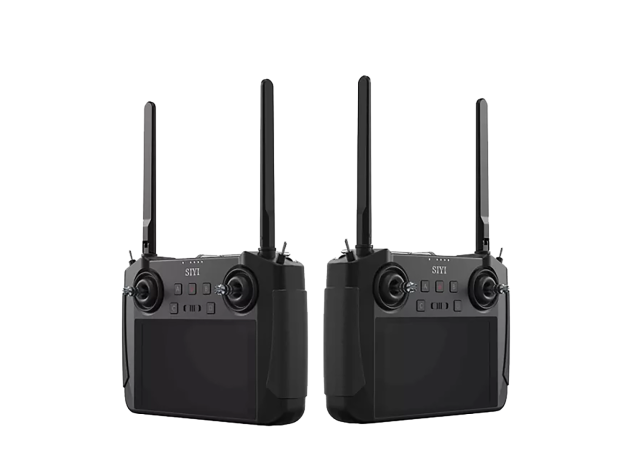

SIYI MK15E Mini HD Handheld Smart Controller — Enterprise Standard Combo

SIYI MK15E Mini HD Handheld Smart Controller — Enterprise Standard Combo

Designed for unmanned-vehicle control and ground-station applications. Controller, receiver and camera contents depend on the selected package.

Selected configuration: Enterprise Standard Combo

Contents depend on the selected configuration. Shared product images may show other packages.

SIYI MK15E Mini HD Handheld Smart Controller

SIYI MK15E Mini HD Handheld Smart Controller is a long range Android smart controller with dual 1080p FPV, based on the full high-definition image transmission technology, which is completely and independently developed by SIYI Technology. The system is deeply optimized and integrated with Qualcomm 8-core CPU platform. MK15E’s abundant features and powerful performance make it a commonly applied device of reliable image transmission and solid control on agriculture drones, commercial drones, unmanned vehicles and boats, and robotics.

• Qualcomm Snapdragon 8-Core CPU
• Android 9.0
• Transmitter HDMI Output
• IP53 Transmitter
• H.264 H.263 1080P 60FPS Hardware Decoding
• Secondary Controller
• LONG Range
• 1080P Two-Way HD Digital Image Transmission
• 4G
• 3.5H PD Fast Charging
• 12H Battery Life
• 180ms Low Latency
• 1080P HD Screen
• 1000 cd/m2 High Brightness

Long Range 1080Plmage Transmission

Once again SIYI made a breakthrough, applying this brand new and cutting edge high-definition image transmission technology on MK15E successfully. The technology comes with a smart ability to adapt its transmission to better frequency bands, which means it always goes to work on the band with least interference. With the standard omni directional antennas, MK15E system’s effective range can reach very long range with full HD image transmission, real-time telemetry, and stable control.

Dual Full HD Low-Latency Video Stream Display

MK15E receiver support standard RTSP video stream input through its standard ethernet port directly or converted by HDMI module. The stream is up to two-way 1080p video simultaneously, latency low to *180ms. The pre-installed SIYI FPV application supports switching display of two video streams between the main screen and the floating window, and the video stream SDK is fully open to developers. On agriculture drones, the feature works with front camera and back camera for almost 360-degree visual protection. On enterprise drones, the two-way video stream
makes it ultimately possible for integrating optical camera and thermal imaging camera through one link.

*The 180ms latency is an average result measured by using SIYI standard IP camera under the following conditions:

H.265 format, 720p @ 30 fps, displayed in QGC v4.1 (low-latency mode): end-to-end latency is between 130 and 180ms.

H.265 format, 1080p @ 30 fps, displayed in QGC v4.1 (low-latency mode): end-to-end latency is between 180 and 250ms

Superior Performance

SIYI MK15E Mini HD Handheld Smart Controller transmitter carries Qualcomm Snapdragon 8-core CPU, which can decode 1080p @ 60fps video stream by hardware in both H.264 and H.265 format. The CPU’s powerful computational performance lowers image transmission and display latency to 180ms. *Transmitters coming with MK15 enterprise combos are equipped with standard HDMI port for outputting video stream to an external monitor. It also supports 4G network, after secondary development the video stream can be pushed to cloud network.

*Transmitters coming with MK15E agriculture combos do not support HDMI output.

1000 CD/M2 High Brightness, 1920*1080 High-Definition Monitor

MK15E Smart Controller has a 5.5-inch high-definition and high-brightness LCD screen. Display definition is 1920*1080 pixels. Max brightness is 1000cd/m2, which is almost two times of usual smartphones, crystal clear under direct sunshine.

Multiple Wireless Features

• Wireless Binding
• Dual Remote Controller
• Remote Control Relay

Super Long Battery Life, 30W PD Fast Charging

With high-capacity built-in lion batteries with great performance, MK15E transmitter’s battery life is up to 12 hours. The batteries’ stable and efficient discharging curve secures the system when running in high speed. *MK15E transmitter supports max 30W PD fast charging, which can charge 95% battery level in three hours.

*The standard charger coming with all MK15E combos is PD 20W. The PD 30W charger is optional.

• 3.5H PD Fast Charging
• 12H Long Battery Life

For different version of SIYI Remote Controller, please visit .
