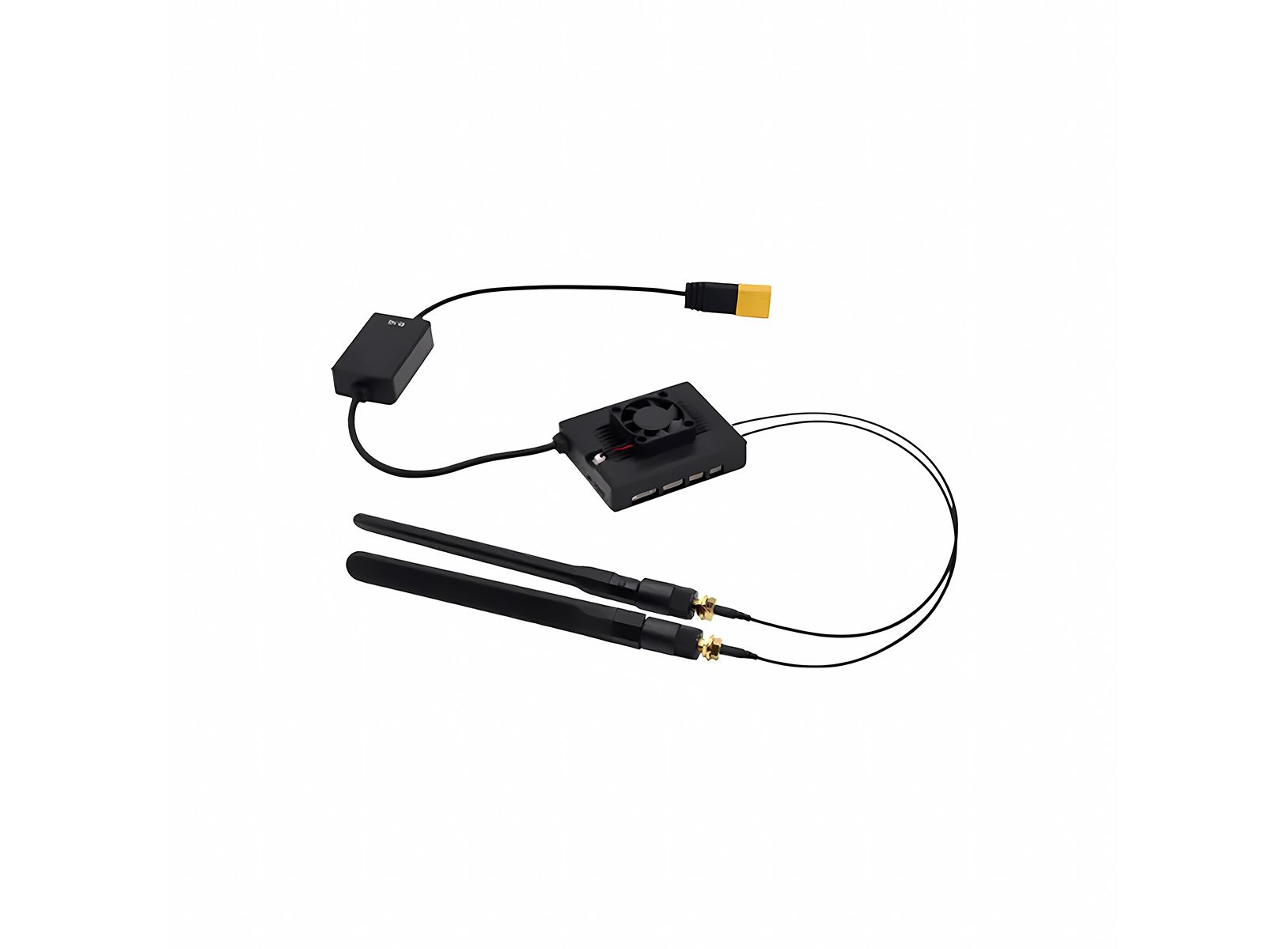

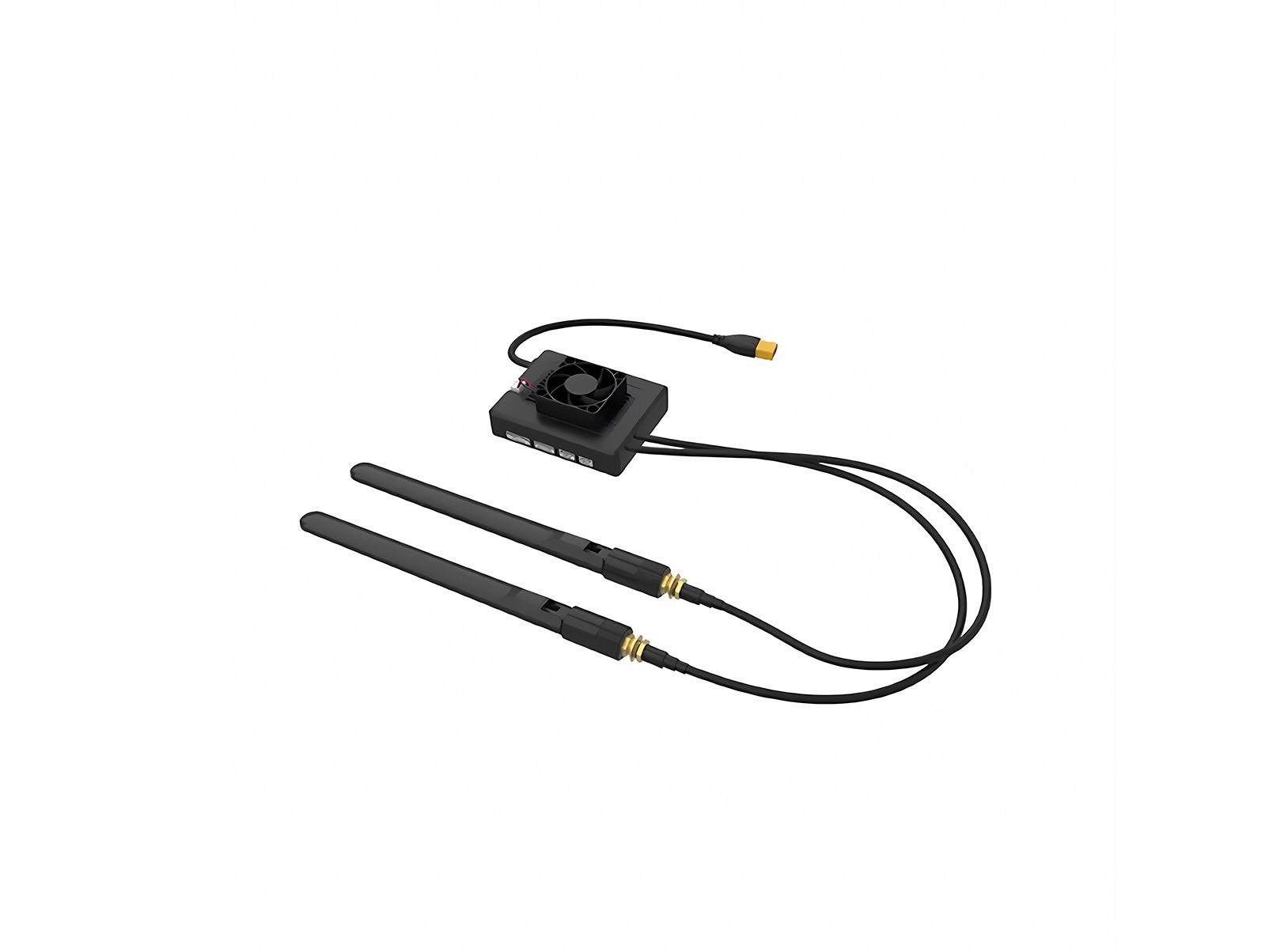

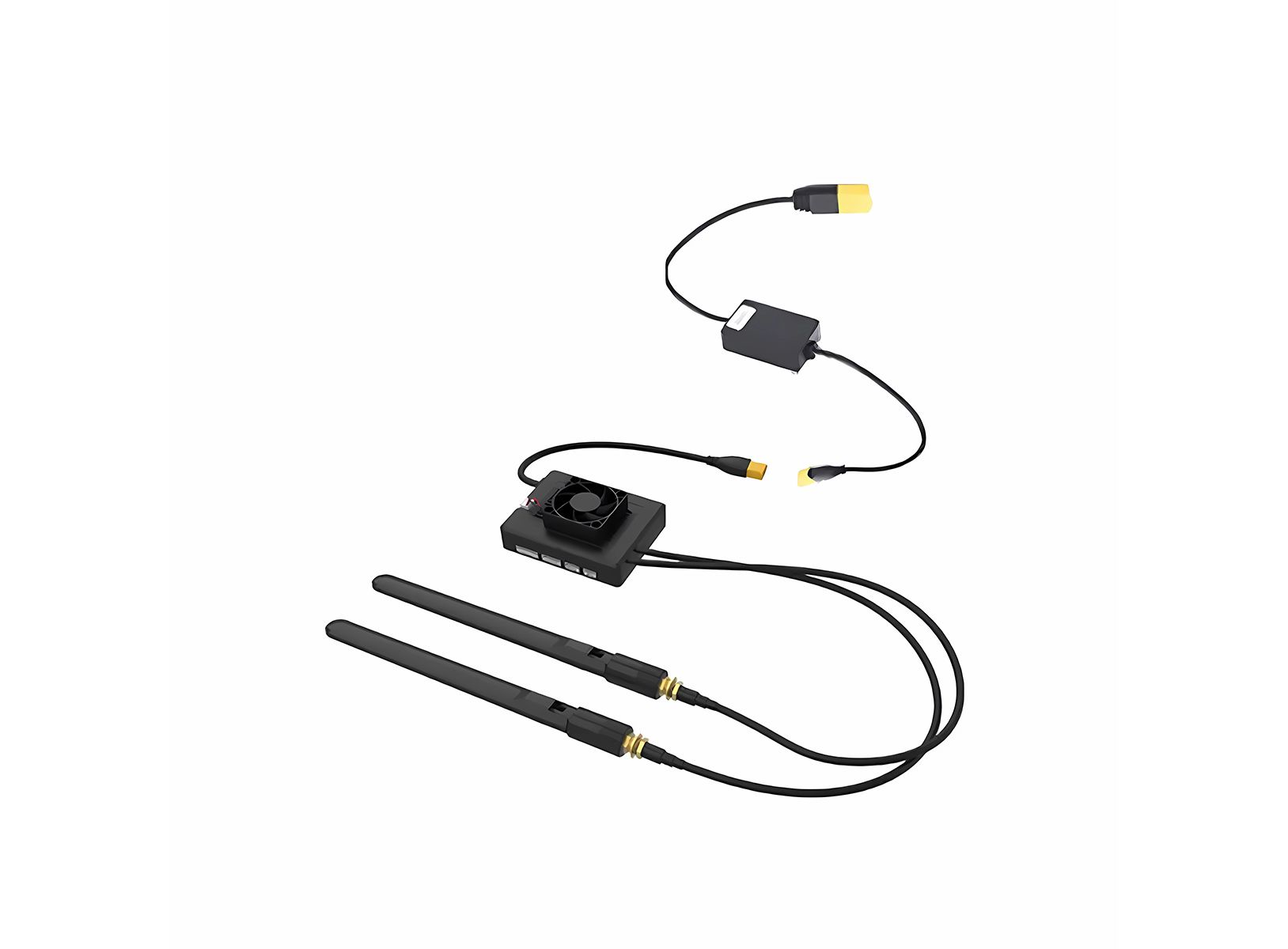

SIYI MK32 HM30 MK15 Air Unit — MK32 Air Unit

Home/Radio Controllers & Receivers/RC Receivers/SIYI MK32 HM30 MK15 Air Unit — MK32 Air Unit

CODE:SIYI-WDM-31715

Hover on image to enlarge

Sourced to Order

11.590,98 ₺ + VAT 13.909,27 ₺ VAT included Estimated deliveryUsually 9–25 business days

Package / Configuration:

HM30 Air Unit MK15 Air Unit MK32 Air Unit

Ask a question

Minimum quantity for "SIYI MK32 HM30 MK15 Air Unit — MK32 Air Unit" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 13.909,27 ₺
Deposit at order (50%): 6.954,64 ₺
Balance on delivery (50%): 6.954,63 ₺

This payment breakdown is based on the displayed price of one item.

Receiver or air unit for compatible control and communication systems. The selected unit defines the supplied configuration.

Selected configuration: MK32 Air Unit

View all variations as list

CODE	Package / Configuration	Price
SIYI-WDM-31713	HM30 Air Unit	10.538,50 ₺ + VAT 12.646,40 ₺ VAT included
SIYI-WDM-31714	MK15 Air Unit	11.590,98 ₺ + VAT 13.909,27 ₺ VAT included
SIYI-WDM-31715	MK32 Air Unit	11.590,98 ₺ + VAT 13.909,27 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

SIYI MK32 HM30 MK15 Air Unit — MK32 Air Unit

Receiver or air unit for compatible control and communication systems. The selected unit defines the supplied configuration.

Selected configuration: MK32 Air Unit

Contents depend on the selected configuration. Shared product images may show other packages.

SIYI MK32 HM30 MK15 Air Unit

Technical Specifications

MK32 / HM30 Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
-S BUS: 3-Pin
– Data link (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

MK15 Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
-S BUS: 3-Pin
– Data link (to FC): UART 4-Pin
– PWM Channel 1 to 5: 6-Pin
– Video Input: Ethernet 8-Pin
– Firmware Upgrade: Type-C
Dimensions (antenna excluded): 70 x 55 x 16 mm
Weight (antenna excluded): 100 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 58.8 V (4S to 14S)
Working Temperature: -10 to 55℃

Features
