SIYI MK32E HD Video Transmission System — HDMI Combo
Designed for unmanned-vehicle control and ground-station applications. Controller, receiver and camera contents depend on the selected package.
Selected configuration: HDMI Combo
Contents depend on the selected configuration. Shared product images may show other packages.
SIYI MK32E HD High Resolution And Sharpness Video Transmission System

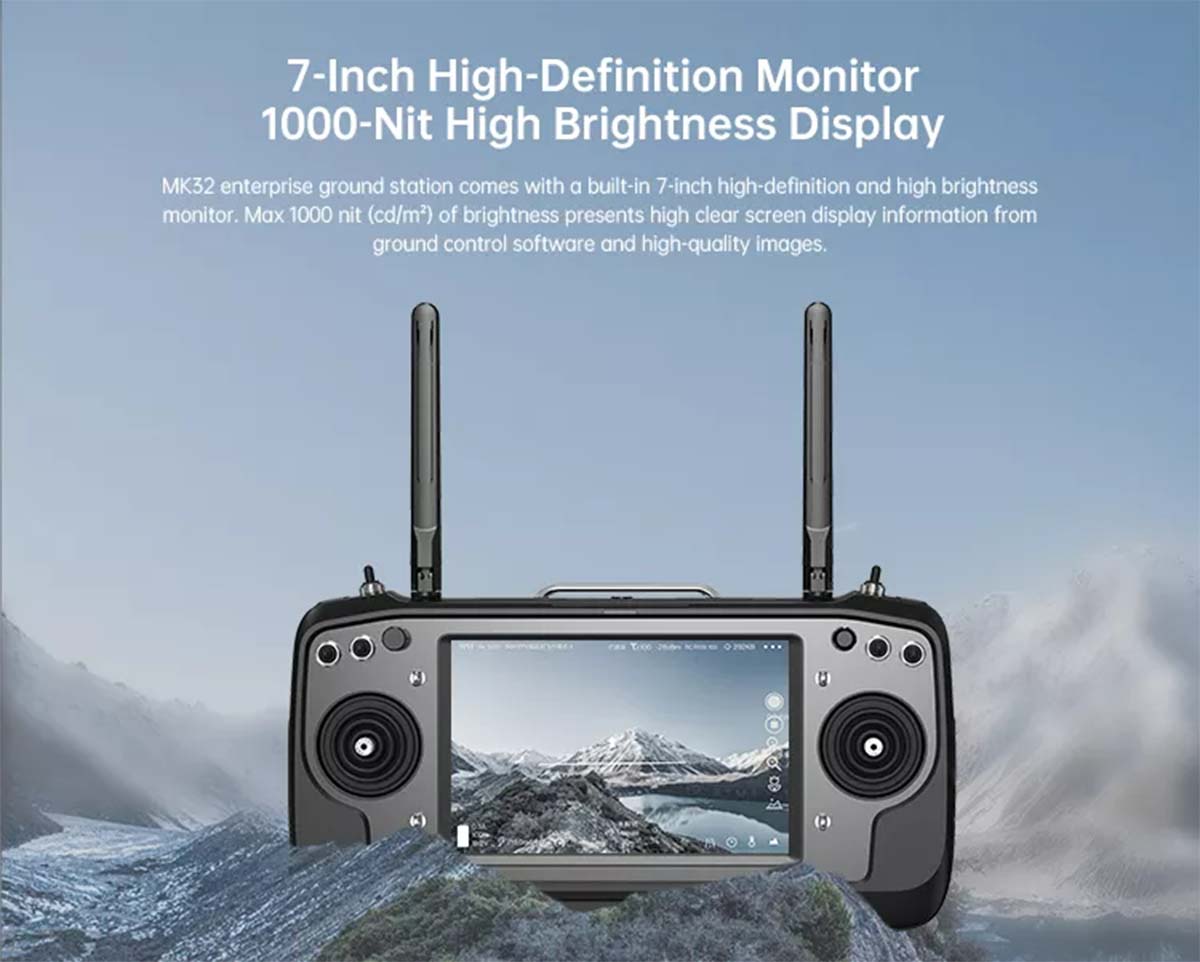

The SIYI MK32E HD Video Transmission System Ground Station features a built‑in 7‑inch monitor that delivers high resolution and sharp visuals. SIYI MK32E Remote Controller Thanks to its peak brightness of up to 1000 nits, the screen clearly shows data and images fed from the ground control software.

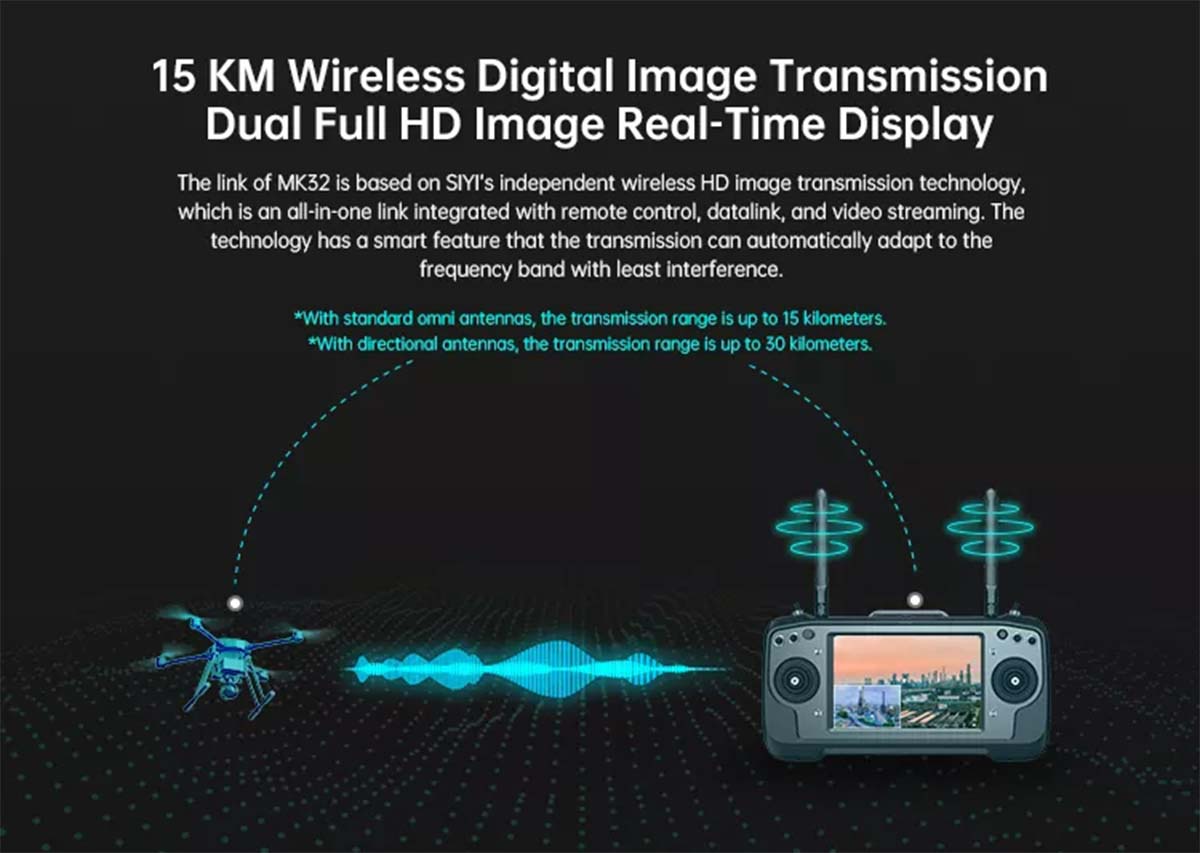

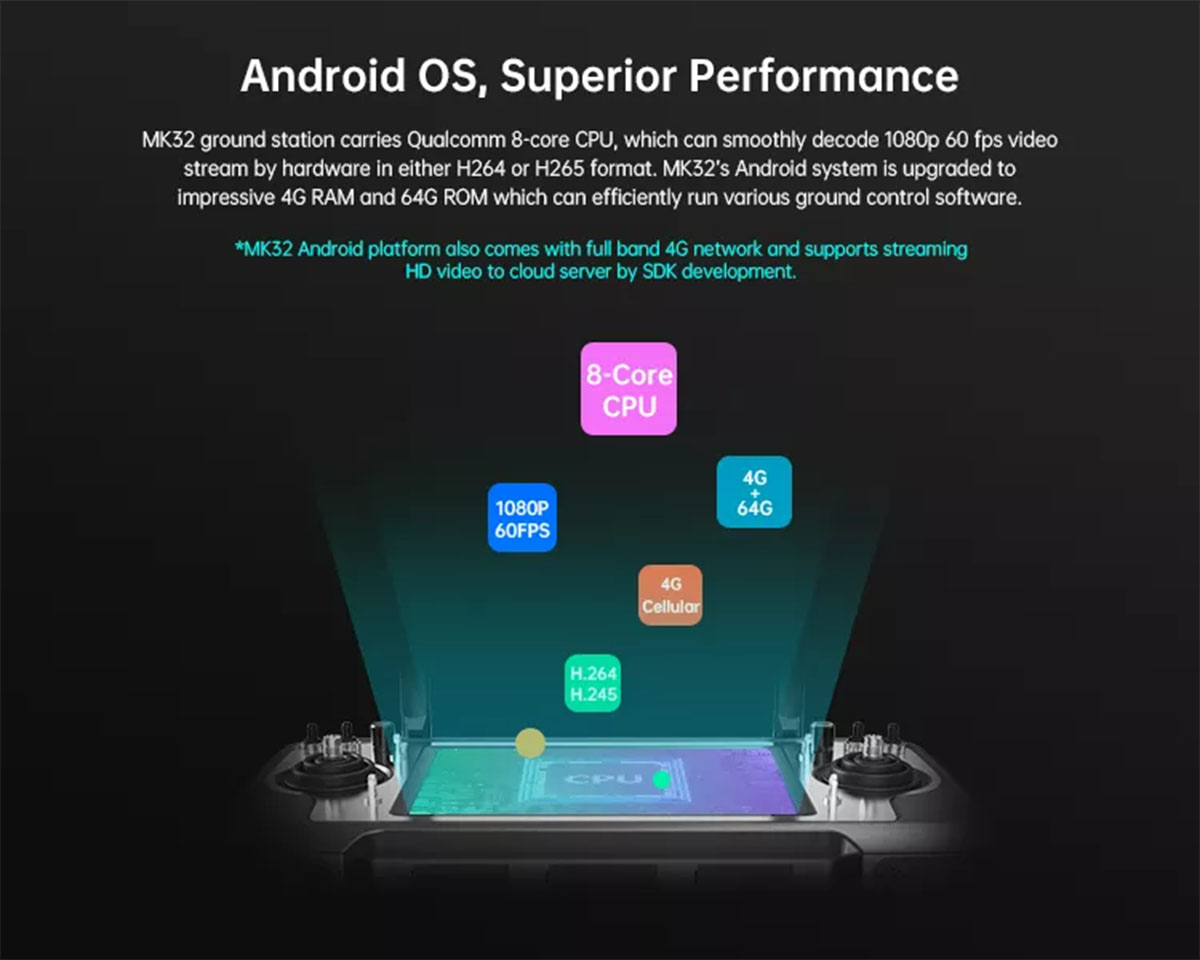

For reliable wireless links, the MK32 leverages SIYI’s self‑developed all‑in‑one HD wireless video transmission technology. This smart technology automatically selects the frequency band with the least interference for stable signal delivery. On top of that, the MK32E runs on a Qualcomm 8‑core CPU, so it can smoothly decode 1080p @ 60fps video streams encoded in either H.264 or H.265.
To support long‑distance flights, the SIYI MK32E comes with a remote‑control relay feature. With this feature, one MK32 forwards control commands to another unit for the same aircraft, and users can therefore double their operational range. As a result, operators can apply this capability to scenarios such as UAV monitoring and remote UAV delivery.
Follow us on YouTube to view more videos about the SIYI MK32E HD Video Transmission System.

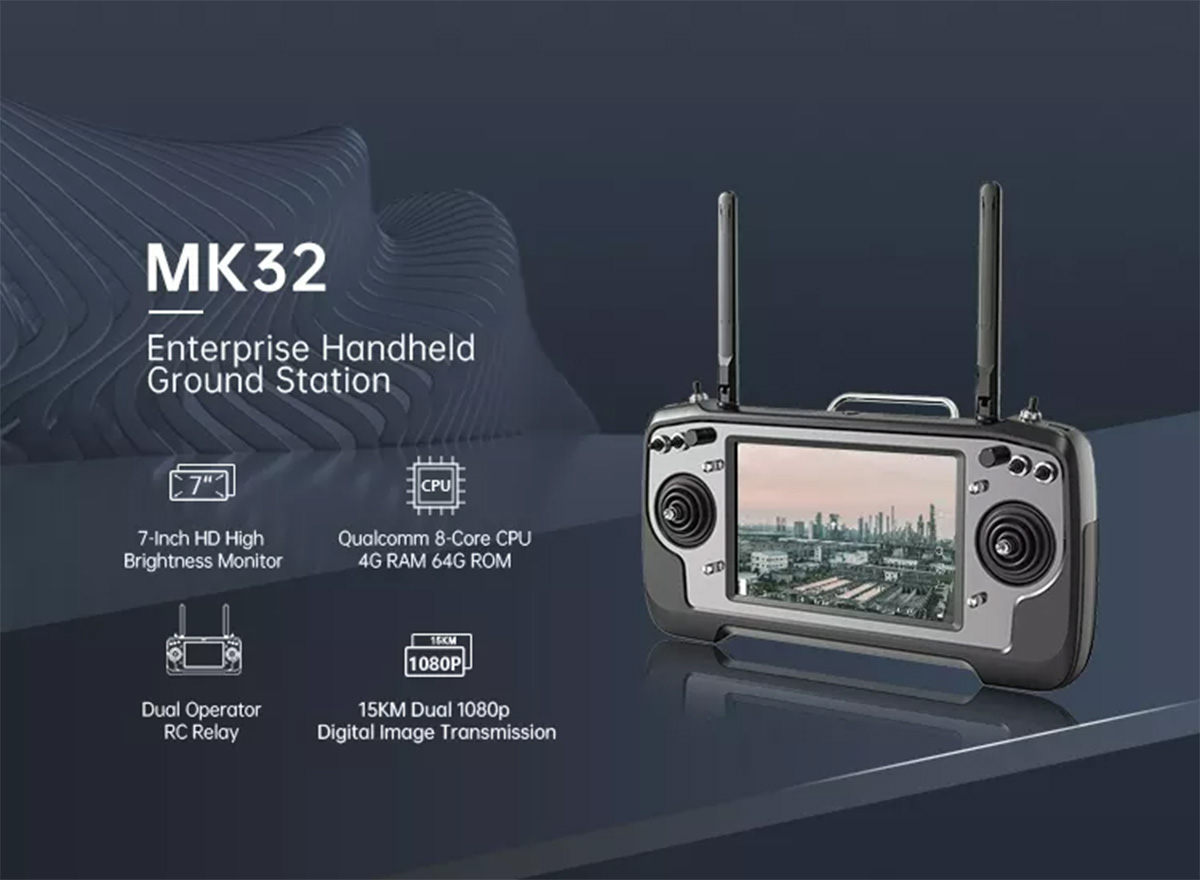

SIYI MK32E Enterprise Handheld Ground Station Smart Controller

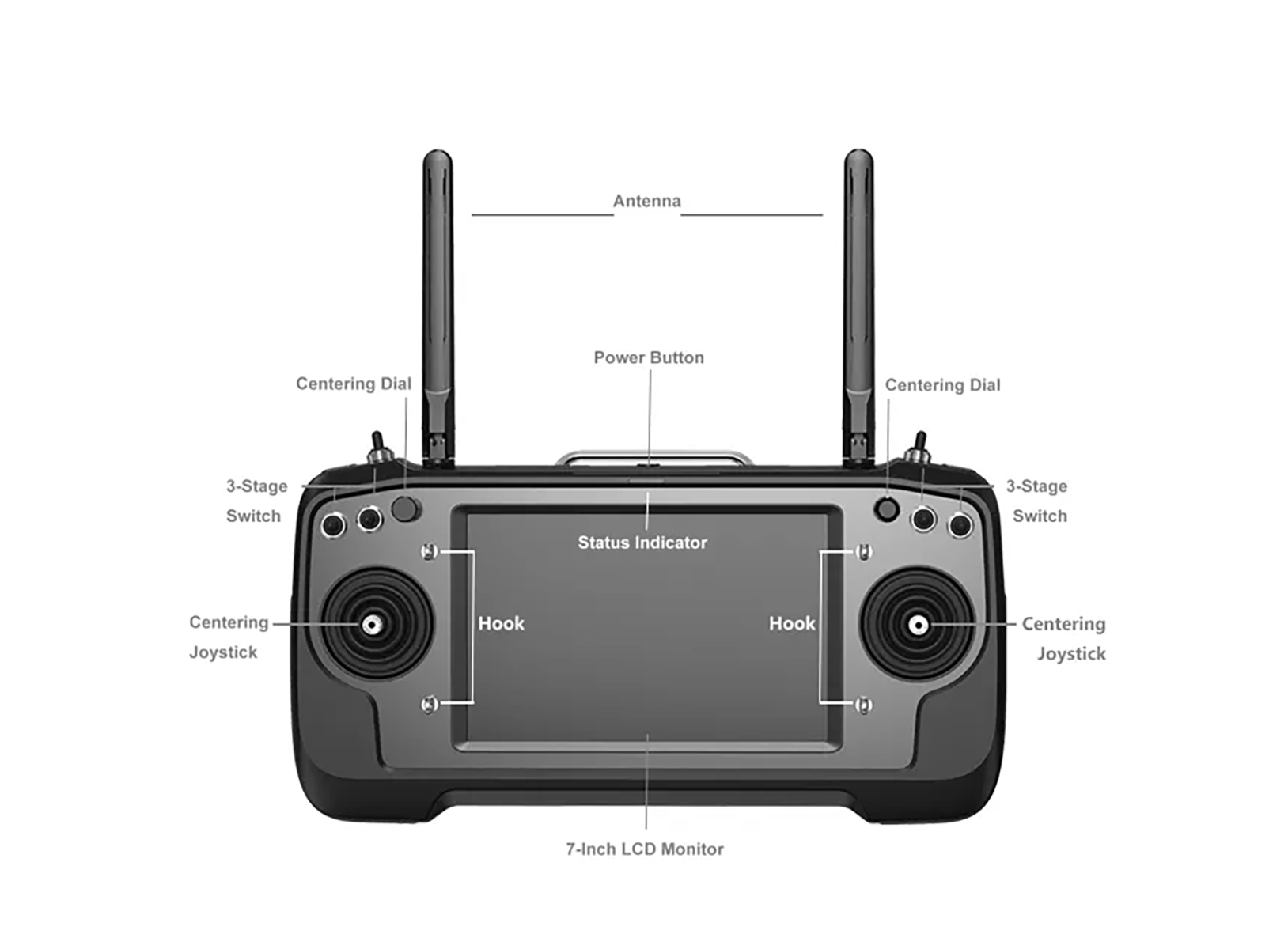

- 7-inch high definition and high brightness monitor display
- Dual full HD digital image transmission system expandable to 5KM range
- Top Android build with 4G RAM and 16 ROM
- Optional dual remote and RC replay feature

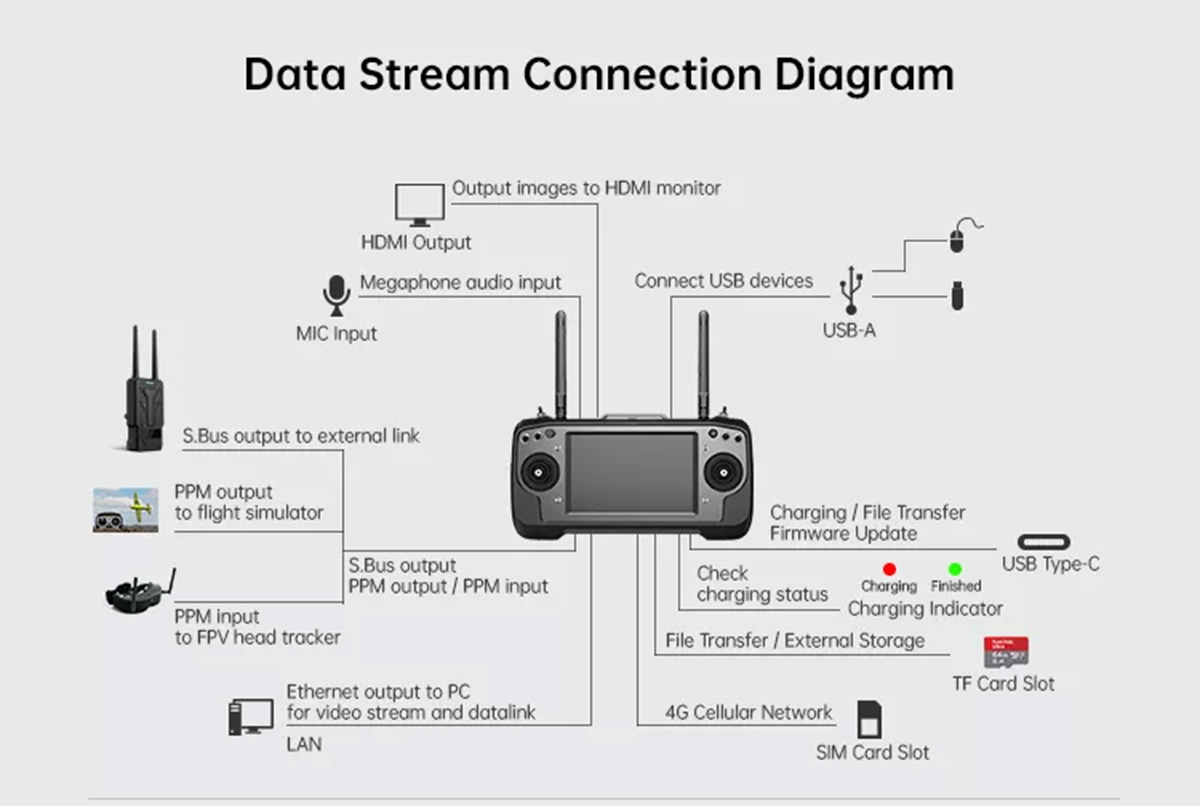

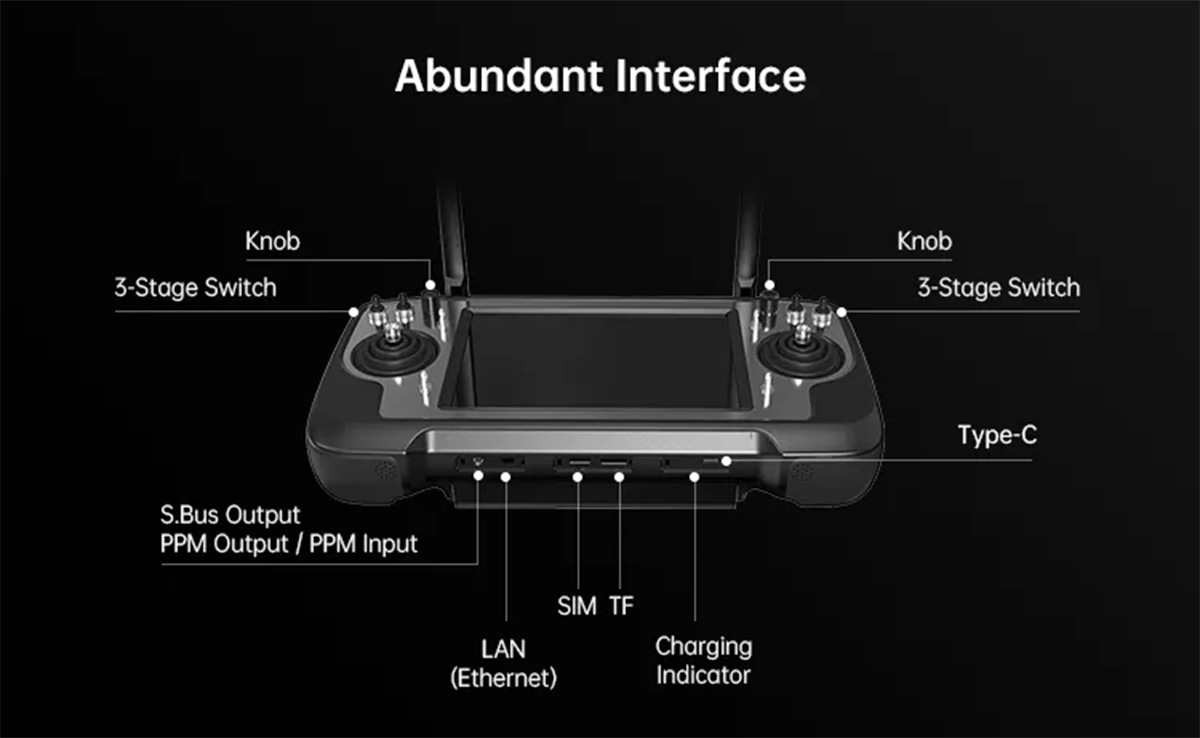

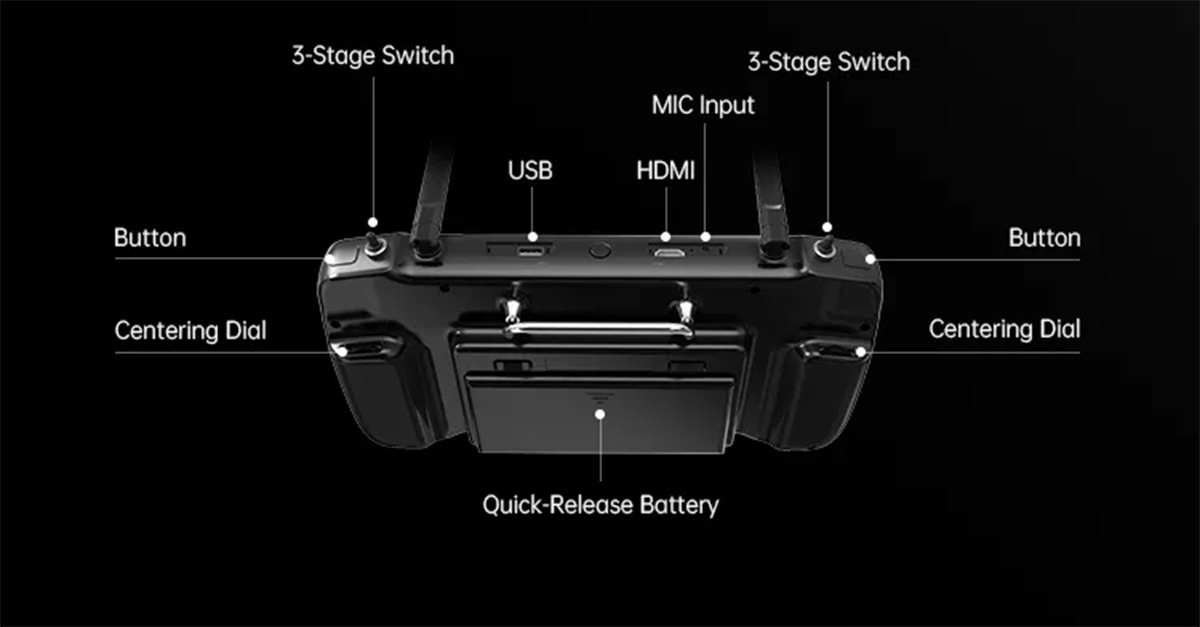

- Abundant interface, powerful expandability
MK15 and HM30, MK32 are Mavlink compatible HD image transmission system.

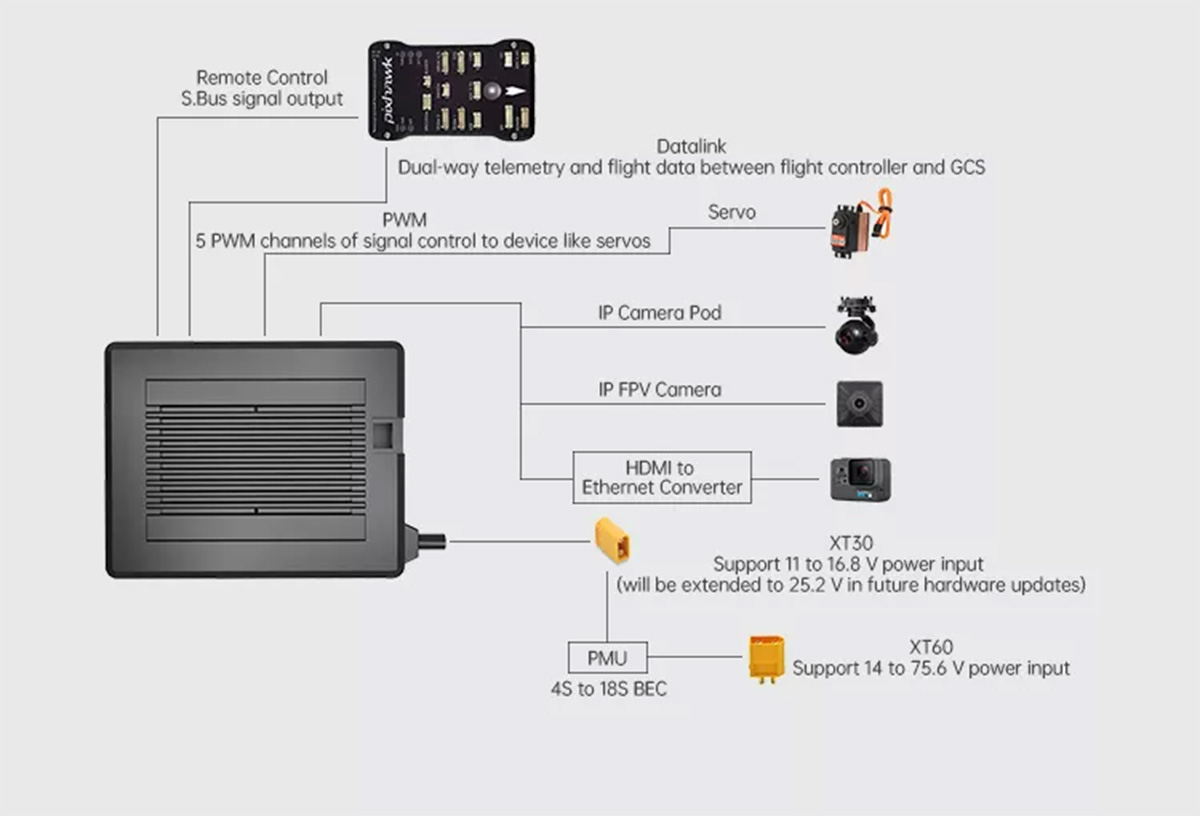

MK32E Video transmission system is compatible with both MK15 and HM30 air unit. It comes with almost all the features that MK15 has and some additional interface.
- More switches
- Ethernet output
- RC input and output
- Audio input
SIYI MK32E remote controller is suitable for agricultural drones and industrial drones or general multi-rotor drones.
SIYI MK32E Features
- 7-Inch 1000nit High Brightness LCD Touchscreen
- Dual HD Digital Image Transmission
- 5KM Range
- Qualcomm 8-Core CPU,4G RAM, 16G ROM
- H.264/H.265 Decoding
- Long Range Antenna
- 3.5H PD Fast Charging
- 10H Battery Life
- Ground HDMI Output
- Ground Ethernet Output
- Ground RC Input and Output
- Ground Audio Input.
