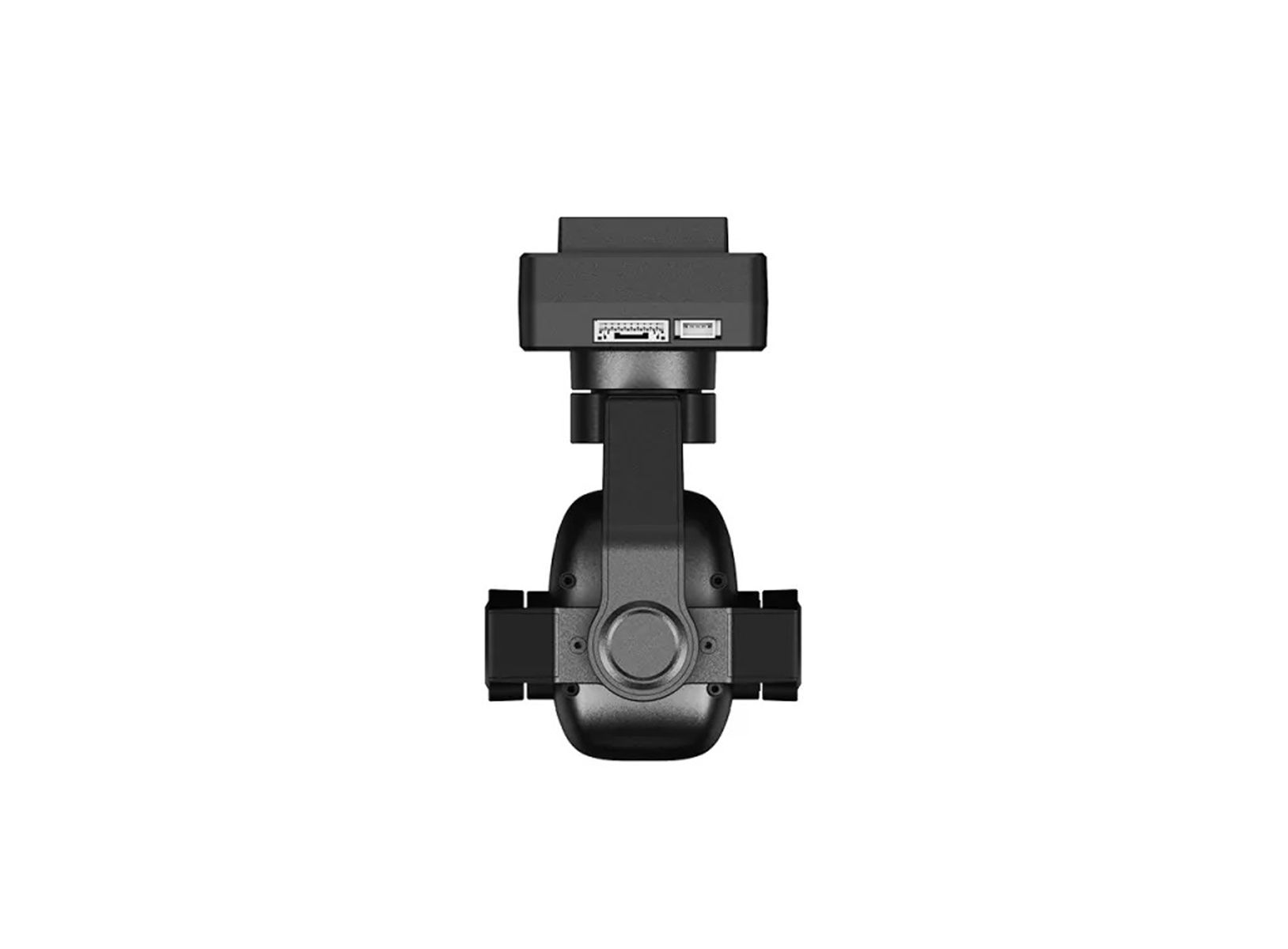

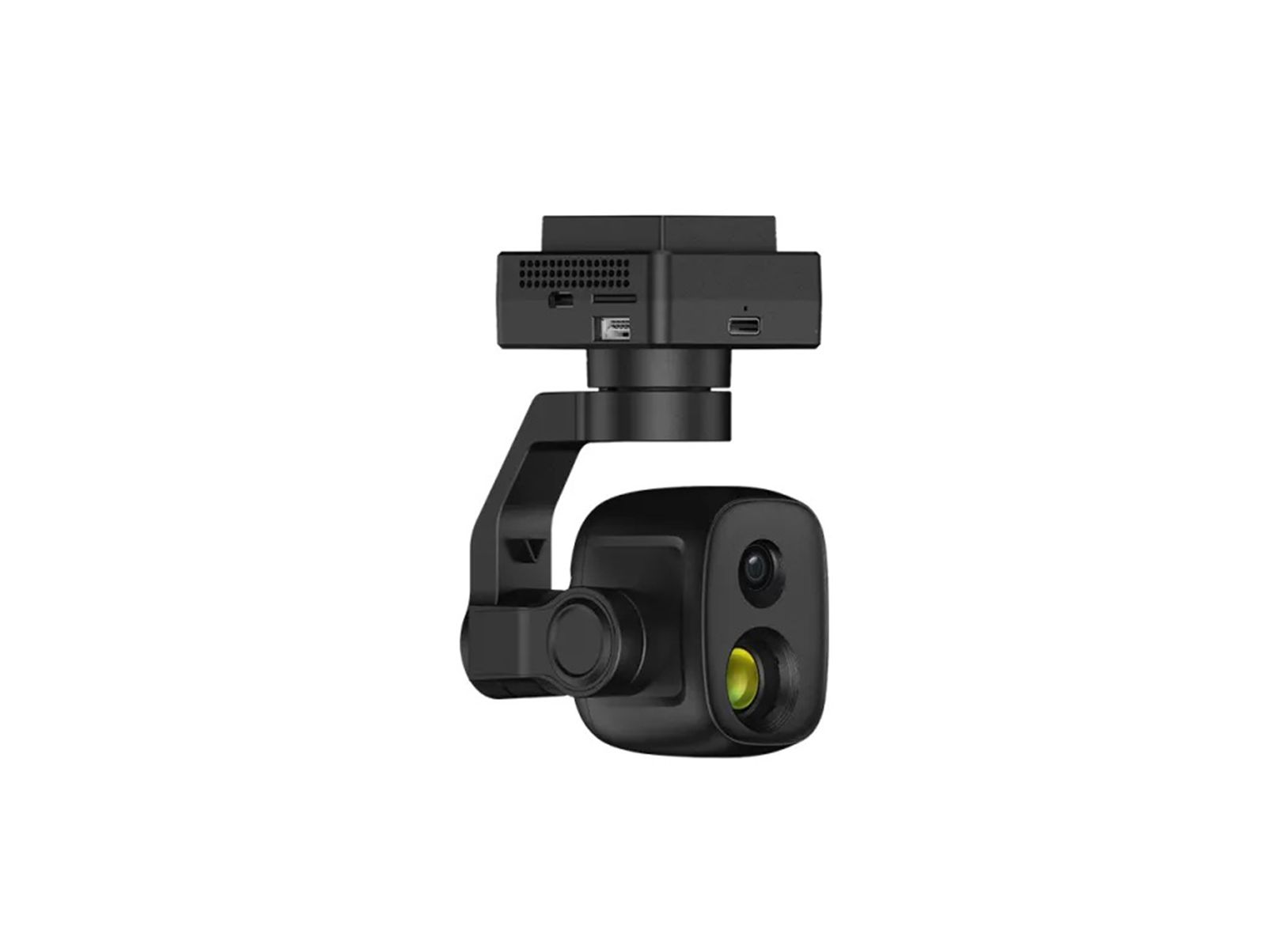

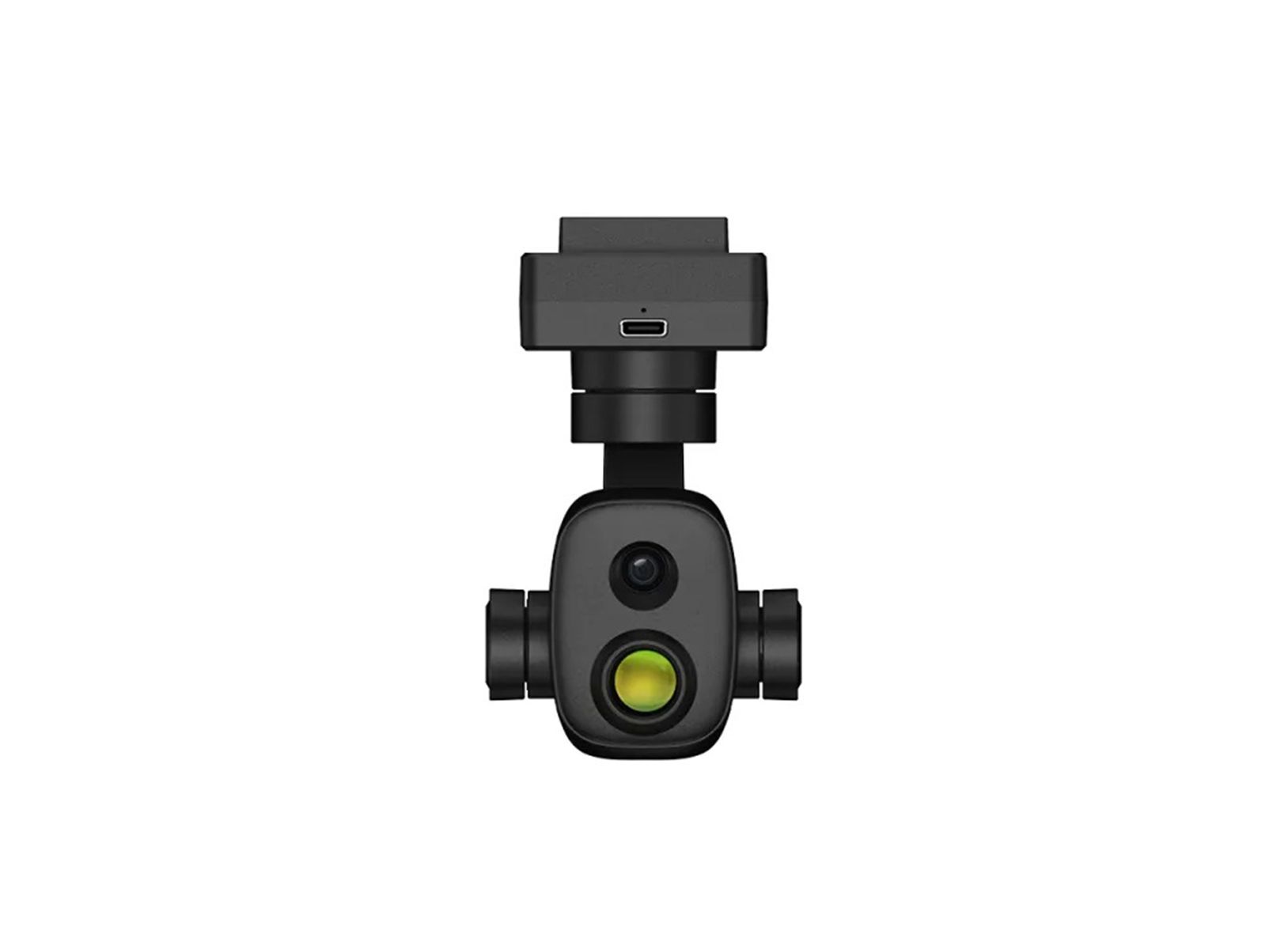

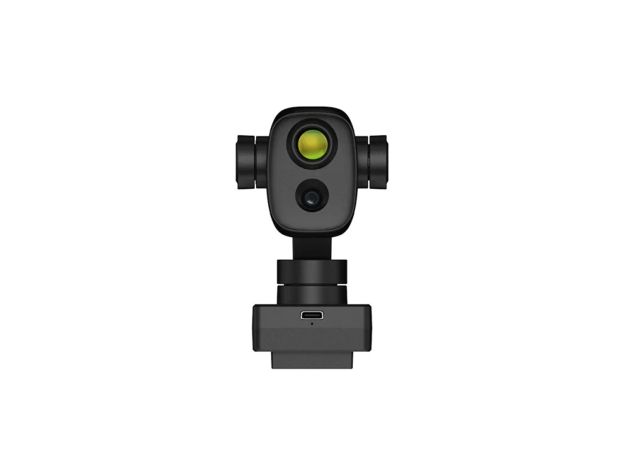

SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera

SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera

Gimbal camera solution for unmanned-vehicle imaging. Check the selected configuration for camera and link-system contents.

Selected configuration: SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera

Contents depend on the selected configuration. Shared product images may show other packages.

SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera

Dual Sensor Gimbal Camera, Mini Size Gimbal Camera & Lightweight Gimbal Camera

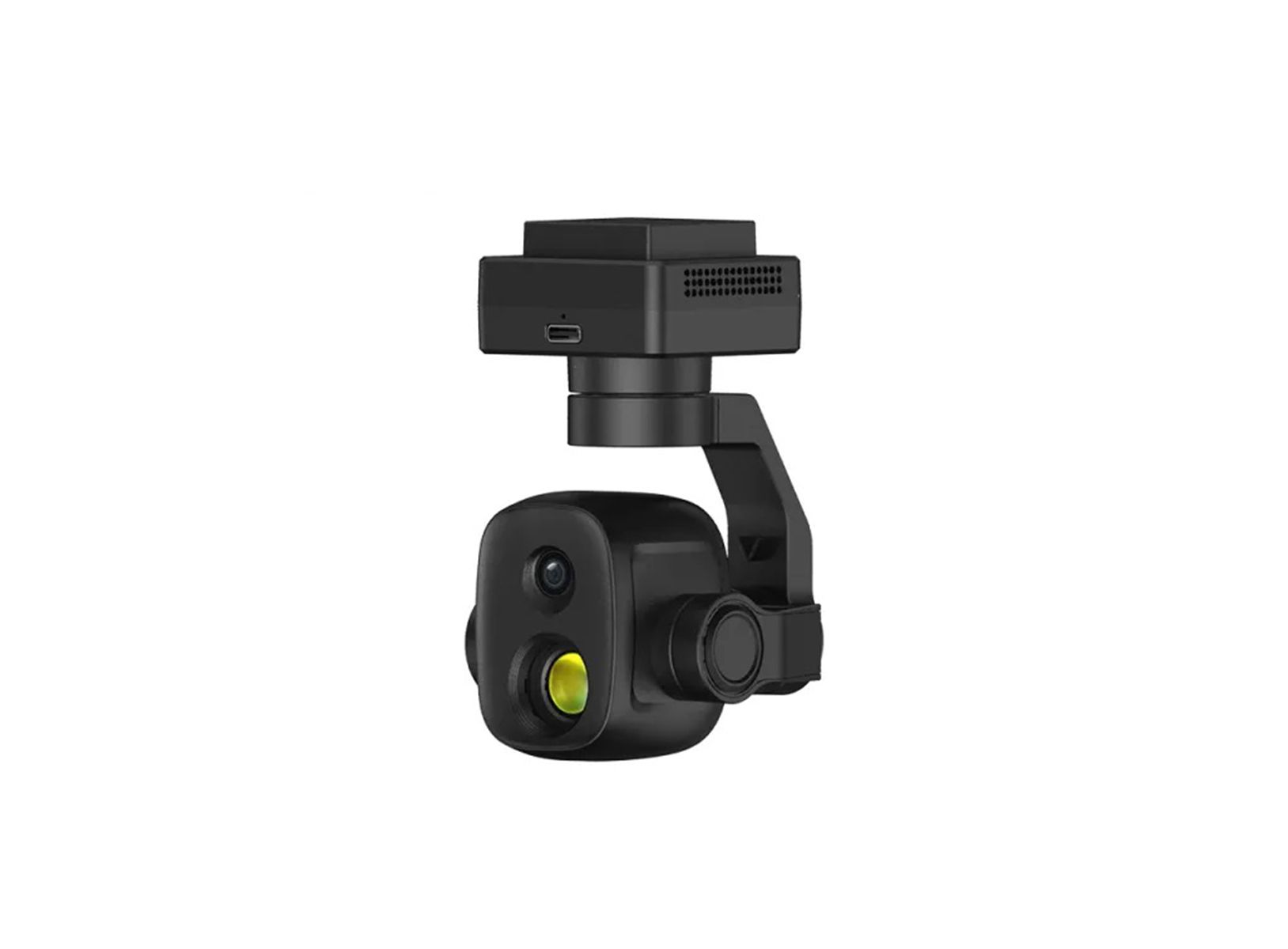

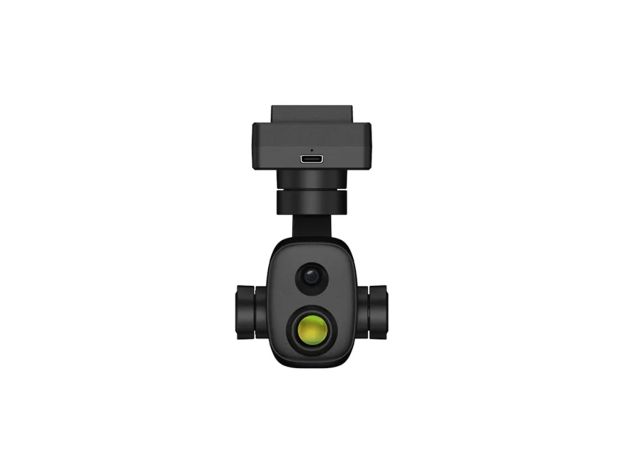

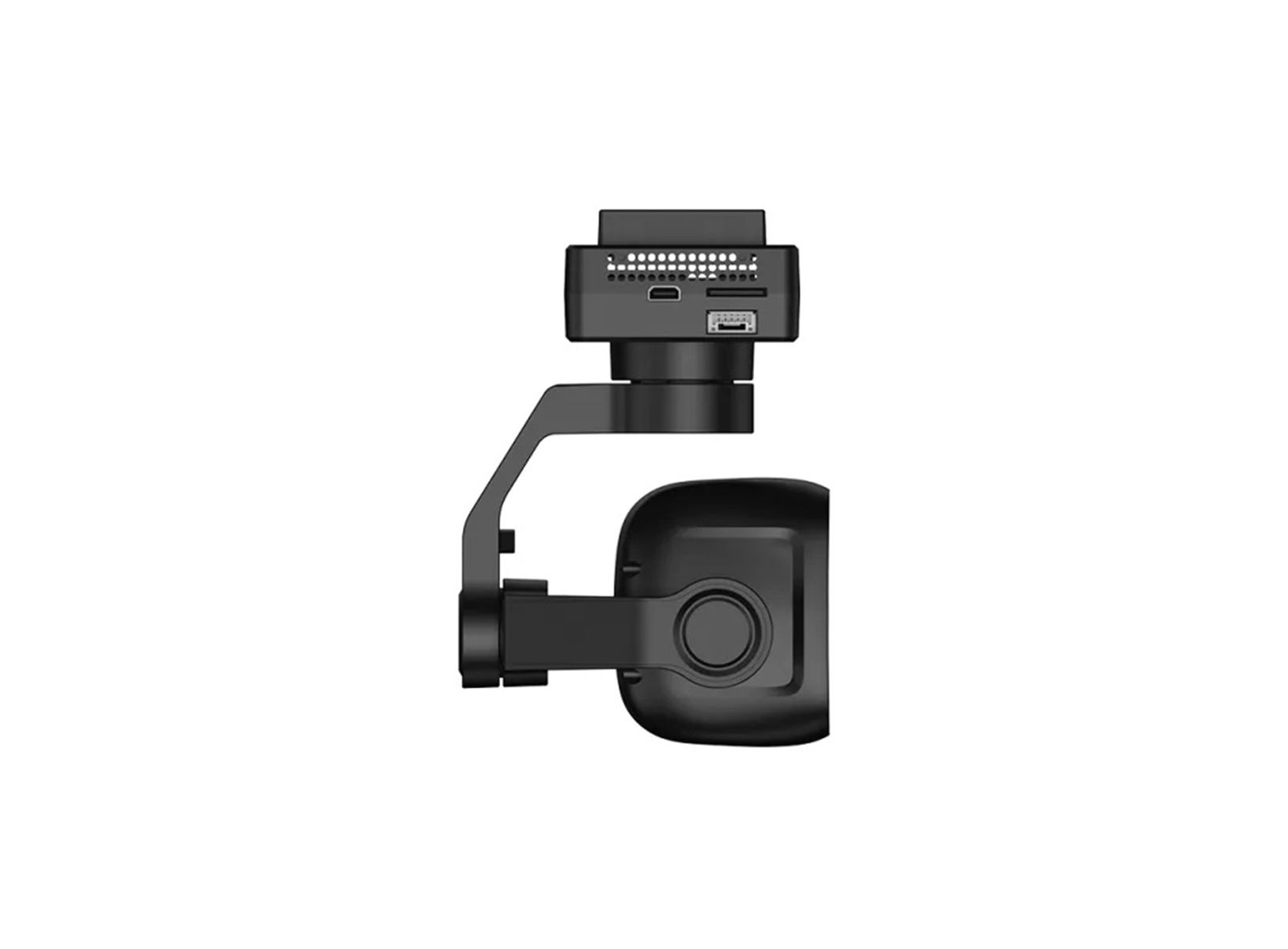

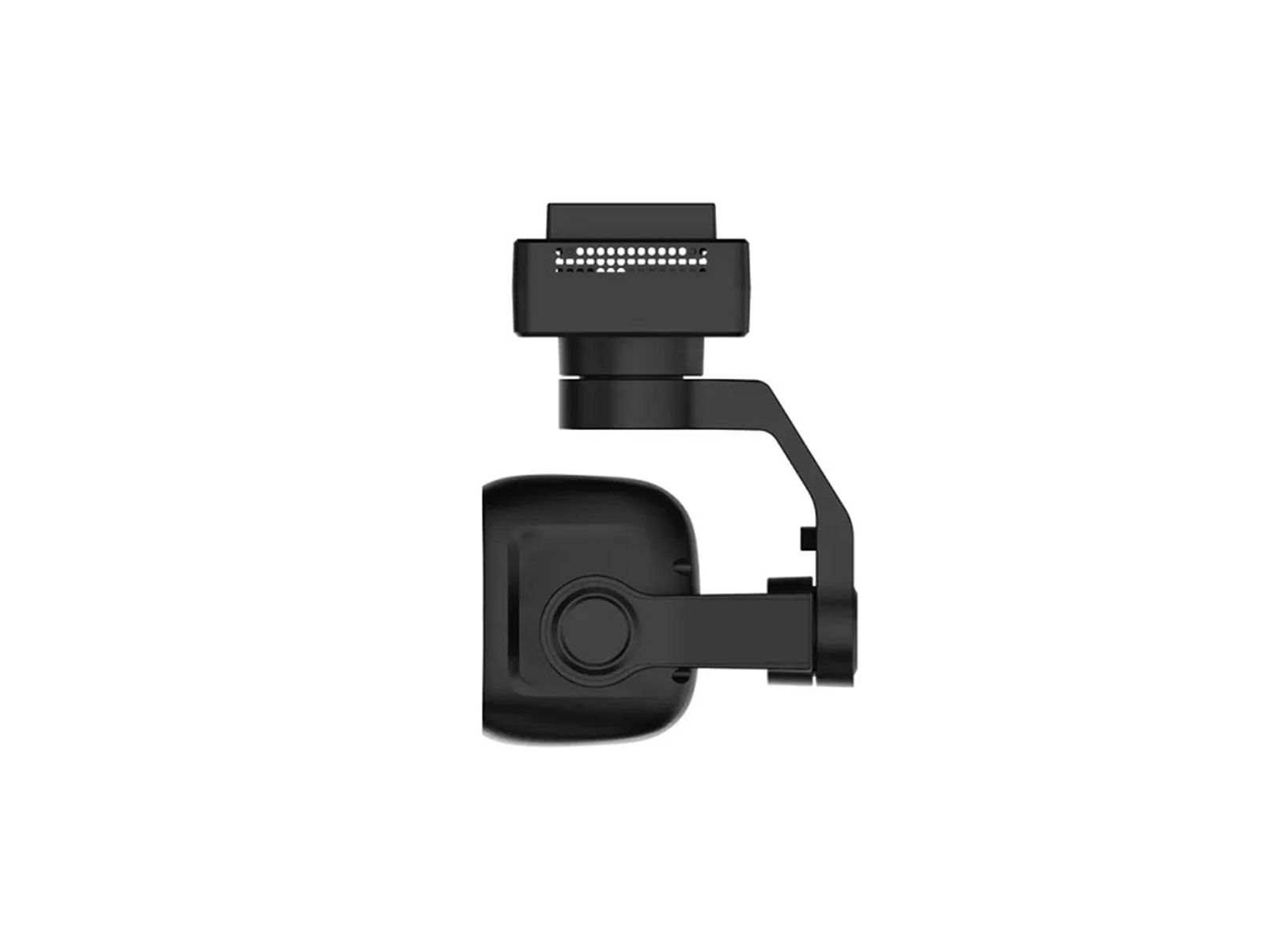

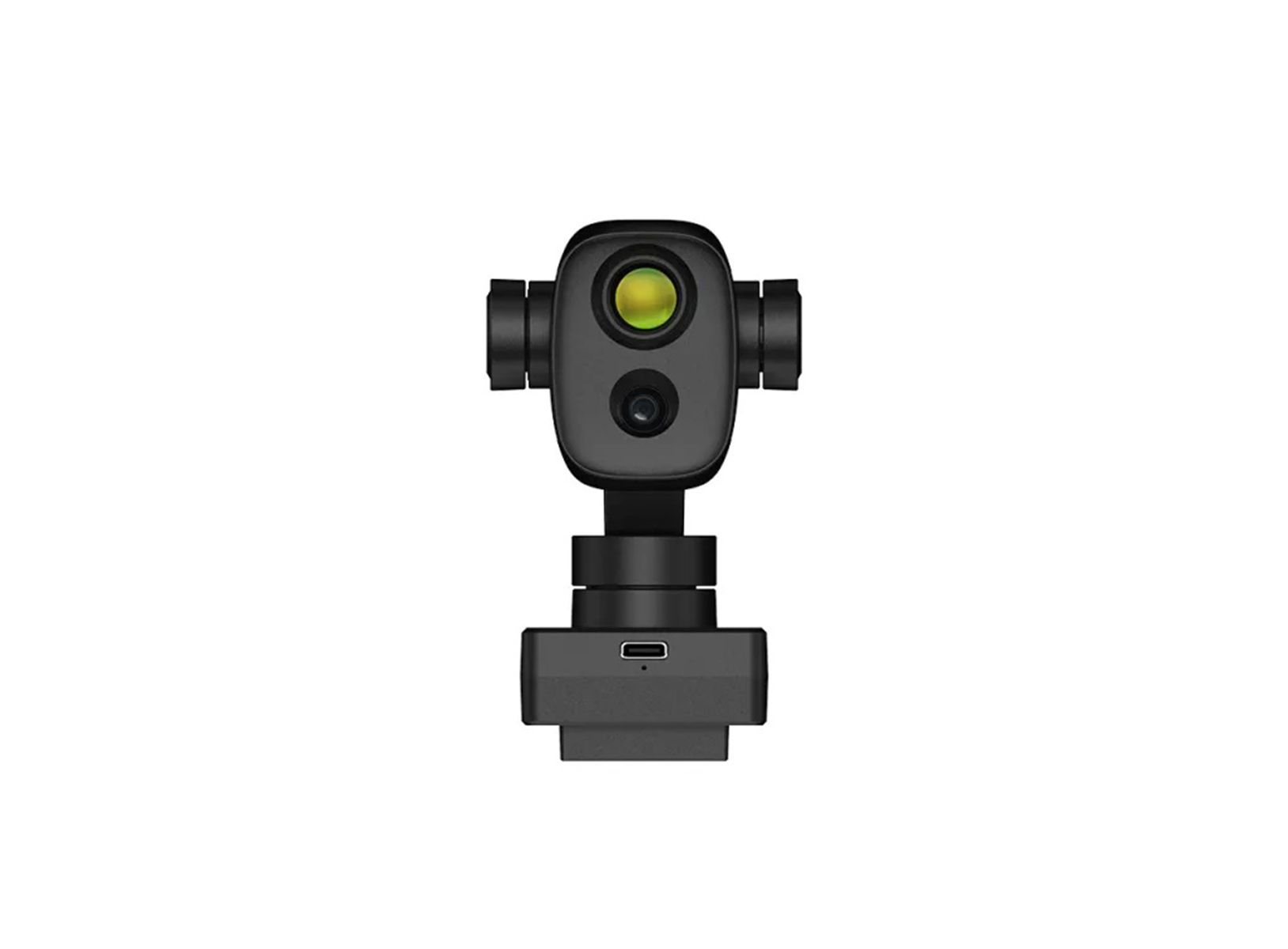

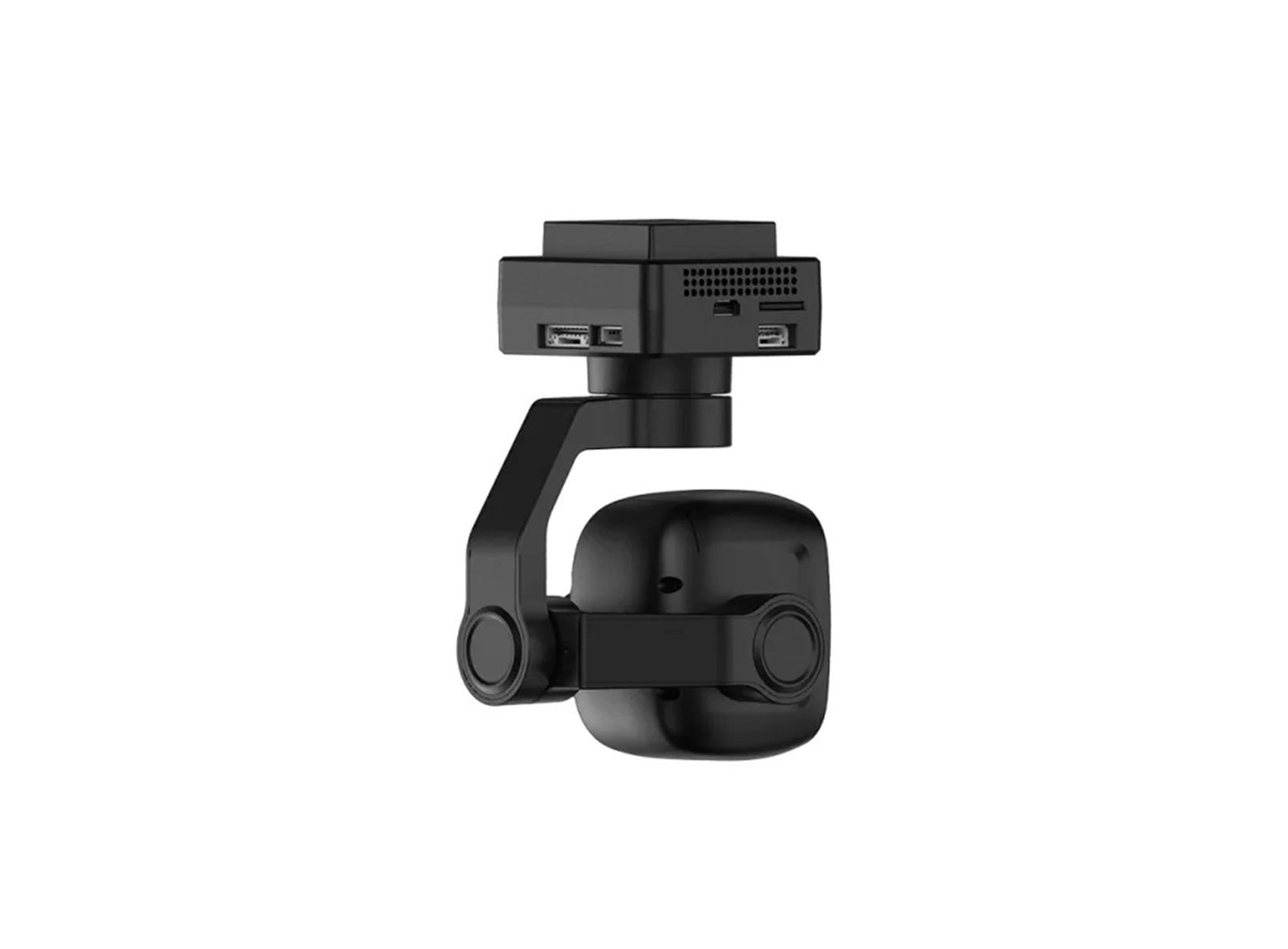

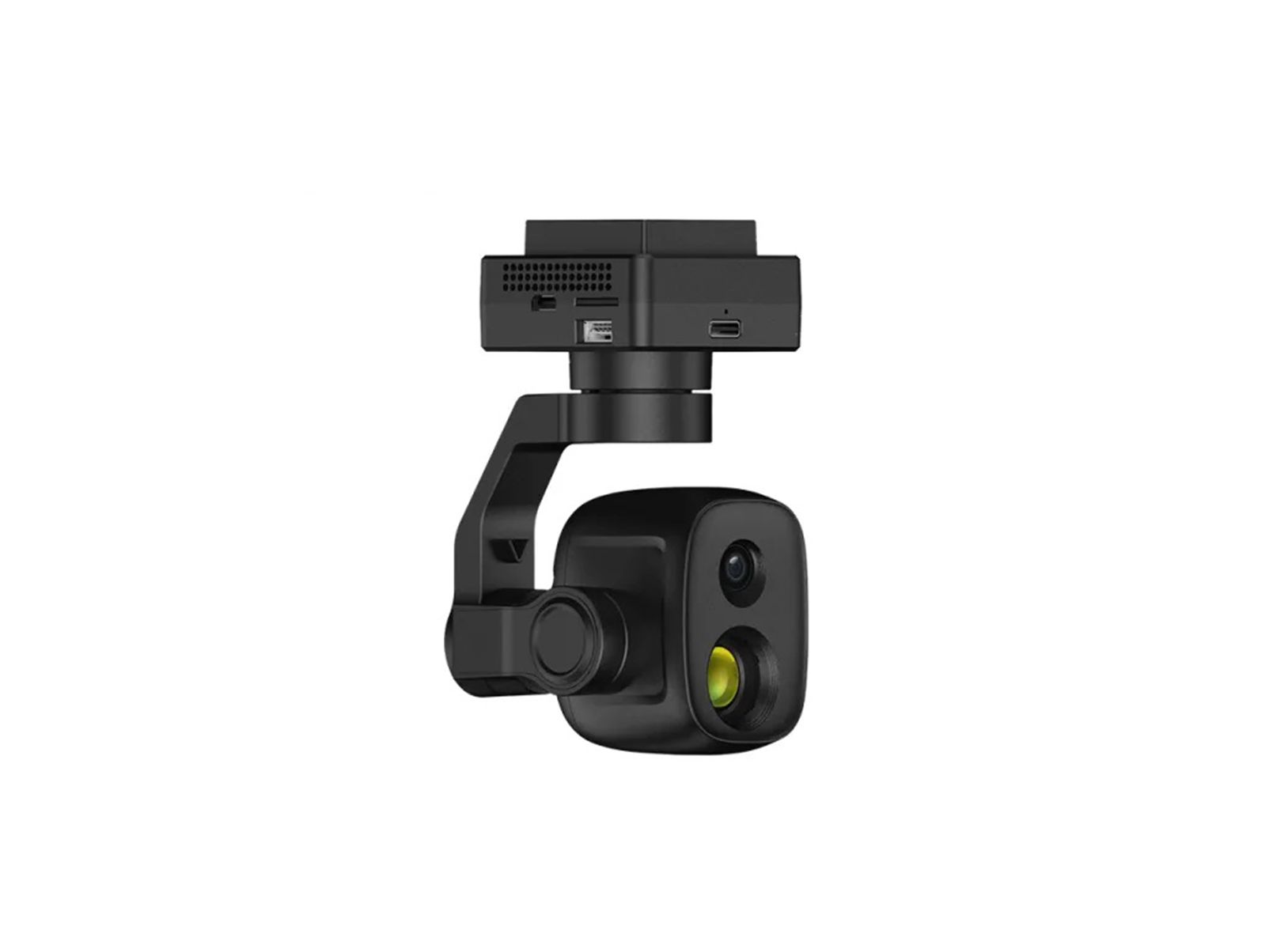

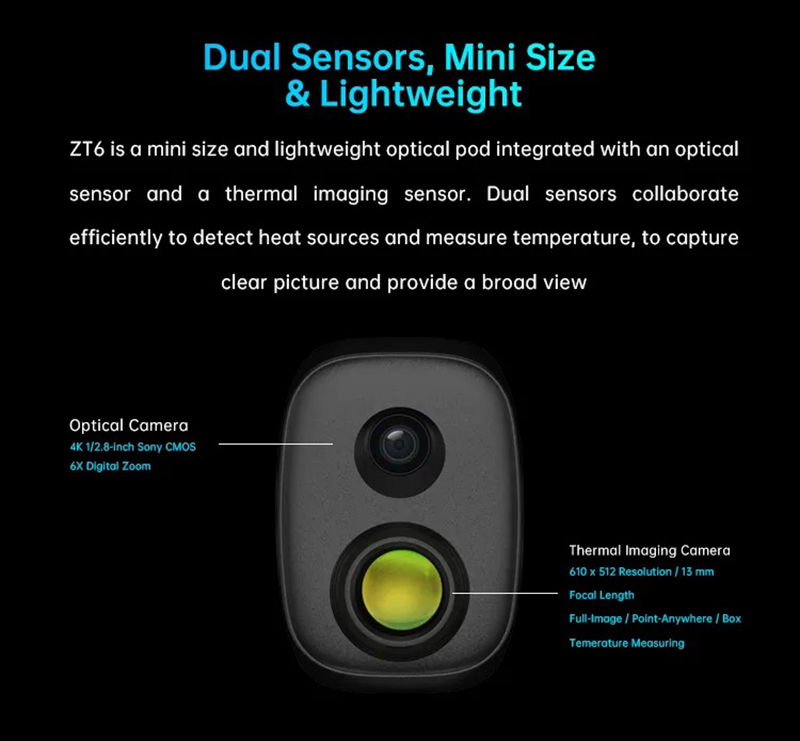

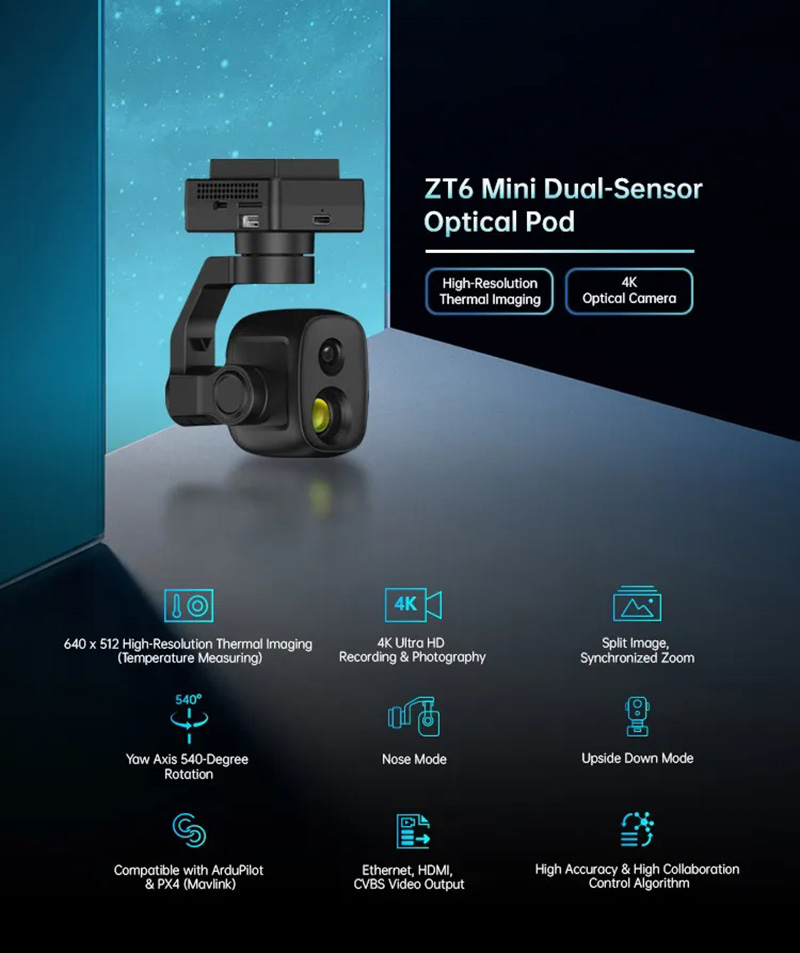

SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera is a mini size and lightweight optical pod integrated with an optical sensor and a thermal imaging sensor. Dual sensors collaborate efficiently to detect heat sources and measure temperature, to capture a clear picture and provide a broad view.

High resolution thermal imaging

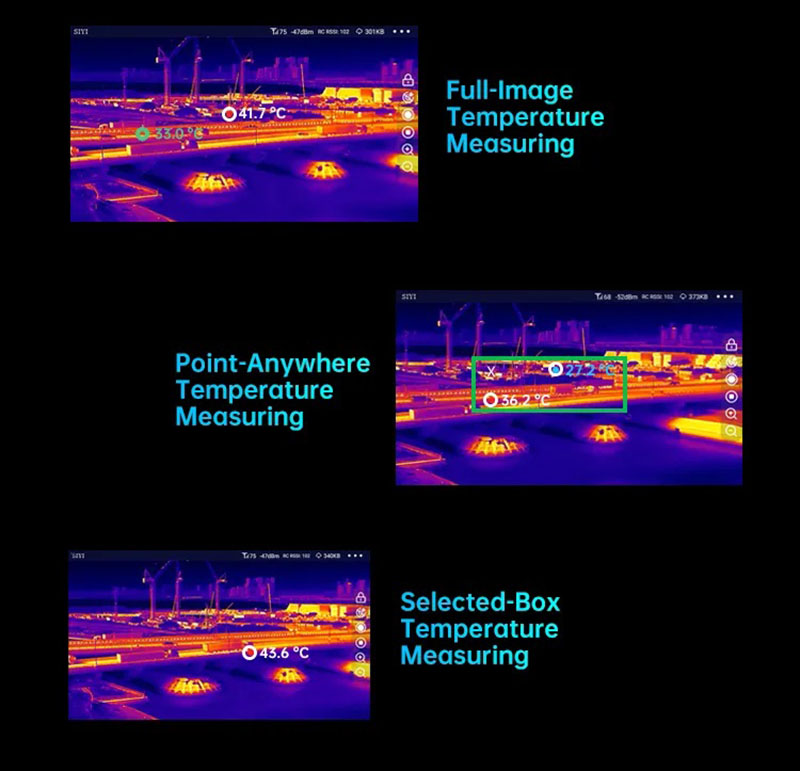

The SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera comes with a 640 × 512 resolution thermal imaging sensor. Moreover, it boasts a 13 mm focal length alongside a 30 fps frame rate. In addition to its wide‑angle vision, it outputs smooth and crystal‑clear videos. As a result, operators can respond rapidly and accurately upon spotting any abnormal heat source; what’s more, users can obtain temperature measurements by tapping directly on infrared images.

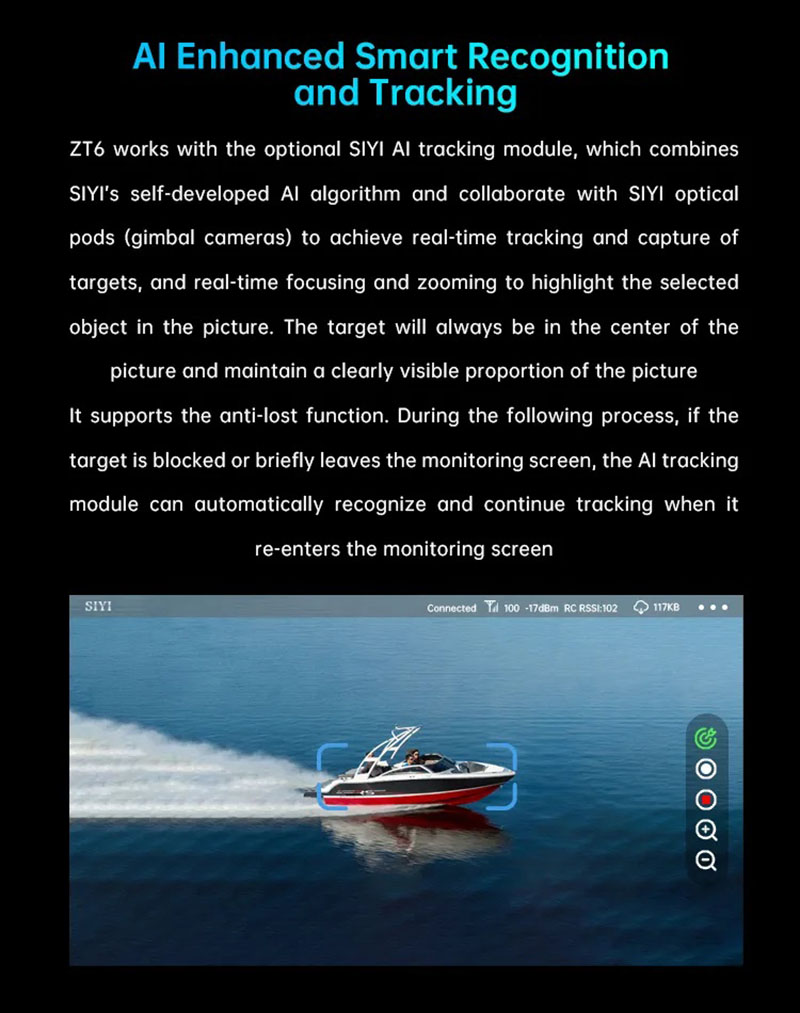

AI Enhanced Smart Recognition and Tracking

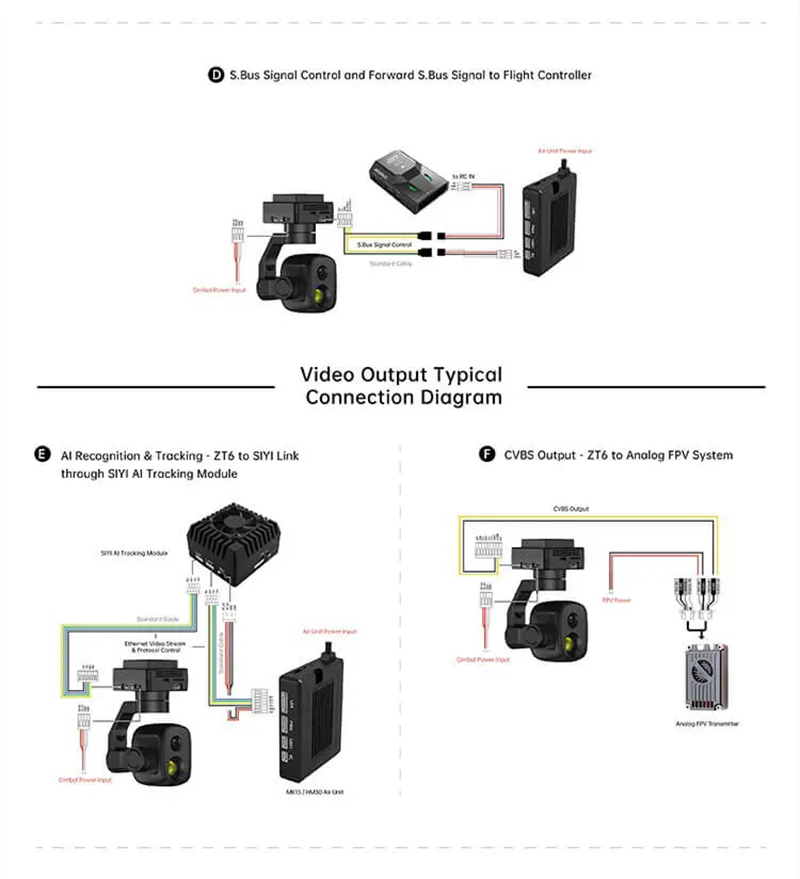

ZT6 is an Al tracking gimbal camera works with the optional SIYI Al tracking module, which combines SIYI’s self-developed Al algorithm and collaborates with SIYI optical pods (gimbal cameras) to achieve real-time tracking and capture of targets, and real-time focusing and zooming to highlight the selected object in the picture. The target will always be in the center of the picture and maintain a visible proportion of the picture. It supports the anti-lost function. During the following process, if the target is blocked or briefly leaves the monitoring screen, the Al tracking module can automatically recognize and continue tracking when it re-enters the monitoring screen.

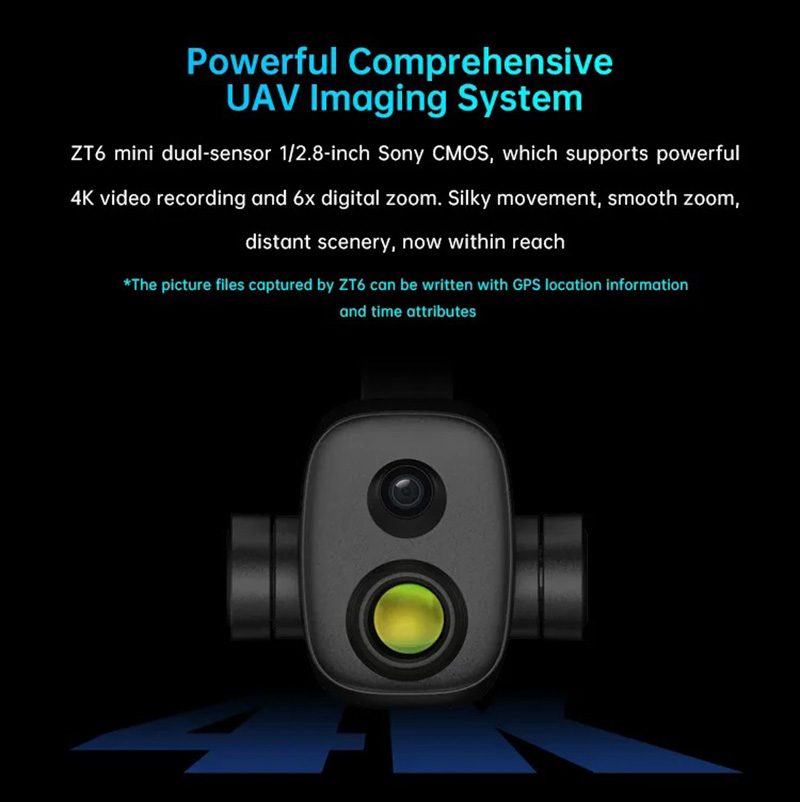

Powerful Comprehensive UAV Imaging System

ZT6 mini dual-sensor 1/2.8-inch Sony CMOS, which supports powerful 4K video recording and 6x digital zoom. Silky movement, smooth zoom, distant scenery, now within reach.

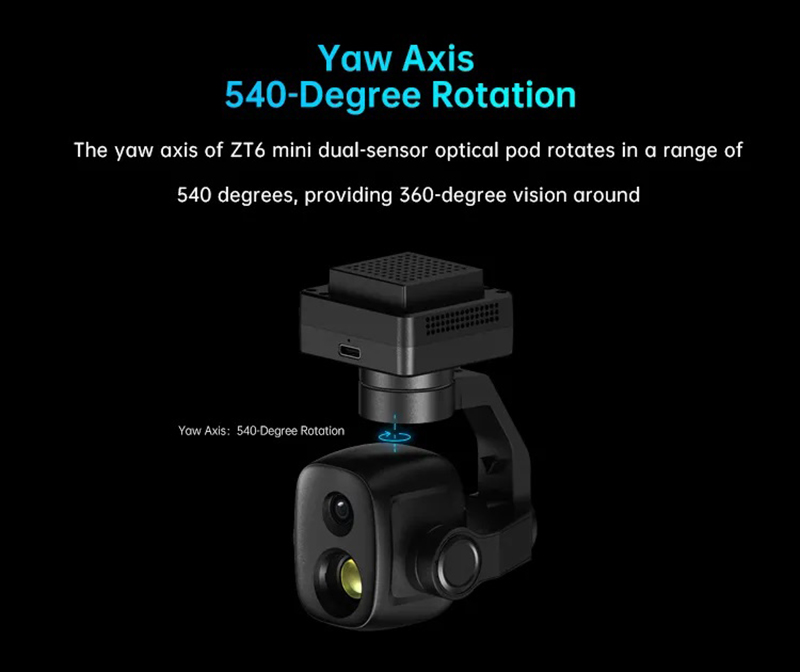

Yaw Axis540-Degree Rotation

The yaw axis of the ZT6 mini dual-sensor optical pod rotates in a range of 540 degrees, providing 360-degree vision around.

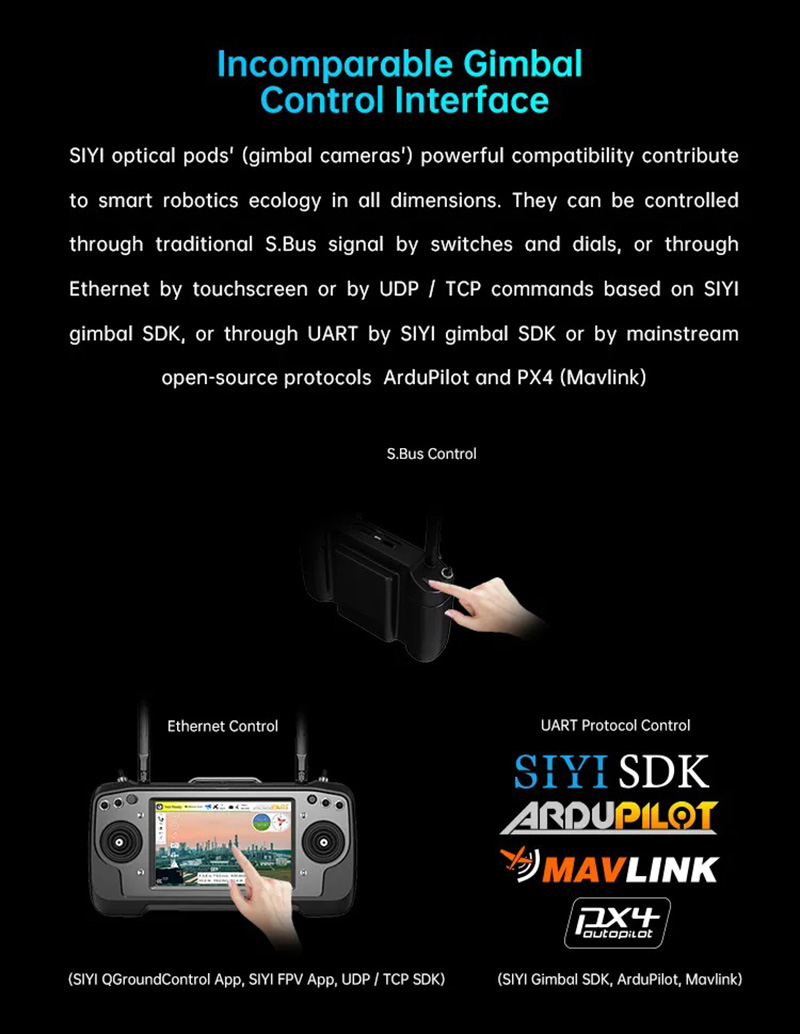

Incomparable Gimbal Control Interface

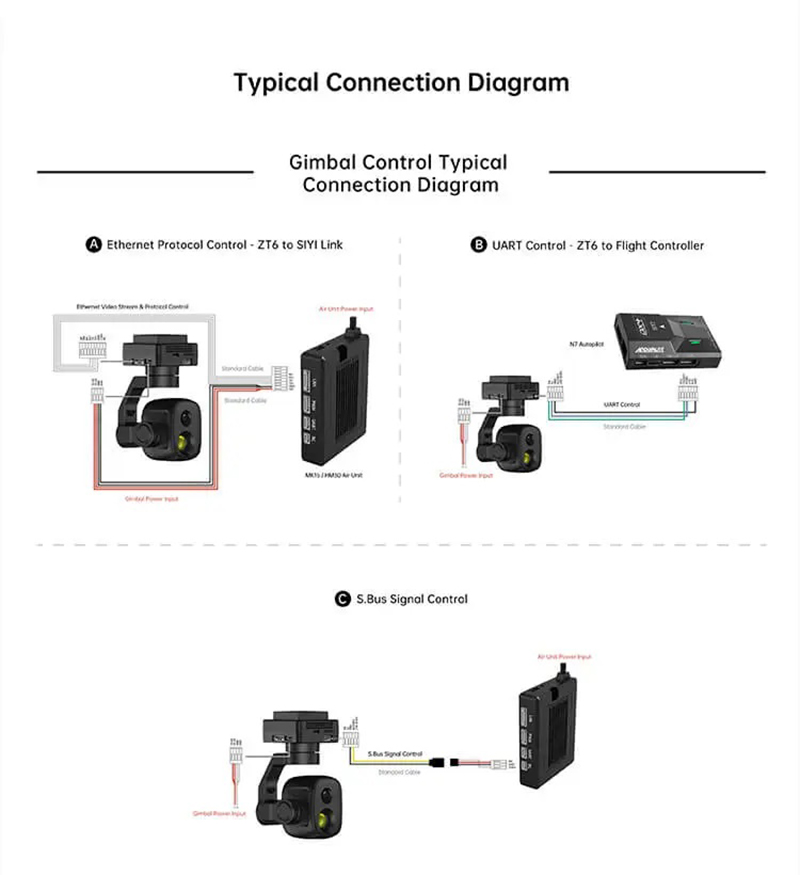

SIYI optical pods'(gimbal cameras’) powerful compatibility contributes to smart robotics ecology in all dimensions. They can be controlled through traditional S.Bus signal by switches and dials, or through ethernet by touchscreen or by UDP I TCP commands based on SIYI gimbal SDK, or through UART by SIYI gimbal SDK or by mainstream open-source protocols ArduPilot and PX4 (Mavlink).

What does a gimbal mean on a drone?

On a drone, a gimbal is a device used to stabilize the camera. The gimbal adjusts the camera through a system of motors to ensure that it remains smooth in flight. A dual sensor Gimbal Camera contains two sensors, usually thermal imaging and an optical camera, that provide versatility. The thermal imaging sensor is used for monitoring at night or in low light conditions, while the optical sensor provides high-resolution images. This combination allows for more comprehensive and accurate vision tasks in a variety of environments, such as search and rescue, surveillance, agriculture, and security applications.
