Skydroid G16 Remote Controller — Skydroid G16 Controller Only

Skydroid G16 Remote Controller — Skydroid G16 Controller Only

Designed for unmanned-vehicle control and ground-station applications. Controller, receiver and camera contents depend on the selected package.

Selected configuration: Skydroid G16 Controller Only

Contents depend on the selected configuration. Shared product images may show other packages.

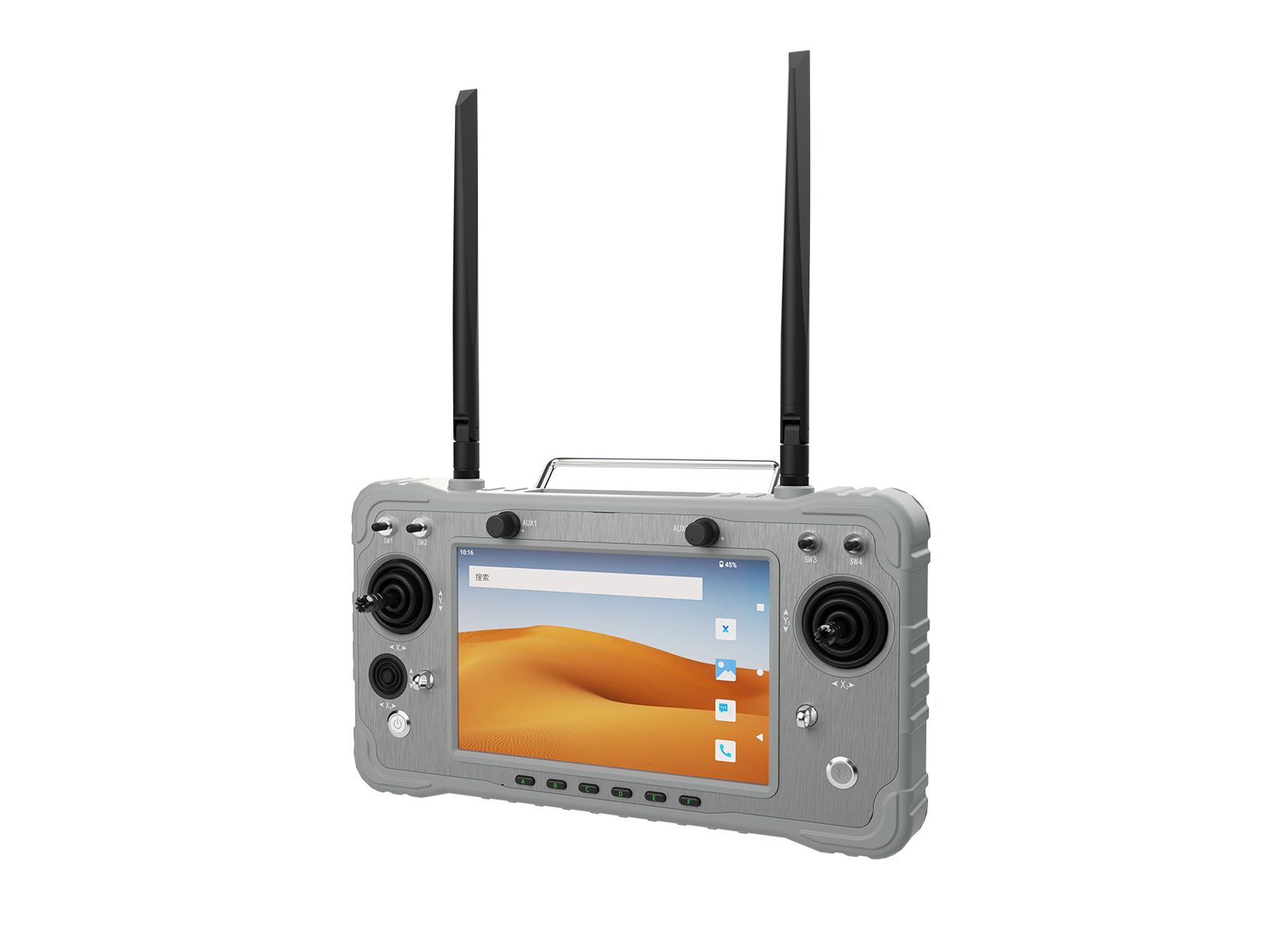

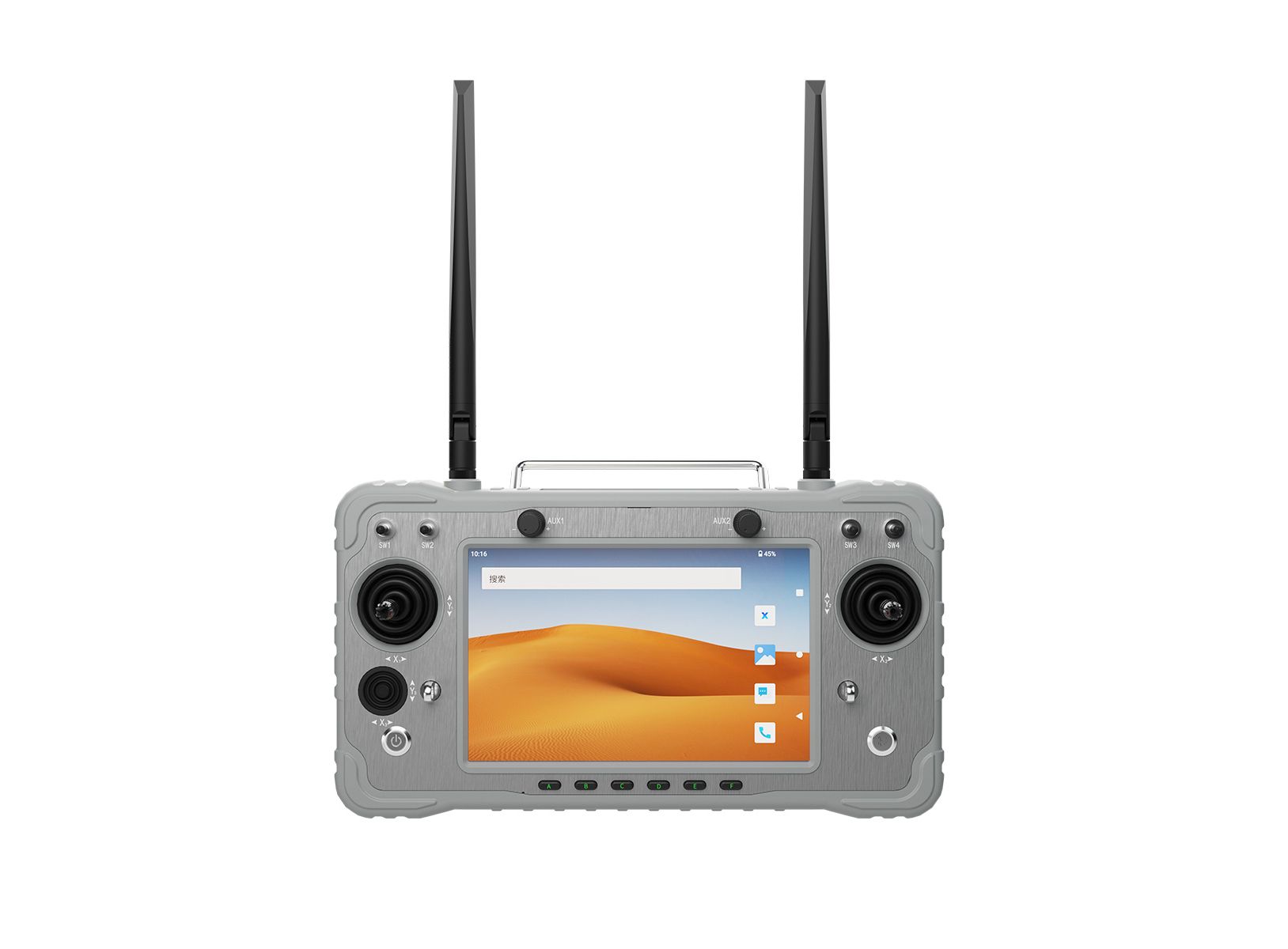

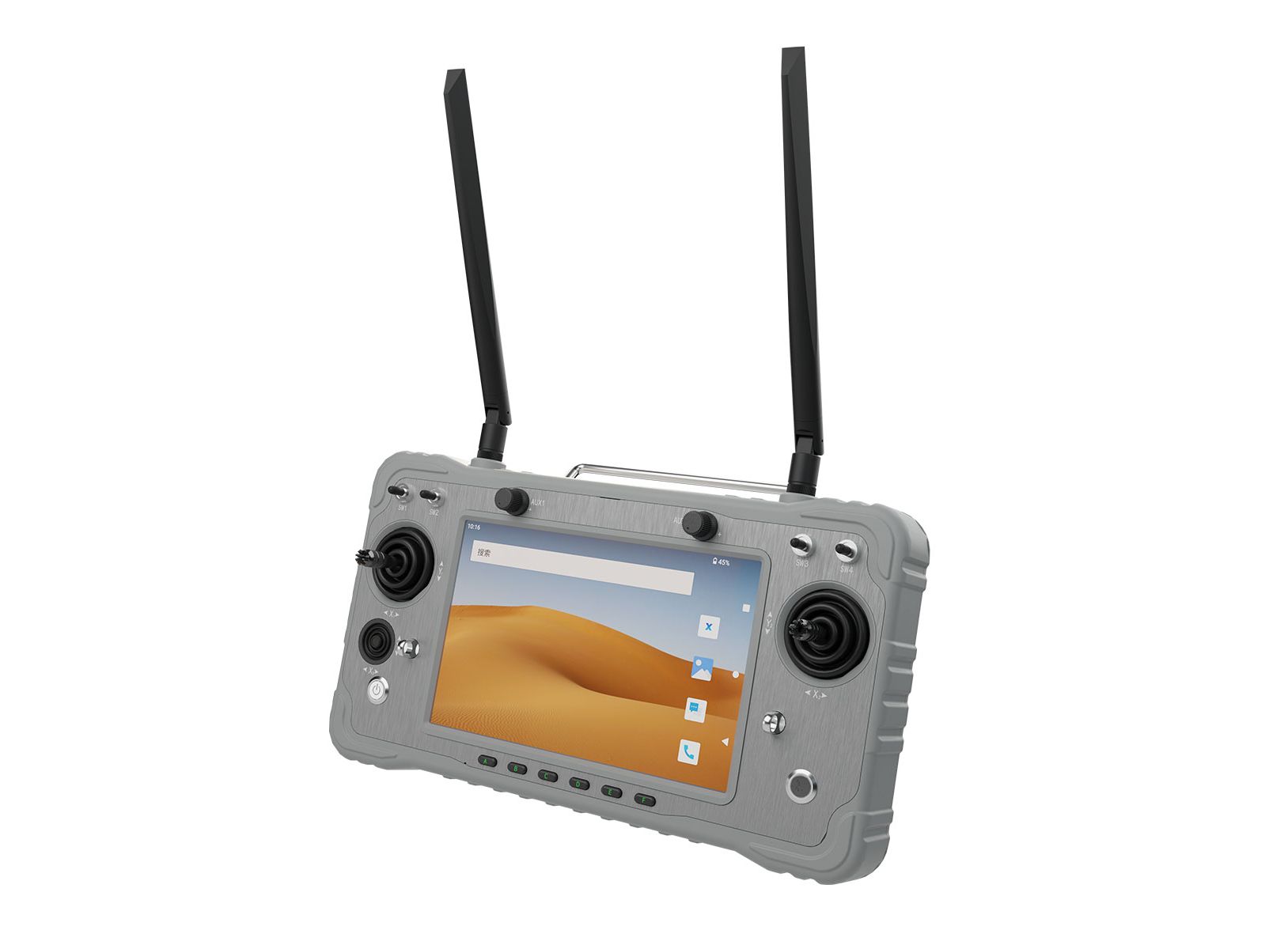

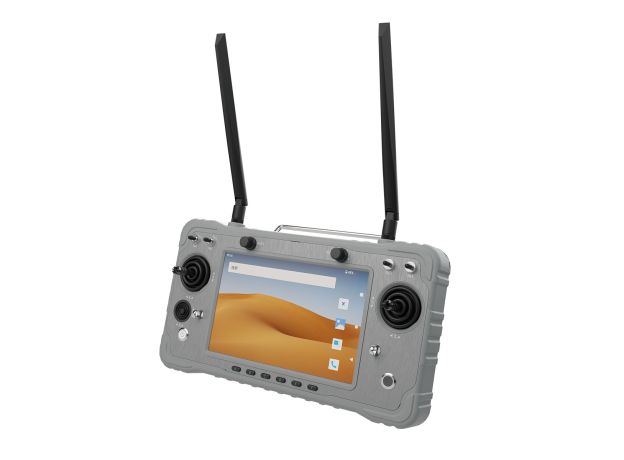

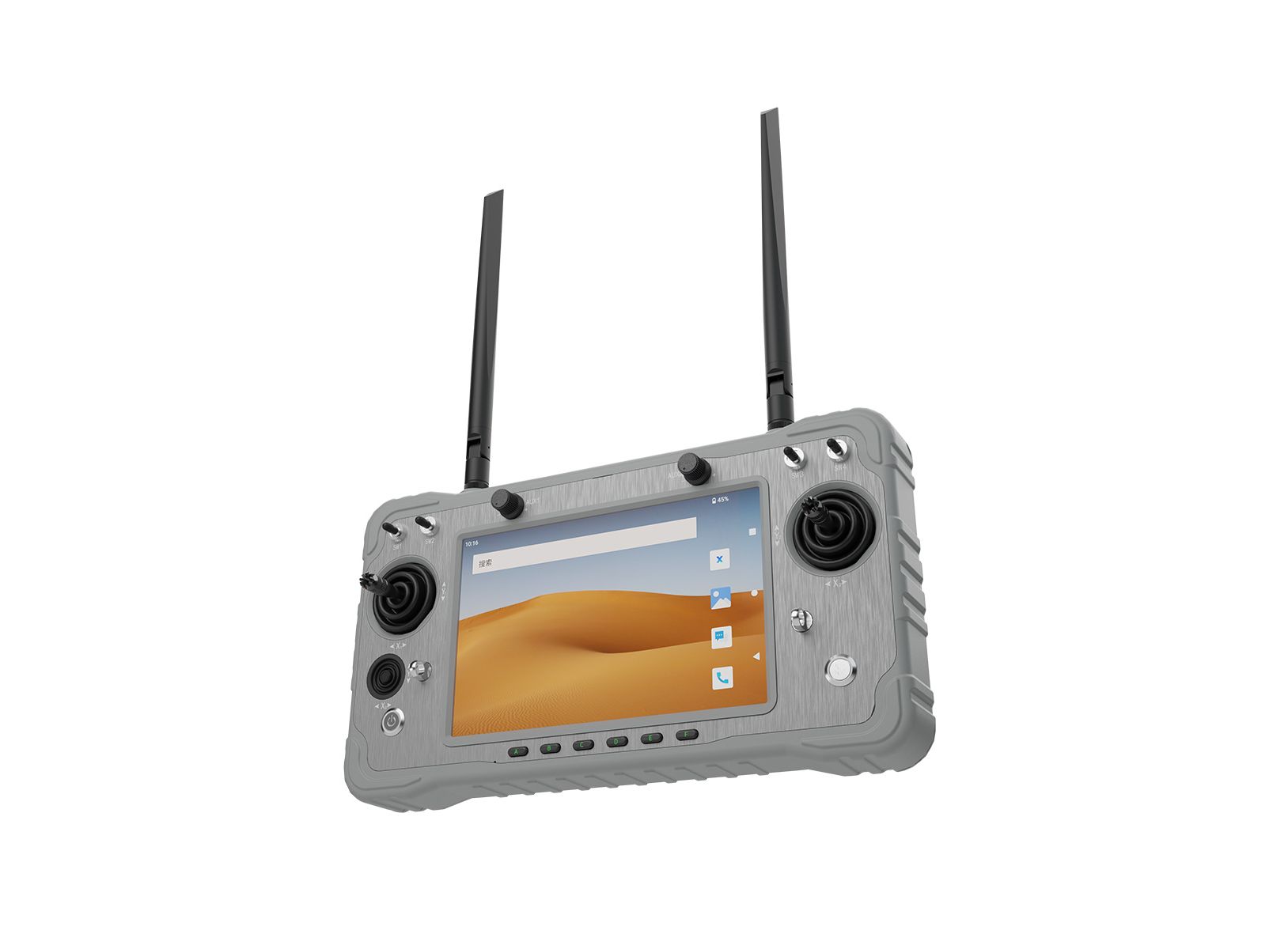

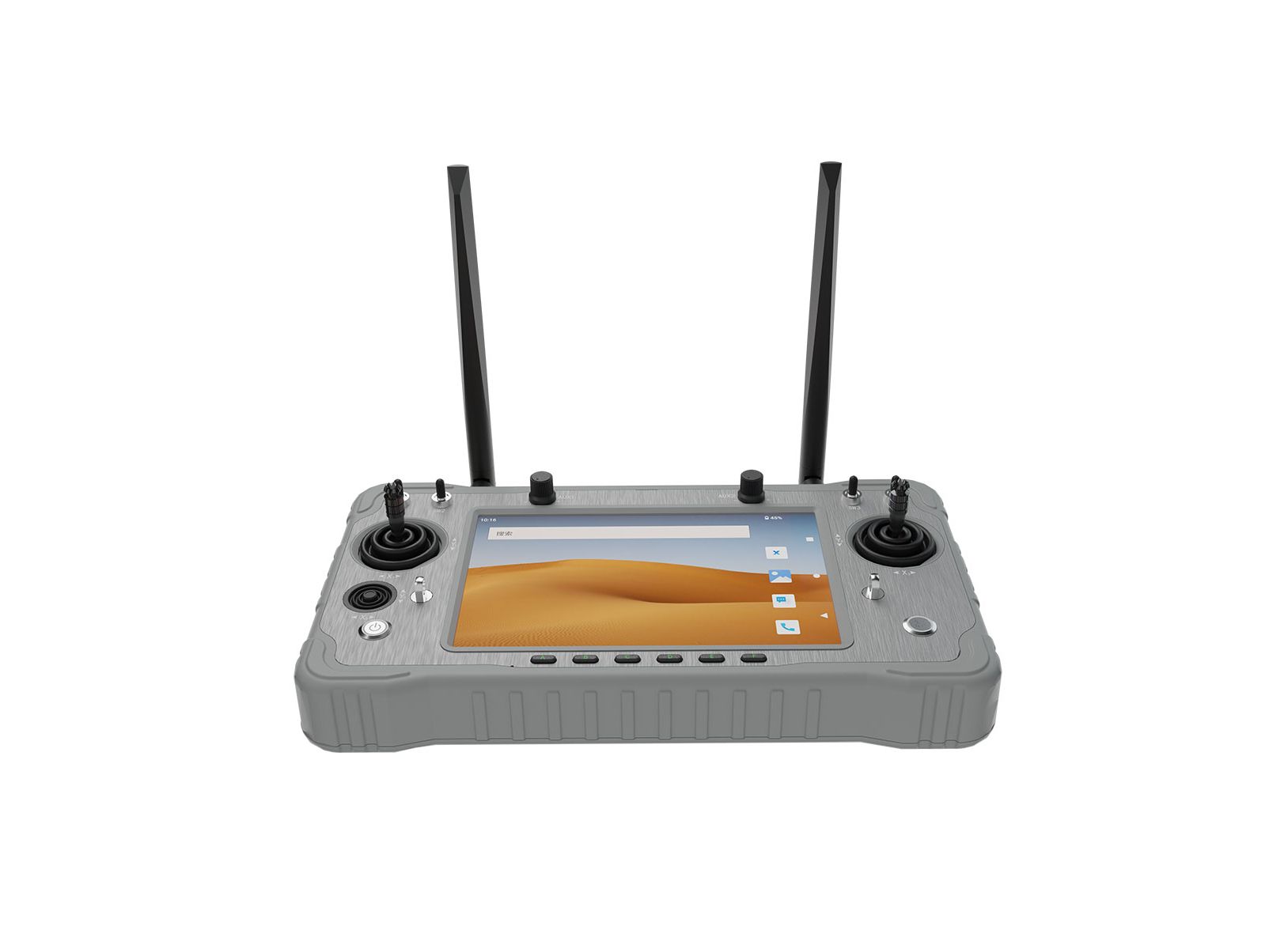

Skydroid G16 Remote Controller

Overview

1. Product Features

First of all, the Skydroid G16 remote controller runs on a Qualcomm 6nm processor and embedded Android 13 (64-bit) system. This core configuration delivers smooth and stable daily operation. In addition, its open ecosystem supports most mainstream third-party apps on the market. Besides, G16 Remote Control adopts an upgraded high-power 2.4/5.8G dual-band wireless module. The module supports automatic frequency hopping and MCS dynamic adjustment. Finally, it achieves a maximum 30KM range for stable video and data transmission.
Moreover, the Skydroid G16 provides diverse and practical external interfaces.It covers SIM card, USB, TYPE-C and PPM ports to meet different connection needs. Meanwhile, it comes with a complete SDK development kit. This advantage supports video floating functions and matches most mainstream flight control ground stations perfectly.
In particular, the G16 equips a professional 7-inch industrial touchscreen. It features a 1920*1200 ultra-high resolution and sunlight-readable design. Even under strong outdoor sunlight, the high screen-to-body ratio keeps all display information clear and visible in real time.
Apart from this, this remote controller adopts high-energy-density lithium-ion batteries. It supports 9 to 10 hours of continuous operation after a full charge. Thanks to its professional wilderness survival design, users can operate the device stably in various complex outdoor scenarios.

2. Main Applications and Scope of Use

Generally, the Skydroid G16 remote control fits multiple unmanned devices. It works for helicopters, fixed-wing aircraft, multi-rotor drones, unmanned cars and unmanned boats. It mainly undertakes long-distance video transmission, data transmission and precise device control tasks (optional camera required for image transmission).

Qualcomm Android platform

To start with, the G16 Remote Control carries Qualcomm advanced 6nm processor and Android 13 system. It enables efficient hardware decoding for H264 and H265 video formats. Therefore, it runs all types of professional ground station software smoothly without stuttering or frame drops.

Endurance time

Furthermore, this device boasts excellent battery performance. It reaches 9 to 10 hours of long-lasting endurance for all-day field work. In addition, it supports 36W PD fast charging to shorten power replenishment time. The new hardware platform effectively reduces power consumption and heat generation, and further extends overall battery service life.

9KM Data-Video-Control

Thanks to its proprietary data-video-control link technology, the G16 delivers a remote control and video transmission range of up to 9KM.

Dual-band of 2.4GHz/5.8GHz

Meanwhile, the G16 adopts dual 2.4GHz and 5.8GHz frequency bands.It intelligently switches frequency bands according to real-time flight environments. This design stabilizes signal transmission, improves transmission efficiency and enhances anti-interference ability in complex industrial and urban scenarios.

High-definition image transmission

Besides, the G16 supports long-distance high-definition digital image transmission. It delivers real-time clear and delicate footage. Users can capture every remote detail intuitively during drone operations.

Abundant interfaces

Last but not least, the Skydroid G16 reserves rich compatible interfaces.It supports SIM cards, Type-C, USB-A and PPM interfaces for flexible connection.The matching receiver provides Serial, PWM and SBUS ports. It also adapts to various Ethernet-port devices such as cameras, gimbals and functional pods.
