Skydroid S2 Multifunctional Avionics System — S2+GPS
Designed for flight-control and avionics applications. GNSS and accessory contents vary by the selected package.

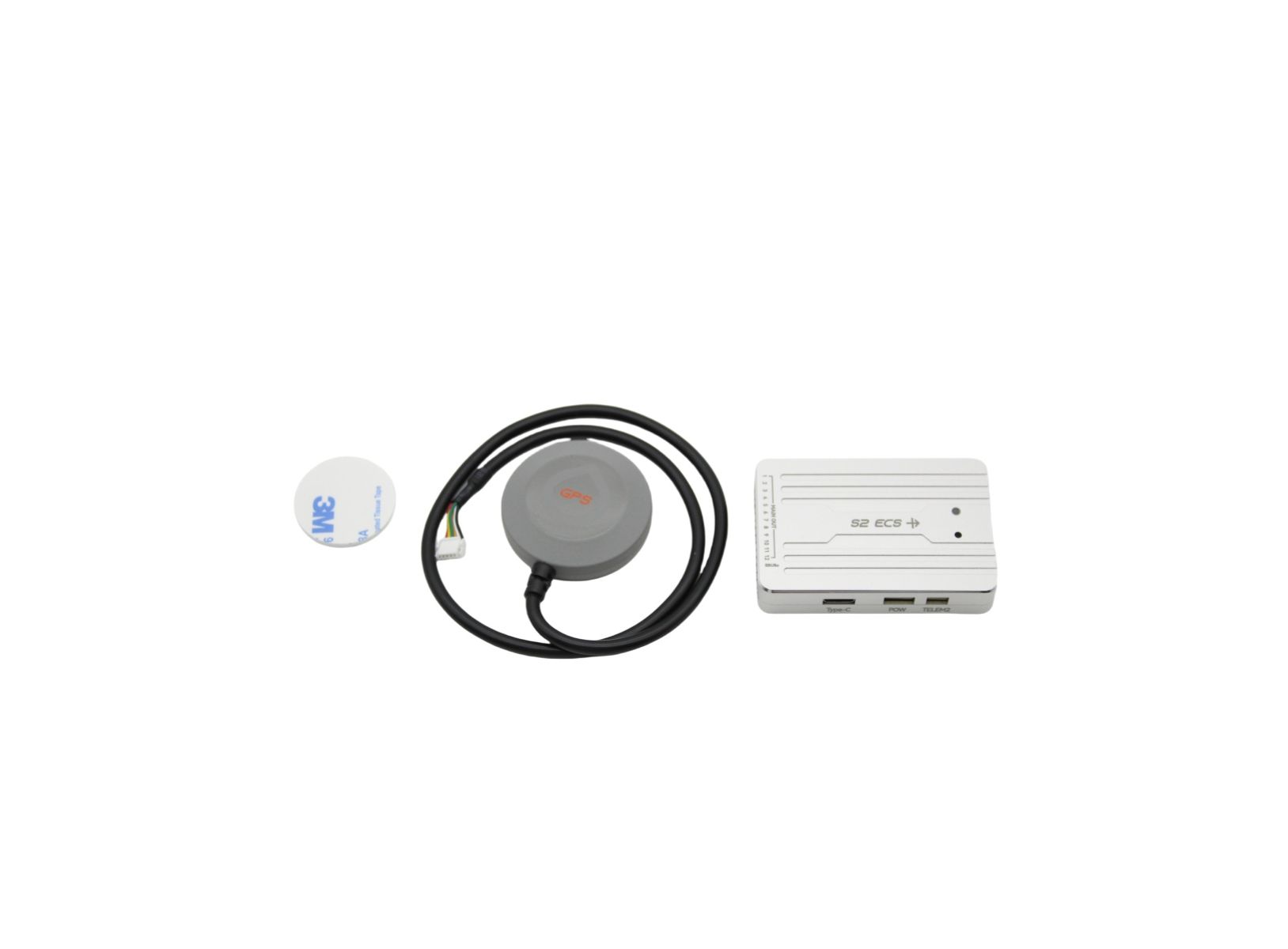

Selected configuration: S2+GPS
Contents depend on the selected configuration. Shared product images may show other packages.

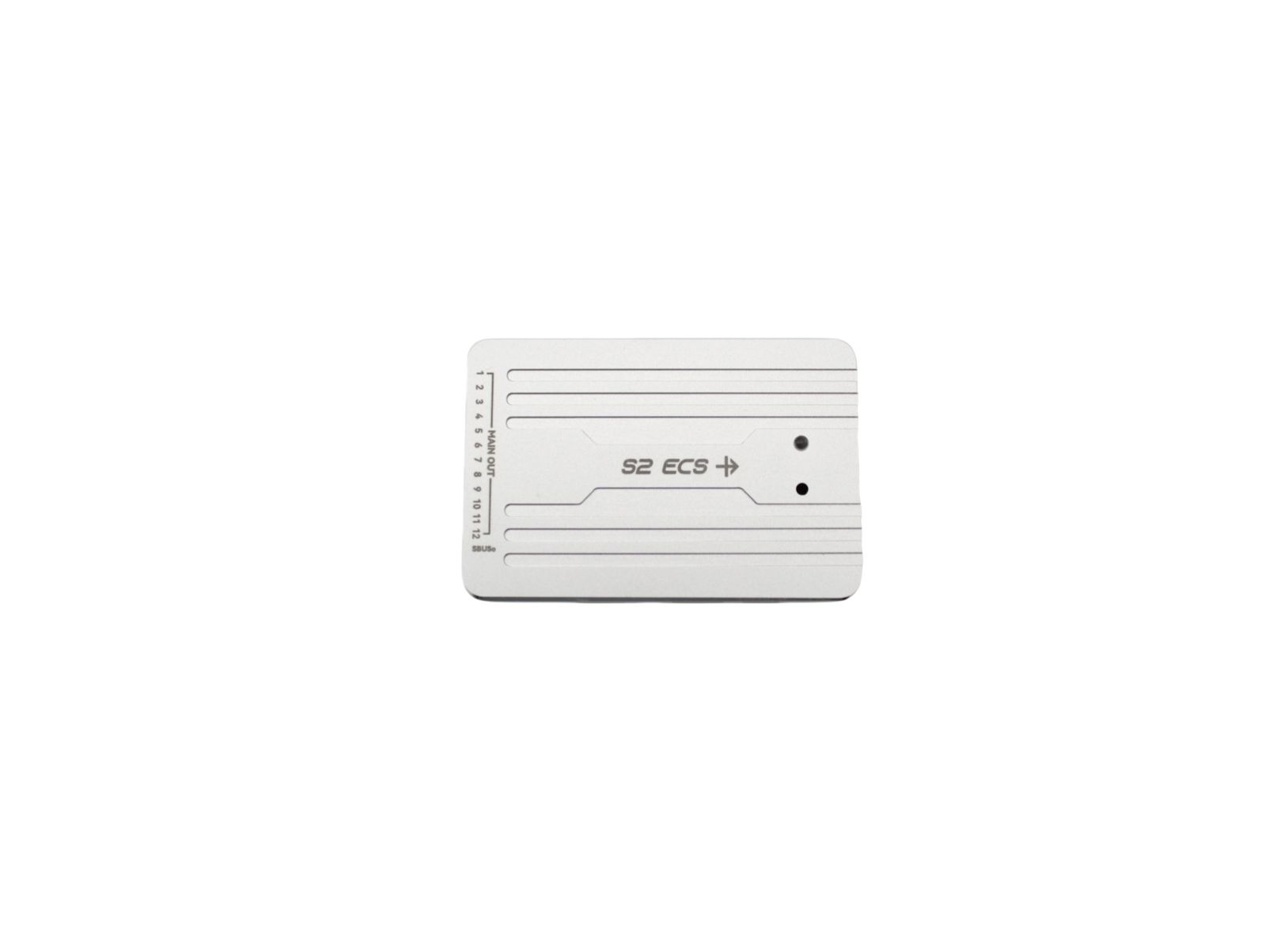

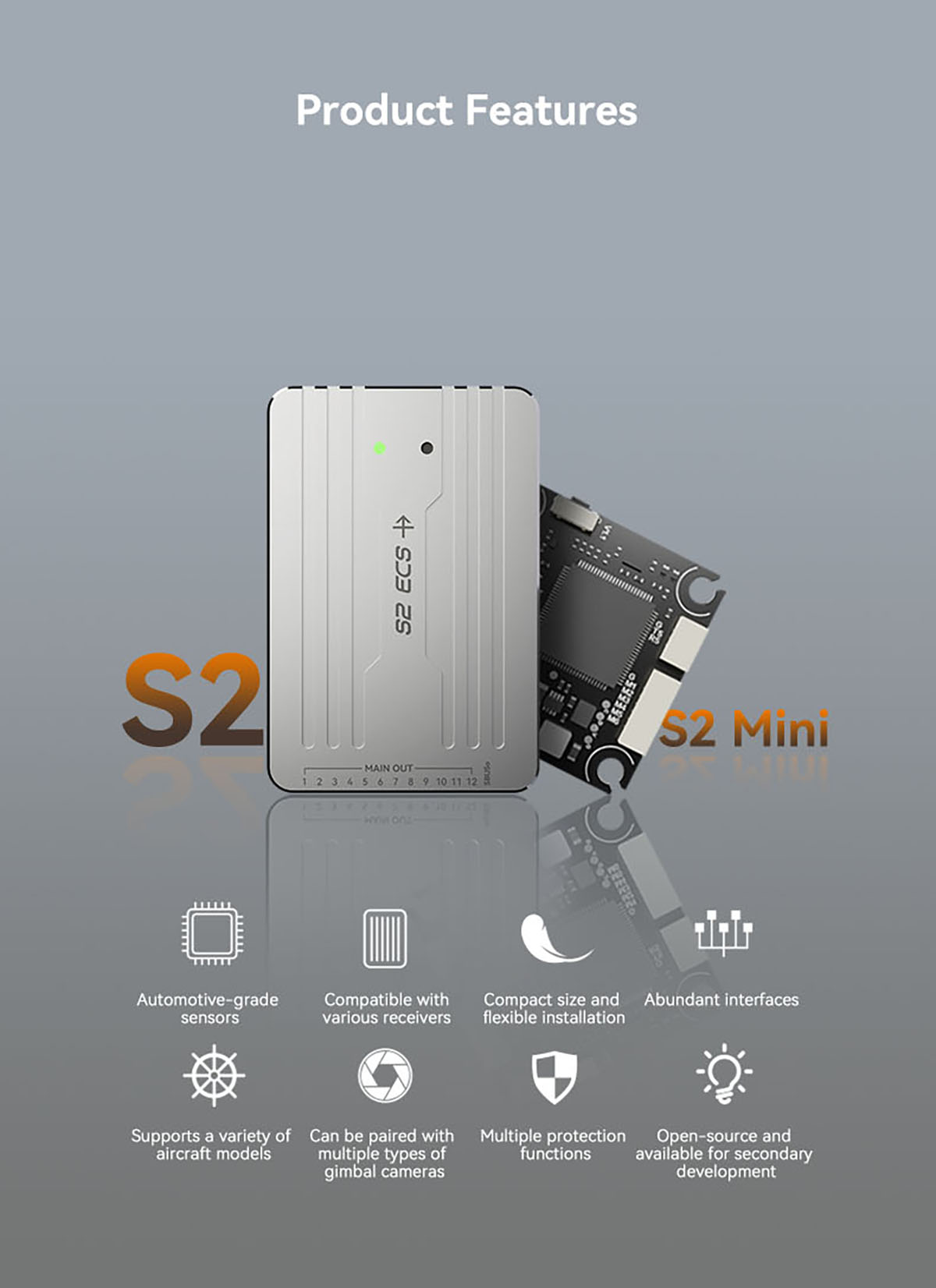

Skydroid S2 Multifunctional Avionics System

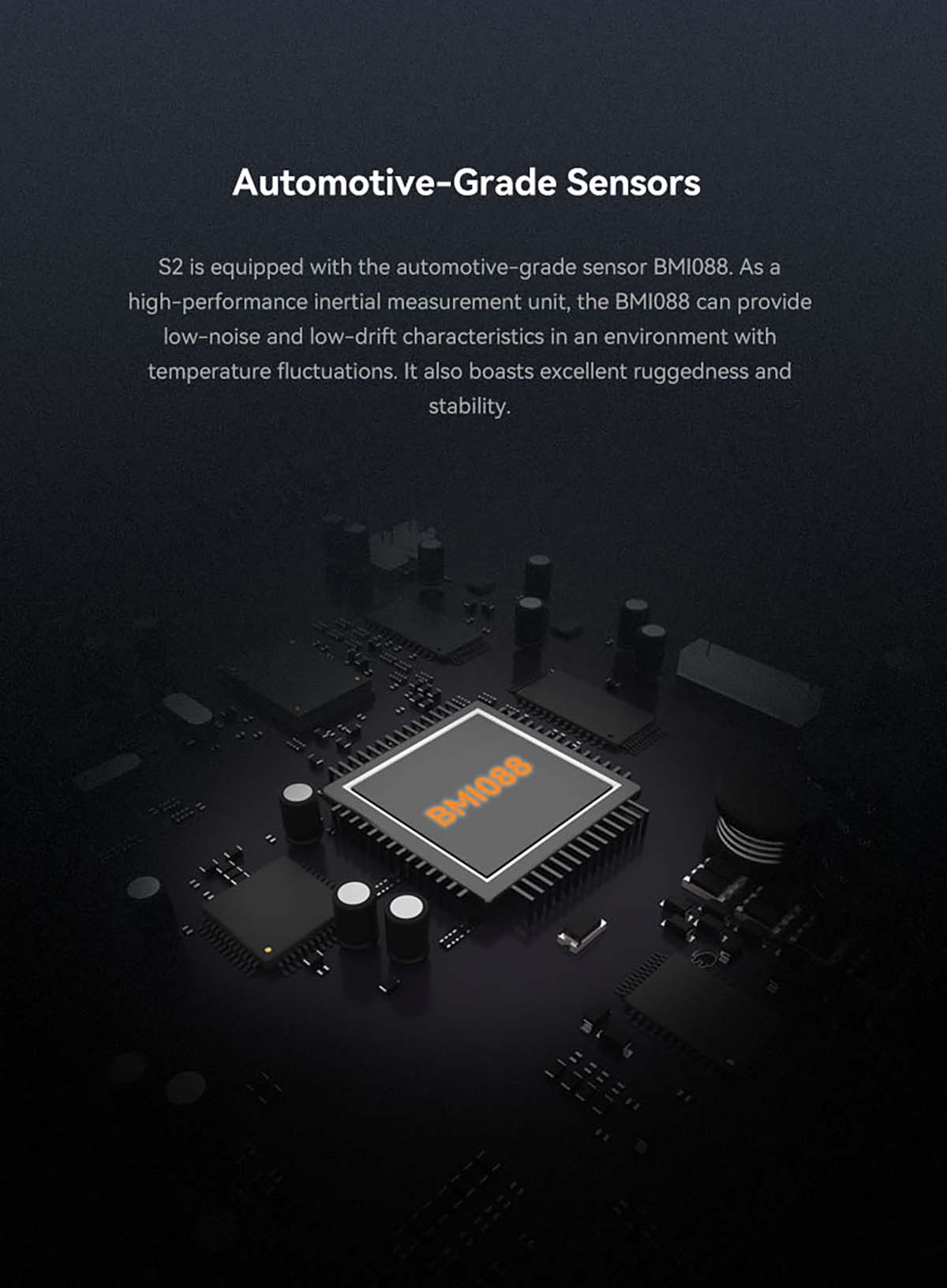

Automotive-Grade Sensors
Skydroid S2 Multifunctional Avionics System is equipped with the automotive-grade sensor BM088. As a high-performance inertial measurement unit, the BMl088 can provide low-noise and low-drift characteristics in an environment with temperature fluctuations. It also boasts excellent ruggedness and stability.

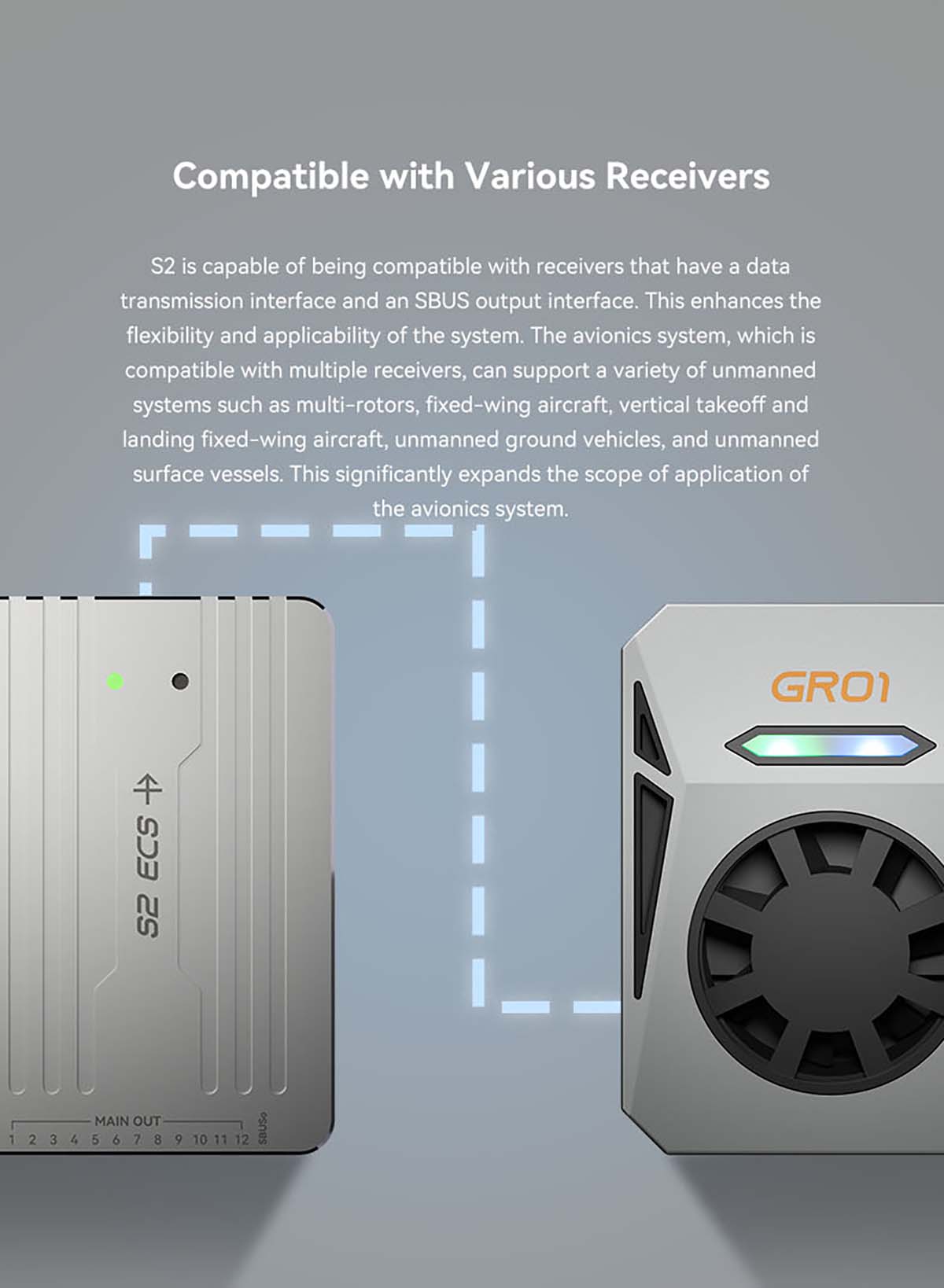

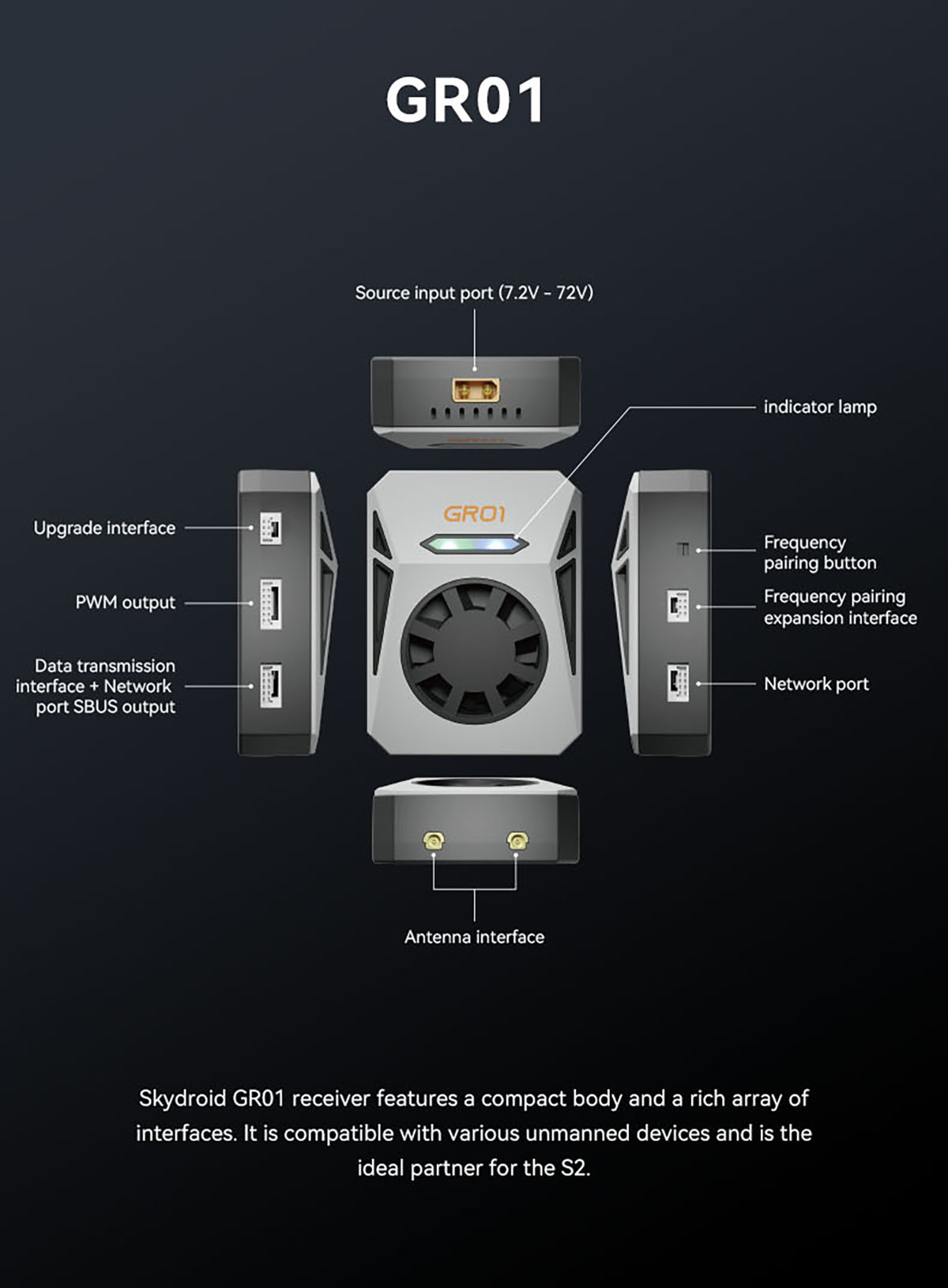

Compatible with multiple receivers
S2 is compatible with receivers with data transmission interface and SBUS output interface, which enhances the flexibility and applicability of the system. The avionics system compatible with multiple receivers can support multiple unmanned systems such as multi-rotor aircraft, fixed-wing aircraft, vertical take-off and landing fixed-wing aircraft, unmanned ground vehicles, unmanned surface ships, etc., greatly expanding the application scope of the avionics system.

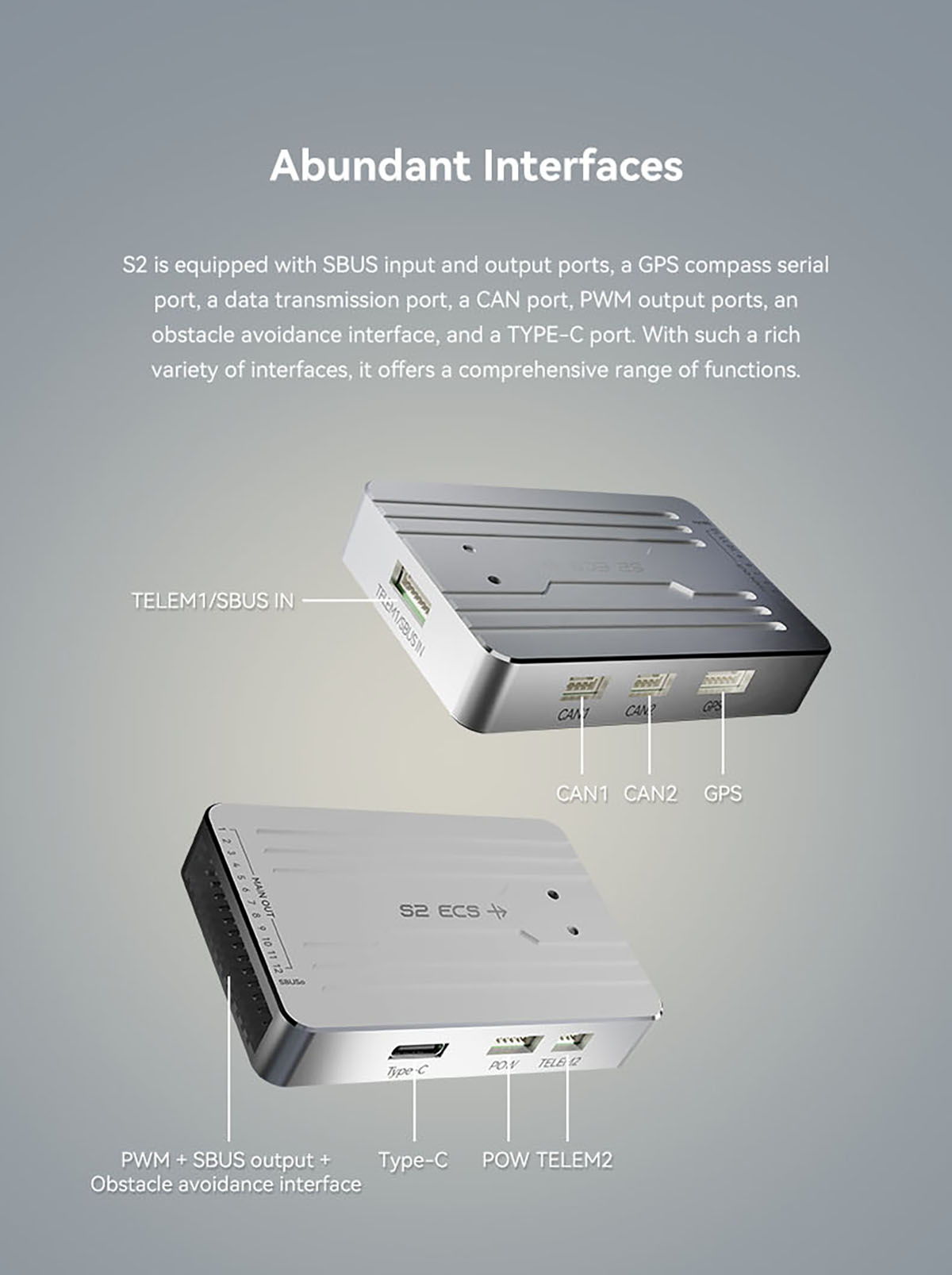

Abundant Interfaces

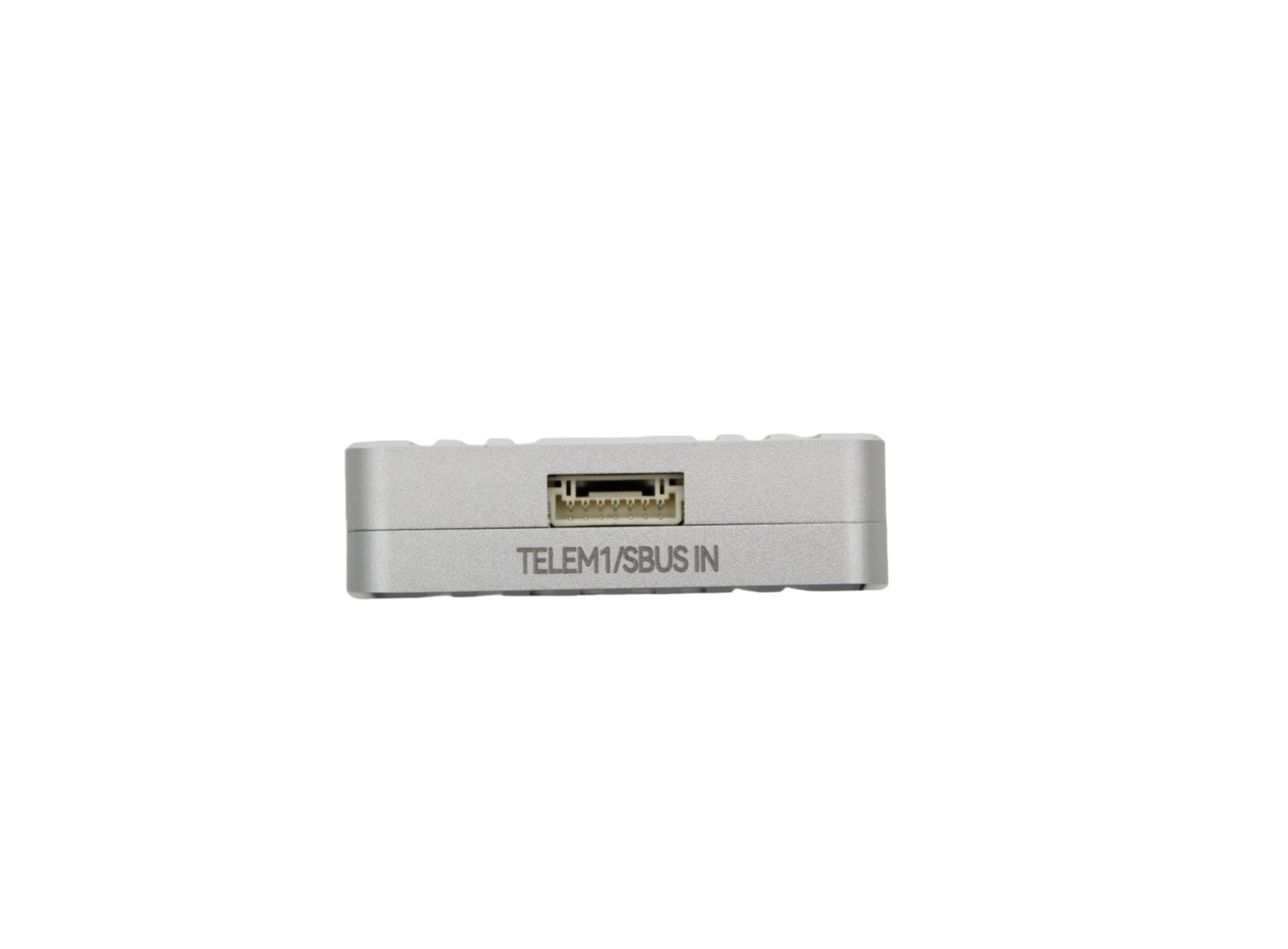

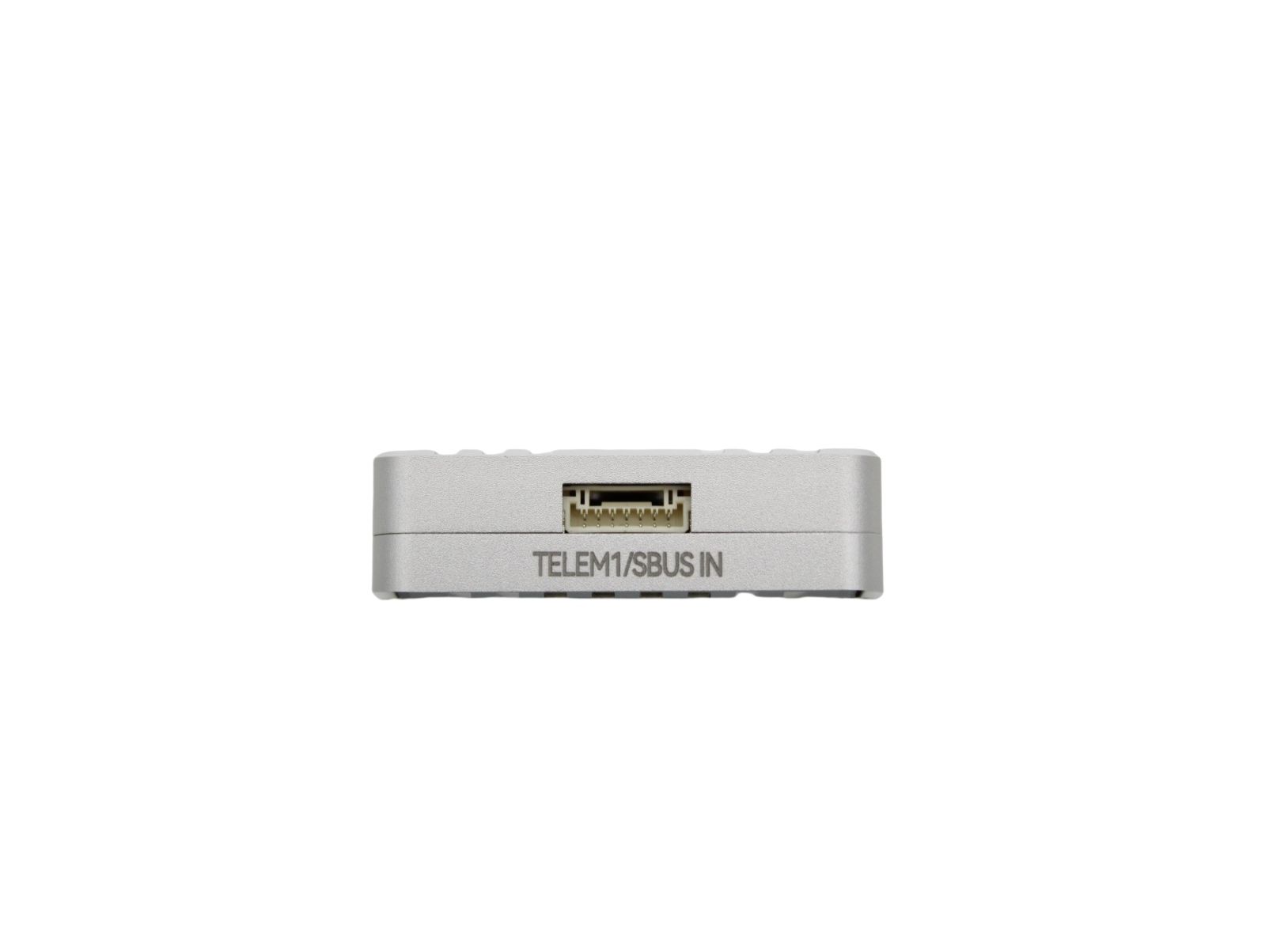

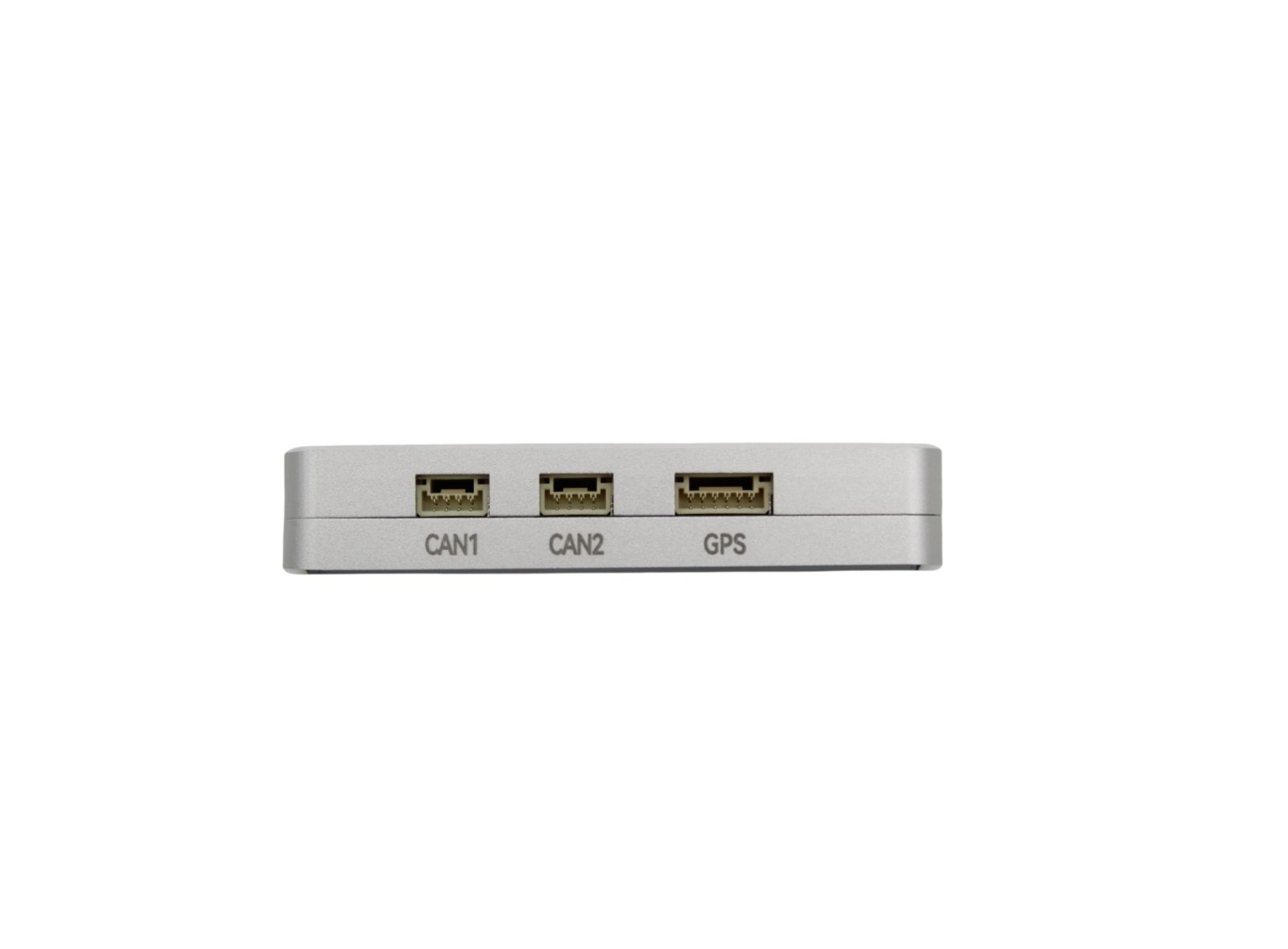

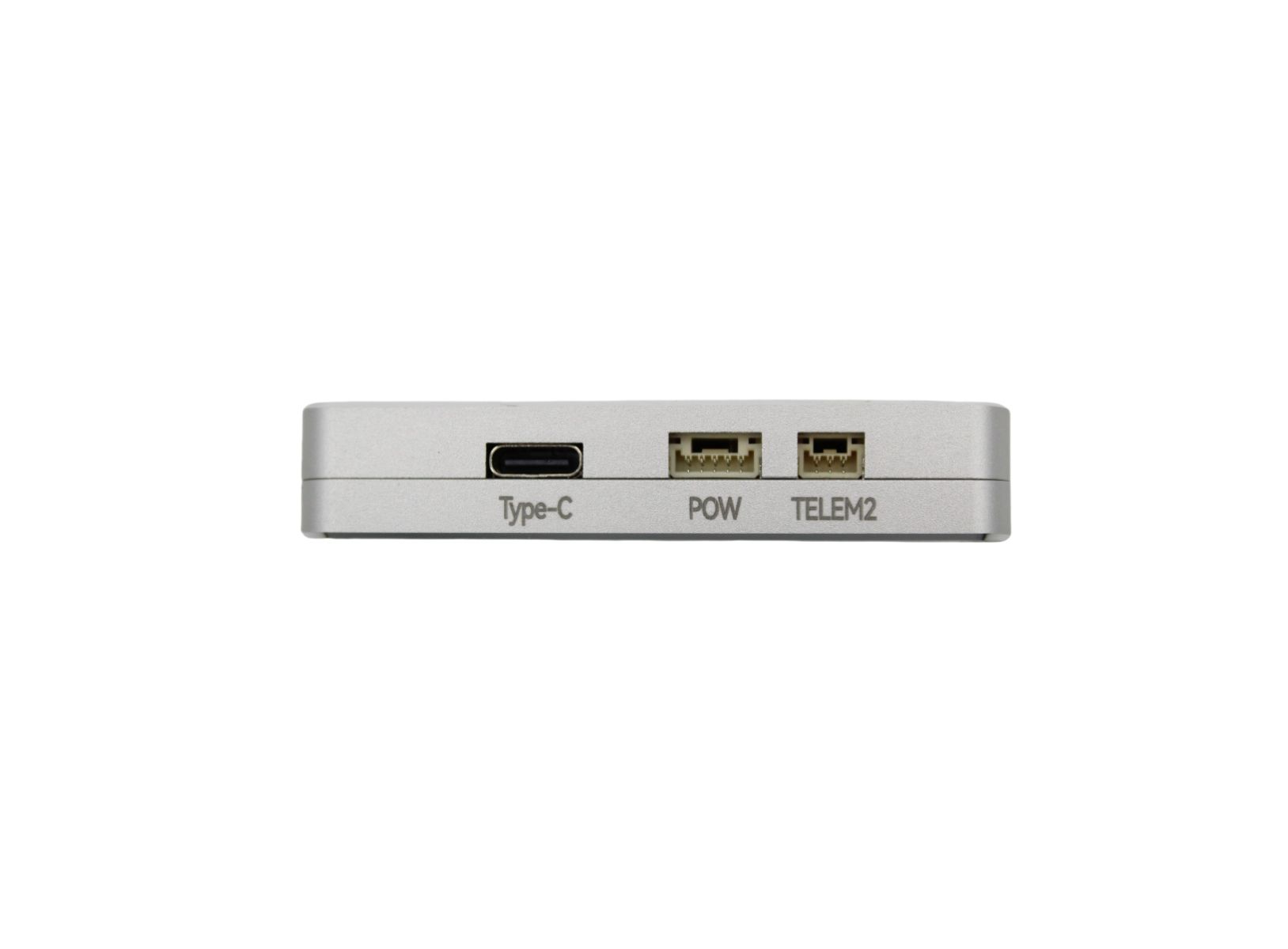

S2 is equipped with SBUS input and output interface, GPS compass serial port, data transmission interface, CAN interface, PWM output interface, obstacle avoidance interface, TYPE-C interface, rich interfaces and comprehensive functions.

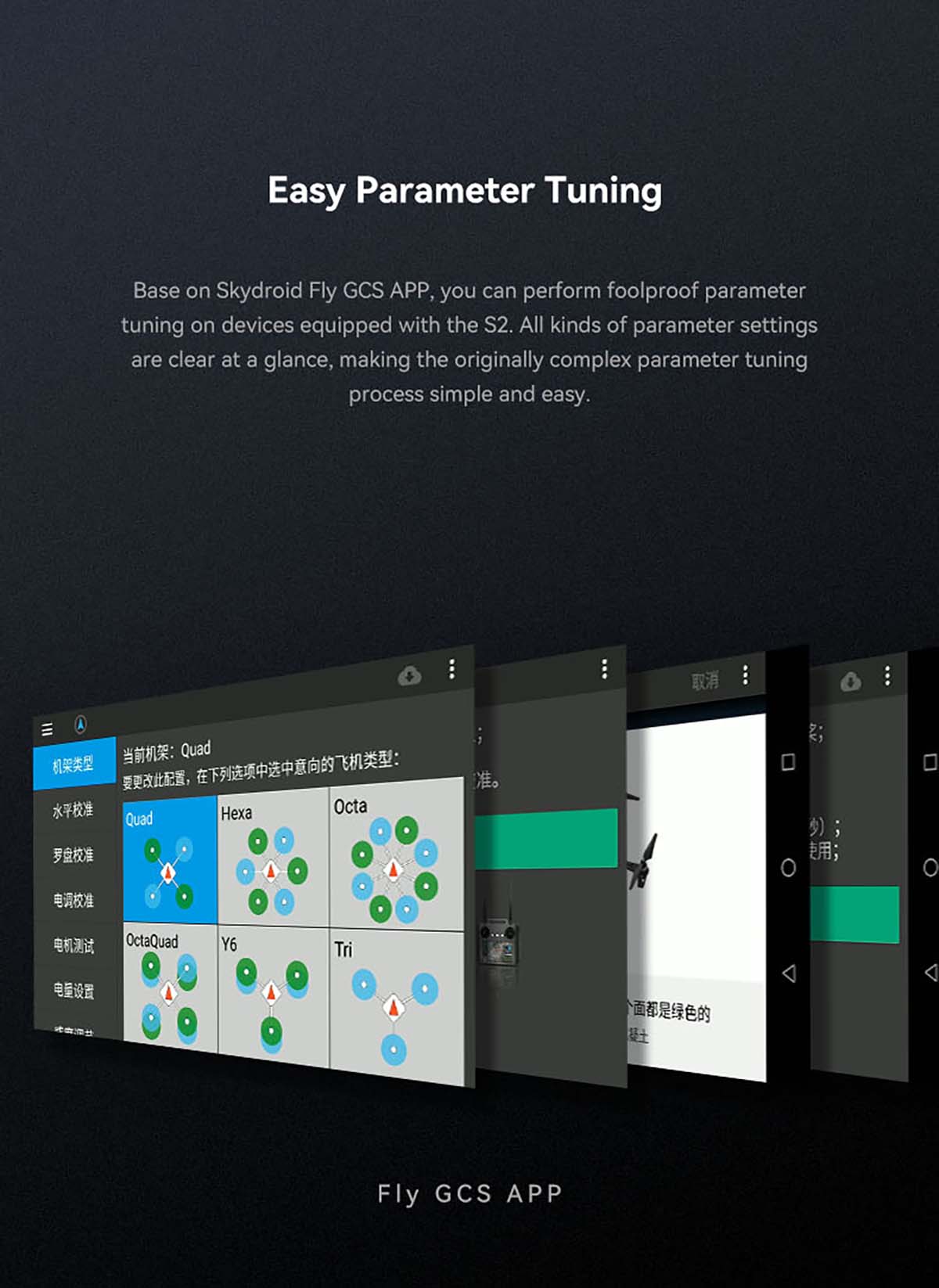

Easy parameter adjustment
Based on the Skydroid Fly GCS APP, you can make foolproof parameter adjustments for devices equipped with S2. Various parameter settings are clear at a glance, making the originally complicated parameter adjustment process easy and convenient.

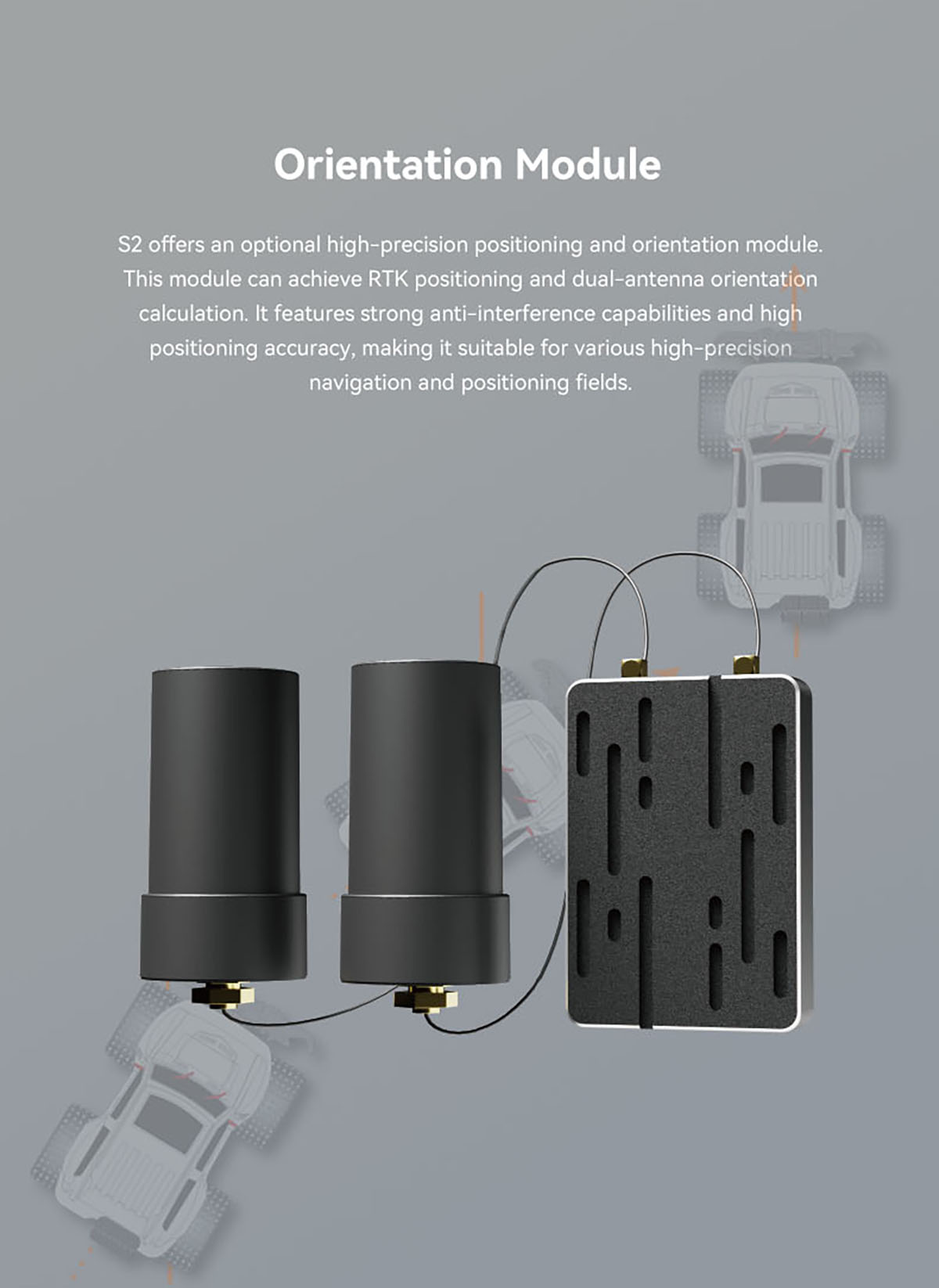

Orientation module
S2 provides an optional high-precision positioning and orientation module. This module can realize RTK positioning and dual-antenna orientation solution. It has strong anti-interference ability and high positioning accuracy, and is suitable for various high-precision navigation and positioning fields.

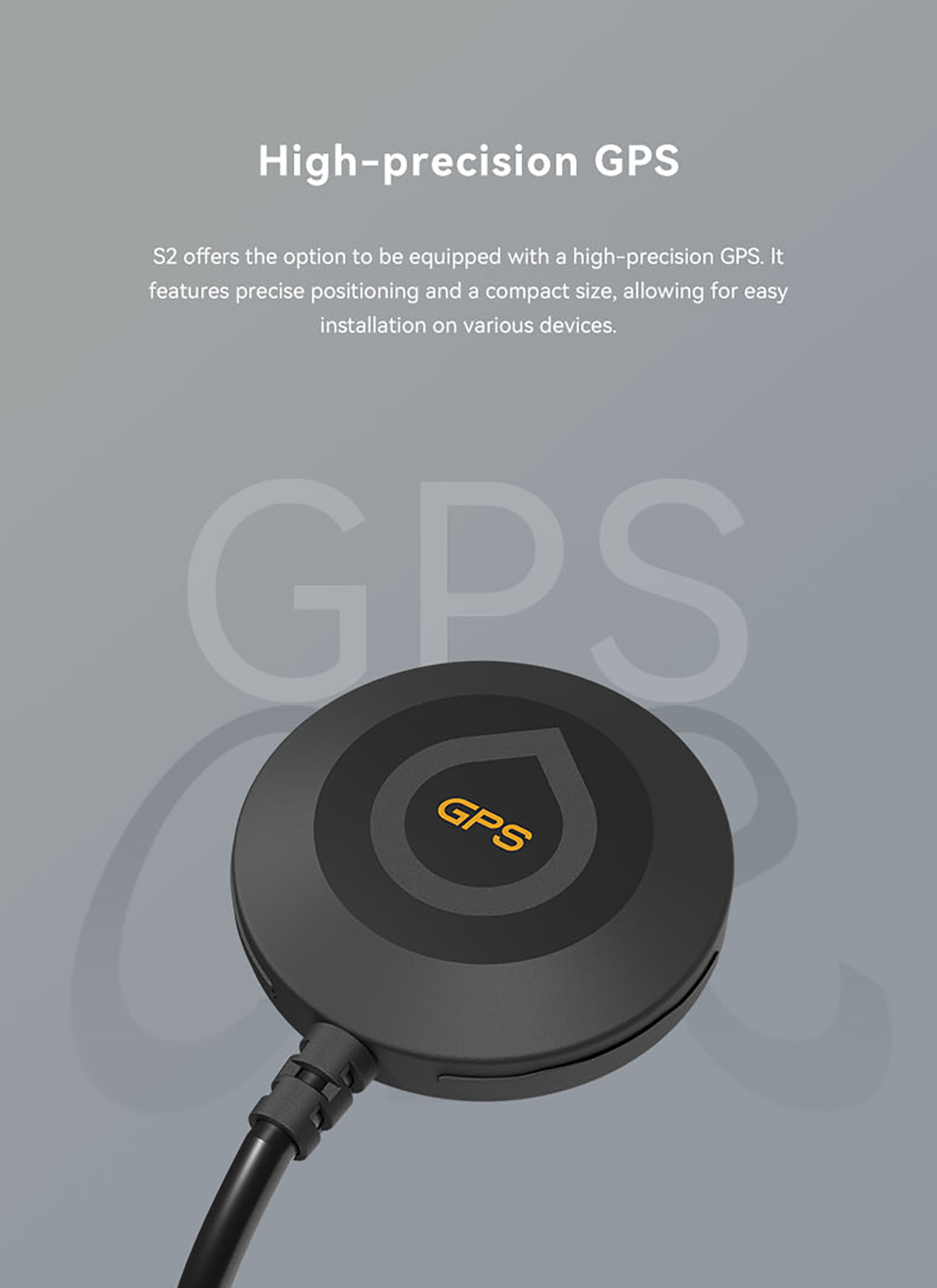

High-precision GPS
S2 offers the option to be equipped with a high-precision GPS. it features precise positioning and a compact size, allowing for easy installation on various devices.

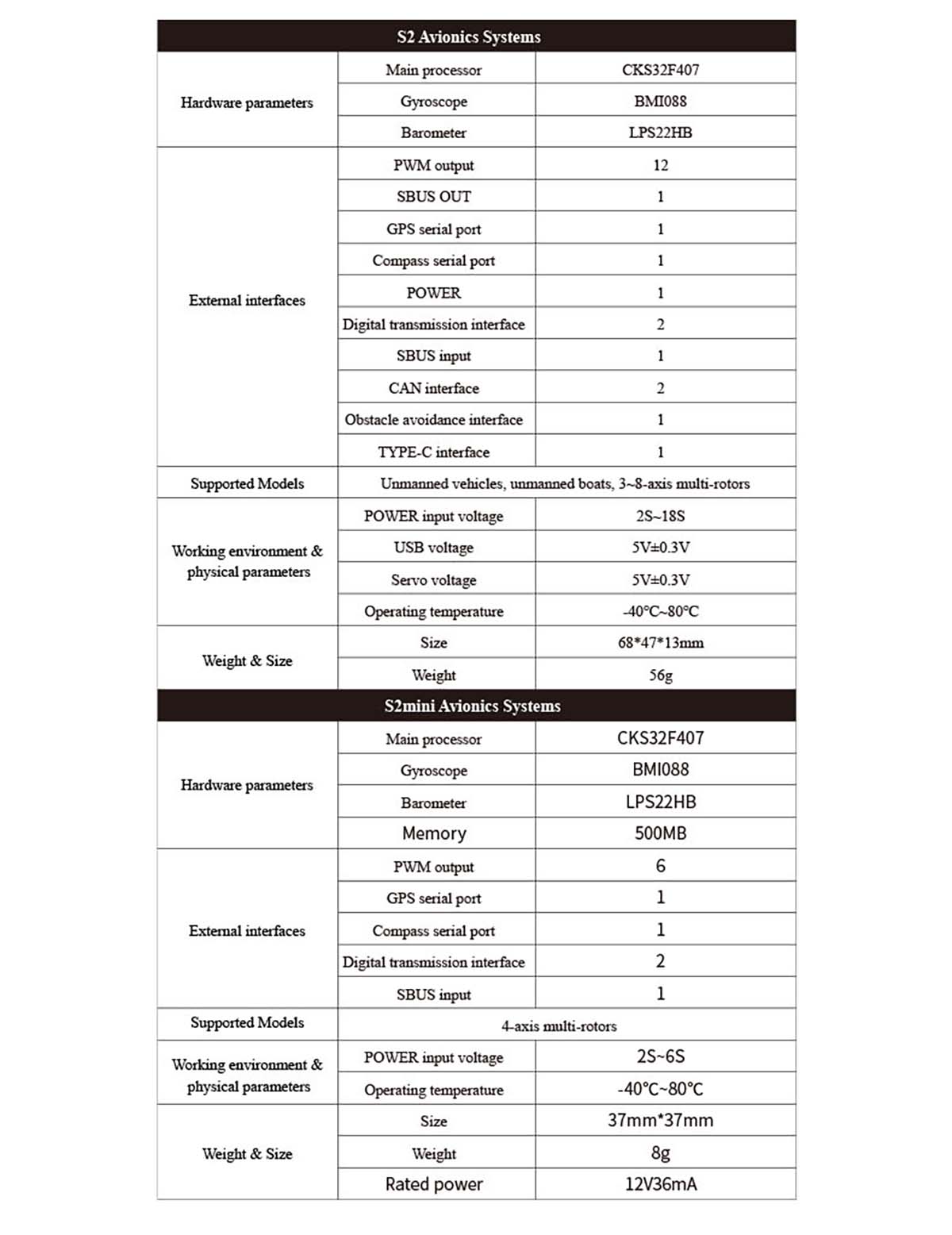

| S2 Avionics Systems | ||
| Hardware parameters | Main processor | CKS32F407 |
| Gyroscope | BMO88 | |
| Barometer | LPS22HB | |

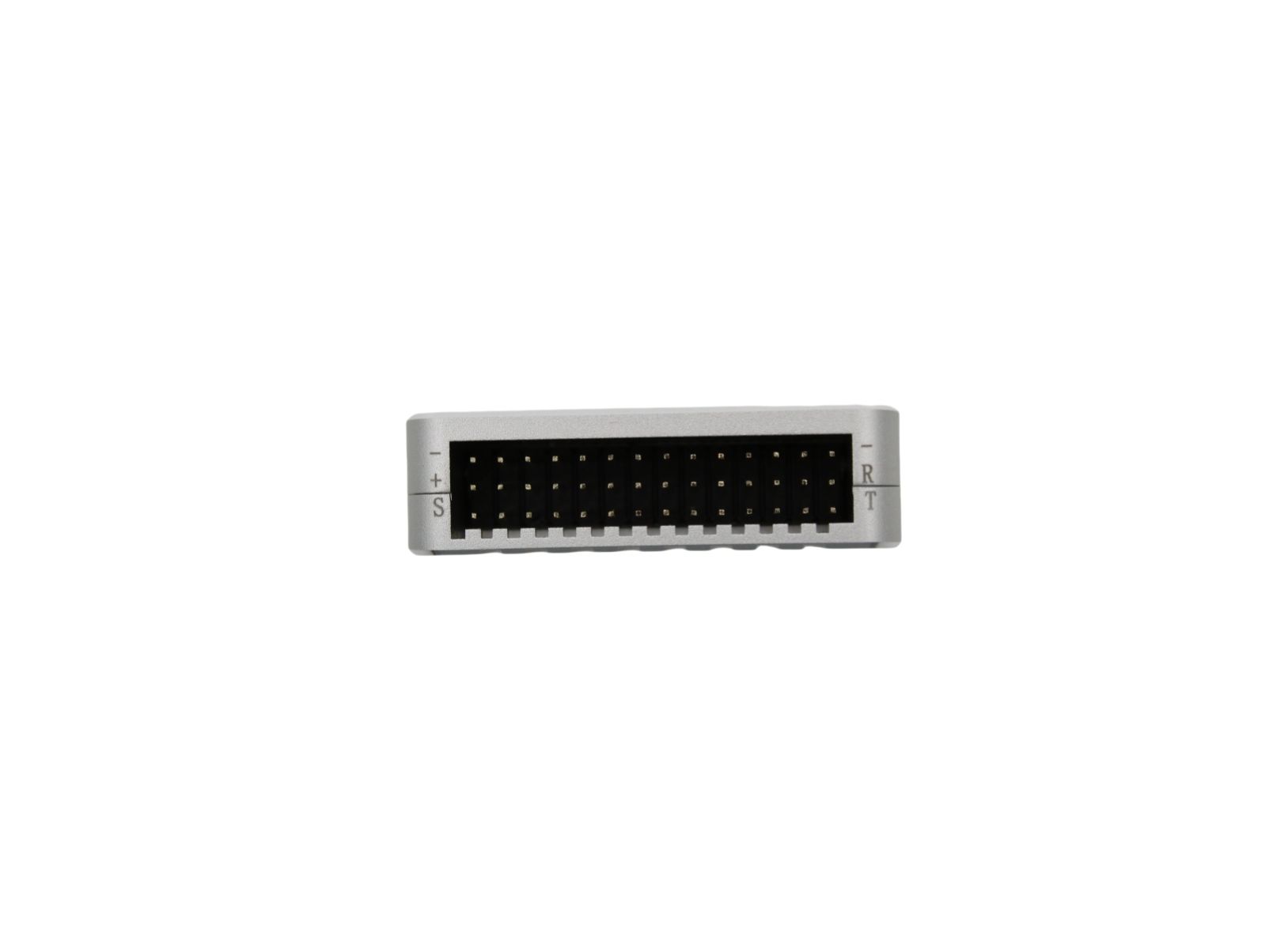

| External interfaces | PWM output | 12 |
| SBUS OUT | 1 | |
| GPS serial port | 1 | |
| Compass serial port | 1 | |
| POWER | 1 | |
| Digital transmission interface | 2 | |
| SBUS input | 1 | |
| CAN interface | 2 | |
| Obstacle avoidance interface | 1 | |
| TYPE-C interface | 1 | |
| Supported Models | Unmanned vehicles, unmanned boats,3-8-axis multi-rotors | |
| Working environment & physical parameters | POWER input voltage | 2S-18S |
| USB voltage | SV±0.3V | |
| Servo voltage | SV±0.3V | |
| Operating temperature | -40°C-80℃ | |
| Weight & Size | Size | 68*47*13mm |
| Weight | 56g | |
