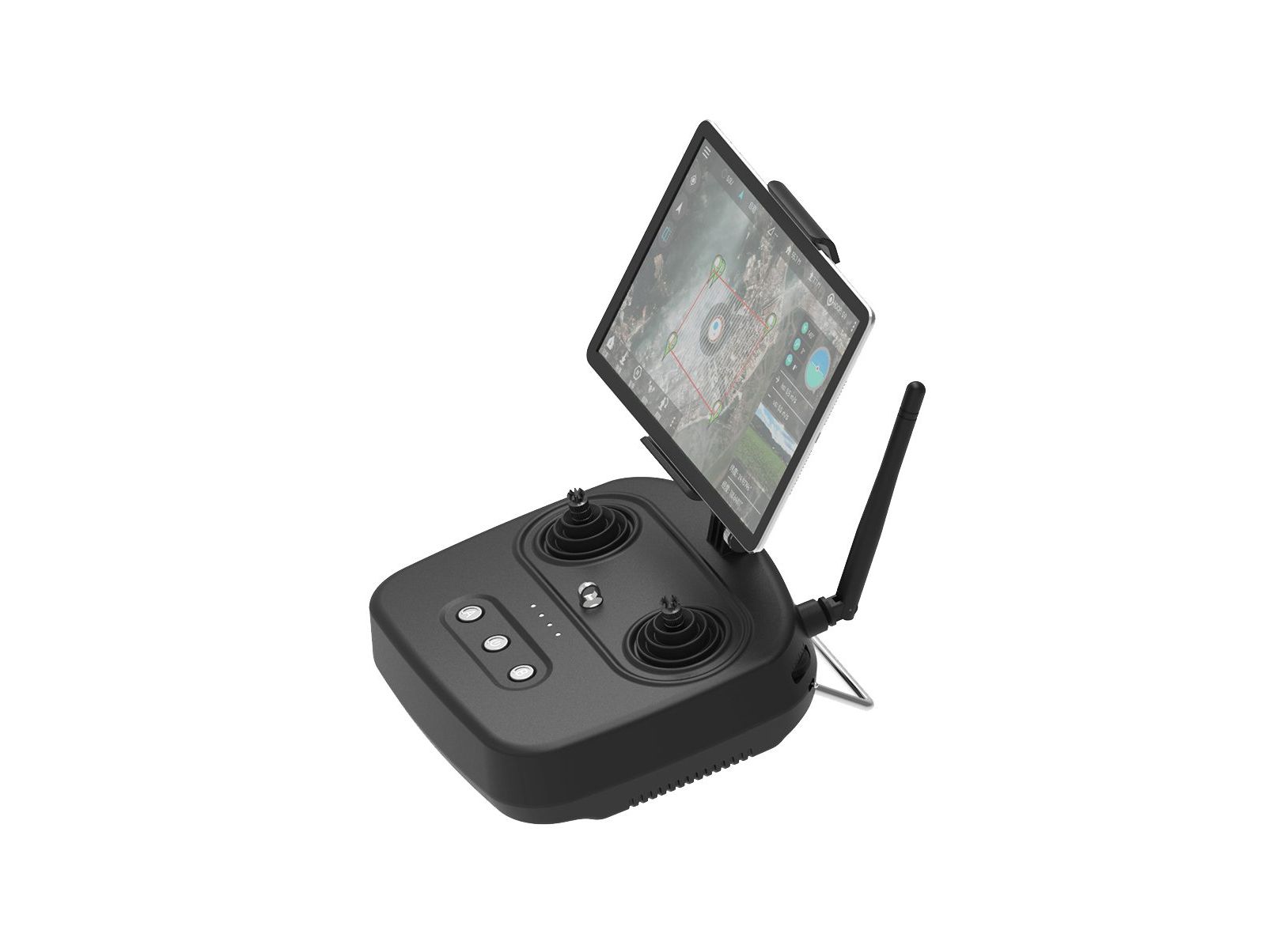

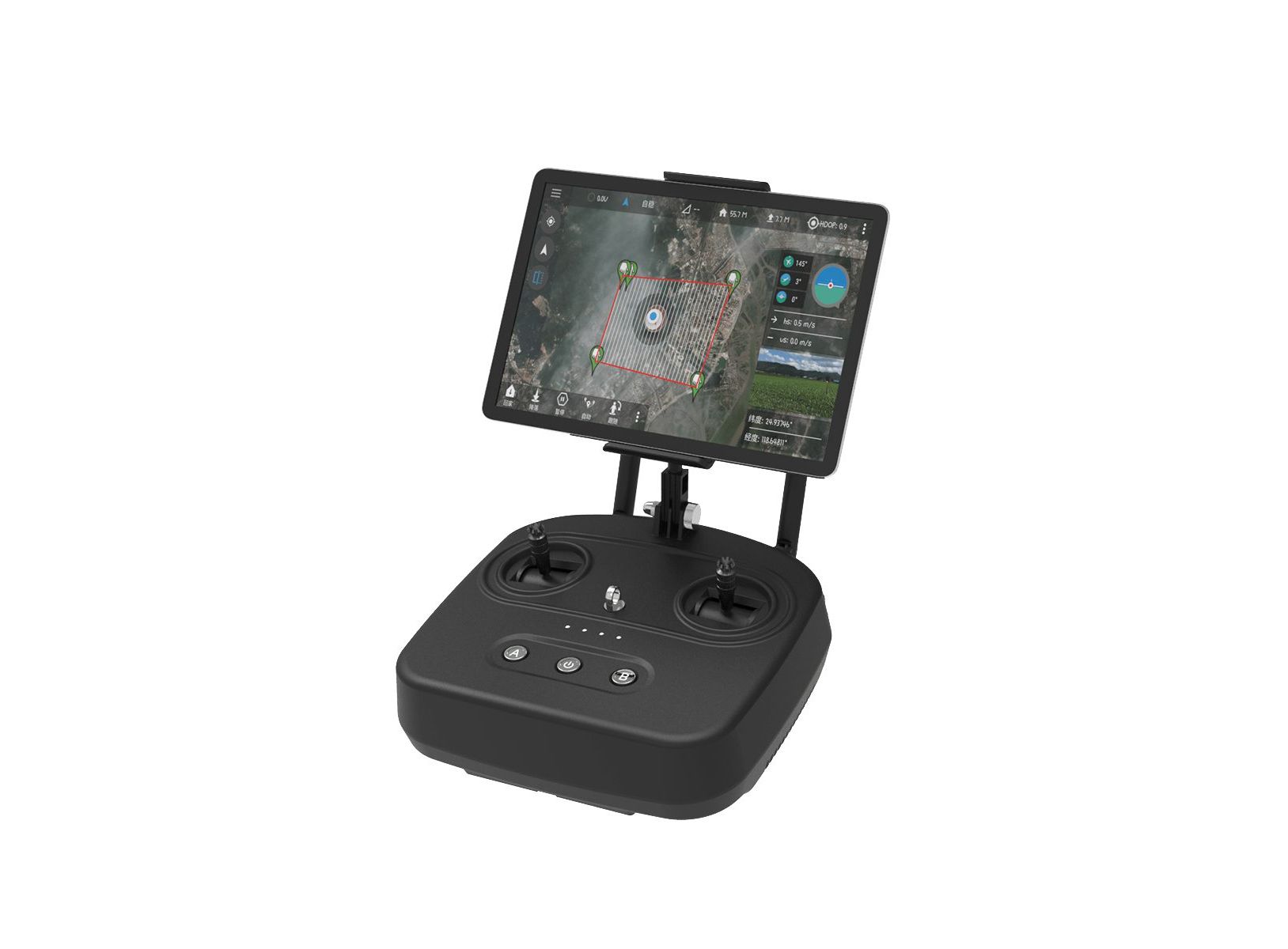

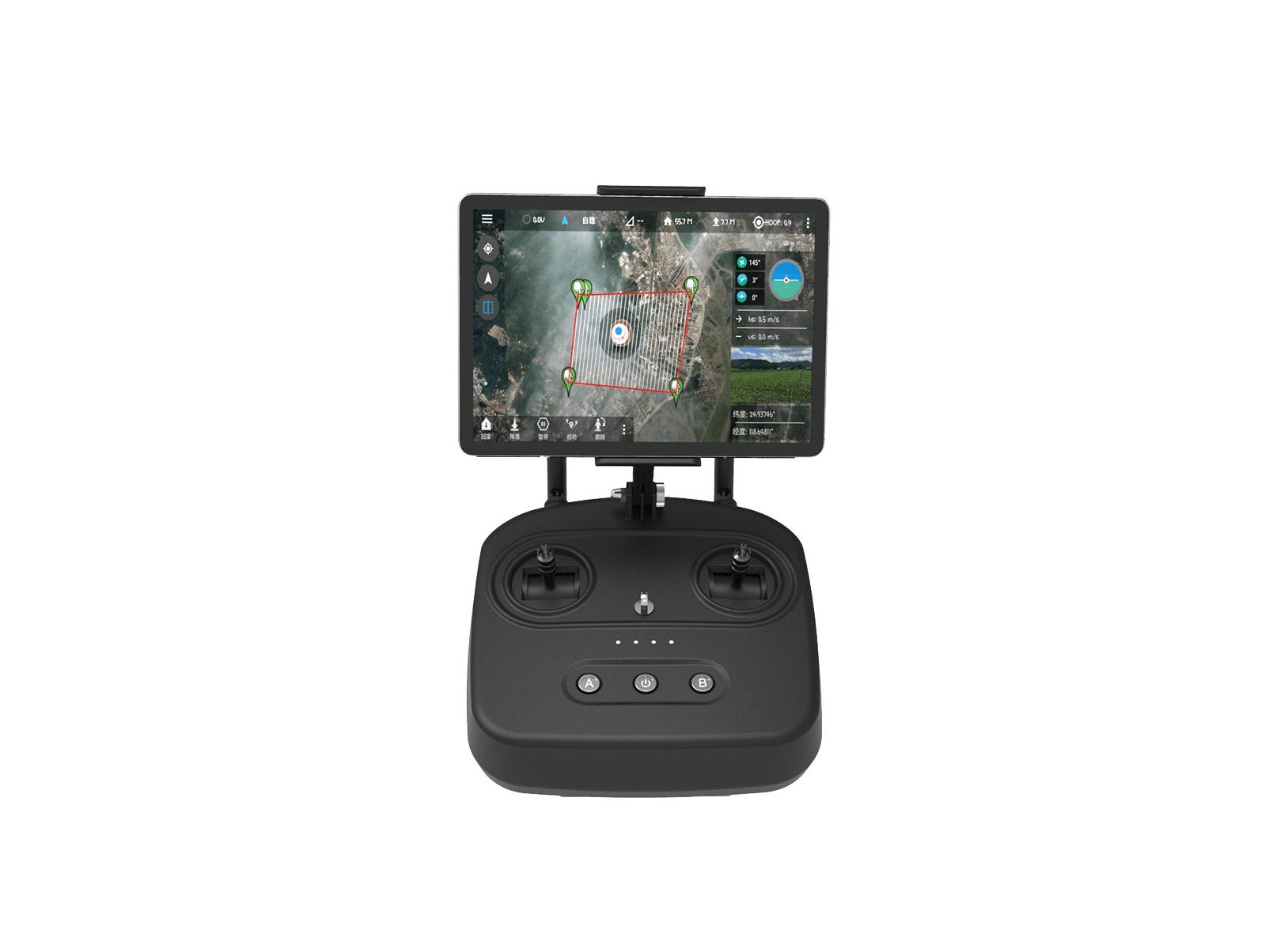

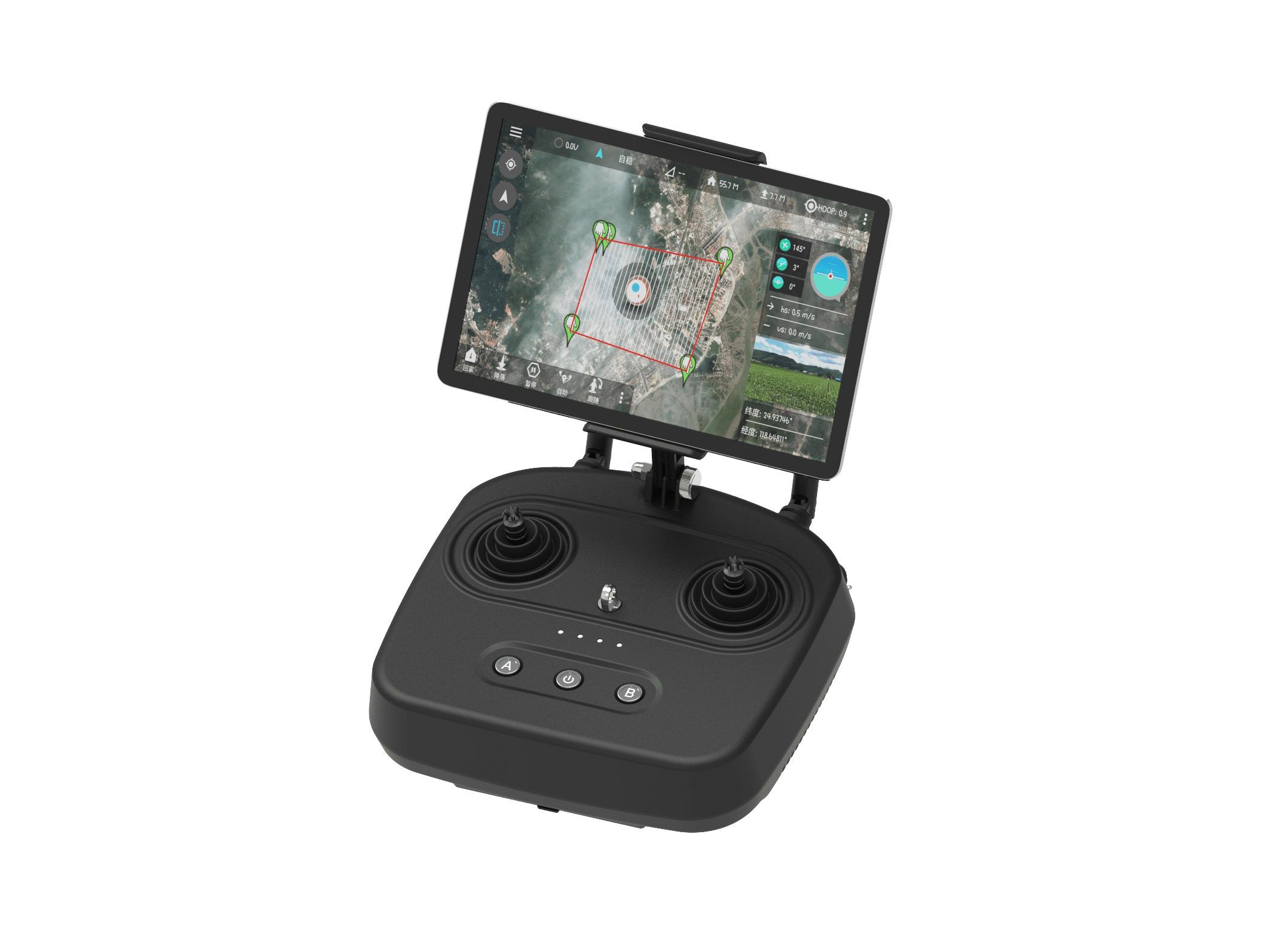

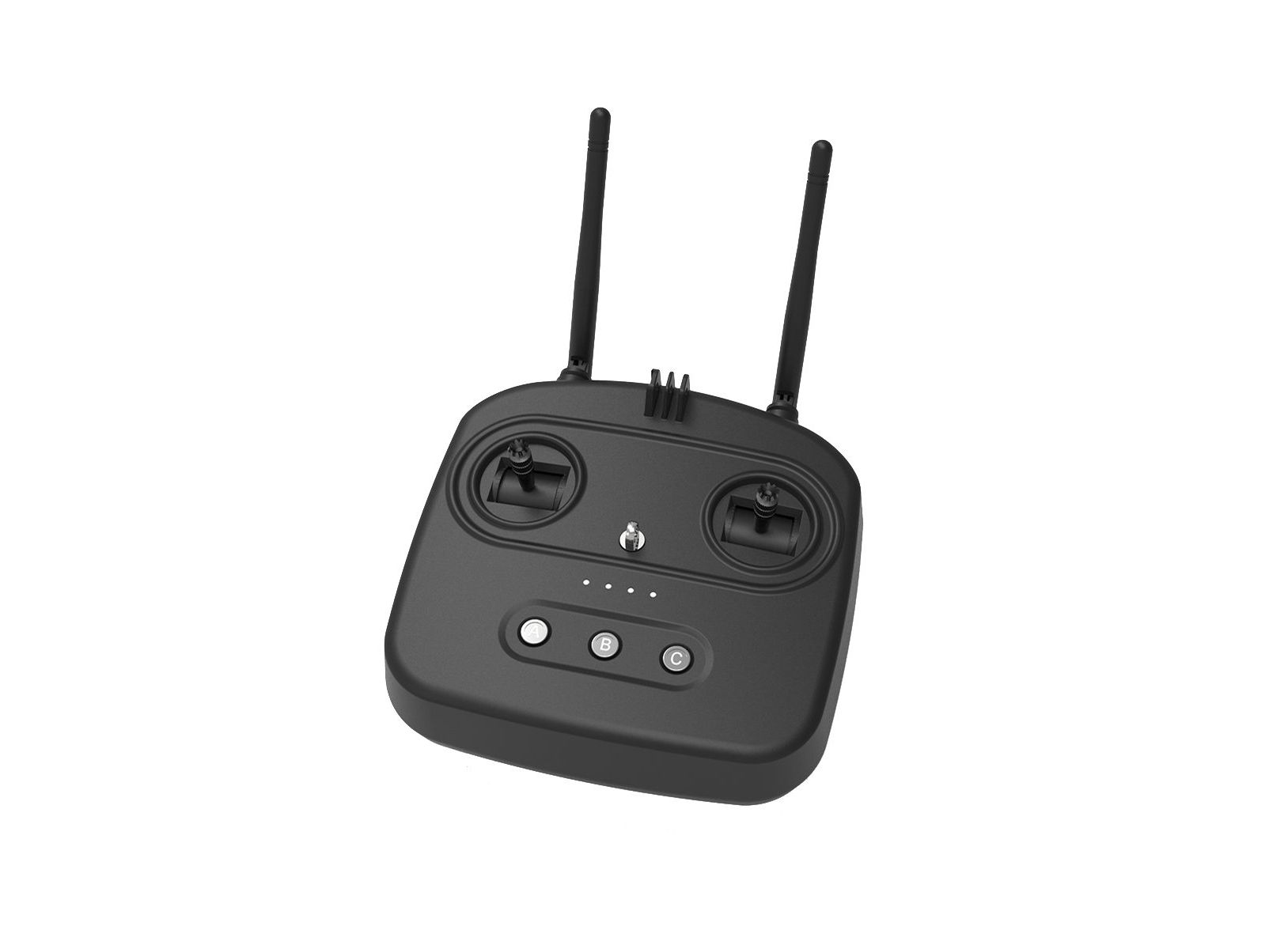

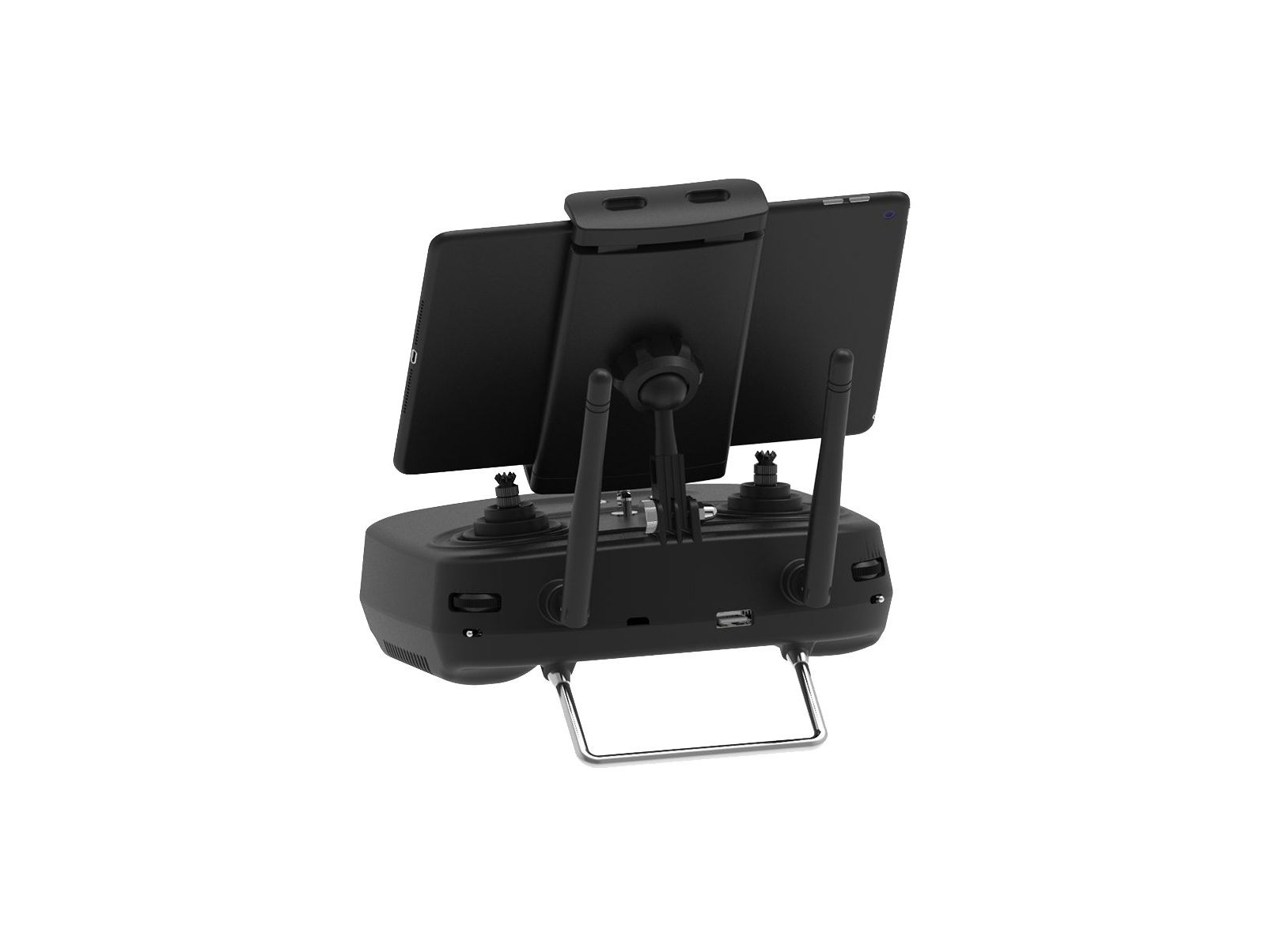

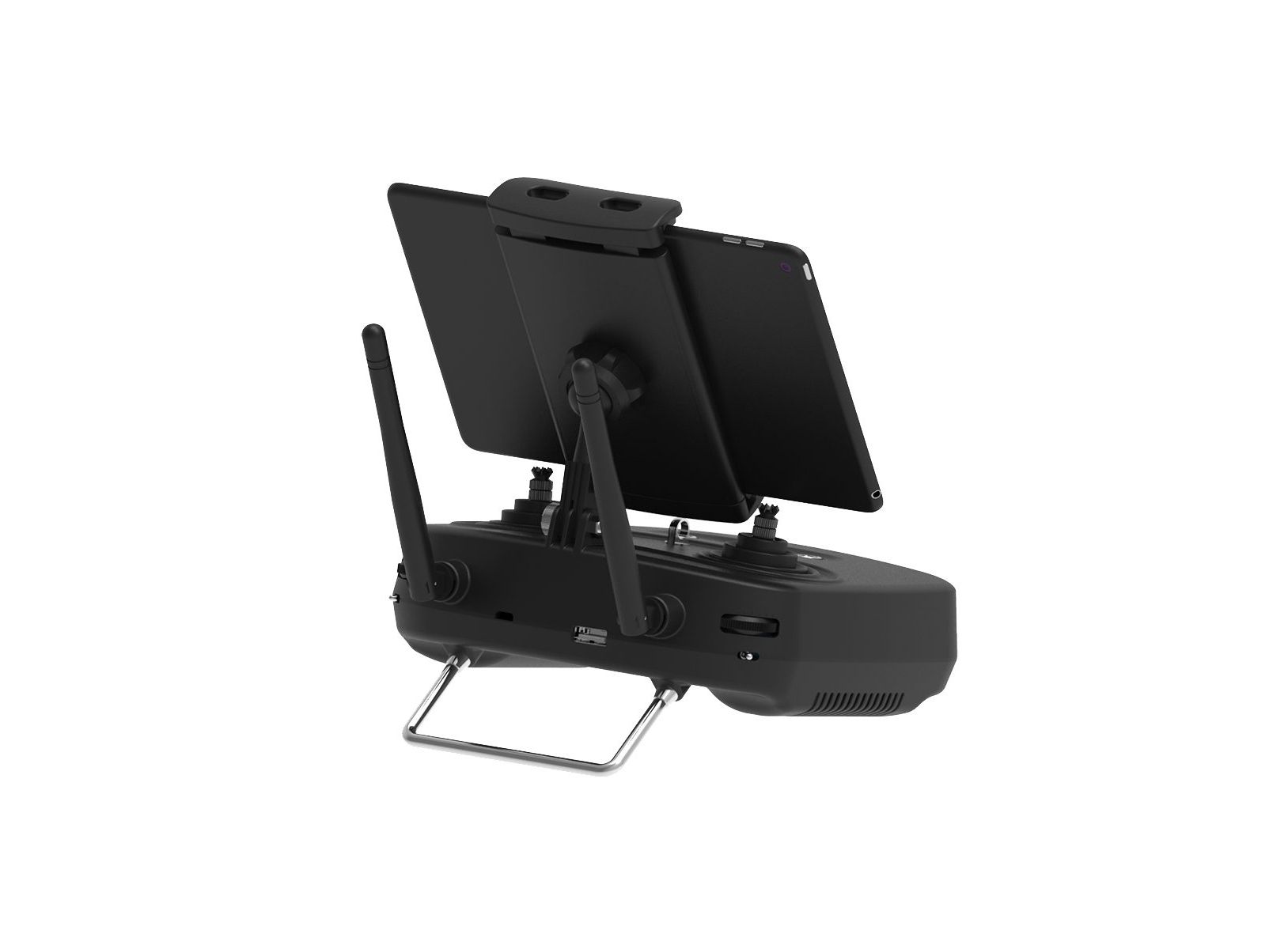

Skydroid T10 Long Range Radio System with Telemetry and FPV

Skydroid T10 Long Range Radio System with Telemetry and FPV

Skydroid T10 remote control integrated with digital video transmission, dual antenna plus dual RF module farthest to 10KM. Use the latest in FHSS (Frequency Hopping Spread Spectrum) technology to achieve perfect control and operation. Specially designed for UAV, Helicopter, Fixed Wing, Multi Rotor or Boat operation In video transmission (optional camera), Data Link and control of UAV.

Skydroid T10 remote controller Features

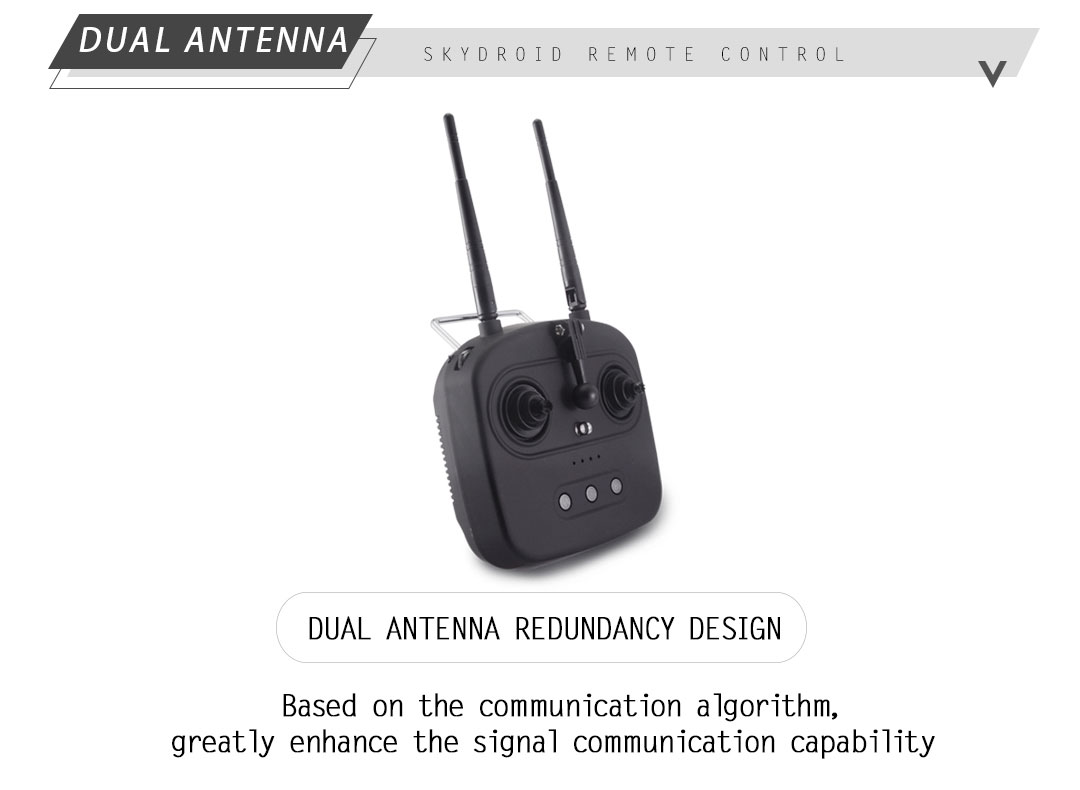

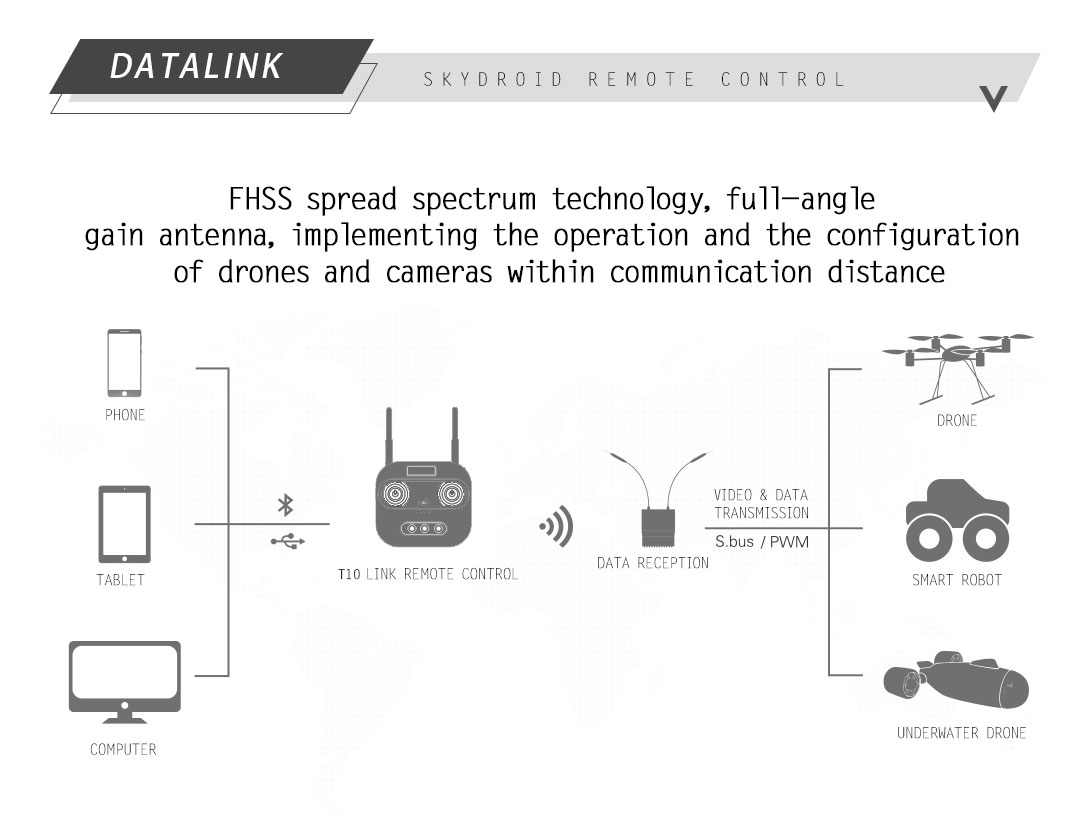

• Dual antenna plus dual RF module with integrated control algorithms ensuring eligible communication via full angle high gain antennas the T10 use the latest in FHSS(Frequency Hopping Spread Spectrum) technology to achieve perfect control and operation

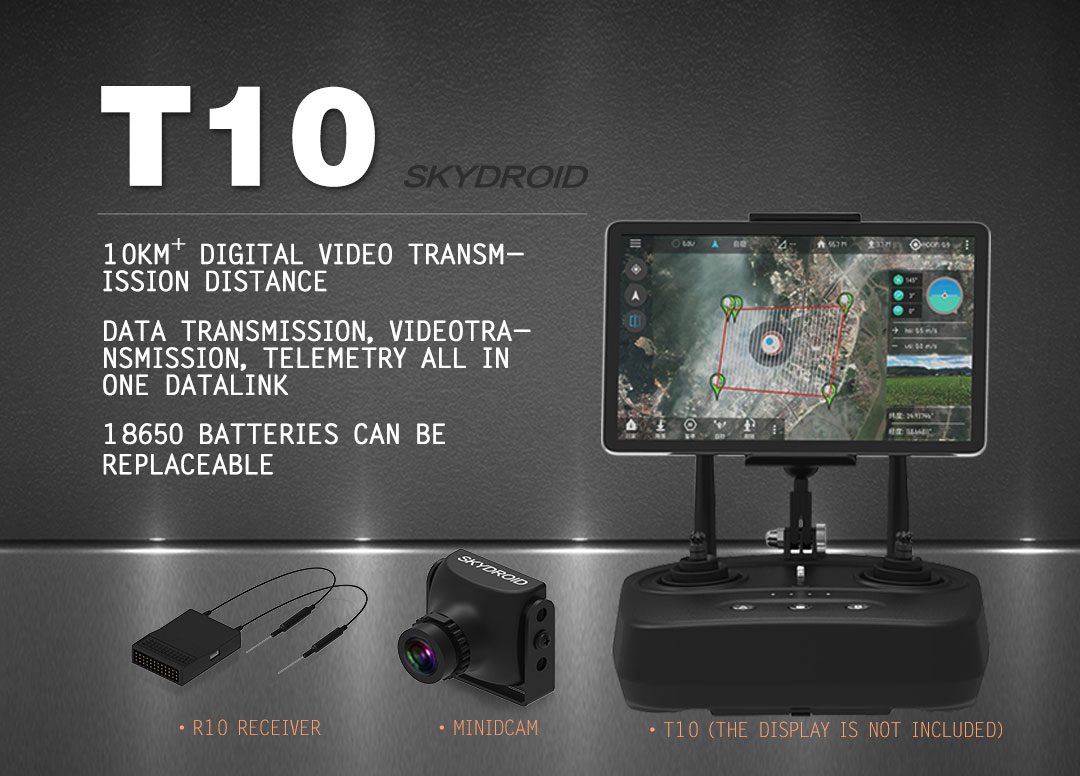

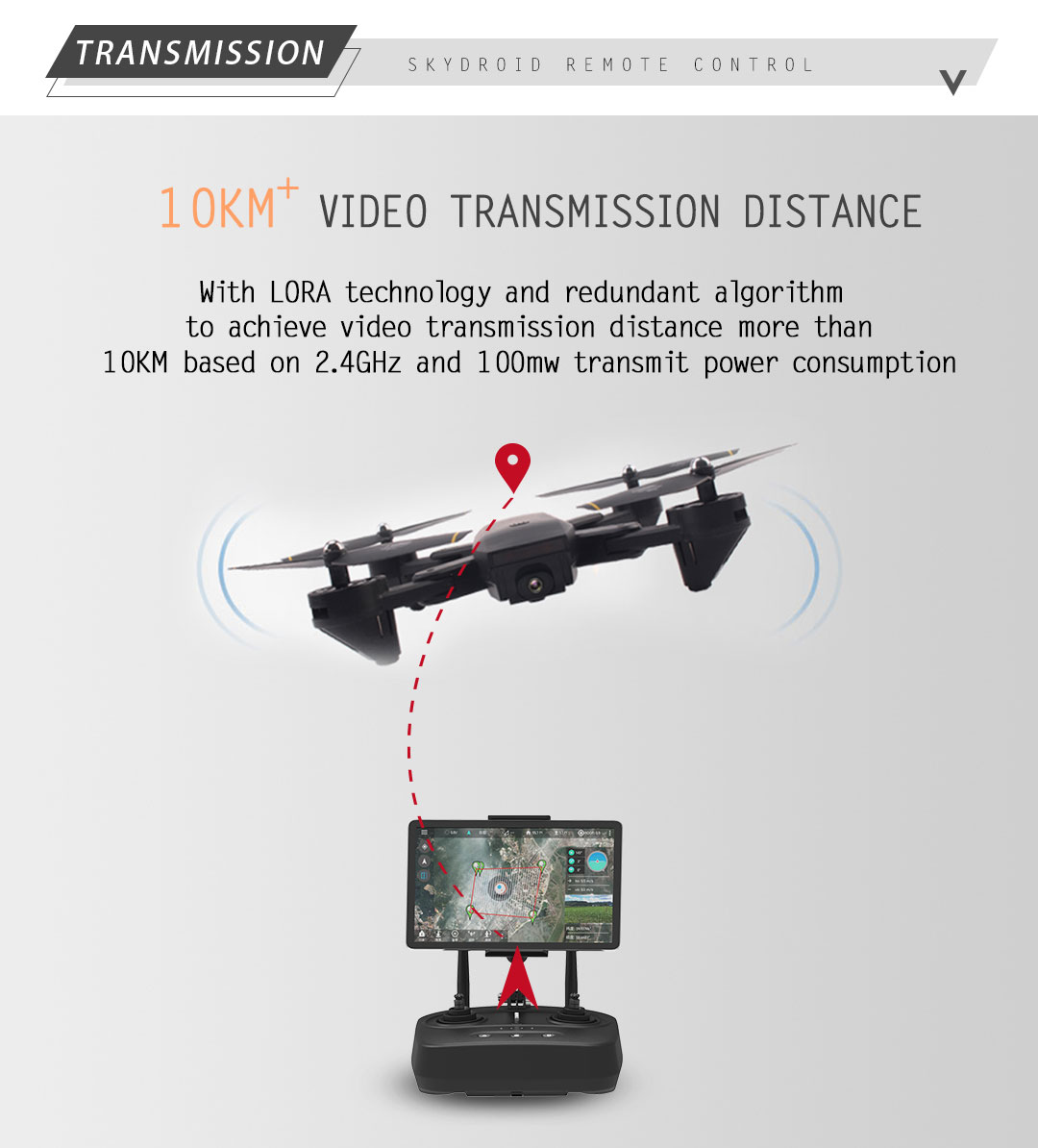

• Integrated with digital video transmission, farthest to 10KM

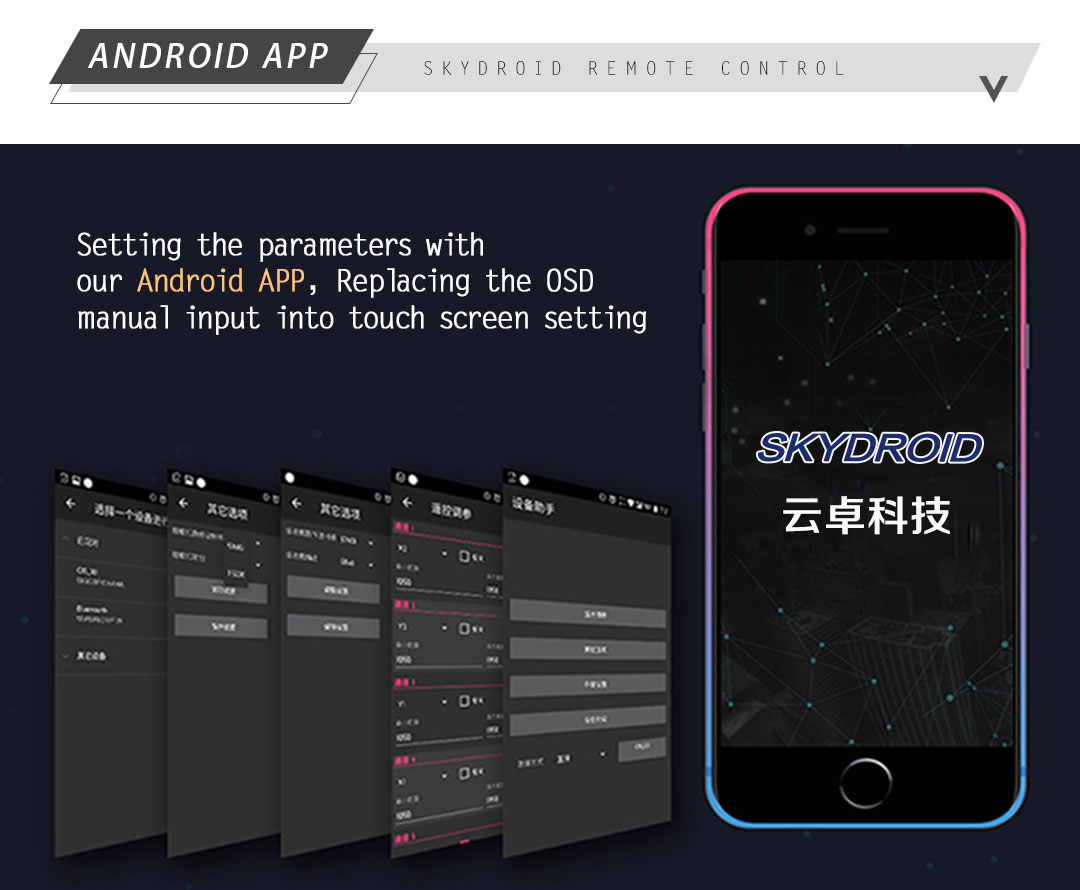

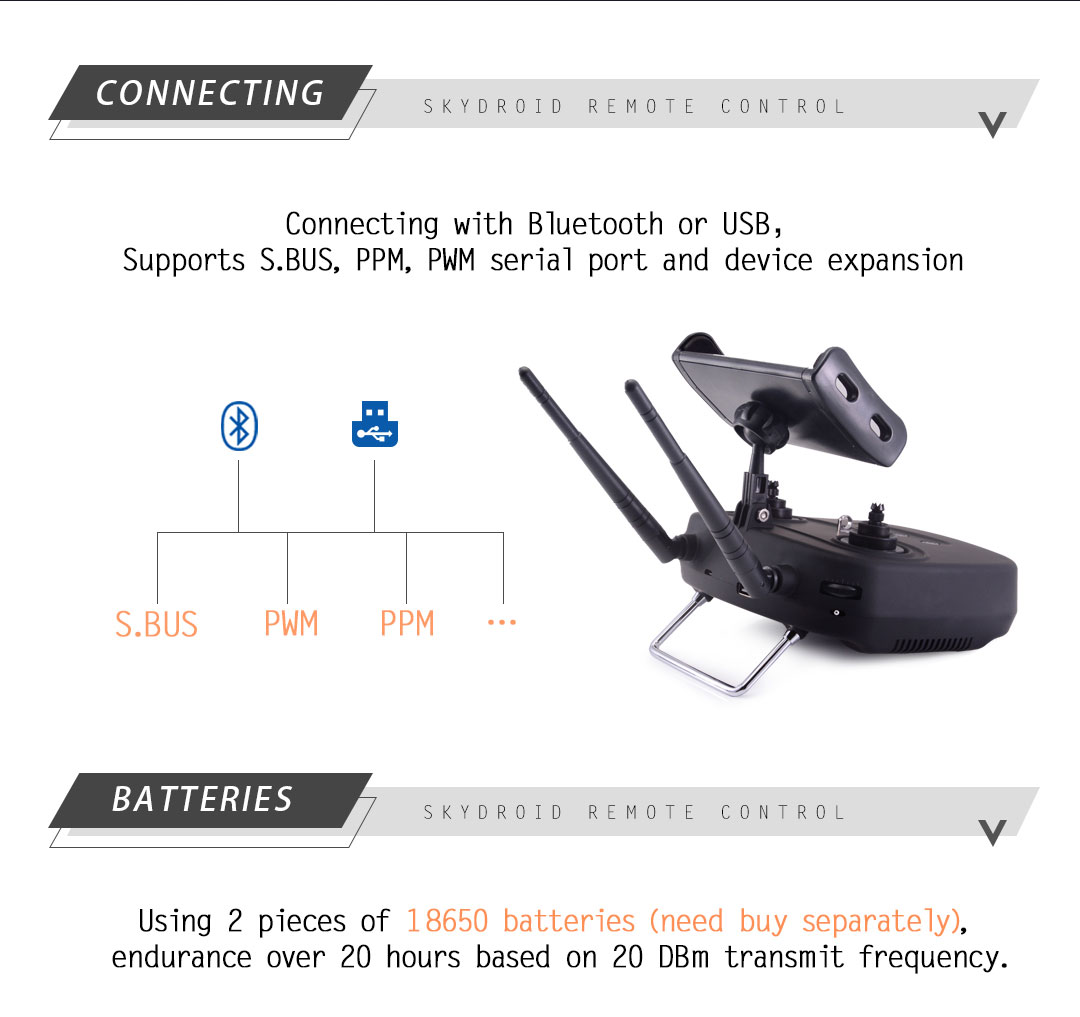

• Parameter adjustments via APP with upgraded traditional OSD to touch panel control ( Connected via Bluetooth or use, also supports S-BUS PPM PWM Serial ports and external devices, etc.
• Connects the APP via Bluetooth, switching the operation model, adjusting the data of forward and reverse, rudder volume, channel binding, runaway protection value, SBUS, PPM output and digital baud rate. Providing parameter saving and loading functions
• Based on the “Tower” APP to ensure optimal compatibility with Pixhawk systems, a large map view allows for easy waypoint selection and route planning, including one key return to home. The T10 Also supports Tower, QGC, JIYI, TOPXGUN and BOYING APP
• Using 2 pcs of 18650 batteries (Need to buy separately), endurance over 20 hours with 20DBm transmission frequency

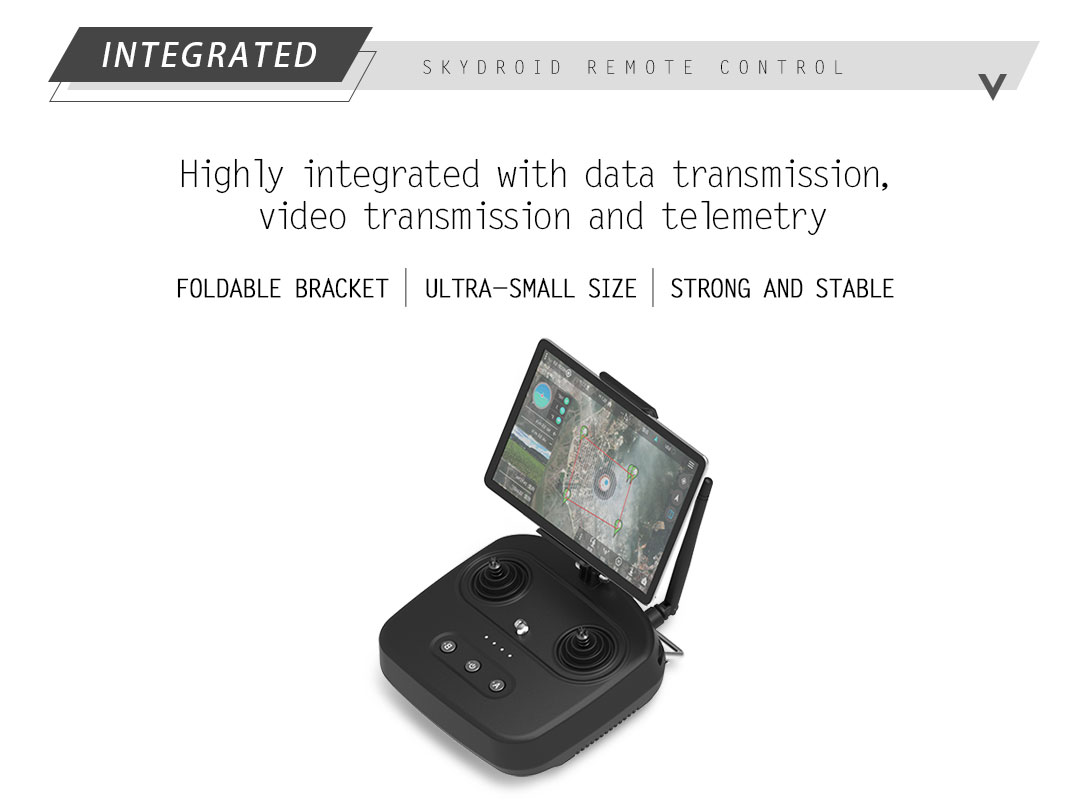

• High integrated datalink with video data transmission and telemetry all in-one unit Ultra-small size, with folding brackets, strong and stable

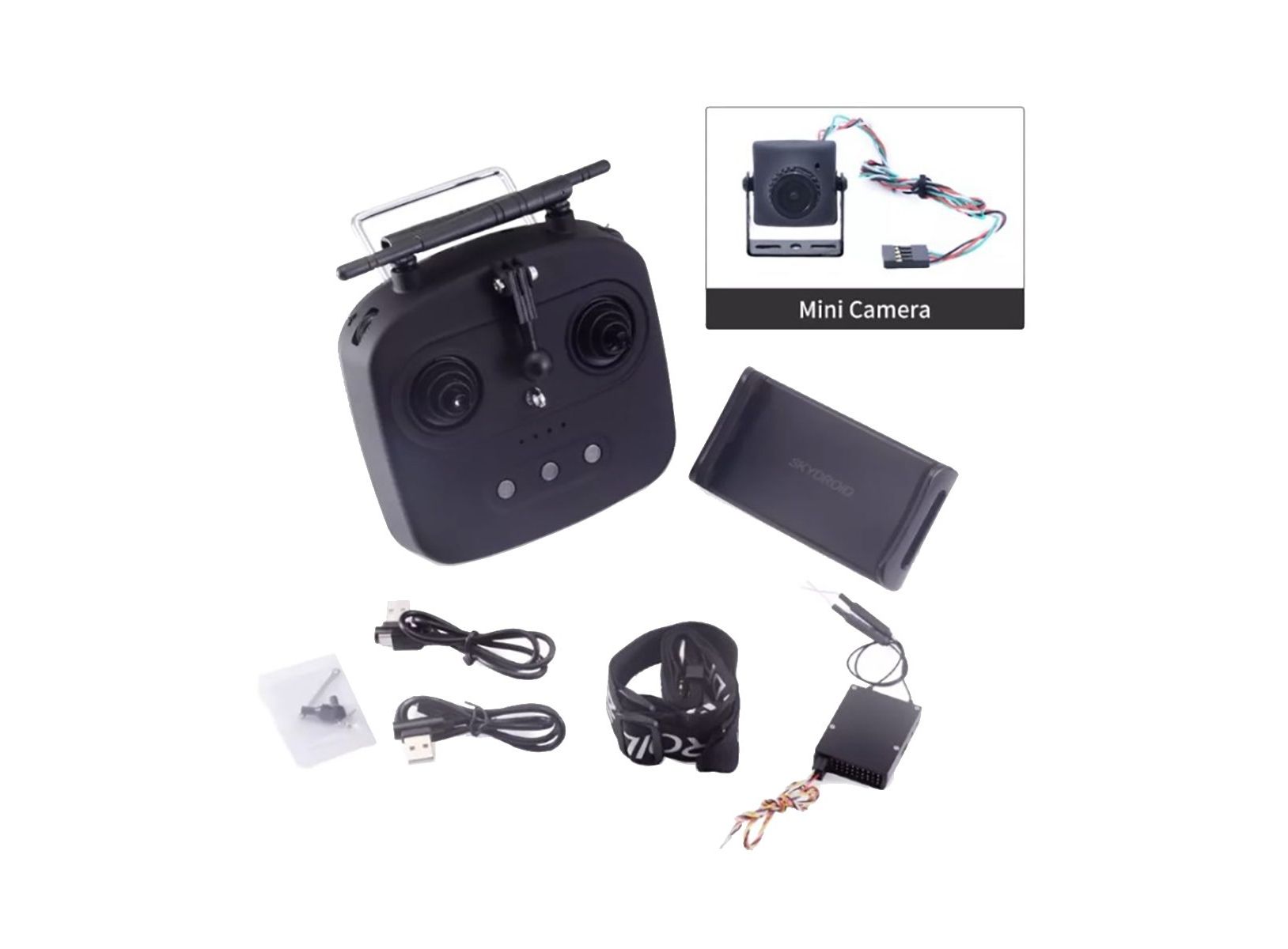

• A Number of optional cameras can be selected for your application such as mini digital camera with LED, 20 times zoom camera etc.

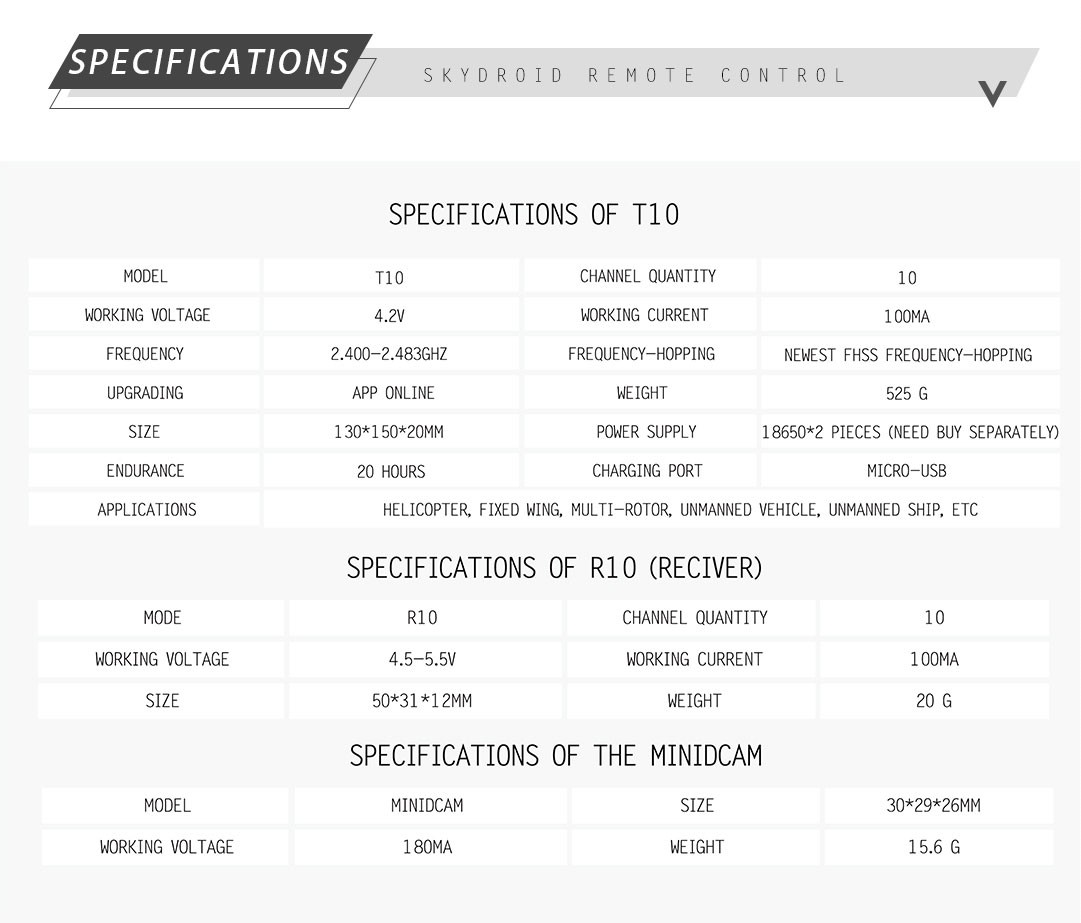

Specifications
