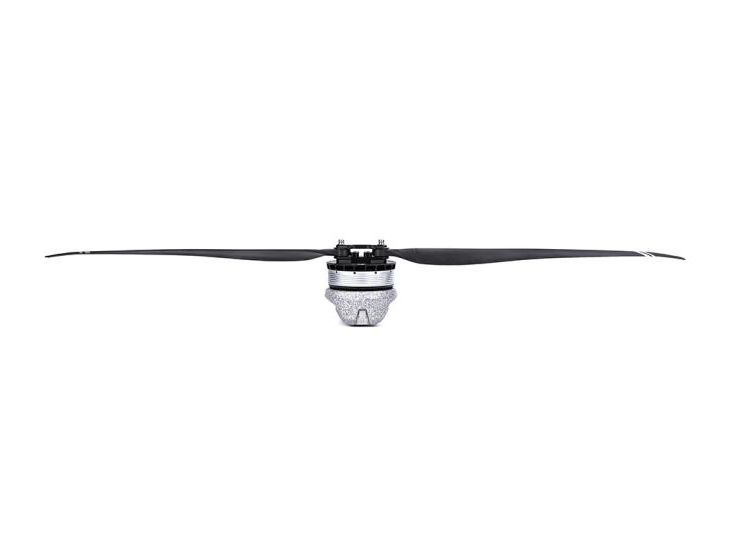

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P

Home/Motors & Propulsion Systems/Propulsion Systems & Combos/Modular Propulsion Systems/T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P

CODE:TM-1461-5940

Hover on image to enlarge

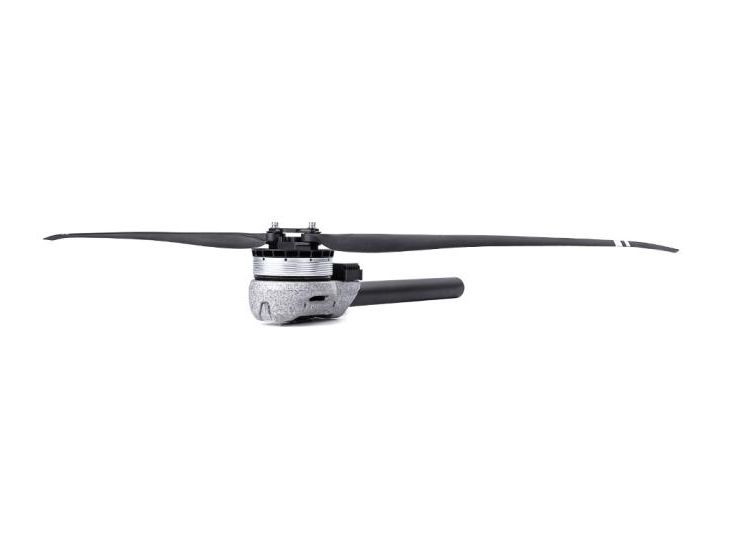

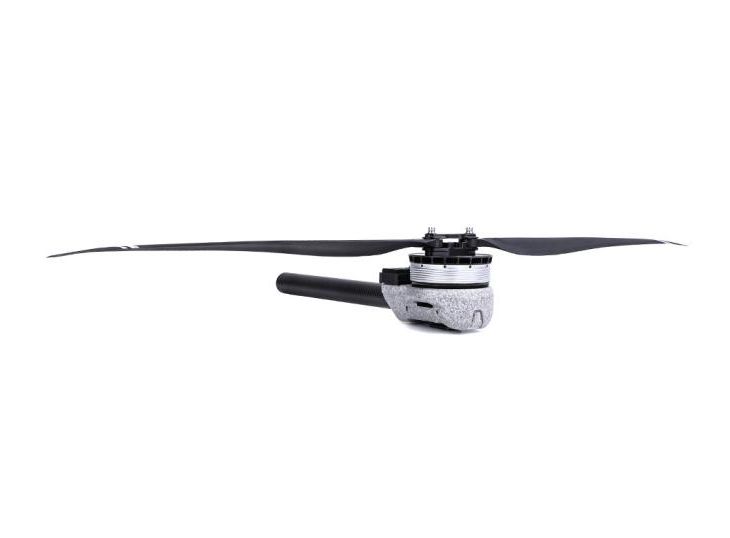

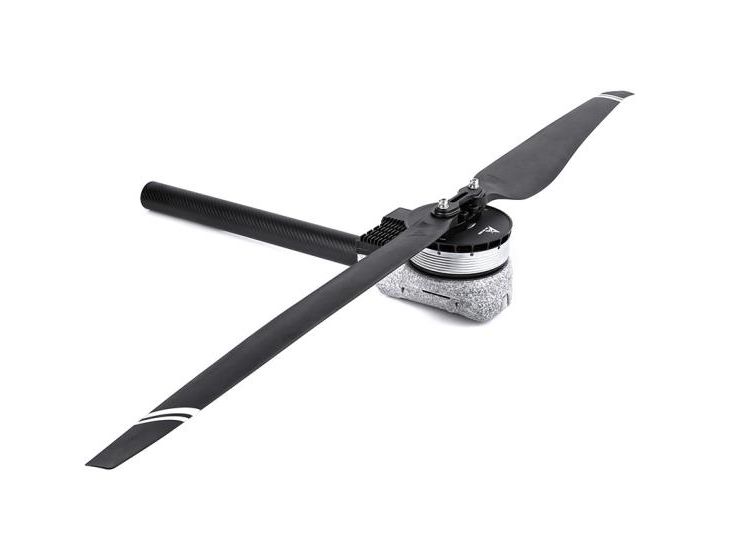

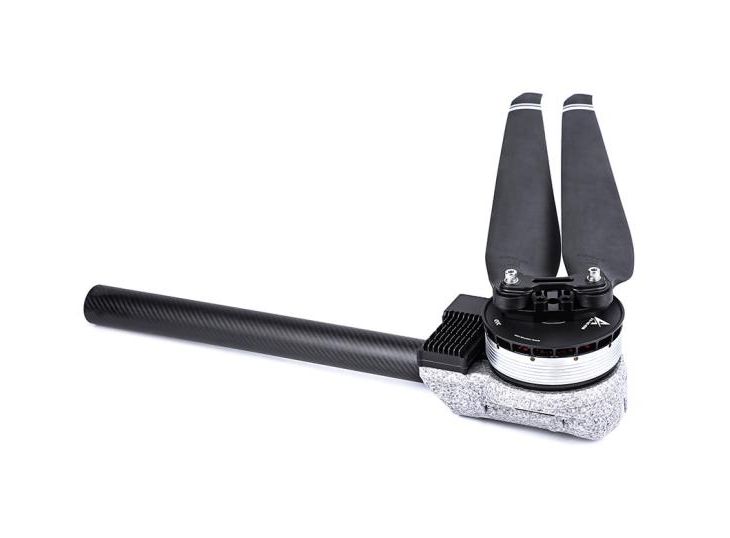

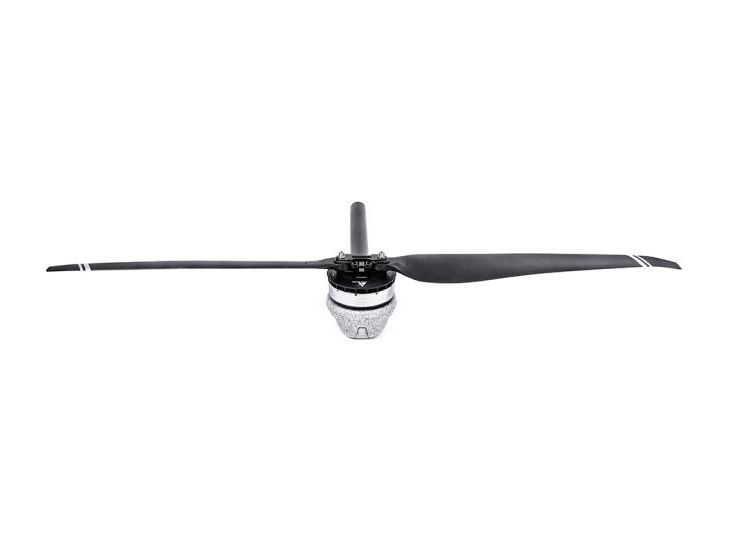

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Image 2

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Image 3

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Image 4

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Image 5

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Image 6

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Image 7

Sourced to Order

63.060,32 ₺ + VAT 75.672,39 ₺ VAT included Estimated deliveryUsually 9–25 business days

Configuration:

A14-14S KV58+14S FOC 200A A14-14S KV58+14S FOC 200A+MF56P

Ask a question

Minimum quantity for "T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 75.672,39 ₺
Deposit at order (50%): 37.836,20 ₺
Balance on delivery (50%): 37.836,19 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P is part of the T-Motor a series modular uav propulsion system for 12s-14s drones range. This listing covers the model and configuration identified below.

View all variations as list

	CODE	Configuration	Availability	Price
	TM-1461-5939	A14-14S KV58+14S FOC 200A		53.251,59 ₺ + VAT 63.901,91 ₺ VAT included
	TM-1461-5940	A14-14S KV58+14S FOC 200A+MF56P		63.060,32 ₺ + VAT 75.672,39 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

Product and configuration details

Brand	T-Motor
Model	A14-14S — A14-14S KV58+14S FOC 200A+MF56P
Configuration	A14-14S KV58+14S FOC 200A+MF56P
Manufacturer product code	T-MOTOR001461
DroneStore product code	TM-1461-5940

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Model No.	A14-14S KV58
Tube size	50mm
Setup	A14-14S (Motor)+14S FOC 200A (ESC)+ MF56P (Prop)
Wire material, wire gauge, color	Power wires：10#AWG red & black Signal wires: 5P Teflon
Recommended battery	12~14S (LiPo)
Wire length	1200±5mm
Rated thrust	25~27kg
Weight	4050±2%g(incl. Wires+prop)
Efficiency at rated thrust	9.0g/W (25kg)
IP	IPX6
Max. thrust	56kg
Recommended ambient temperature	-20～55℃

Throttle range	1100~1940us (fixed))
Max. voltage	61V
Protocol	DRONE CAN、 UAV CAN、 CUBE CAN
Peak current (for a short time)	190A (Open environment and temperature≤60℃)
Control method	PWM/CAN
BEC	NO

Model No.	MF5620P (Polymer Folding)
Length	56 inch (1400mm)

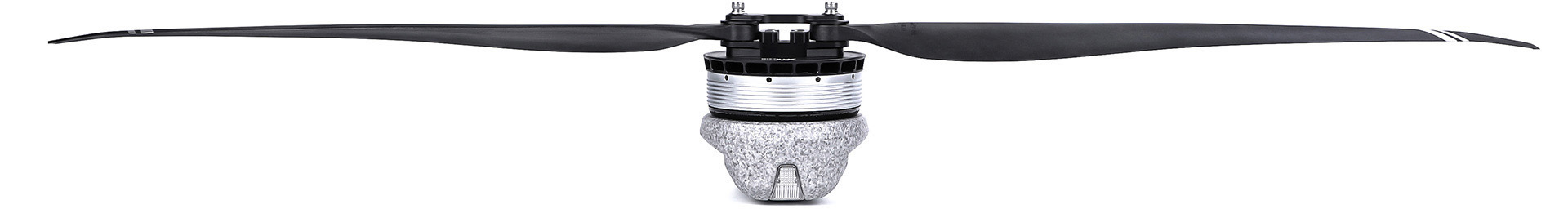

Manufacturer product details

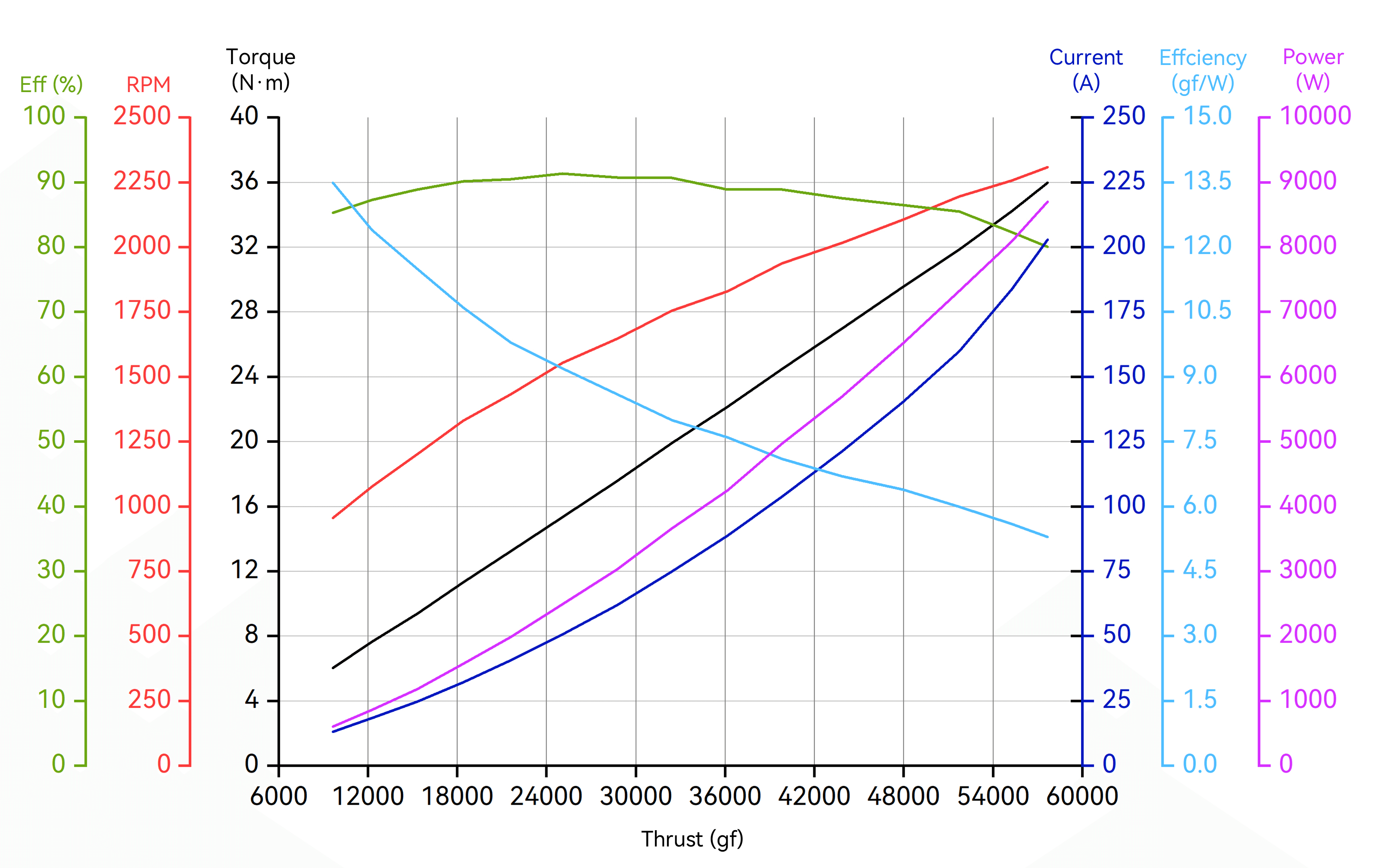

Technical drawings and performance charts

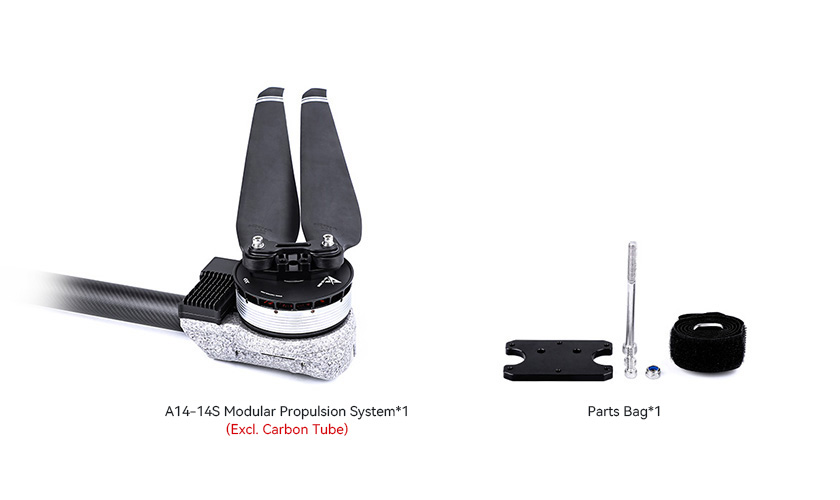

T-Motor A14-14S — A14-14S KV58+14S FOC 200A+MF56P — Technical drawings and performance charts 3

Features
