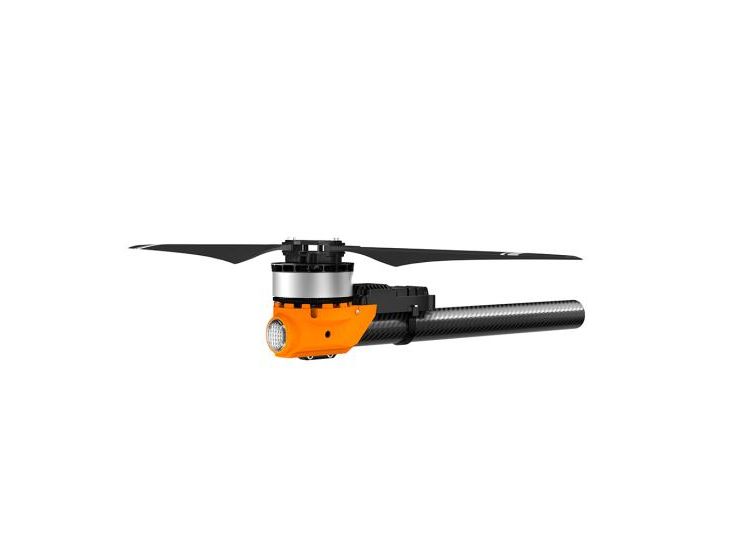

T-Motor A6 — A6 KV180+14S FOC 80A

Home/Motors & Propulsion Systems/Propulsion Systems & Combos/Modular Propulsion Systems/T-Motor A6 — A6 KV180+14S FOC 80A

CODE:TM-1445-5907

Hover on image to enlarge

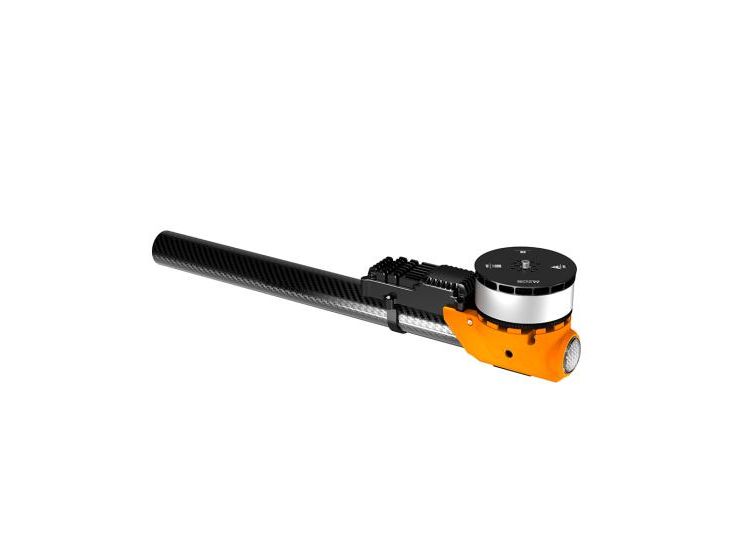

T-Motor A6 — A6 KV180+14S FOC 80A — Image 2

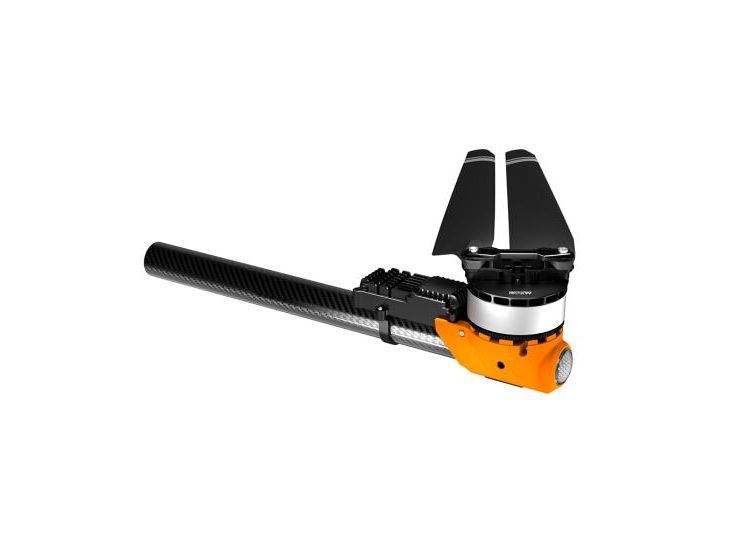

T-Motor A6 — A6 KV180+14S FOC 80A — Image 3

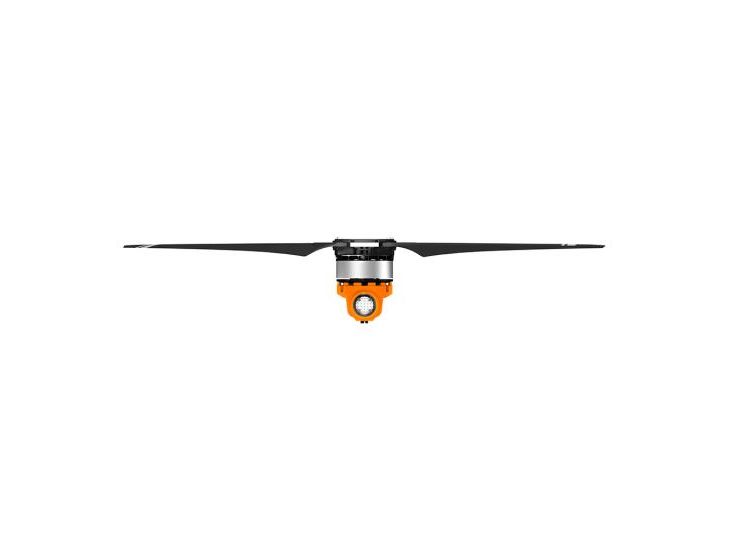

T-Motor A6 — A6 KV180+14S FOC 80A — Image 4

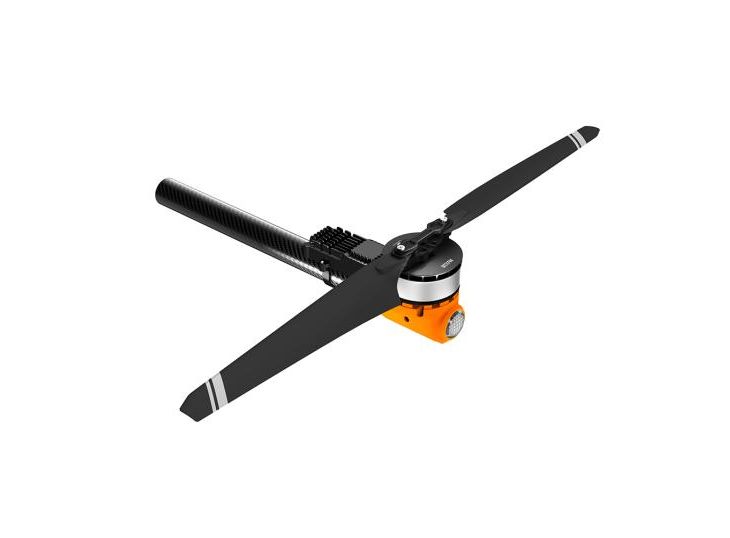

T-Motor A6 — A6 KV180+14S FOC 80A — Image 5

Sourced to Order

11.564,49 ₺ + VAT 13.877,39 ₺ VAT included Estimated deliveryUsually 9–25 business days

Configuration:

A6 KV180+14S FOC 80A A6 KV180+14S FOC 80A+MF2311P-M

Ask a question

Minimum quantity for "T-Motor A6 — A6 KV180+14S FOC 80A" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 13.877,39 ₺
Deposit at order (50%): 6.938,70 ₺
Balance on delivery (50%): 6.938,69 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor A6 — A6 KV180+14S FOC 80A is part of the T-Motor a series modular uav propulsion system for 12s-14s drones range. This listing covers the model and configuration identified below.

View all variations as list

	CODE	Configuration	Availability	Price
	TM-1445-5907	A6 KV180+14S FOC 80A		11.564,49 ₺ + VAT 13.877,39 ₺ VAT included
	TM-1445-5908	A6 KV180+14S FOC 80A+MF2311P-M		13.624,33 ₺ + VAT 16.349,19 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

T-Motor A6 — A6 KV180+14S FOC 80A is part of the T-Motor a series modular uav propulsion system for 12s-14s drones range. This listing covers the model and configuration identified below.

Product and configuration details

Brand	T-Motor
Model	A6 — A6 KV180+14S FOC 80A
Configuration	A6 KV180+14S FOC 80A
Manufacturer product code	T-MOTOR001445
DroneStore product code	TM-1445-5907

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Model No.	A6 KV180
Tube Size	30mm
Setup	A6 (Motor)+FOC 80A (ESC)+ MF2311P (Propellers)
Wire Material, Wire Gauge, Color	Power Wires: 14#AWG Red & Black Signal Wires: 5P Teflon
Recommended Battery	12~14S (LiPo)
Wire Length	1100±10mm
Rated Thrust	3.5~5kg
Weight	695±2%g (Incl. Wires+Prop)
Efficiency At Rated Thrust	7.09g/W (5kg)
IP	IPX6
Max Thrust	12kg
Recommended Ambient Temperature	-30~50℃

Stator Size	62*15mm
KV	180

Throttle Range	1100~1940us (Fixed)
Max Voltage	61V
Protocol	DRONE CAN, UAV CAN, CUBE CAN
Peak Current (For A Short Time)	80A (OpenEnvironment AndTemperature≤60℃)
Control Method	PWM/CAN
BEC	NO

Model No.	MF2311P-M (Polymer Folding)
Length	23 Inch (585mm)

Manufacturer product details

Technical drawings and performance charts

T-Motor A6 — A6 KV180+14S FOC 80A — Technical drawings and performance charts 3

Features
