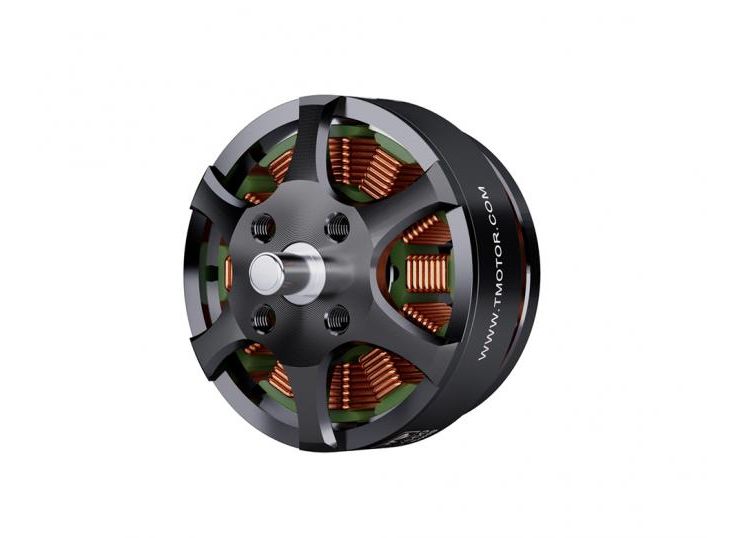

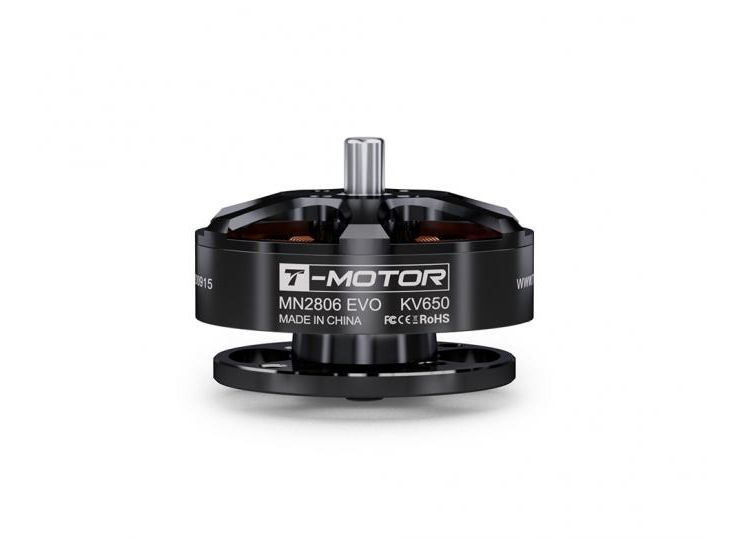

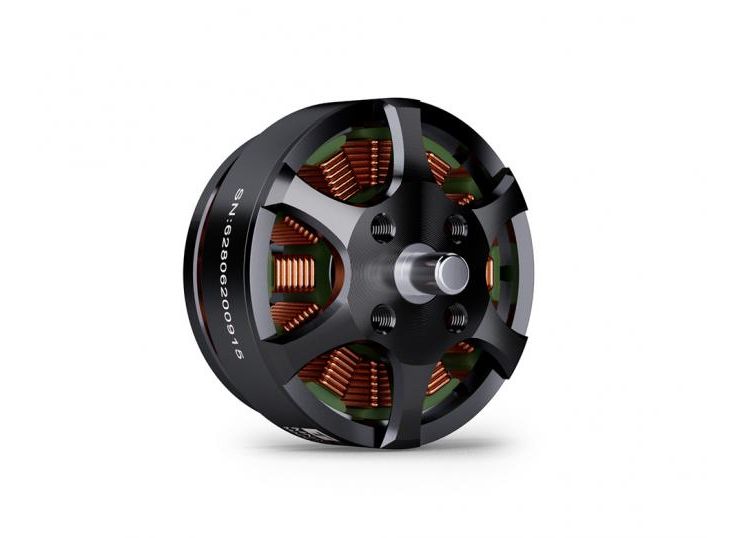

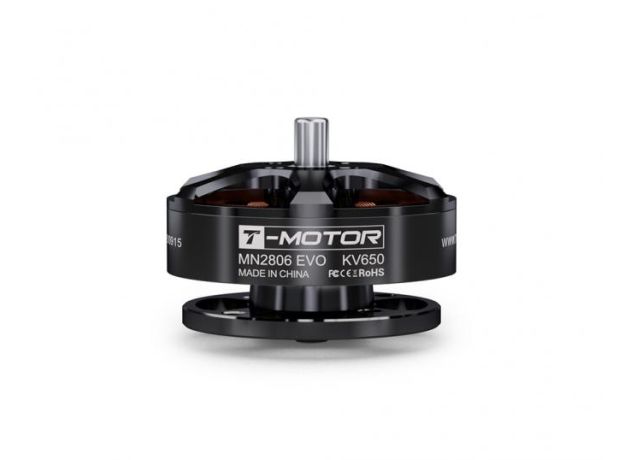

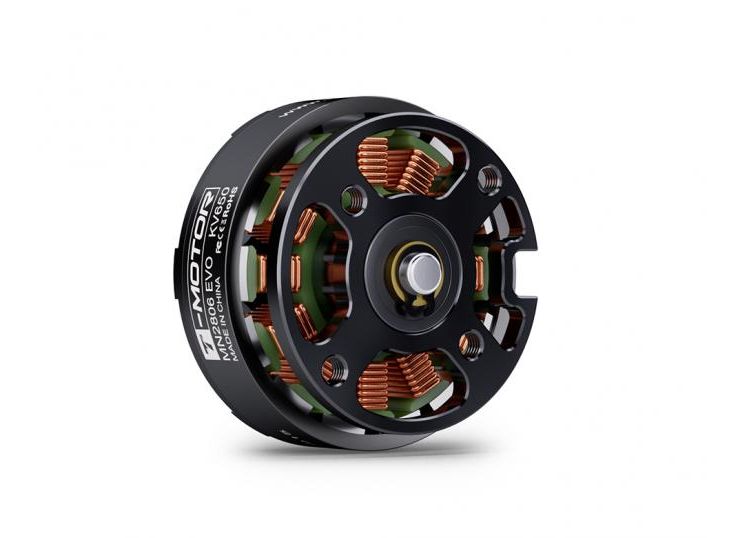

T-Motor Antigravity MN2806 EVO KV650
TM-1398
Hover on image to enlarge
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor Antigravity MN2806 EVO KV650 is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | Antigravity MN2806 EVO KV650 |
| Configuration | Standard |
| Manufacturer product code | AWD01010230 |
| DroneStore product code | TM-1398 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Motor Size | Φ34*26mm |
|---|---|
| Magnet Level | 150℃ high temperature resistance |
| Stator | 180℃ high temperature-resisting coatings |
| Lead | Enameled Wire 50mm |
| Configuration | 12N14P |

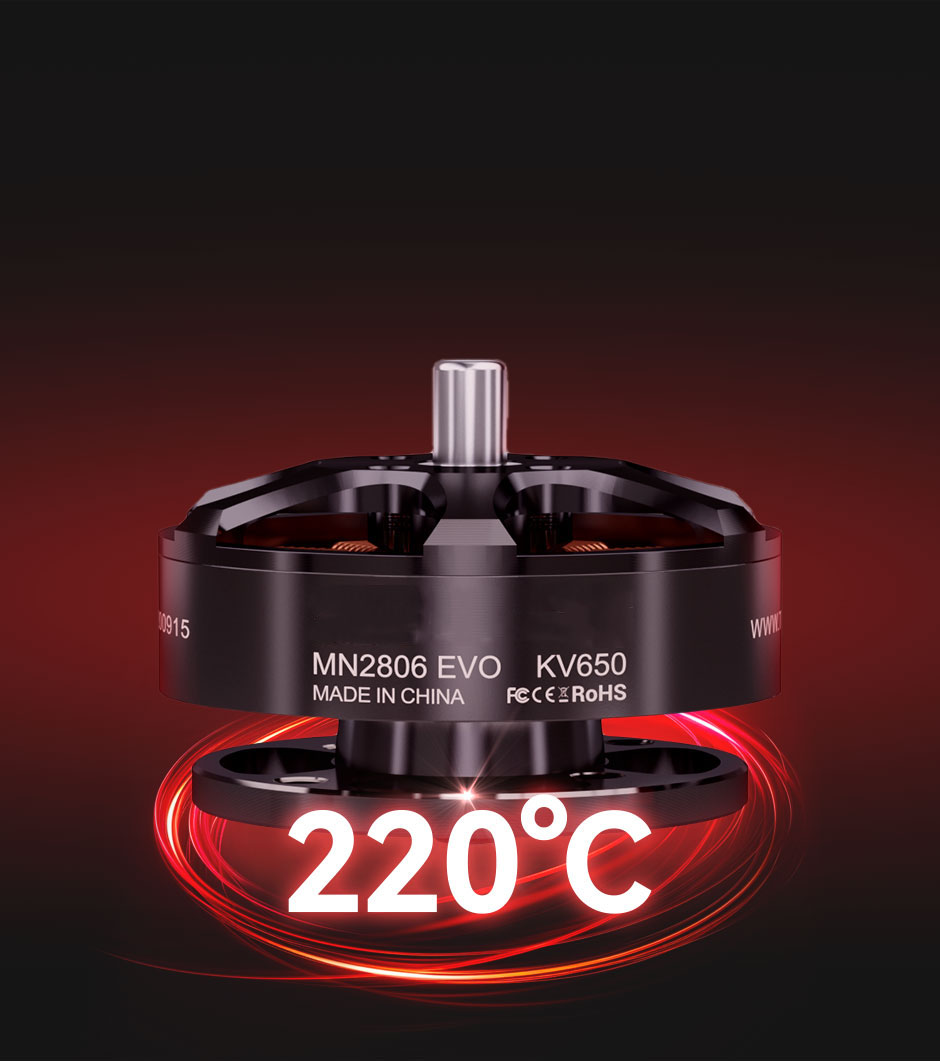

| Copper Wire | 220℃ high temperature resistance |
| Shaft Diameter | IN：4mm，OUT：4mm |
| Coil Insulation Test | 500V |
| Bearing | Imported 694ZZ*2 |
| Package Size | 91*73*41mm |
| KV | 650 |
|---|---|
| Rated Voltage (LiPo) | 4S |
| Idle Current(10V) | 0.45A |
| ESC Recommendation | AIR40A 6S |
| Peak Current(180s) | 16A |
| Propeller Recommendation | P12*4/P13*4.4 |
| Max Power (180S) | 160W |
| Weight (Incl. Cable) | 45g |
| Internal Resistance | 201mΩ |
| Package Weight | 105g |

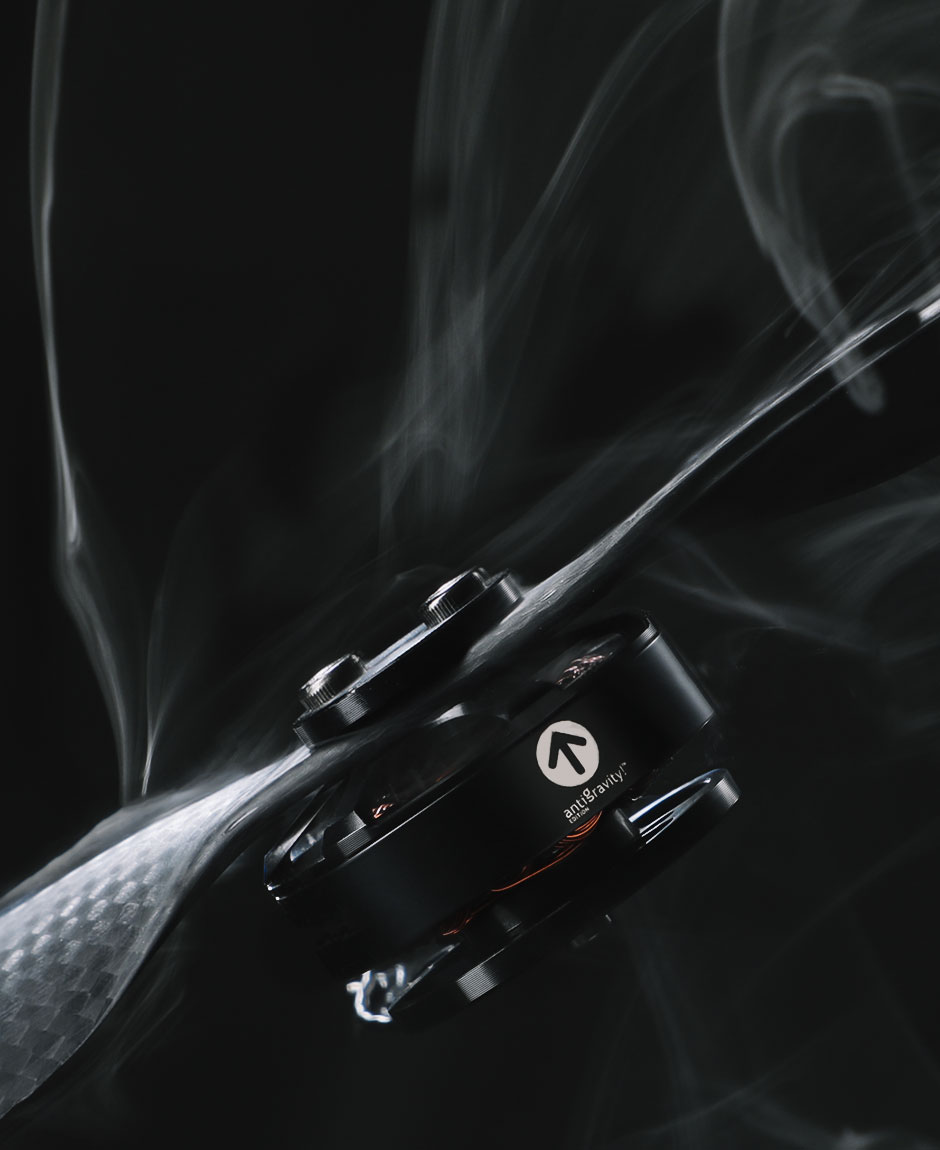

Manufacturer product details

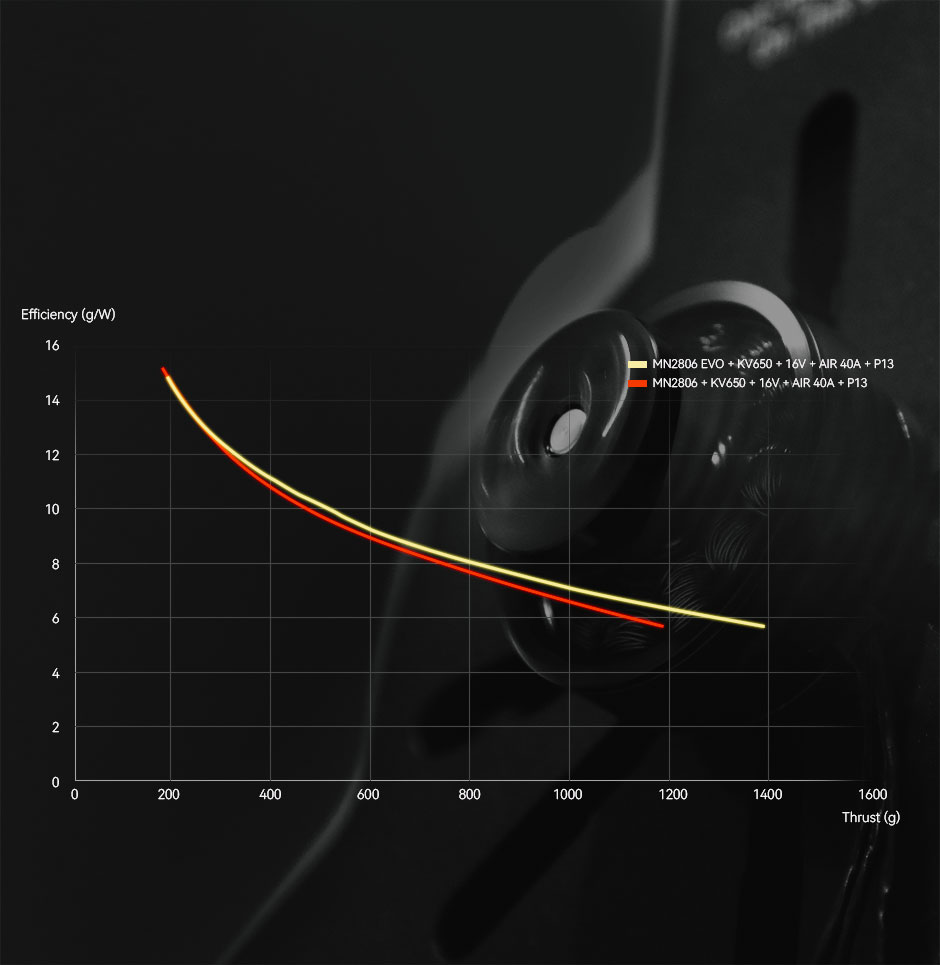

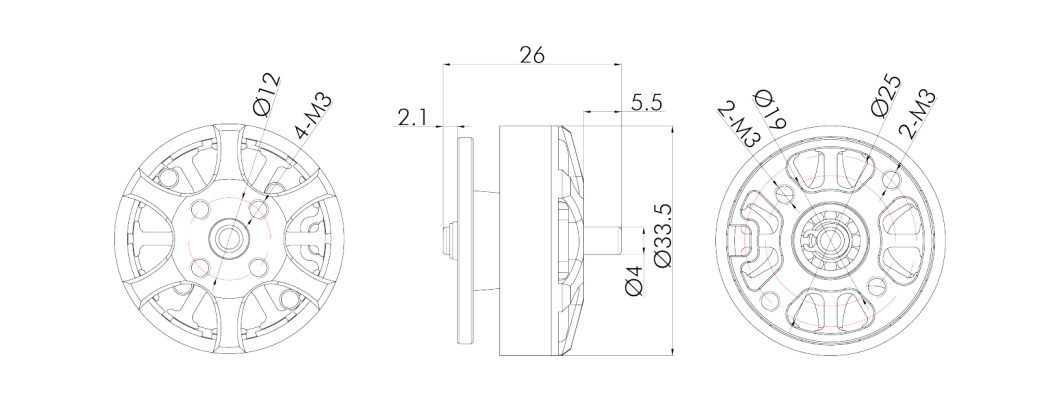

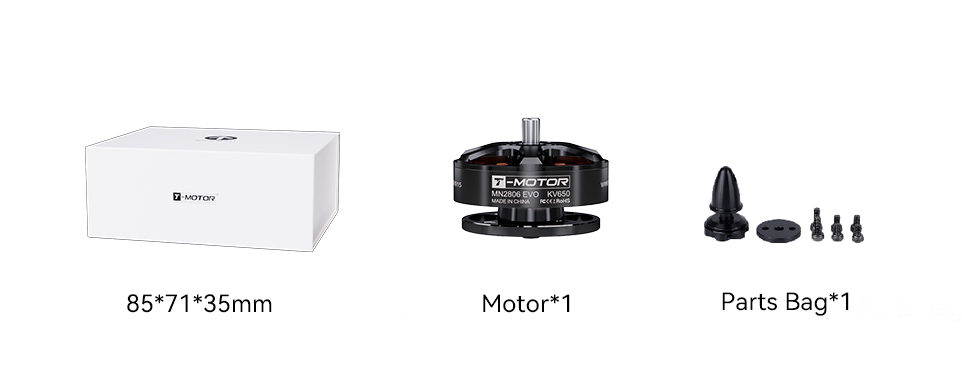

Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Product type:
Motor
Motor KV rating:
650 KV
Compatible LiPo cell count:
- 4S
