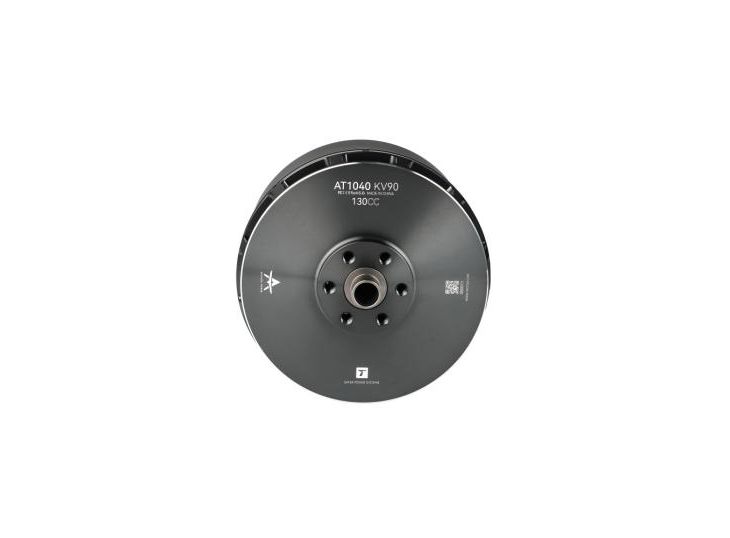

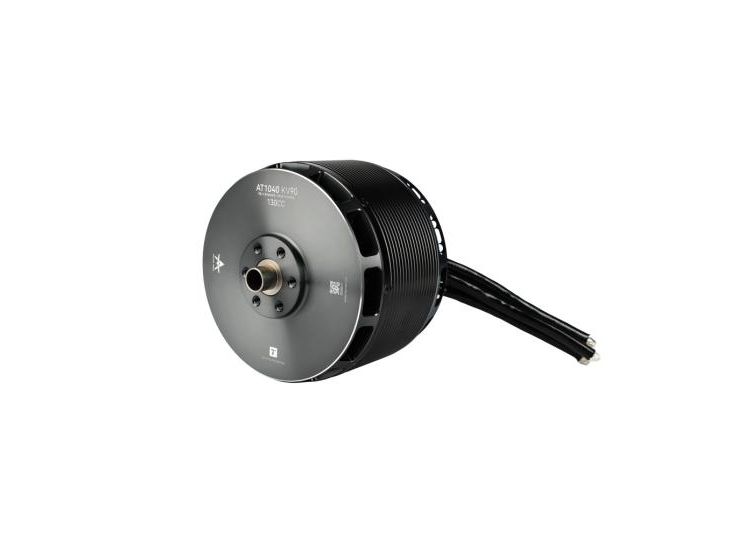

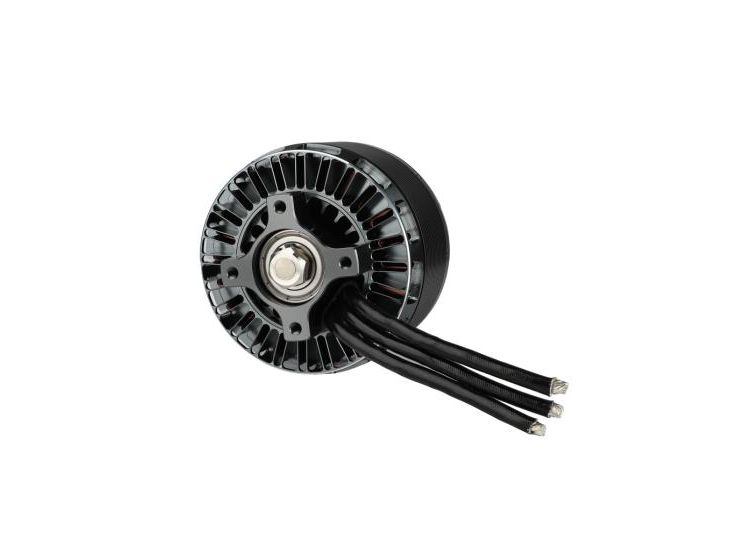

T-Motor AT1040 130CC KV90
TM-1382-6239
Hover on image to enlarge
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor AT1040 130CC KV90 is part of the T-Motor at series vtol pusher motors range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | AT1040 130CC KV90 |
| Configuration | KV90 |
| Manufacturer product code | AGD01010092 |
| DroneStore product code | TM-1382-6239 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Type | AT1040 |
|---|---|
| Magnet Temperature Resistance Grade | 180℃ |
| Motor Dimension | Φ110.6*109.8mm |
| Lead x Length | Enameled Wire 100mm |
| Stator Technology | 150°C High Temperature-resisting Coatings |
| Temperature Resistance Of Enameled Wires | 220℃ |
| Configuration | 24N28P |
| Coil Pressure-resistant | 1000V/5s |
| Shaft Diameter | IN:15mm OUT:12mm |
| Dynamic Balance Requirements Standards | ≤30mg |
| Bearings | 6902/6202ZZ Bearings |
| Packing Size | 246*162*139mm |
| KV | 90 |
|---|---|
| Idle Current (15V) | 4.9A |
| Max. Continuous Power | 6000W |
| Peak Current | 105A |
| Rated Voltage (LiPo) | 24S |
| Internal Resistance | 8.8mΩ |
| Max Thrust | 32kg |
| Weight (Incl.cable) | 2200g |

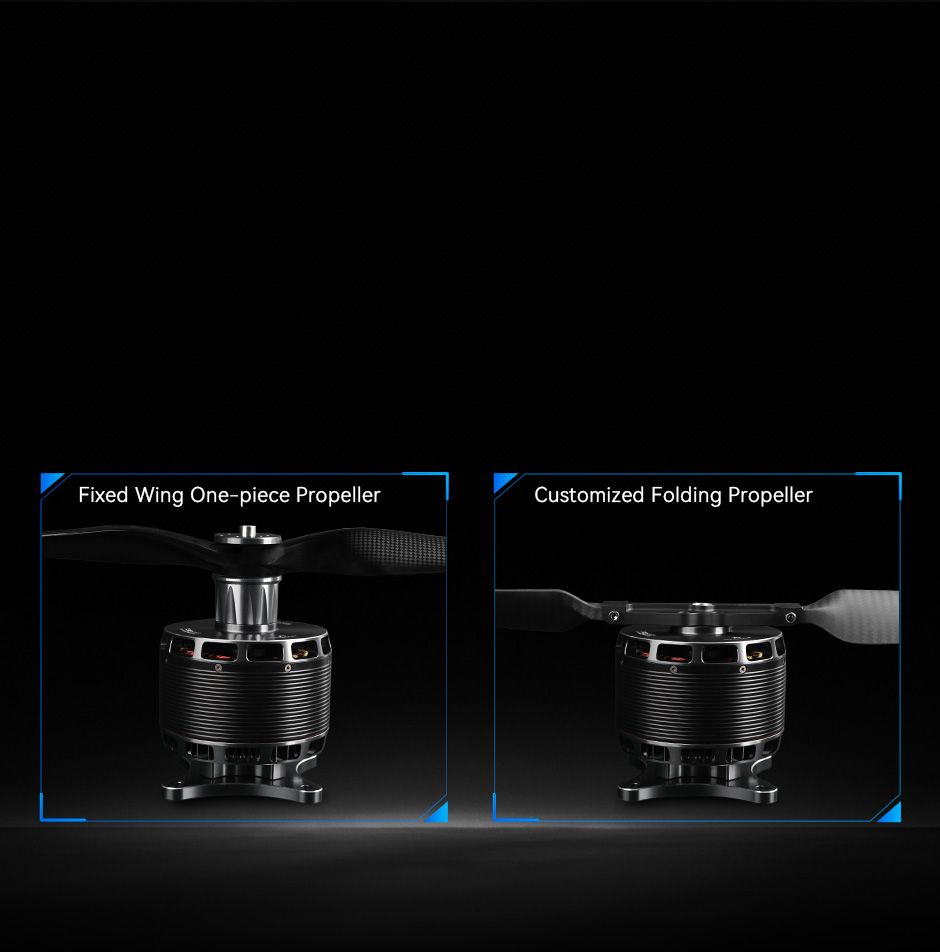

Manufacturer product details

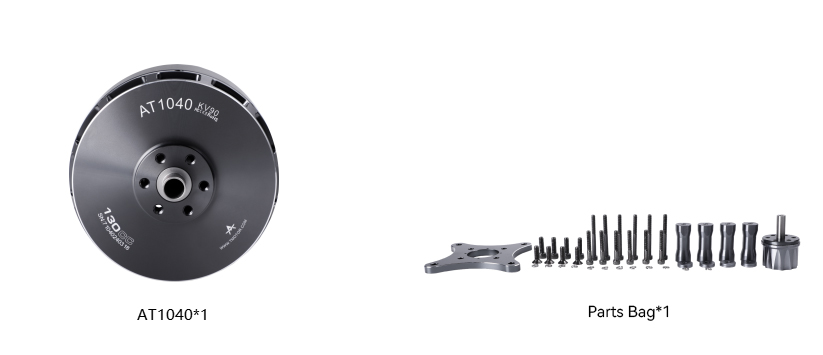

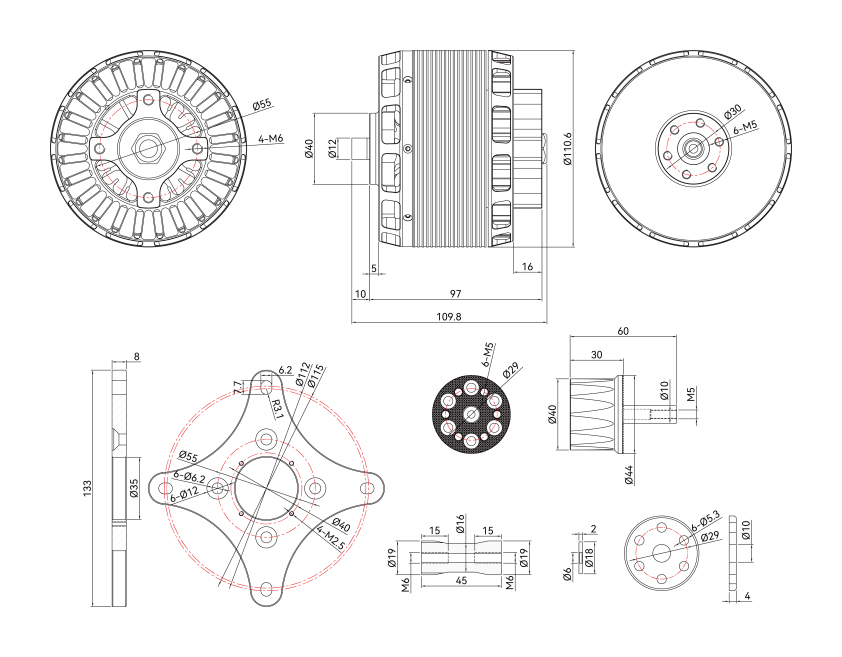

Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Product type:
Motor
Motor KV rating:
90 KV
Compatible LiPo cell count:
- 24S
