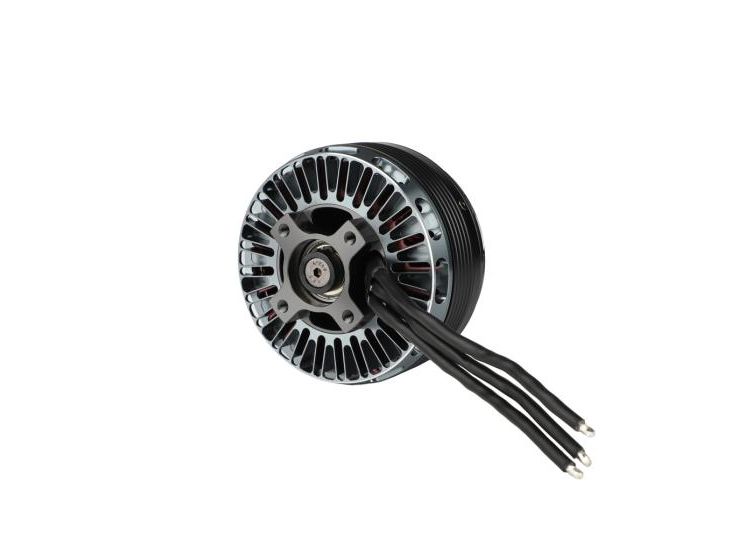

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200

Home/Motors & Propulsion Systems/Fixed-Wing Motors/T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200

CODE:TM-1066-5118

Hover on image to enlarge

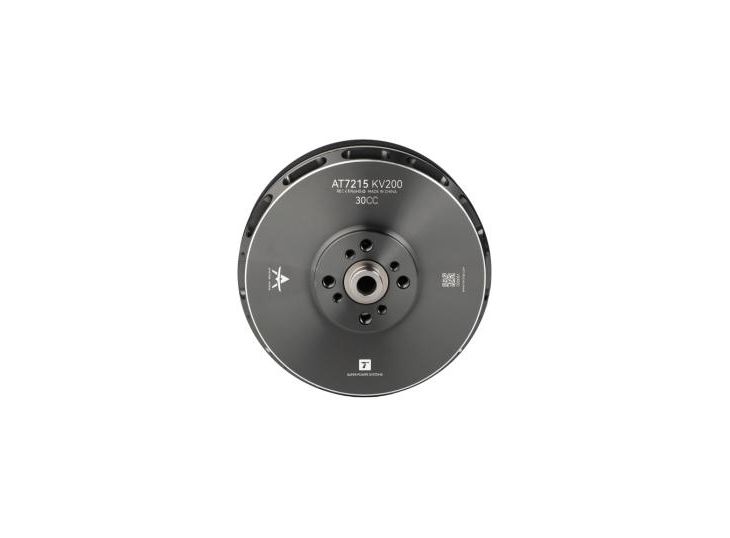

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Image 2

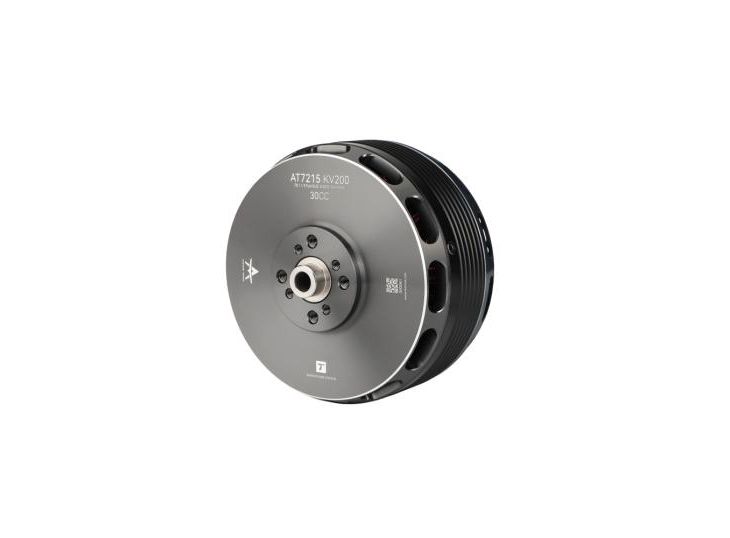

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Image 3

Sourced to Order

21.481,12 ₺ + VAT 25.777,34 ₺ VAT included Estimated deliveryUsually 9–25 business days

Motor KV rating:

200 KV 220 KV 245 KV 270 KV

Ask a question

Minimum quantity for "T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 25.777,34 ₺
Deposit at order (50%): 12.888,67 ₺
Balance on delivery (50%): 12.888,67 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 is part of the T-Motor at series motors for fixed-wing uav range. This listing covers the model and configuration identified below.

View all variations as list

CODE	Motor KV rating	Price
TM-1066-5118	200 KV	21.481,12 ₺ + VAT 25.777,34 ₺ VAT included
TM-1066-5122	220 KV	21.481,12 ₺ + VAT 25.777,34 ₺ VAT included
TM-1066-5120	245 KV	21.481,12 ₺ + VAT 25.777,34 ₺ VAT included
TM-1066-5121	270 KV	21.481,12 ₺ + VAT 25.777,34 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

Product and configuration details

Brand	T-Motor
Model	AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200
Configuration	KV200
Manufacturer product code	T-MOTOR001066
DroneStore product code	TM-1066-5118

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Test Item	Long Shaft KV200
Weight (Incl. Cable)	550g
Motor Dimensions	Φ81.4*57.9mm
Internal Resistance	27mΩ
Lead	Enameled Wire 100mm
Configuration	24N22P
Shaft Diameter	IN ： 10mm OUT ： 10mm
Rated Voltage(Lipo)	10-12S
Idle Current(10V)	2.4A
Peak Current(180s)	95A
Max Power (180S)	4400W/12S

Manufacturer product details

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Manufacturer product details 3

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Manufacturer product details 4

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Manufacturer product details 5

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Manufacturer product details 6

T-Motor AT7215 30CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV200 — Manufacturer product details 7

Technical drawings and performance charts

Features
