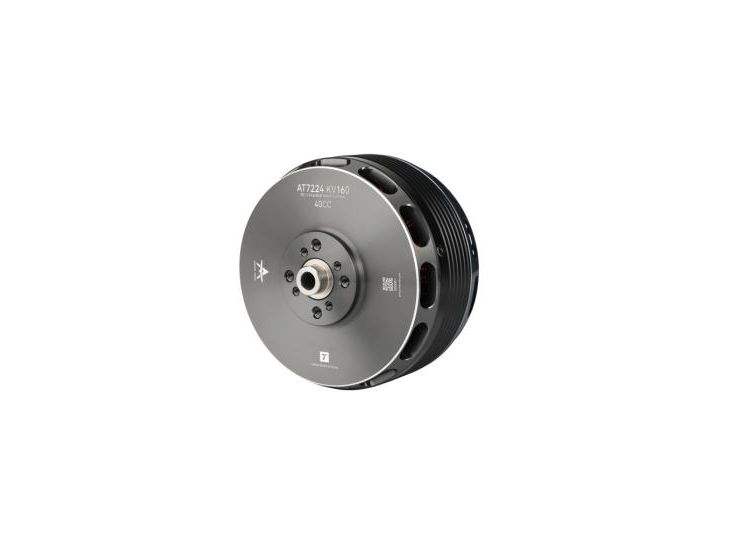

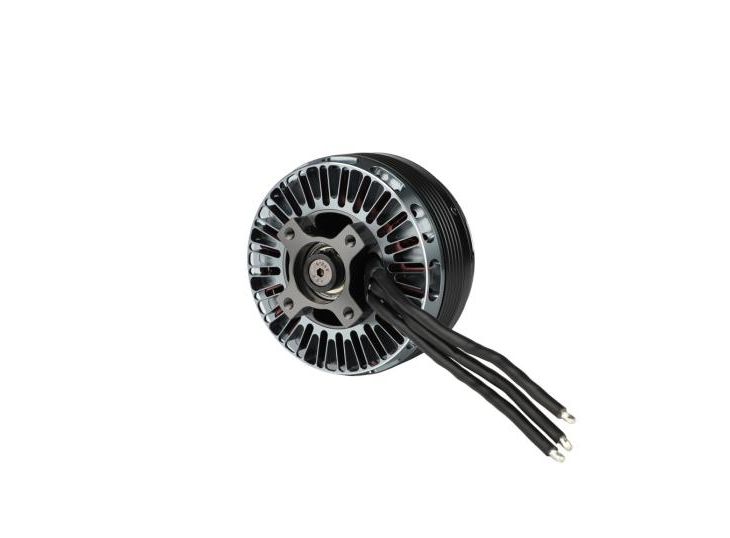

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160

Home/Motors & Propulsion Systems/Fixed-Wing Motors/T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160

CODE:TM-1094-5184

Hover on image to enlarge

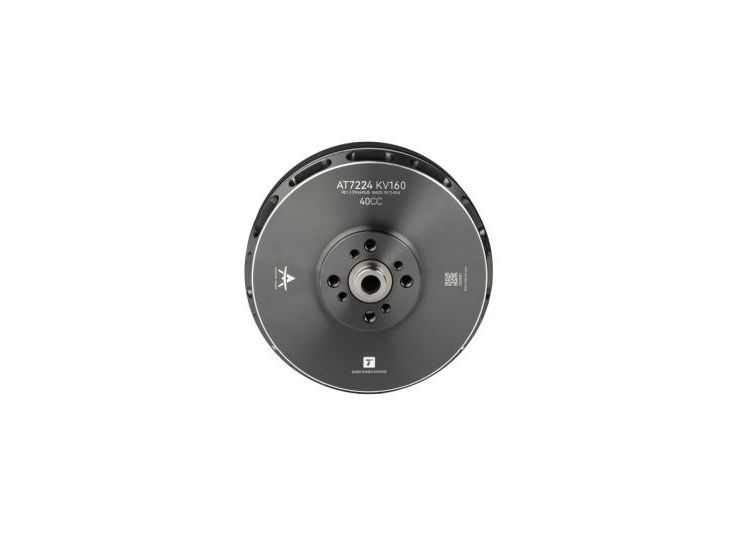

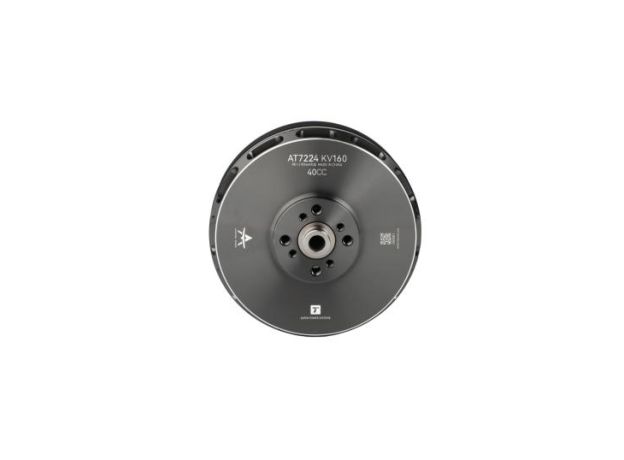

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Image 2

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Image 3

Sourced to Order

22.461,99 ₺ + VAT 26.954,39 ₺ VAT included Estimated deliveryUsually 9–25 business days

Motor KV rating:

160 KV 190 KV

Ask a question

Minimum quantity for "T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 26.954,39 ₺
Deposit at order (50%): 13.477,20 ₺
Balance on delivery (50%): 13.477,19 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 is part of the T-Motor at series motors for fixed-wing uav range. This listing covers the model and configuration identified below.

View all variations as list

	CODE	Motor KV rating	Availability	Price
	TM-1094-5184	160 KV		22.461,99 ₺ + VAT 26.954,39 ₺ VAT included
	TM-1094-5185	190 KV		22.461,99 ₺ + VAT 26.954,39 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

Product and configuration details

Brand	T-Motor
Model	AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160
Configuration	KV160
Manufacturer product code	T-MOTOR001094
DroneStore product code	TM-1094-5184

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Test Item	Long Shaft KV160
Weight (Incl. Cable)	780g
Motor Dimensions	Φ81.4*66.9mm
Internal Resistance	24mΩ
Lead	Enameled Wire 100mm
Configuration	24N22P
Shaft Diameter	IN ： 10mm OUT ： 10mm
Rated Voltage(Lipo)	10-12S
Idle Current(10V)	3.1A
Peak Current(180s)	105A
Max Power (180S)	4800W/12S

Manufacturer product details

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Manufacturer product details 3

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Manufacturer product details 4

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Manufacturer product details 5

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Manufacturer product details 6

T-Motor AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160 — Manufacturer product details 7

Technical drawings and performance charts

Features
