T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90

TM-906
Hover on image to enlarge
Sourced to Order
24.512,02 ₺ + VAT 29.414,42 ₺ VAT included Estimated deliveryUsually 9–25 business days
Ask a question

Minimum quantity for "T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT
29.414,42 ₺
Deposit at order (50%)
14.707,21 ₺
Balance on delivery (50%)
14.707,21 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

Contact us for available payment options.

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Contact us for the products and parts you need.

Description

T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.

Product and configuration details

BrandT-Motor
ModelMN1005 V2.0 Antigravity Type 12S UAV Motor KV90
ConfigurationStandard
Manufacturer product codeAWD01010181
DroneStore product codeTM-906

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Test ItemMN1005 V2.0
Lead CableEnamelled wire 100mm
Motor SizeΦ107*23mm
Copper Wire220 ℃ high temperature resistance
Stator180 ℃ high temperature-resisting coatings
Coil Insulation Test500V
Configuration36N42P
Centrifugal Cooling DesignNO
Shaft DiameterIN ： 17mm
Rotor Dynamic Balance Standard≤1 5Mg

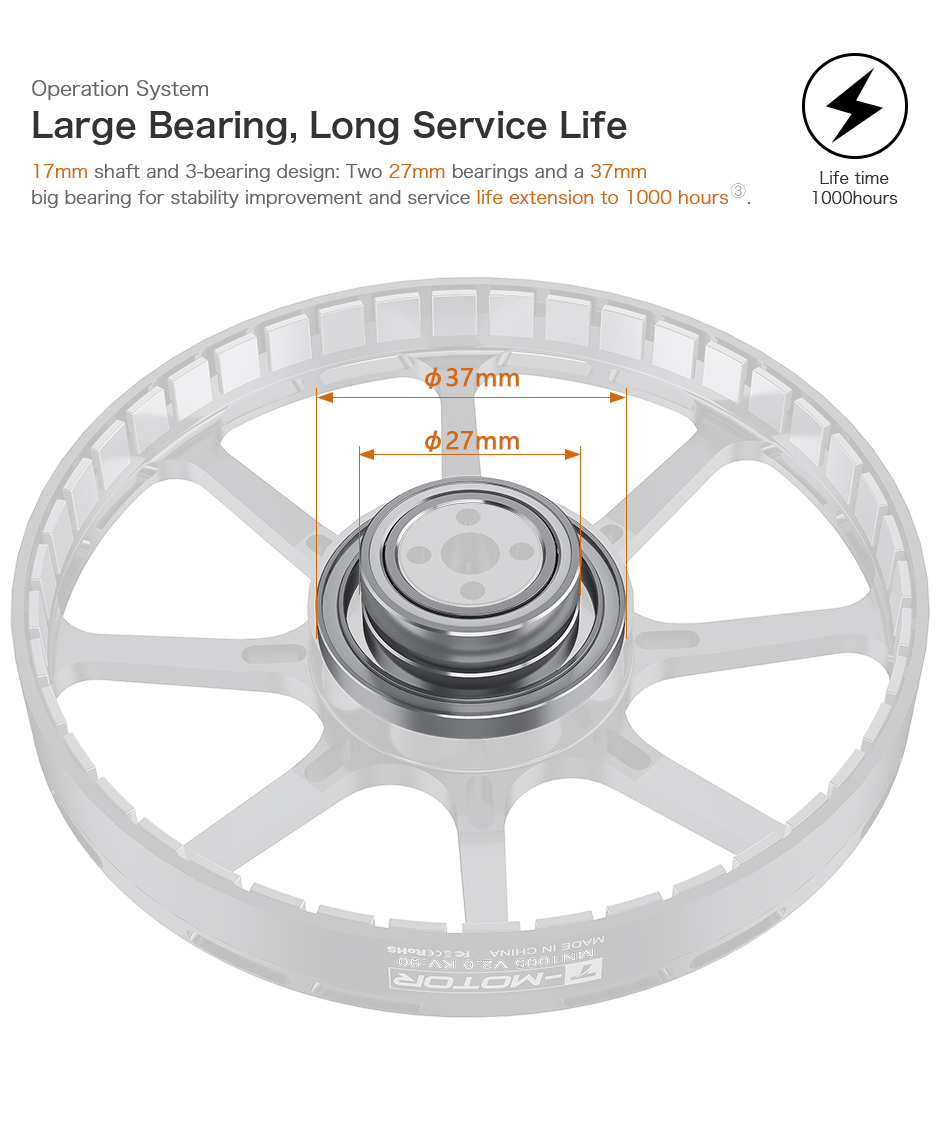

BearingImported 6803ZZ
Motor Dynamic Balance Standard≤ 10Mg
Magnet Level180 ℃ high temperature resistance
KV90
Rated Voltage (Lipo)12S
Idle Current (10V)0.9A
Internal Resistance168mΩ
Peak Current (180s)32A
Weight (Incl. Cable)282g
Max. Power (180s)1500W
Package Weight410g

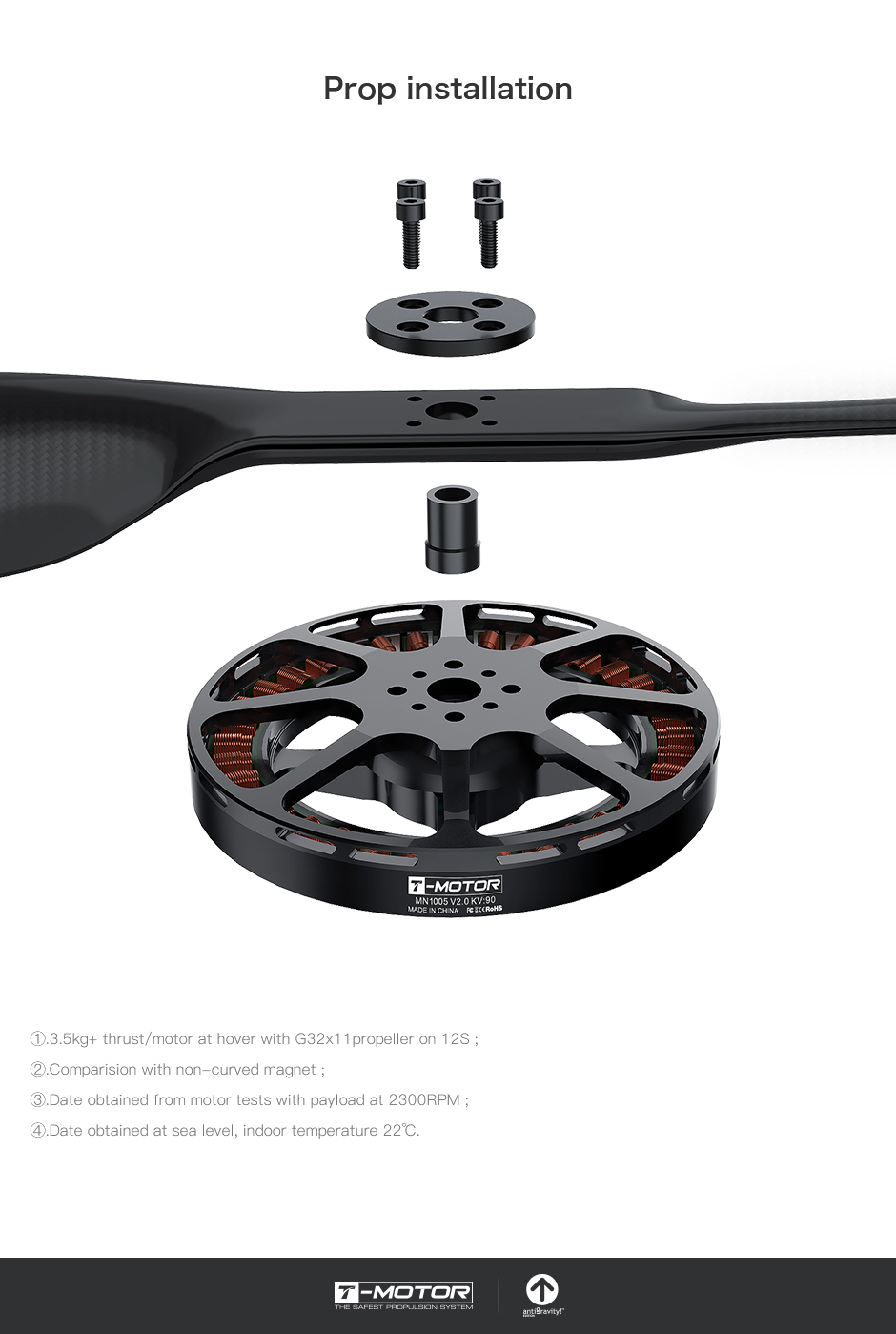

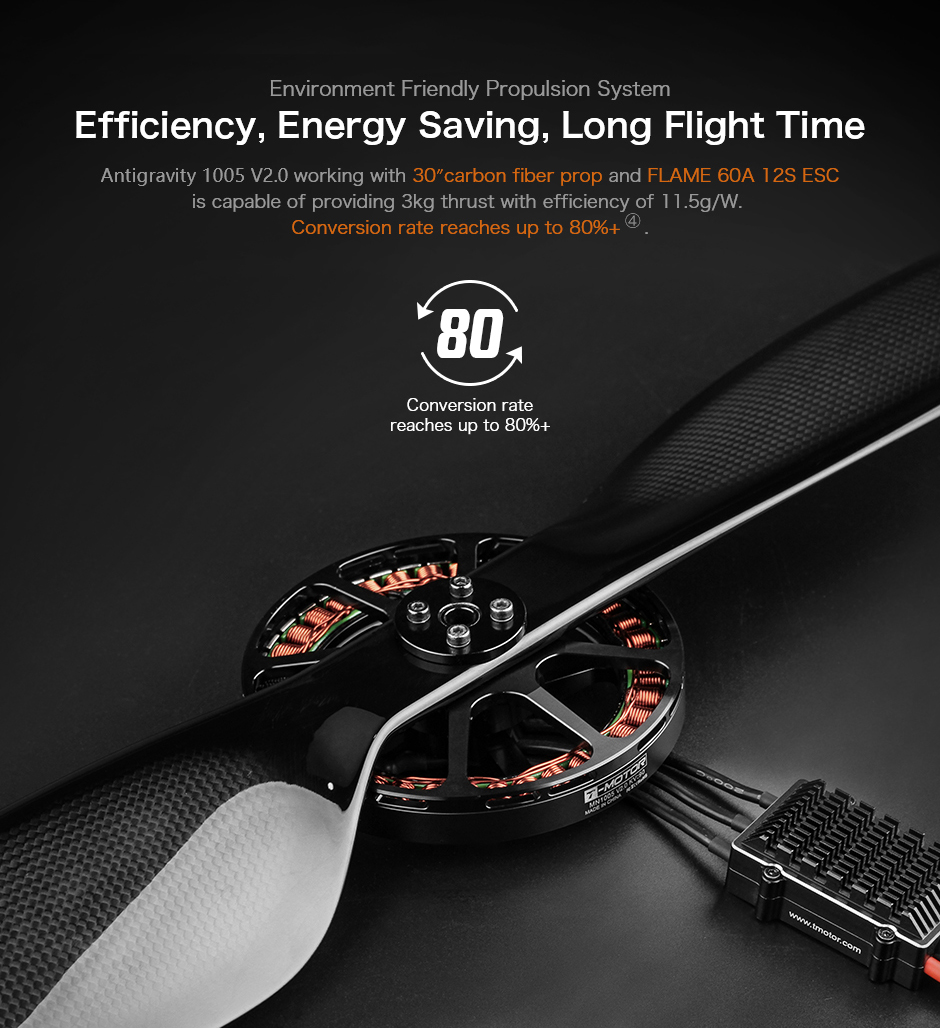

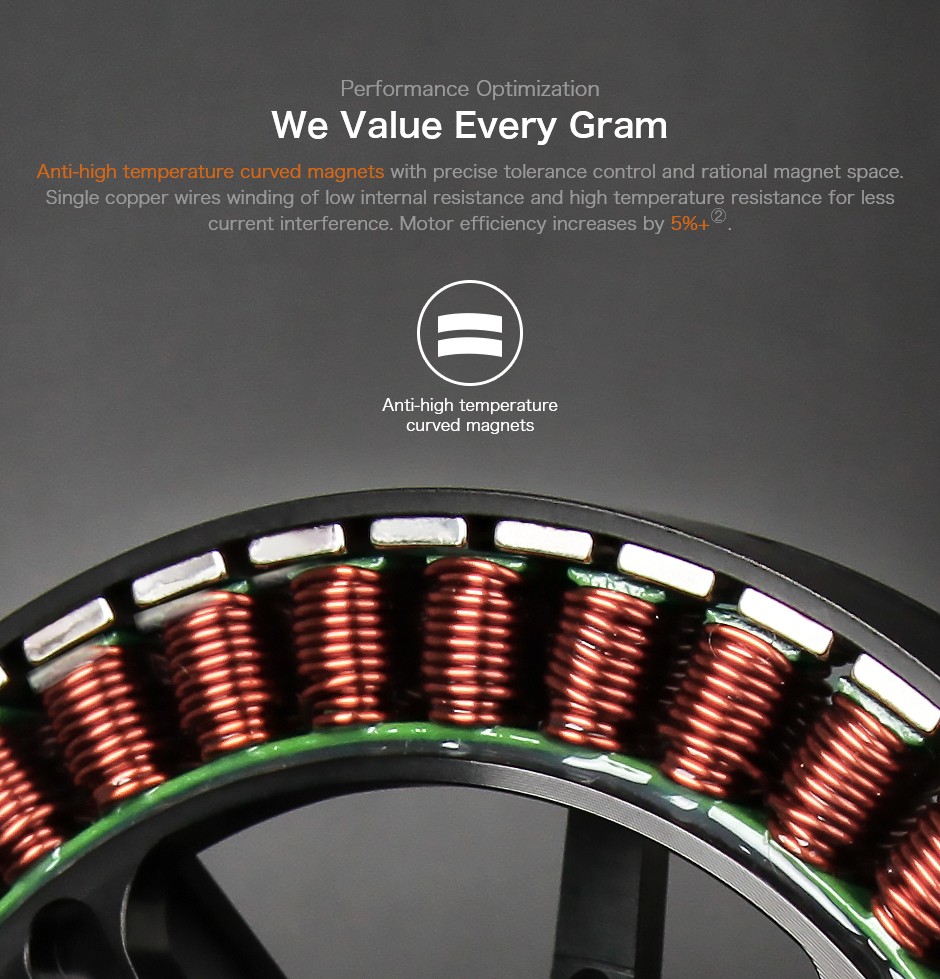

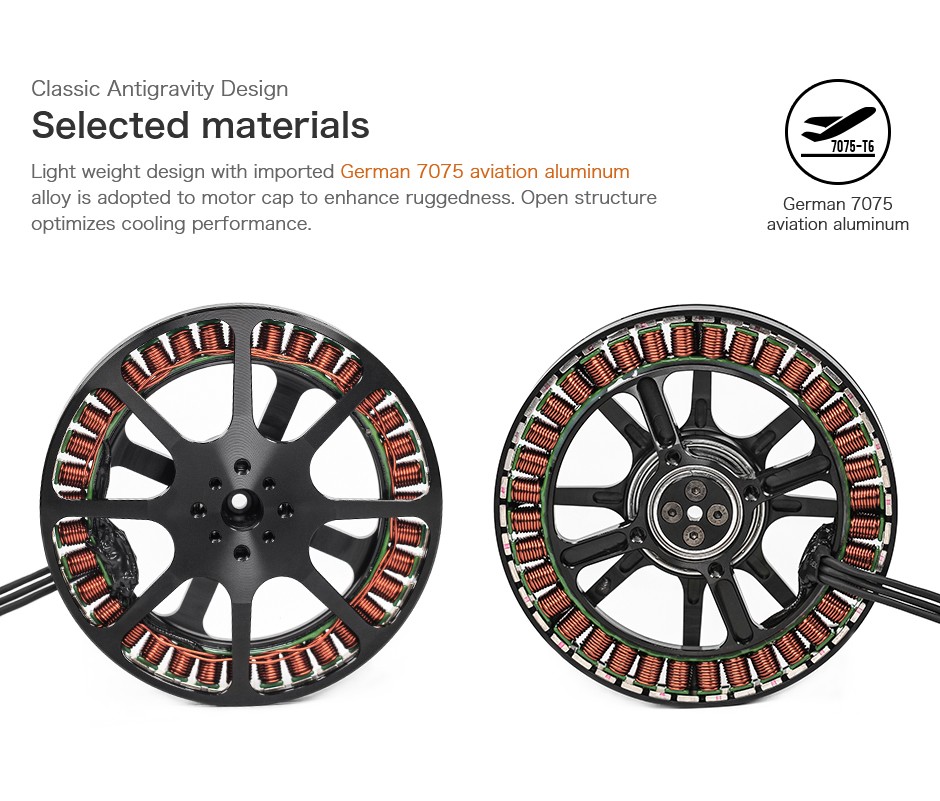

Manufacturer product details

T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Manufacturer product details 1T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Manufacturer product details 2T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Manufacturer product details 3T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Manufacturer product details 4T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Manufacturer product details 5T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Manufacturer product details 6

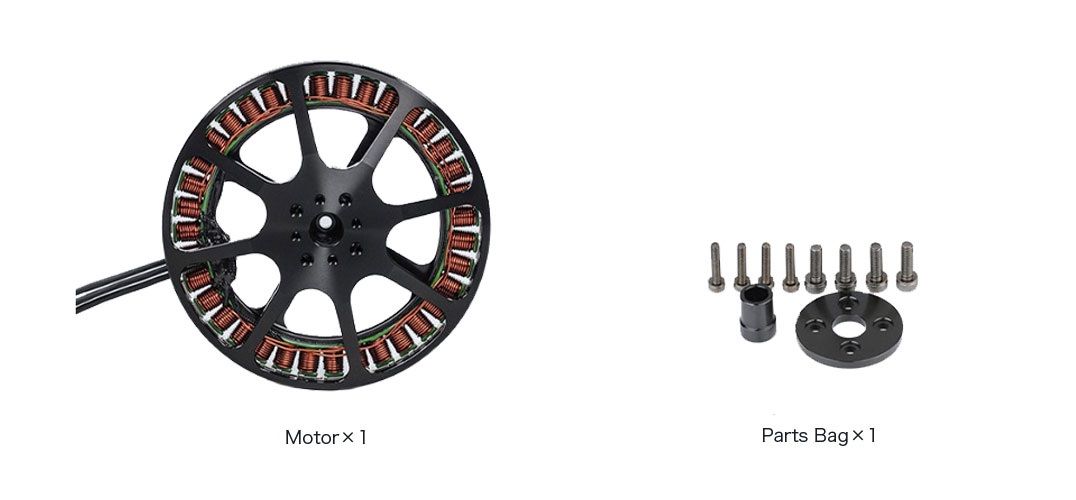

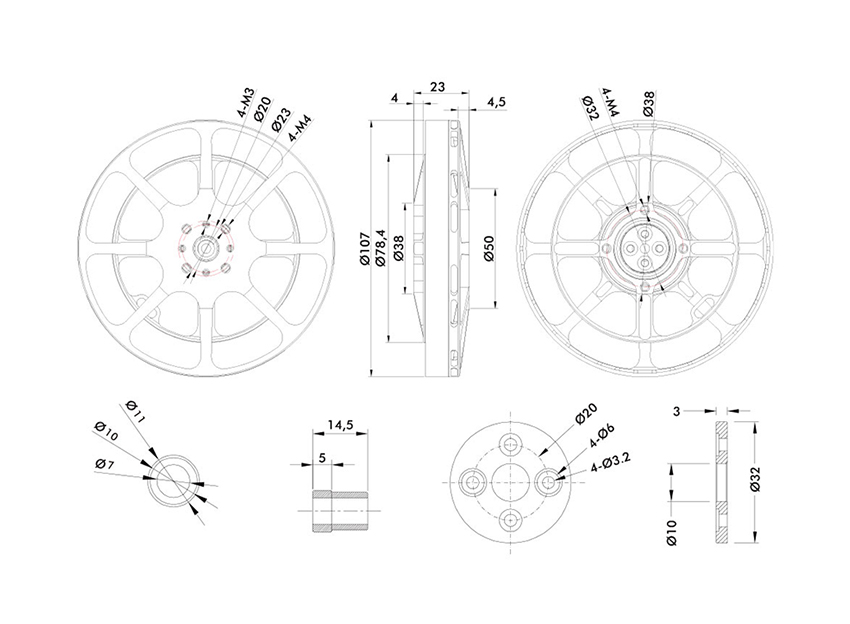

Technical drawings and performance charts

T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Technical drawings and performance charts 1T-Motor MN1005 V2.0 Antigravity Type 12S UAV Motor KV90 — Technical drawings and performance charts 2
Features
Brand:
T-Motor

Technical specifications

Product type:
Motor
Motor KV rating:
90 KV
Compatible LiPo cell count:
  • 12S
