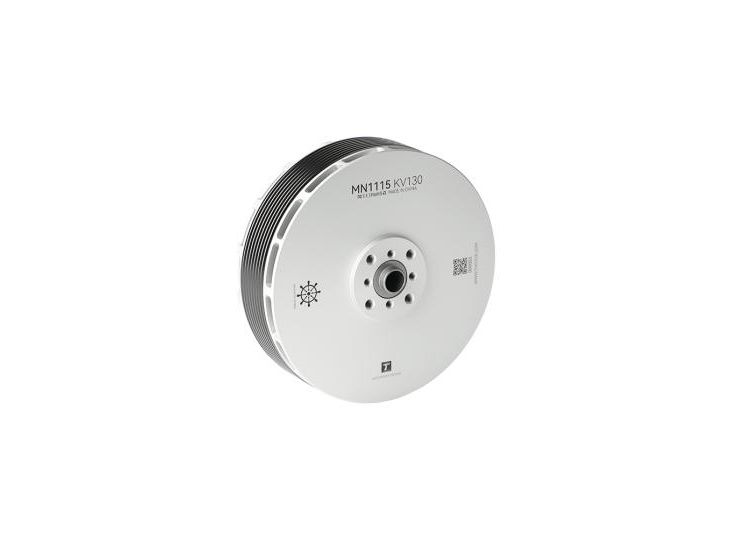

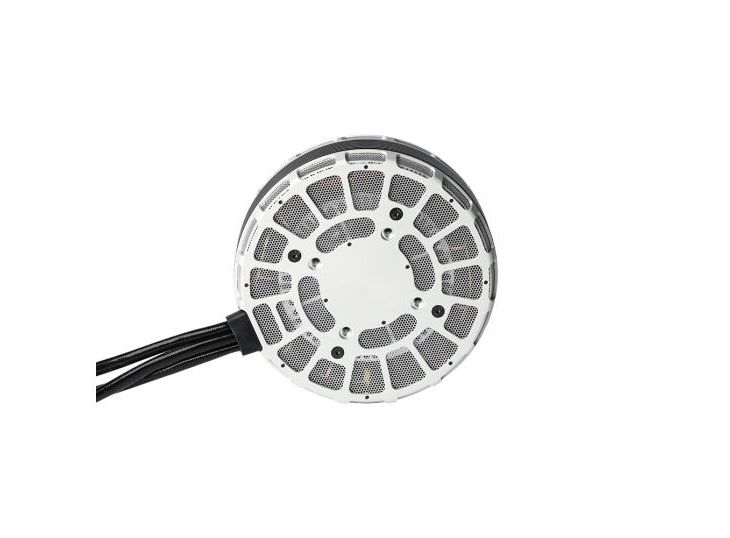

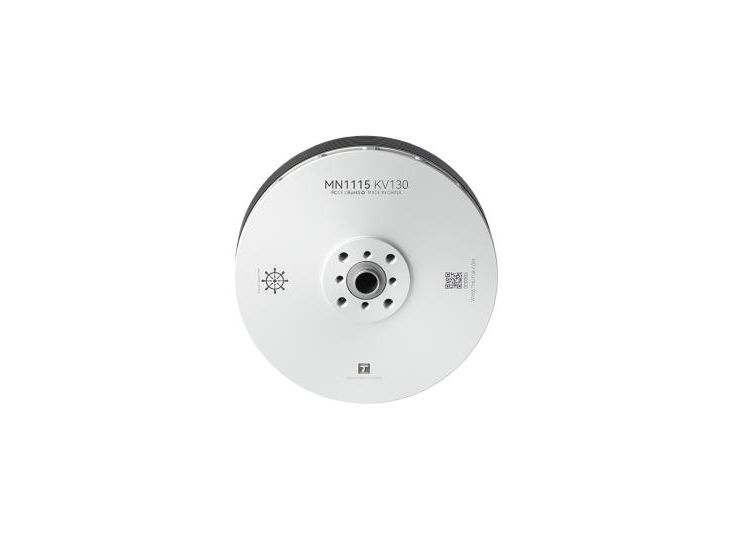

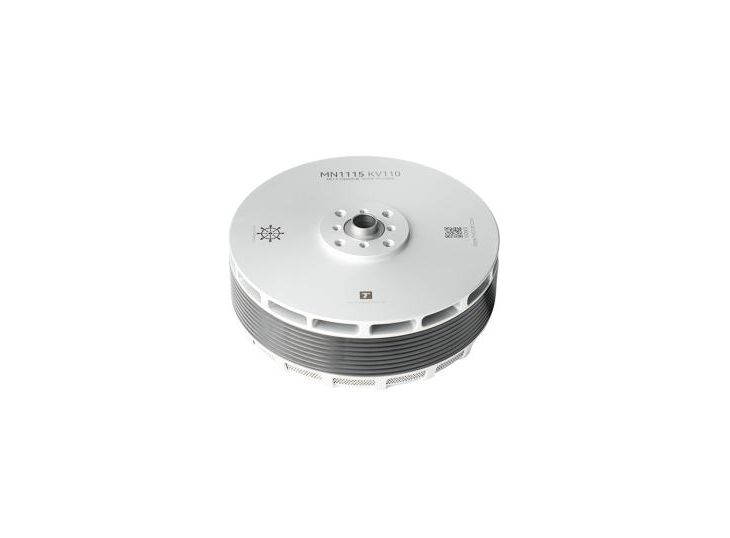

T-Motor MN1115 KV130
TM-1529-6098
Hover on image to enlarge
- View all variations as list
-
CODE Motor KV rating Availability Price
TM-1529-609737.263,36 ₺ + VAT 44.716,04 ₺ VAT included
TM-1529-609837.263,36 ₺ + VAT 44.716,04 ₺ VAT included
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor MN1115 KV130 is part of the T-Motor mn navigator type uav motors range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | MN1115 KV130 |
| Configuration | KV130 |
| Manufacturer product code | T-MOTOR001529 |
| DroneStore product code | TM-1529-6098 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Model No. | MN1115 |
|---|---|
| Motor Size | Φ120.5*47.9mm |
| Stator Technology | Imported Silicon Steel Sheet; Anti-Rust treatment; 150℃high Temperature-Resisting Coatings |
| Copper Wire | 220℃ High Temperature Resistance |
| Magnet Level | 180℃ High Temperature Resistance |
| Coil Insulation Test | 1000V Withstand Voltage Test |
| IP | IP45 |
| Configuration | 36N40P |
| Rotor Dynamic Balance Standard | ≤30mg |
| Bearing | Imported 6902ZZ |
| Output Shaft Diameter | 12mm |
| Wire Specification/ Length | Enameled Wire*150mm |
| KV Value | 110 |
|---|---|
| Idle Current (20V) | 3.5A |
| Max Power (180s) | 2800W |
| Internal Resistance | 12mΩ |
| Rated Voltage (Lipo) | 14S |
| Peak Current | 152A |
| Max Thrust | 34.3kg |
| Motor Weight (Incl. Cable) | 1040g |
| Package Weight | 1500g |
| KV Value | 130 |
|---|---|
| Idle Current (20V) | 2.7A |
| Max Power (180s) | 2816W |
| Internal Resistance | 16mΩ |
| Rated Voltage (Lipo) | 12S |
| Peak Current | 180A |
| Max Thrust | 33.3kg |
| Motor Weight (Incl. Cable) | 1055g |
| Package Weight | 1500g |
| Motor | MN1115 KV110 |
|---|---|
| ESC | M200A14S |
| Propeller | G36 x11.5 |
| Rated Voltage (Lipo) | 14S |
| Motor | MN1115 KV130 |
|---|---|
| ESC | M200A14S |
| Propeller | G36x11.5 |
| Rated Voltage (Lipo) | 12S |
Manufacturer product details
Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Product type:
Motor
Motor KV rating:
130 KV
IP protection rating:
IP45
