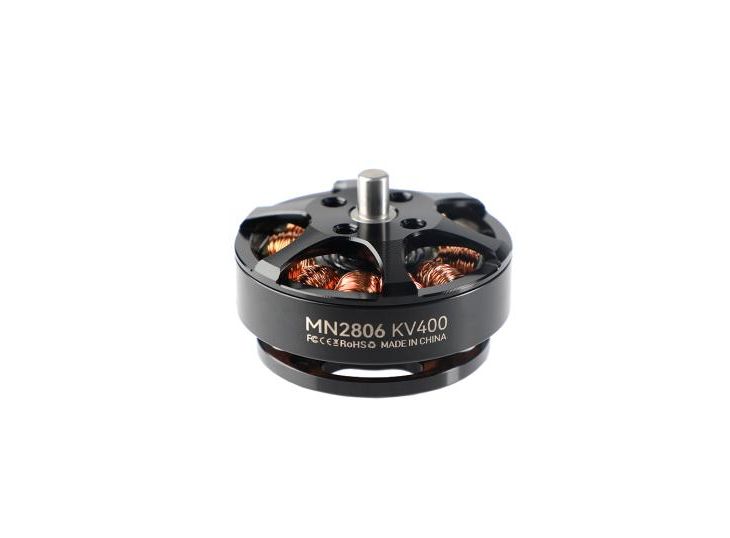

T-Motor MN2806 Antigravity Multirotor UAVs Motor KV400
TM-1150-5297
Hover on image to enlarge
- View all variations as list
-
CODE Motor KV rating Availability Price
TM-1150-52974.600,29 ₺ + VAT 5.520,35 ₺ VAT included
TM-1150-53224.600,29 ₺ + VAT 5.520,35 ₺ VAT included
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor MN2806 Antigravity Multirotor UAVs Motor KV400 is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | MN2806 Antigravity Multirotor UAVs Motor KV400 |
| Configuration | KV400 |
| Manufacturer product code | T-MOTOR0011501 |
| DroneStore product code | TM-1150-5297 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Model No./ Kv | MN2806 KV400/650 |
|---|---|
| Motor Size(mm) | Φ35*26 |
| Stator Technology | Anti-rust treatment;180°C high temperature-resisting coatings |
| Configuration | 12N14P |
| Shaft Diameter(mm) | IN:4 OUT:4 |
| Bearing | Imported 694ZZ |
| Magnet Temperature Resistance Grade | 150℃ |
| Lead(mm) | Enameled Wire 50mm |
| Enamelled Wires Temperature Resistance Grade | 180℃ |
| Coil Withdraw Voltage | 500V/5s |
| Rotor Dynamic Balance Standard | ≤10mg |
| KV Value | KV400 |
|---|---|
| Battery (lipo)/Voltage Recommendation | 4-6S（4.2V/Sl）/16.8-25.2V |
| Idle Current（18V） | 0.2A |
| ESC Recommendation | AIR40A6S |
| Peak Current（A） | 9.4A/Continuous 180s |
| Propeller Recommendation | P12X4/P13X4.4 |
| Max. Power（W） | 216W/Continuous 180s |
| Motor Weight（g） | 46g Weight (incl. cables) |
| Internal Resistance（mΩ） | 645 |
| Package Weight（g） | 110g |
| KV Value | KV650 |
|---|---|
| Battery (lipo)/Voltage Recommendation | 4S（4.2V/Sl）/16.8V |
| Idle Current（18V） | 0.2A |
| ESC Recommendation | AIR40A6S |
| Peak Current（A） | 12.3A/持续180s |
| Propeller Recommendation | P12X4/P13X4.4 |
| Max. Power（W） | 187W/持续180s |
| Motor Weight（g） | 46g Weight (incl. cables) |
| Internal Resistance（mΩ） | 275 |
| Package Weight（g） | 110g |

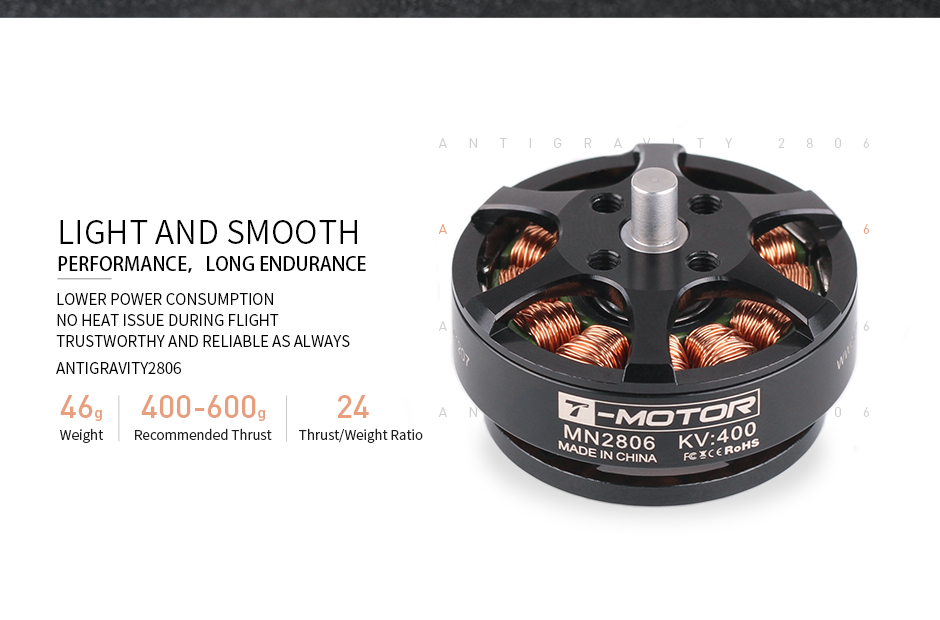

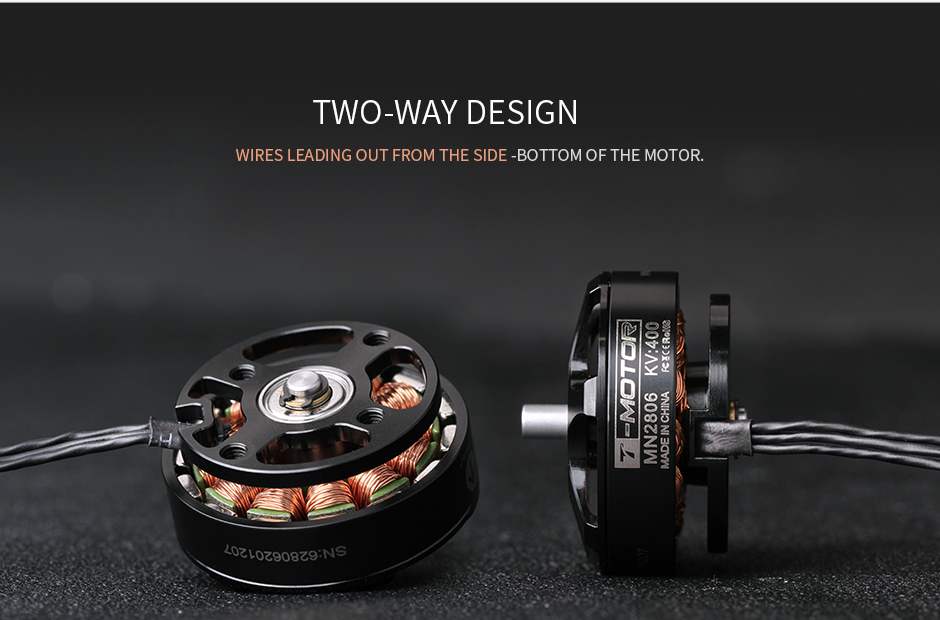

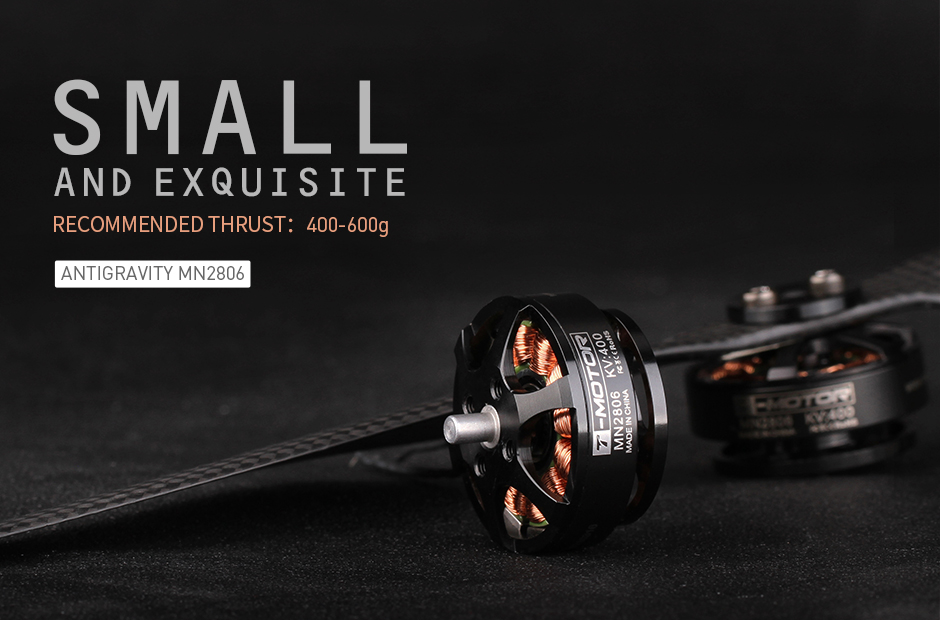

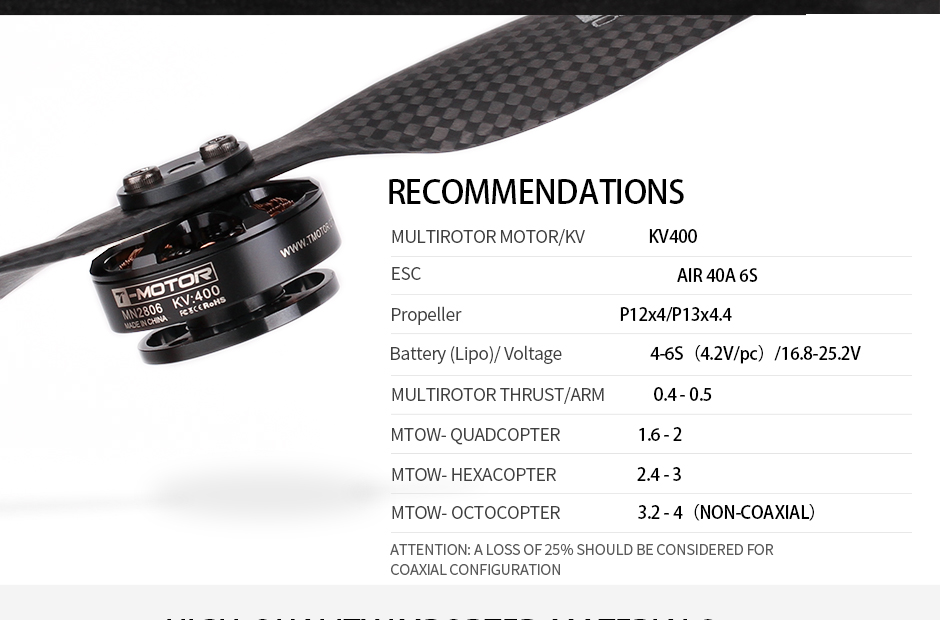

Manufacturer product details

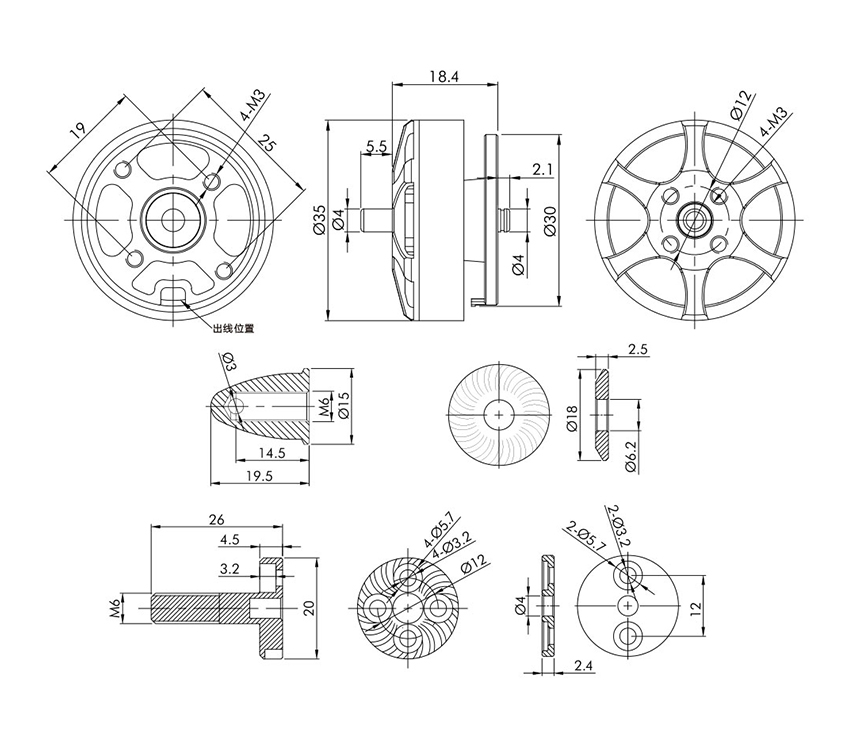

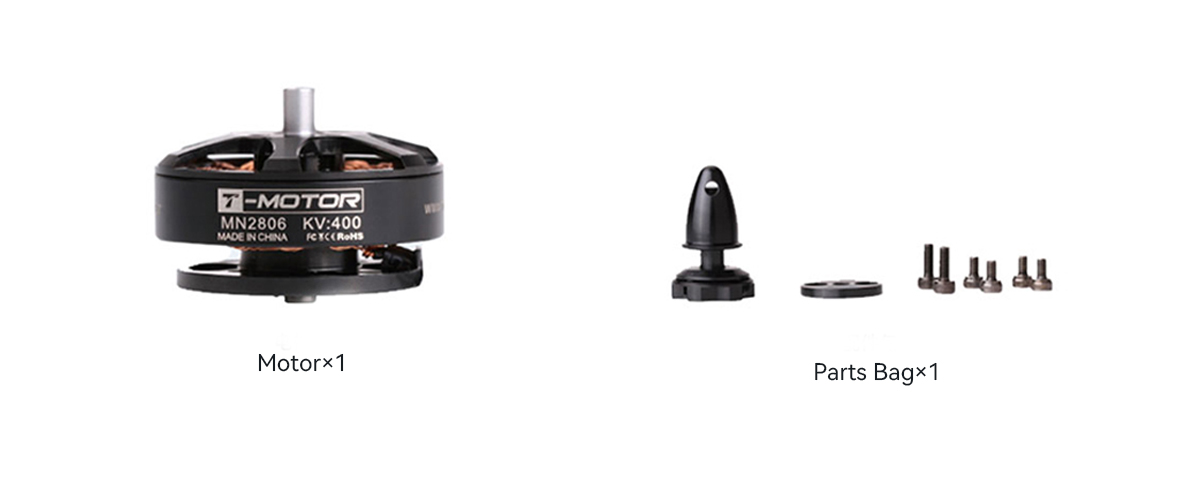

Technical drawings and performance charts
Features
