T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET

TM-438
Hover on image to enlarge
Sourced to Order
14.310,94 ₺ + VAT 17.173,12 ₺ VAT included Estimated deliveryUsually 9–25 business days
Ask a question

Minimum quantity for "T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT
17.173,12 ₺
Deposit at order (50%)
8.586,56 ₺
Balance on delivery (50%)
8.586,56 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

Contact us for available payment options.

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Contact us for the products and parts you need.

Description

T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.

Product and configuration details

BrandT-Motor
ModelMN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET
ConfigurationStandard
Manufacturer product codeAWD01010172
DroneStore product codeTM-438

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Test Item300
Weight (Incl. Cable)53g
Motor DimensionsΦ44.35×19mm
Internal Resistance452mΩ
Lead50mm
Configuration18N24P
Shaft Diameter40mm
Rated Voltage(Lipo)4-6S
Idle Current(22V)0.2A
Peak Current(180s)9A
Max Power (180S)216W
Test Item400
Weight (Incl. Cable)53g
Motor DimensionsΦ44.35×19mm
Internal Resistance359mΩ
Lead50mm
Configuration18N24P
Shaft Diameter40mm
Rated Voltage(Lipo)4-6S
Idle Current(22V)0.2A
Peak Current(180s)12A
Max Power (180S)300W

Manufacturer product details

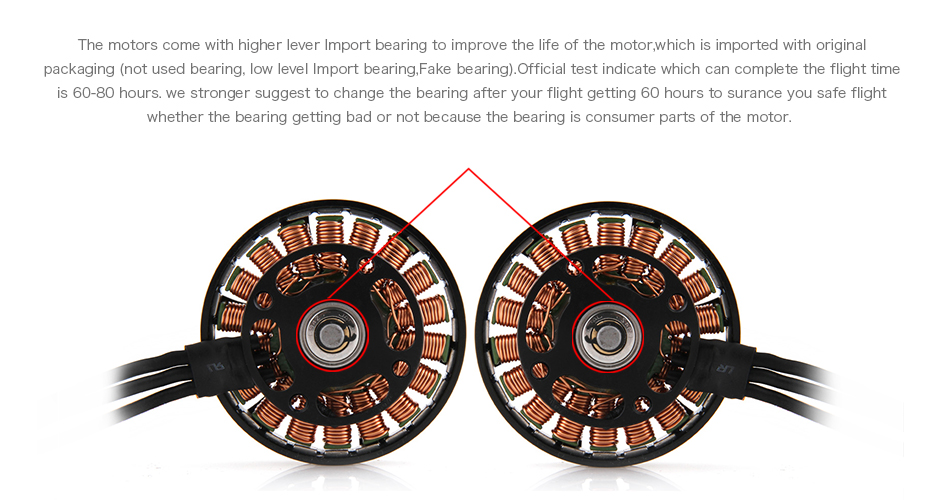

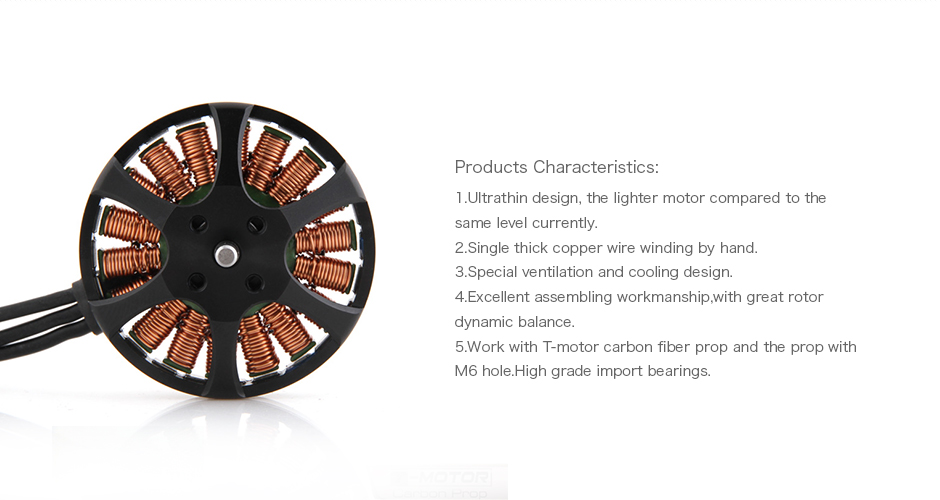

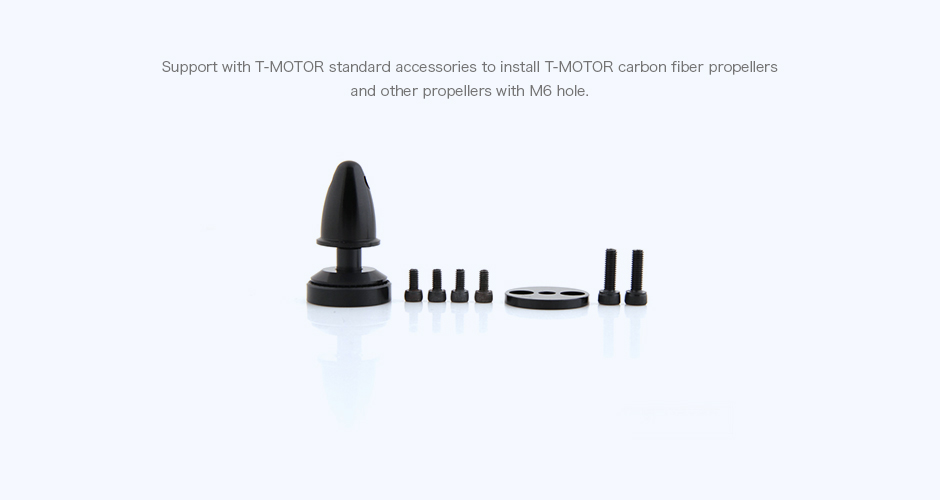

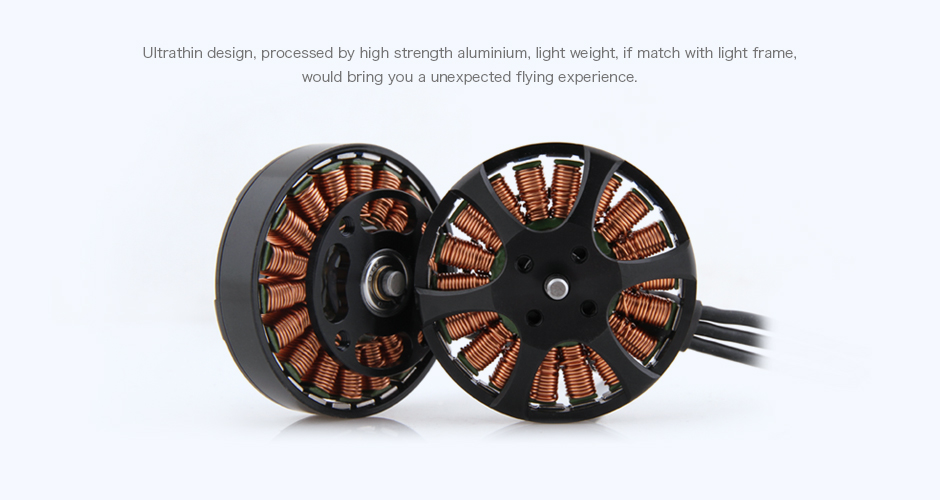

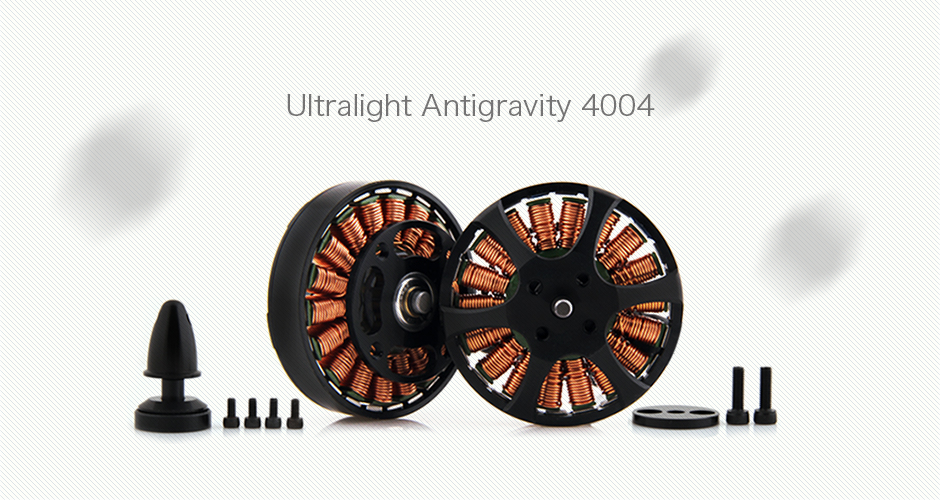

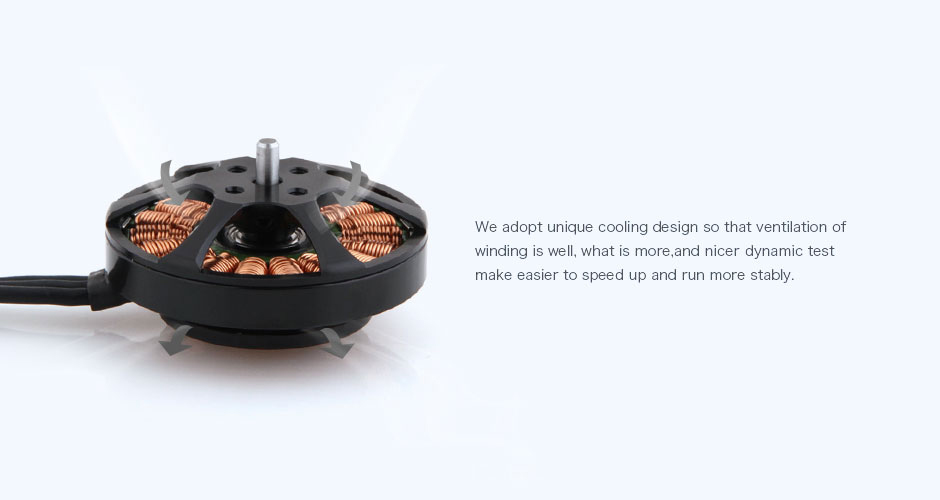

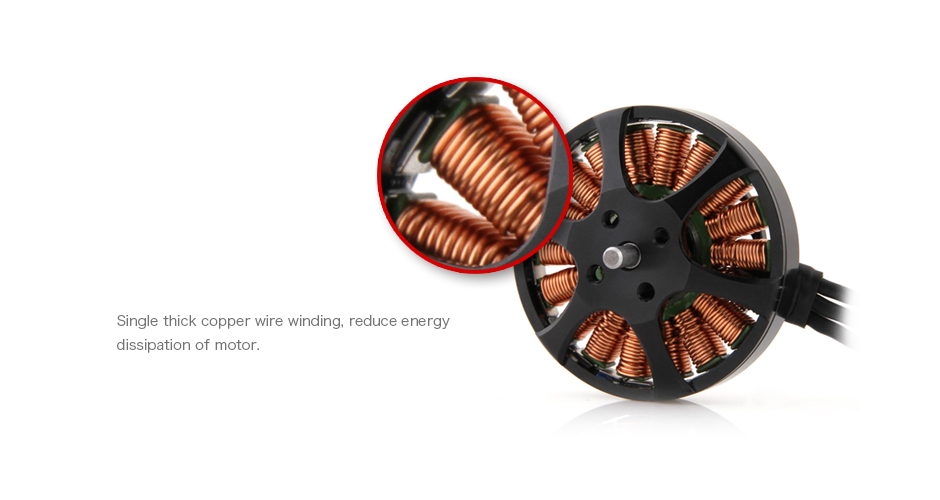

T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 1T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 2T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 3T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 4T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 5T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 6T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Manufacturer product details 7

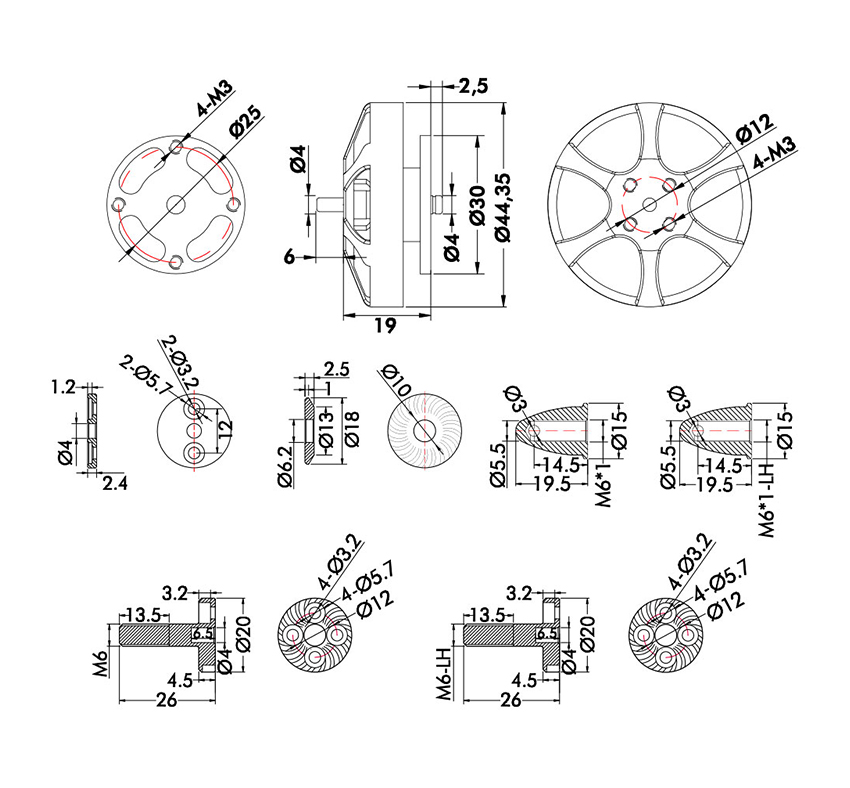

Technical drawings and performance charts

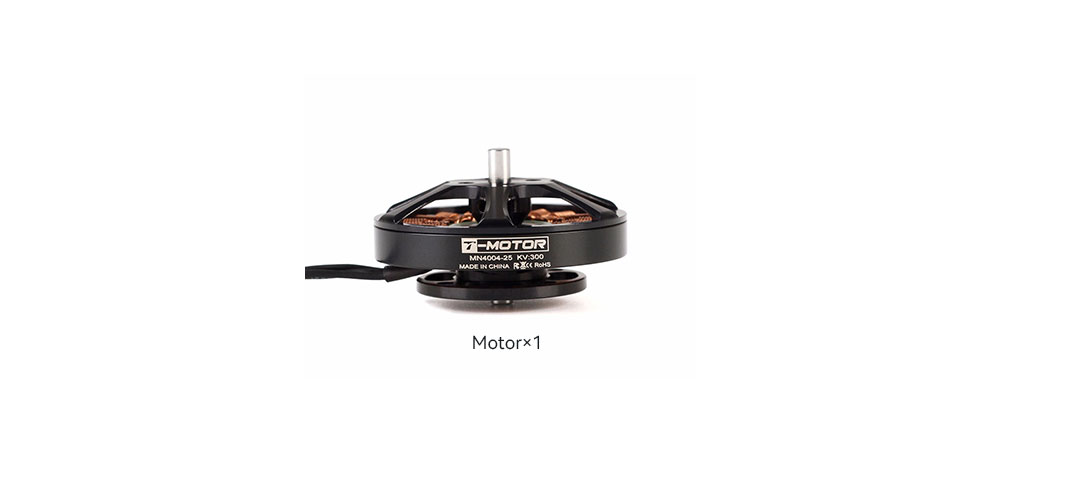

T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Technical drawings and performance charts 1T-Motor MN4004 Antigravity Type 4-6S UAV Motor KV300 - 2PCS/SET — Technical drawings and performance charts 2
Features
Brand:
T-Motor

Technical specifications

Product type:
Motor
Motor KV rating:
300 KV
Compatible LiPo cell count:
  • 4S
  • 5S
  • 6S
Motor shaft diameter (mm):
40
