T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450

Home/Motors & Propulsion Systems/Multirotor Motors/T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450

CODE:TM-1205-5372

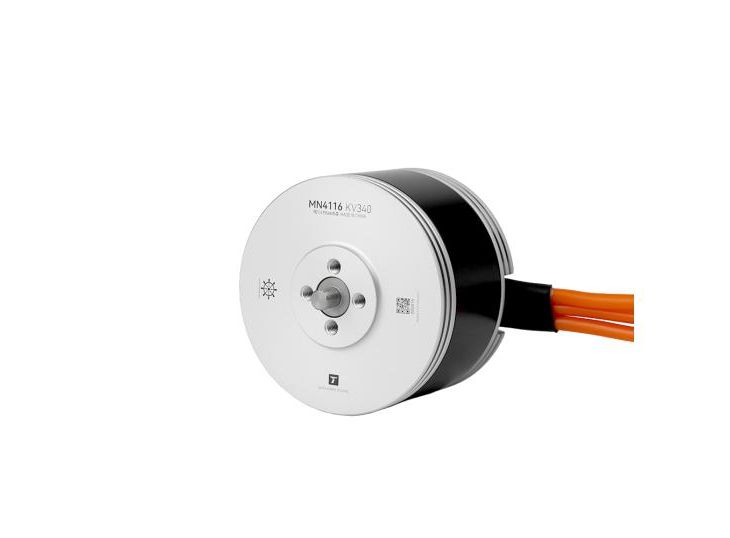

Hover on image to enlarge

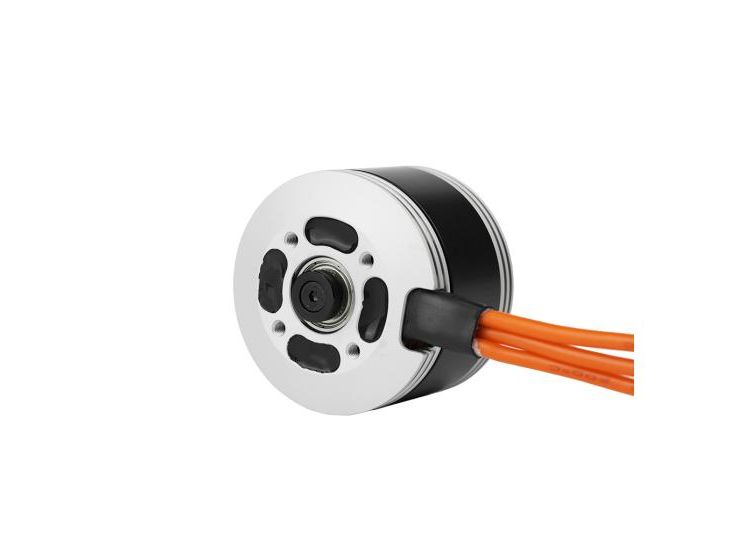

T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450 — Image 2

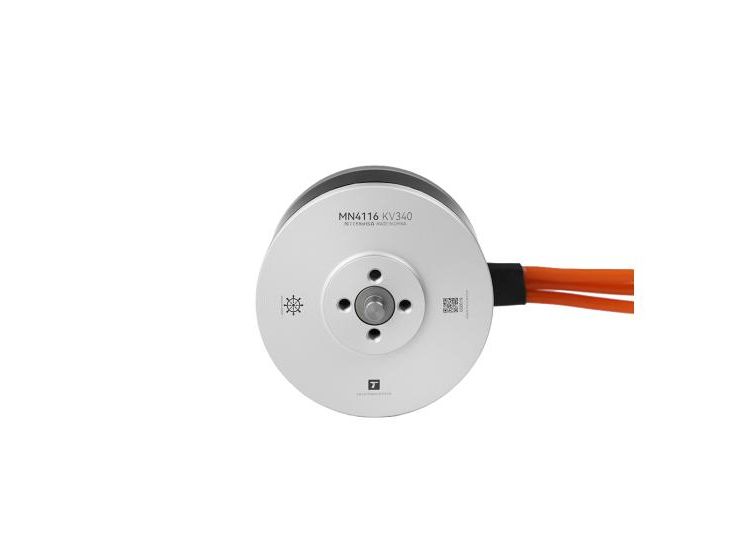

T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450 — Image 3

Sourced to Order

9.807,75 ₺ + VAT 11.769,49 ₺ VAT included Estimated deliveryUsually 9–25 business days

Motor KV rating:

340 KV 450 KV

Ask a question

Minimum quantity for "T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 11.769,49 ₺
Deposit at order (50%): 5.884,75 ₺
Balance on delivery (50%): 5.884,74 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450 is part of the T-Motor mn navigator type uav motors range. This listing covers the model and configuration identified below.

View all variations as list

	CODE	Motor KV rating	Availability	Price
	TM-1205-5371	340 KV		9.807,75 ₺ + VAT 11.769,49 ₺ VAT included
	TM-1205-5372	450 KV		9.807,75 ₺ + VAT 11.769,49 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450 is part of the T-Motor mn navigator type uav motors range. This listing covers the model and configuration identified below.

Product and configuration details

Brand	T-Motor
Model	MN4116 Multi-Motor Fixed Wing UAV Motor KV450
Configuration	KV450
Manufacturer product code	T-MOTOR001205
DroneStore product code	TM-1205-5372

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Motor Size	Φ47.4*42.7mm
Stator	Imported silicon steel sheet; Anti-rust treatment;180℃ high temperature-resisting coatings
Configuration	12N14P
Shaft Diameter	IN：6mm OUT：4
Bearing	686ZZ/696ZZ
Magnet Level	N45SH
Lead Cable	16AWG*150mm
Copper Wire	220℃ high temperature resistance: Level C
Coil Insulation Test	500V/5s
Centrifugal Cooling Design	YES
Rotor Dynamic Balance Standard	≤5Mg

KV	450
Rated Voltage (Lipo)	6S
ldle Current(10V)	1.4A
Propeller Recommendation	P15-16"/T16*8"
Peak Current (180s)	54A
Motor Weight (Incl. Cable)	212g
Max.Power (180s)	1210W
Package Weight	315g
Internal Resistance	32mΩ

KV	MN4116 KV450
Propeller	T16*8"
ESC	AT 75A 6S
Battery(Lipo) /Voltage	6S(4.2V/pc)/22-25V
Thrust/motor(kg)	1.8kg
MTOW (1 motor/2 motors) (kg)	6/10kg

KV	MN4116 KV450
Propeller	P15*5"
ESC	FLAME 60A 12S V2.0
Battery(Lipo) /Voltage	6S(4.2V/pc)/22-25V
Thrust/motor(kg)	1.5kg
MTOW (1 motor/2 motors) (kg)	6.0kg

KV	MN4116 KV450
Propeller	P16*5.4"
ESC	FLAME 60A 12S V2.0
Battery(Lipo) /Voltage	6S(4.2V/pc)/22-25V
Thrust/motor(kg)	1.7kg
MTOW (1 motor/2 motors) (kg)	6.8kg

Manufacturer product details

T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450 — Manufacturer product details 3

T-Motor MN4116 Multi-Motor Fixed Wing UAV Motor KV450 — Manufacturer product details 4

Technical drawings and performance charts

Features
