T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170

TM-998
Hover on image to enlarge
Sourced to Order
8.826,88 ₺ + VAT 10.592,45 ₺ VAT included Estimated deliveryUsually 9–25 business days
Ask a question

Minimum quantity for "T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT
10.592,45 ₺
Deposit at order (50%)
5.296,23 ₺
Balance on delivery (50%)
5.296,22 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

Contact us for available payment options.

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Contact us for the products and parts you need.

Description

T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 is part of the T-Motor mn antigravity type uav motors range. This listing covers the model and configuration identified below.

Product and configuration details

BrandT-Motor
ModelMN5008 Antigravity Type 6-12S UAV Motor KV170
ConfigurationStandard
Manufacturer product codeAWD01010013
DroneStore product codeTM-998

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Motor SizeΦ55.6*32mm
Copper Wire180℃ high temperature resistance: Level H
StatorImported silicon steel sheet; Anti-rust treatment; 180 ℃ high temperature-resisting coatings
Coil Insulation Test500V
Configuration24N28P
Centrifugal Cooling DesignYES
Shaft DiameterIN：6mm
Rotor Dynamic Balance Standard≤15mg
BearingImported 696ZZ
Motor Dynamic Balance Standard≤10mg
Magnet Level150 ℃ high temperature resistance: Level E
Packing Size106*81*35mm
Lead Cable80mm
KV170
Rated Voltage（Lipo）6-12S
Idle Current（22V）0.4A
ESC RecommendationFLAME 60A 12S
Peak Current（180s）15A
Propeller RecommendationP17-18”
Max. Power（180s）720W
Motor Weight（Incl. Cable）128g
Internal Resistance270mΩ
Package Weight190g

Manufacturer product details

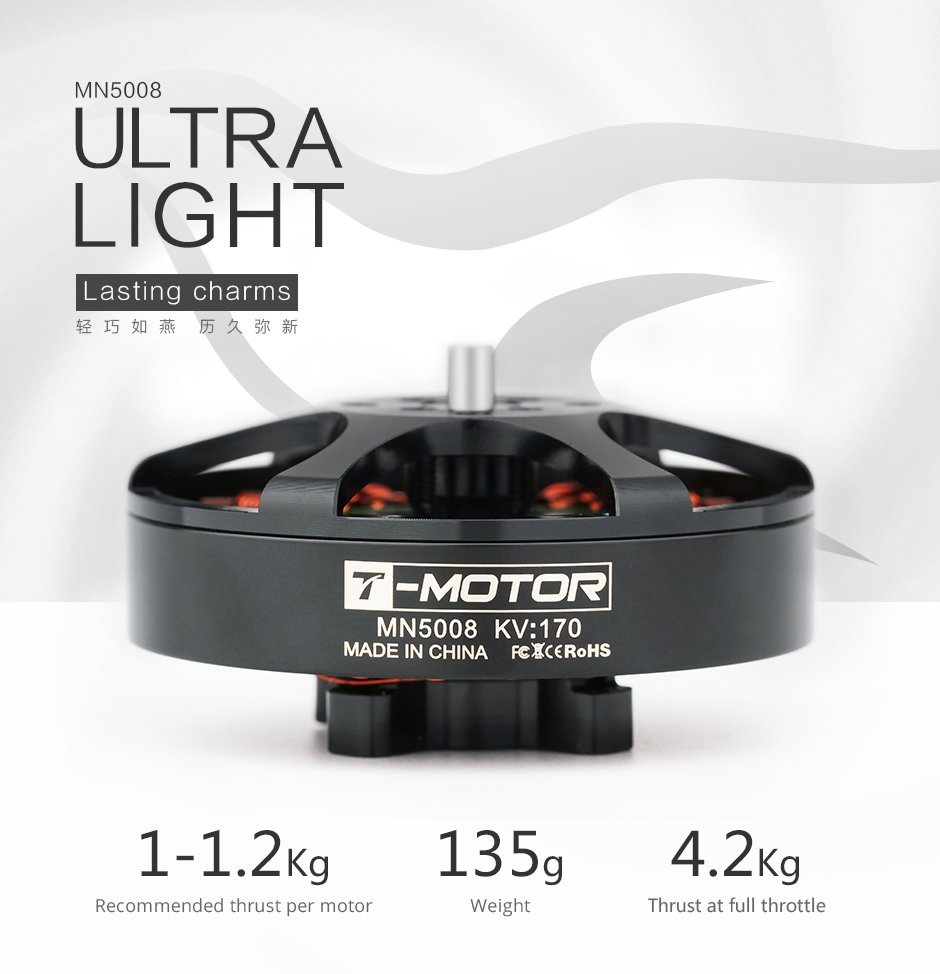

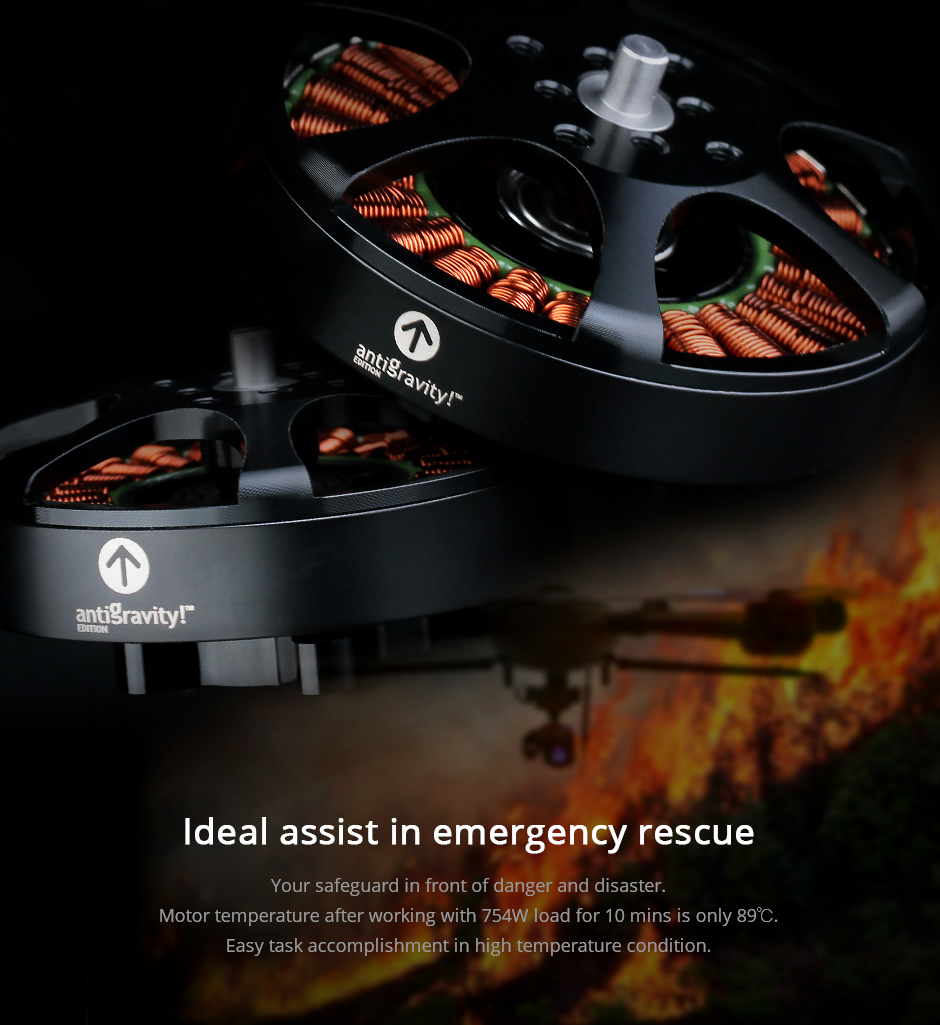

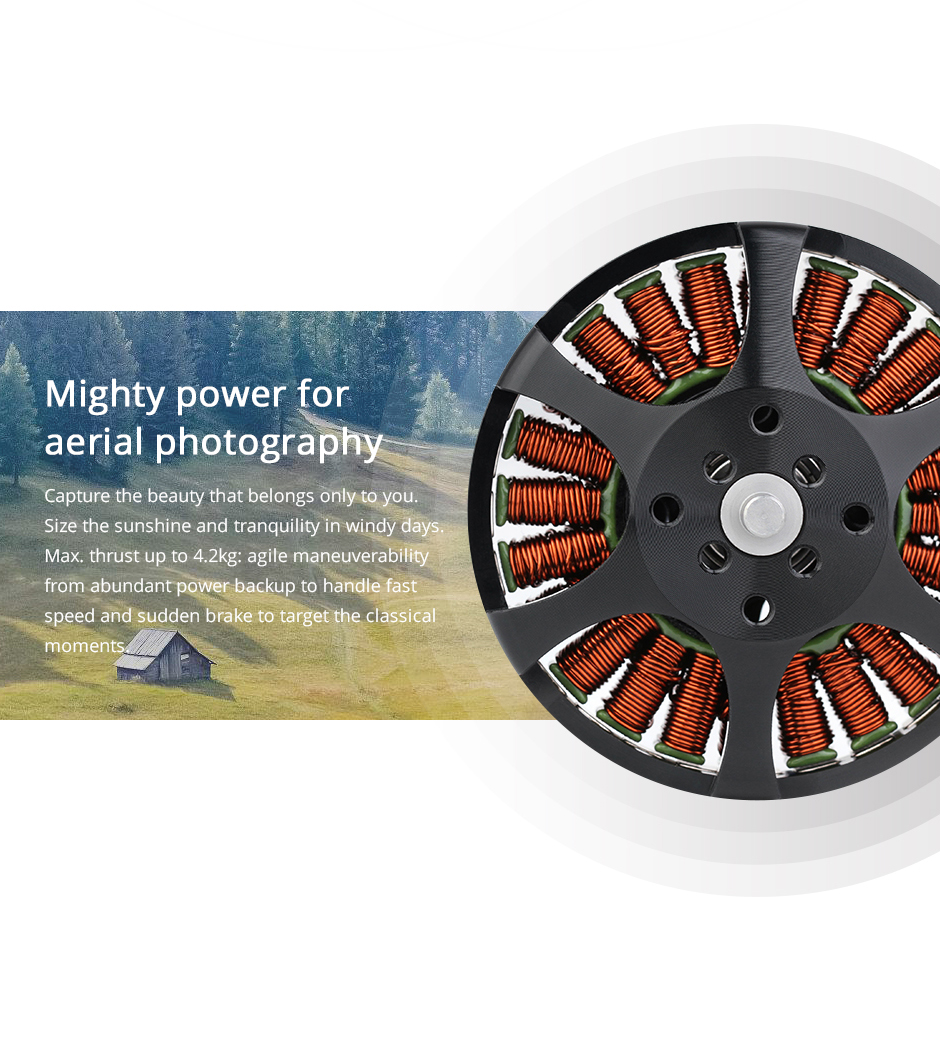

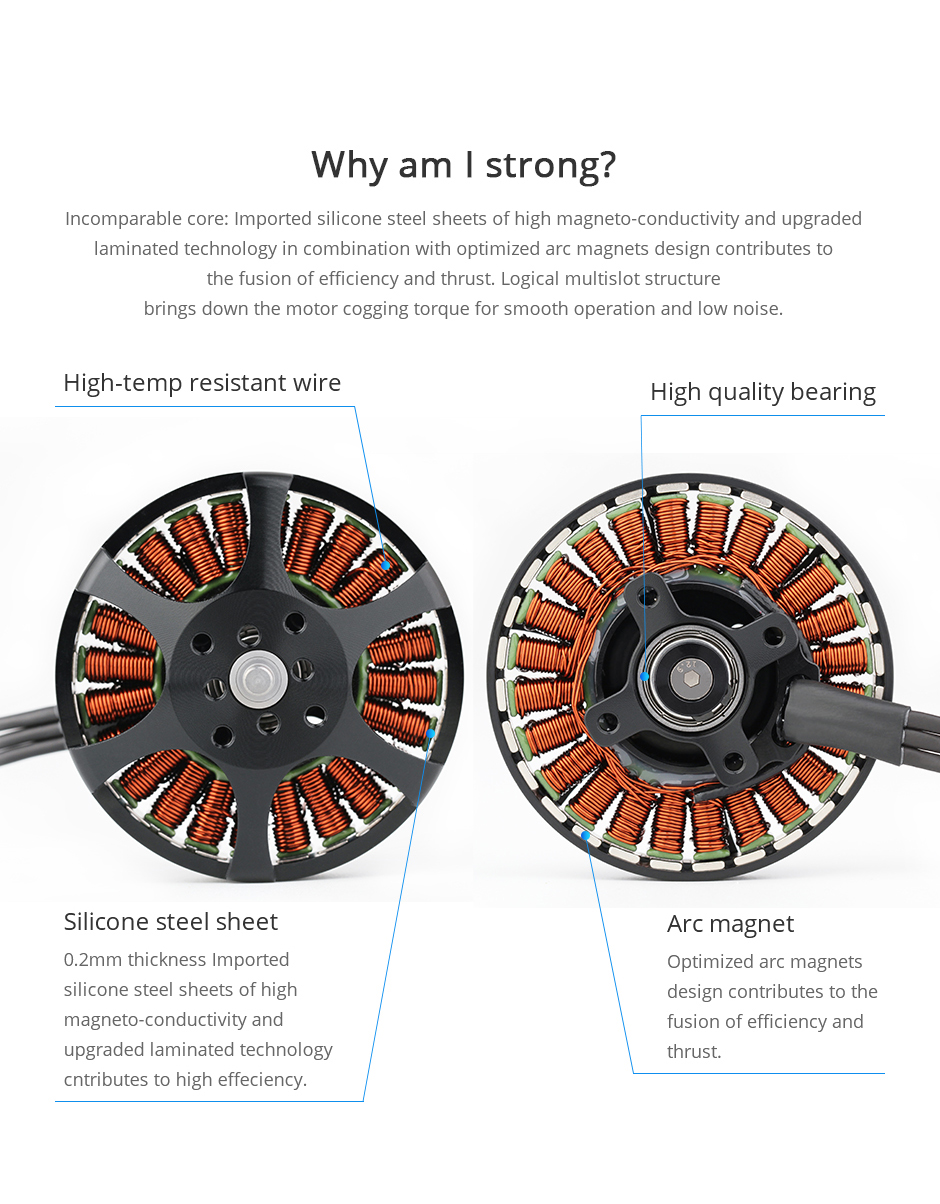

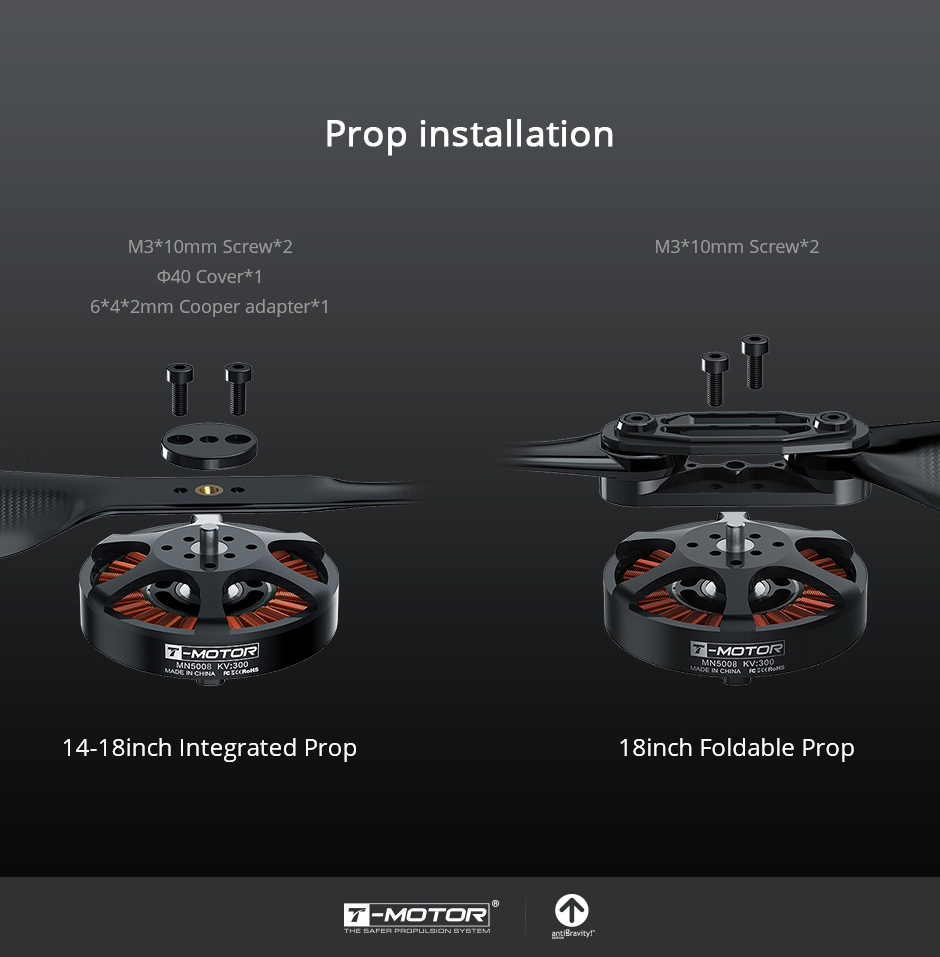

T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Manufacturer product details 1T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Manufacturer product details 2T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Manufacturer product details 3T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Manufacturer product details 4T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Manufacturer product details 5T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Manufacturer product details 6

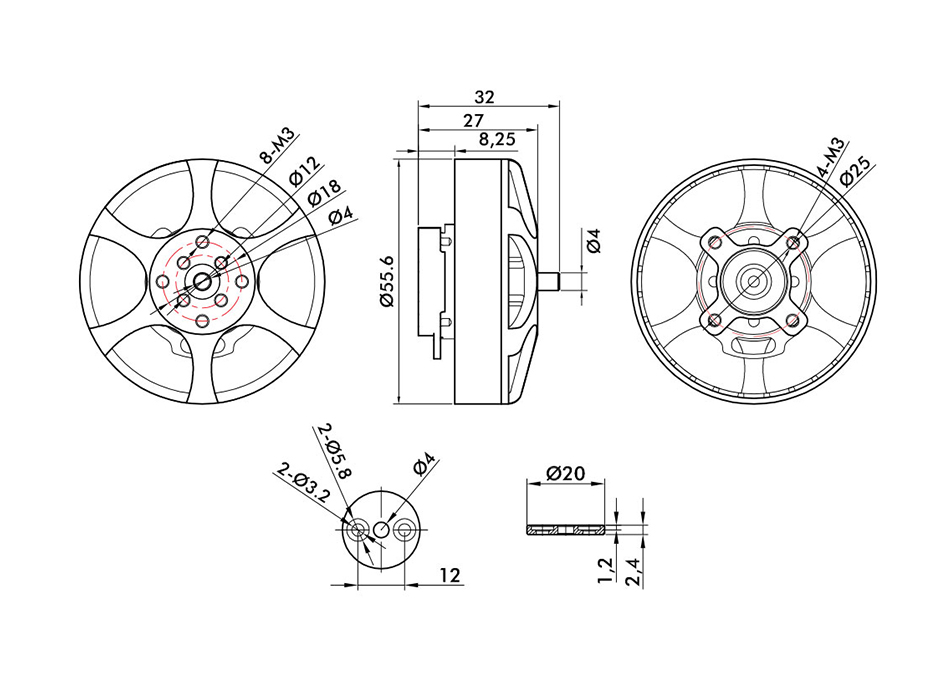

Technical drawings and performance charts

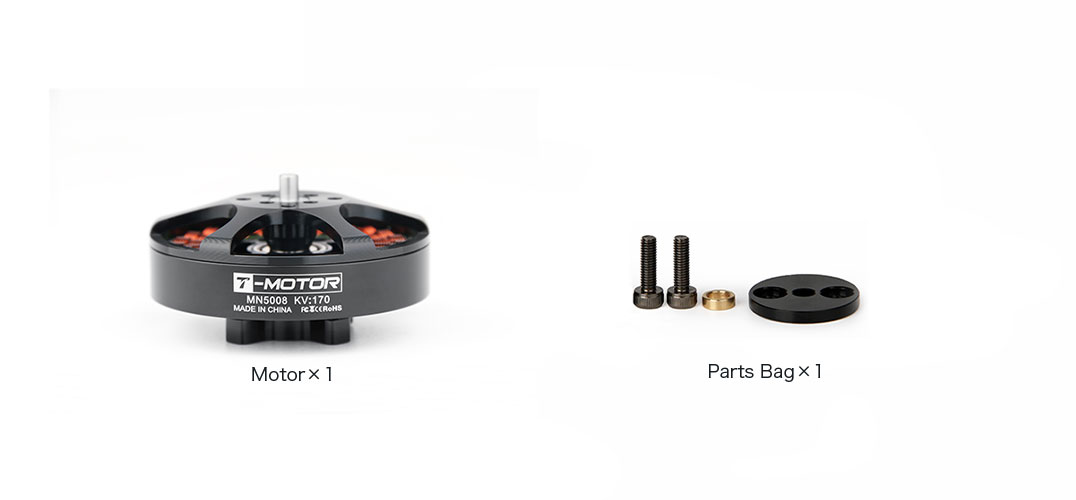

T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Technical drawings and performance charts 1T-Motor MN5008 Antigravity Type 6-12S UAV Motor KV170 — Technical drawings and performance charts 2
Features
Brand:
T-Motor

Technical specifications

Product type:
Motor
Motor KV rating:
170 KV
Compatible LiPo cell count:
  • 6S
  • 7S
  • 8S
  • 9S
  • 10S
  • 11S
  • 12S
