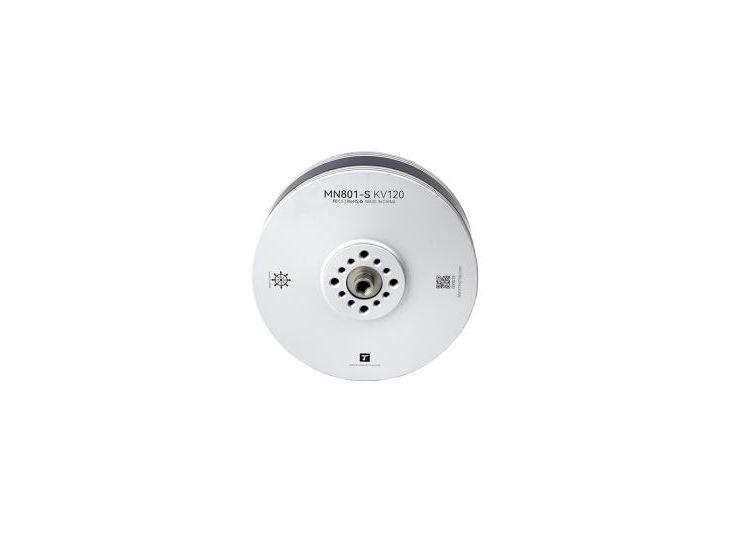

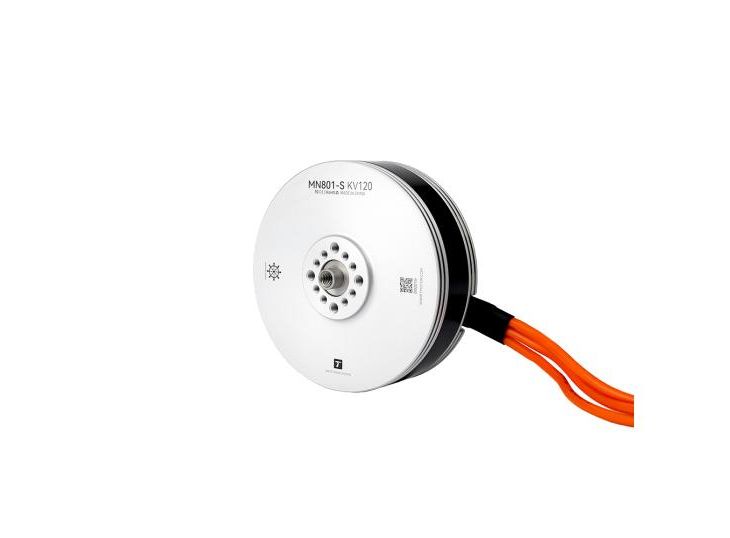

T-Motor MN801-S IP45 Multirotor Fixed Wing UAV Motor KV120
TM-721
Hover on image to enlarge
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor MN801-S IP45 Multirotor Fixed Wing UAV Motor KV120 is part of the T-Motor mn navigator type uav motors range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | MN801-S IP45 Multirotor Fixed Wing UAV Motor KV120 |
| Configuration | Standard |
| Manufacturer product code | AWD01010043 |
| DroneStore product code | TM-721 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Motor Size | Φ89*39.4mm |
|---|---|
| Copper Wire | 220℃ high temperature resistance: Level C |
| Stator | Imported silicon steel sheet; Anti-rust treatment; 150°Chigh temperature-resisting coatings |
| Coil Insulation Test | 500V |
| Configuration | 24N28P |

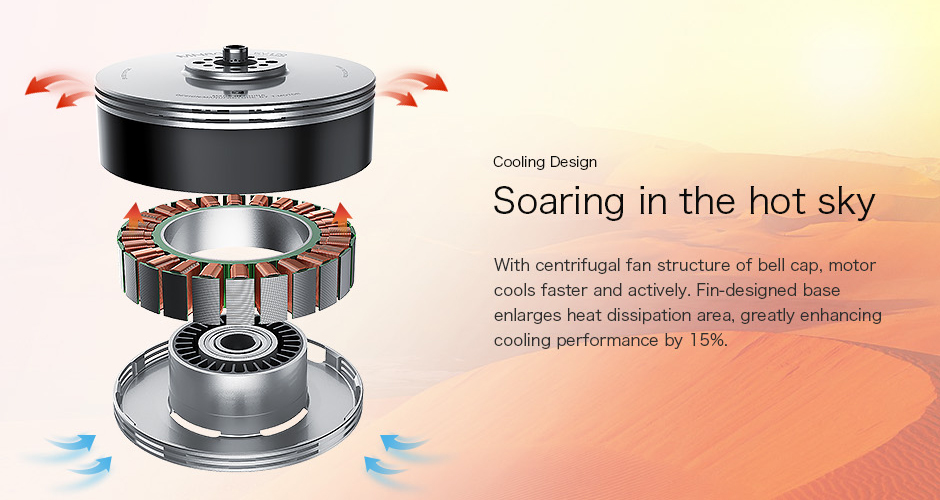

| Centrifugal Cooling Design | YES |

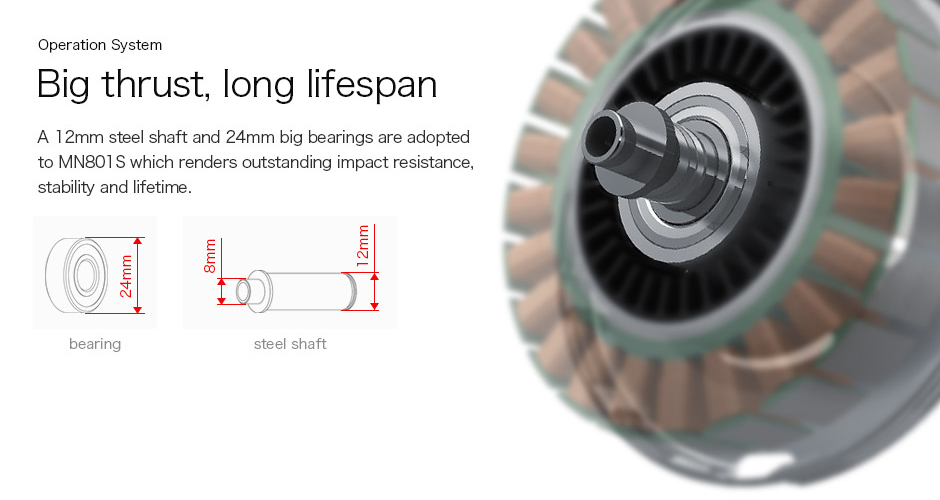

| Shaft Diameter | IN：12mm，OUT：8mm |
| Rotor Dynamic Balance Standard | ≤5Mg |
| Bearing | Imported 6901ZZ |
| Motor Dynamic Balance Standard | ≤10Mg |
| Magnet Level | 180℃ high temperature resistance |
| IP | IP45 |
| Lead Cable | 14AWG*150mm |
| KV | 120 |
|---|---|
| Rated Voltage ( Lipo ) | 6-12S |
| Idle Current（18V） | 1.1A |
| ESC Recommendation | FLAME 60A 12S |
| Peak Current（180s） | 45A |

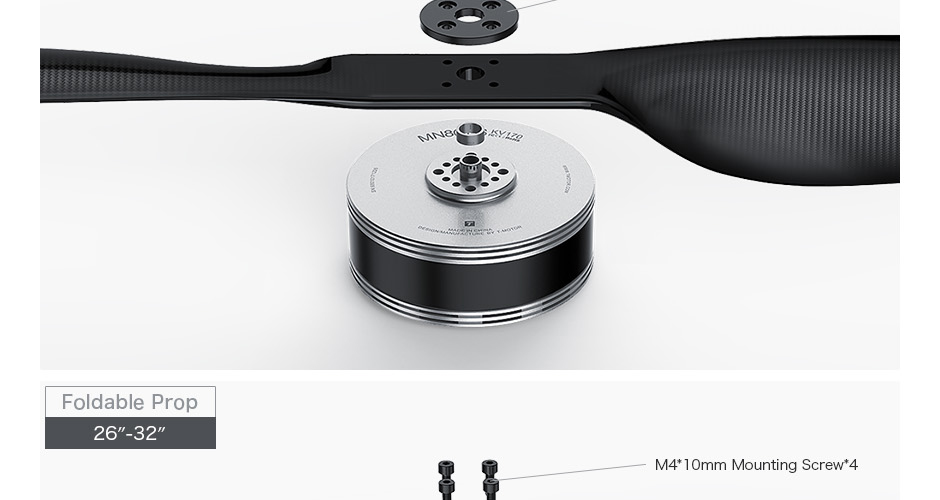

| Propeller Recommendation | 28-29" |
| Max.Power（180s） | 2200W |
| Motor Weight (indl. Cable) | 470g |
| Internal Resistance | 80mΩ |
| Package Weight | 600g |

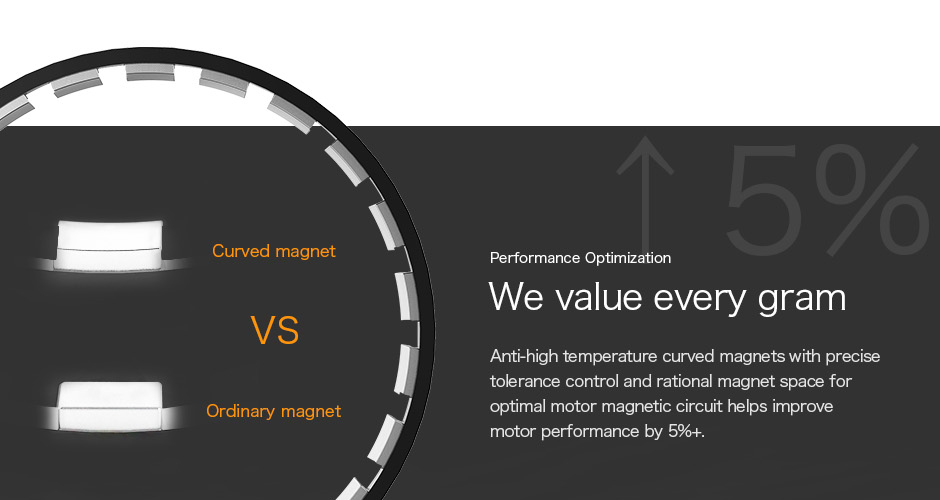

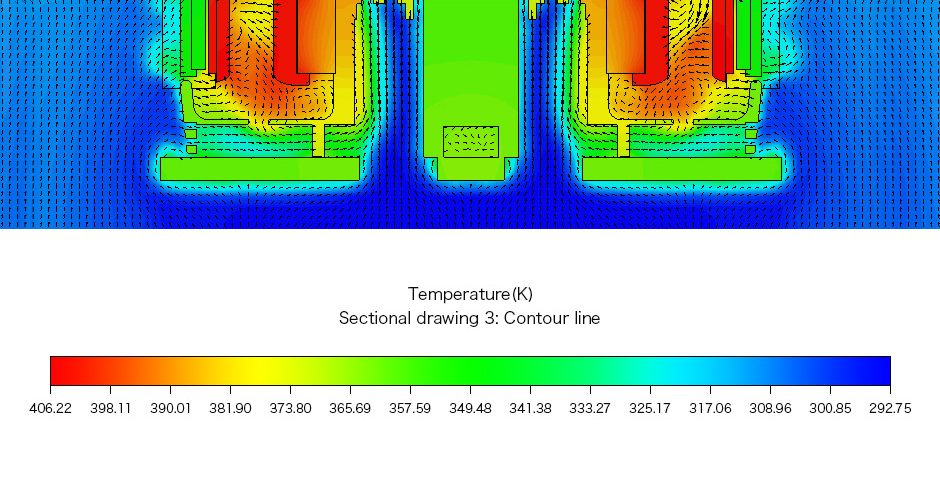

Manufacturer product details

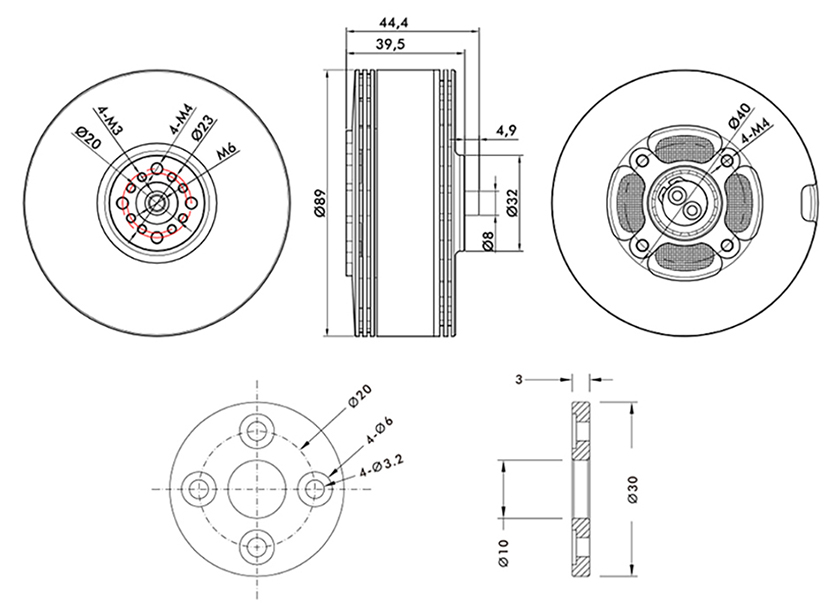

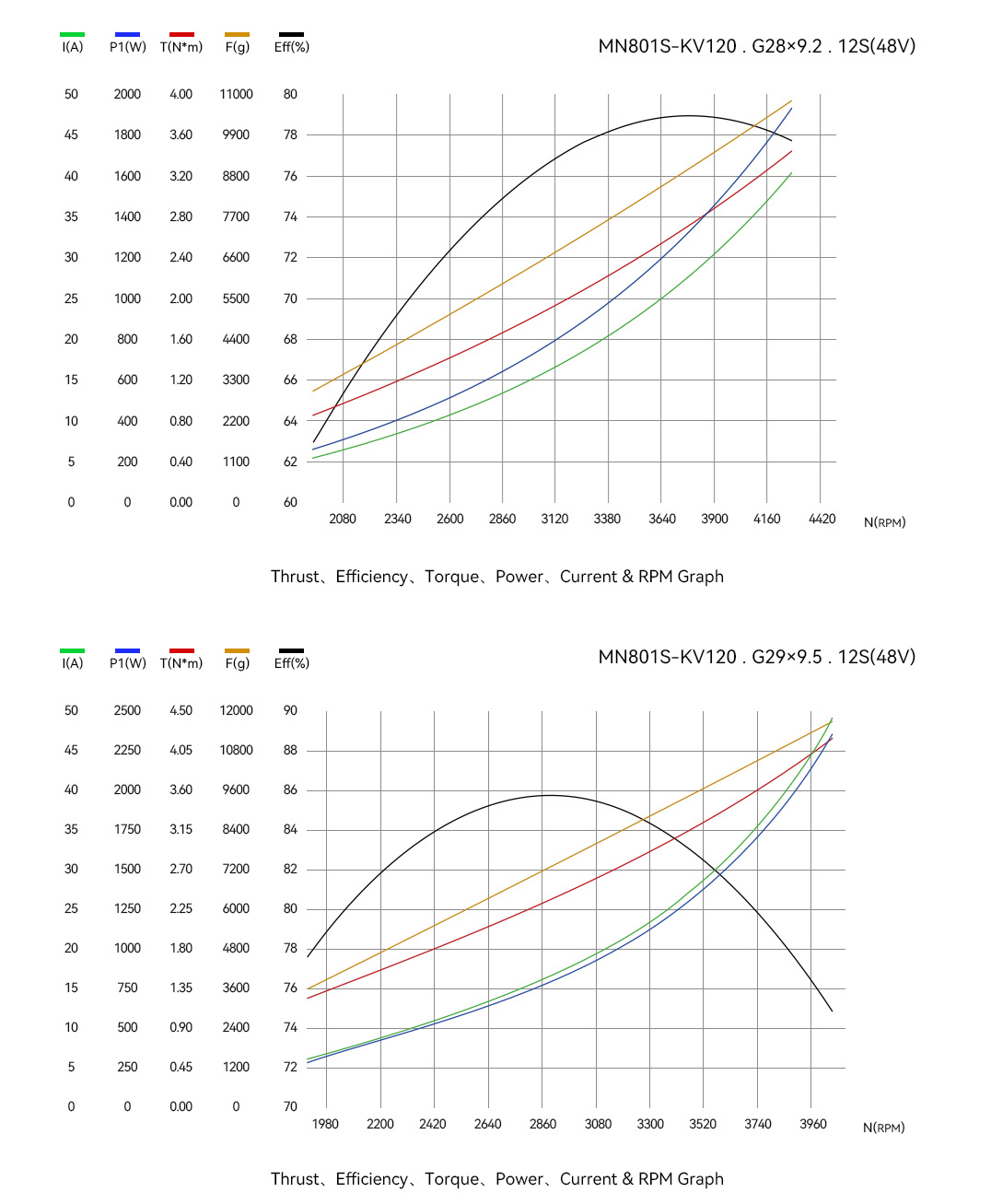

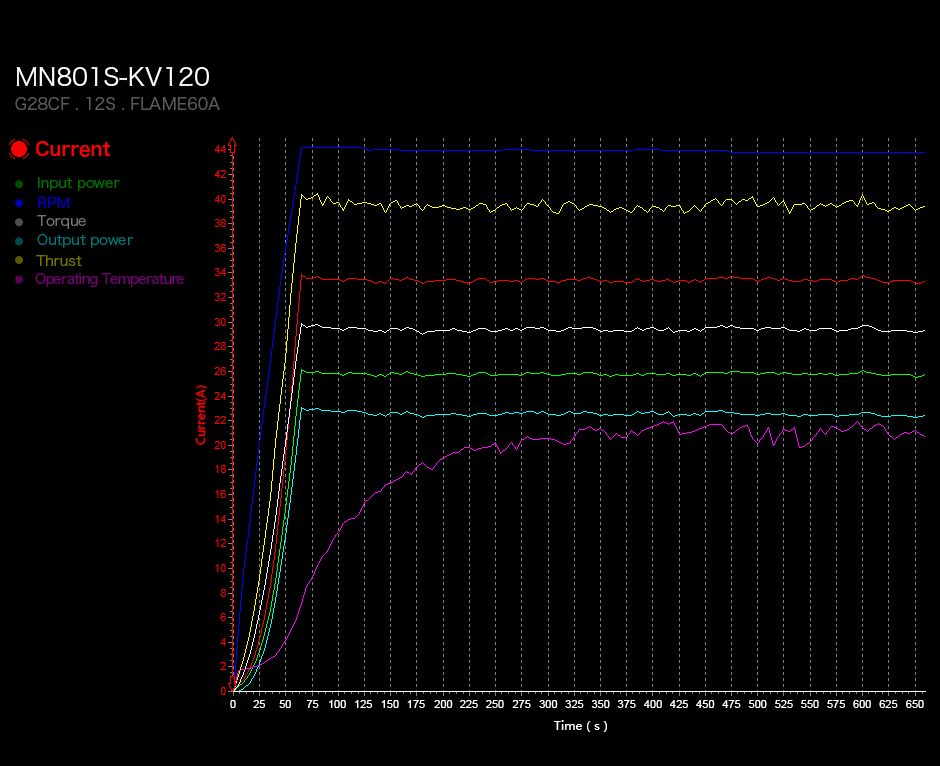

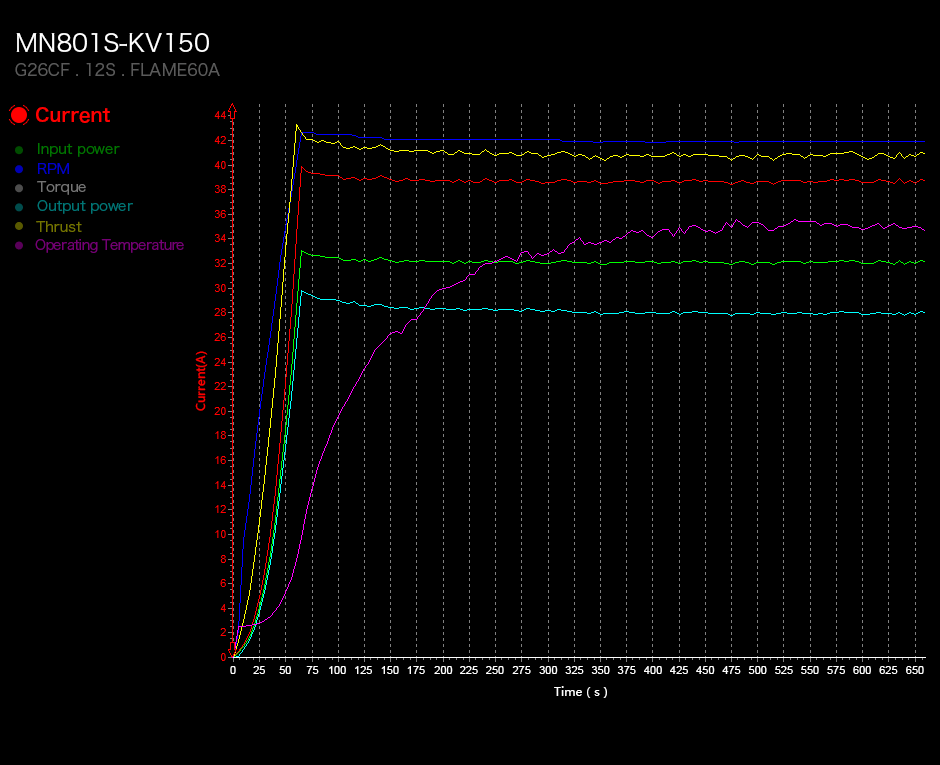

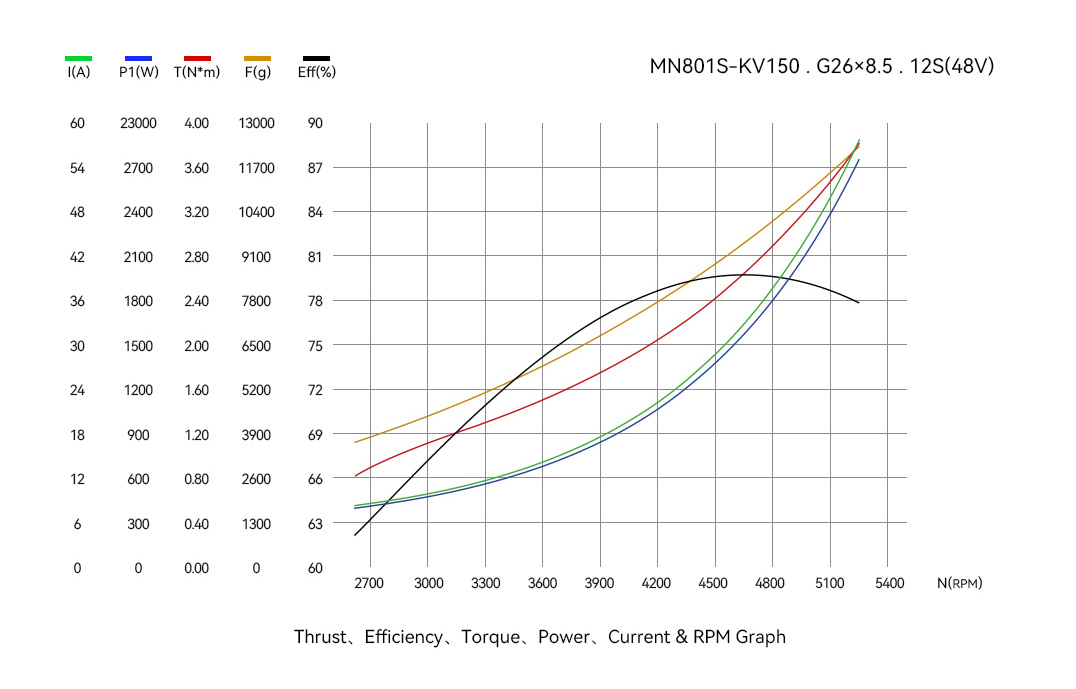

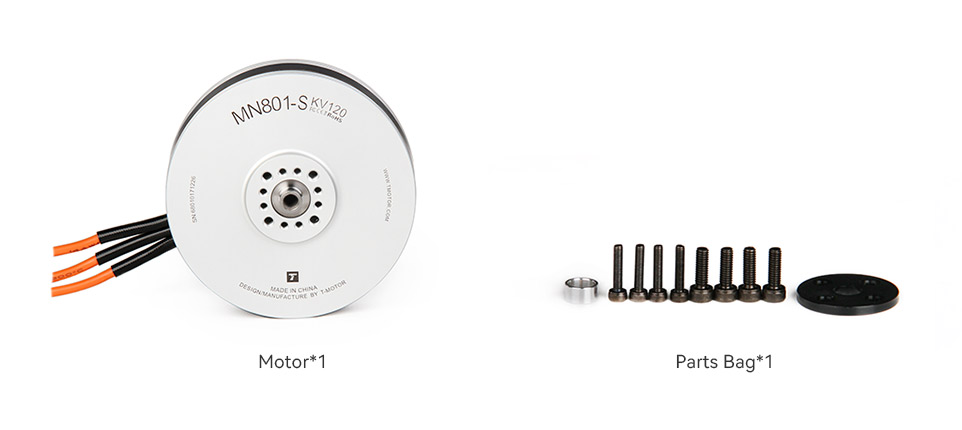

Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Product type:
Motor
Motor KV rating:
120 KV
Compatible LiPo cell count:
- 6S
- 7S
- 8S
- 9S
- 10S
- 11S
- 12S
IP protection rating:
IP45
