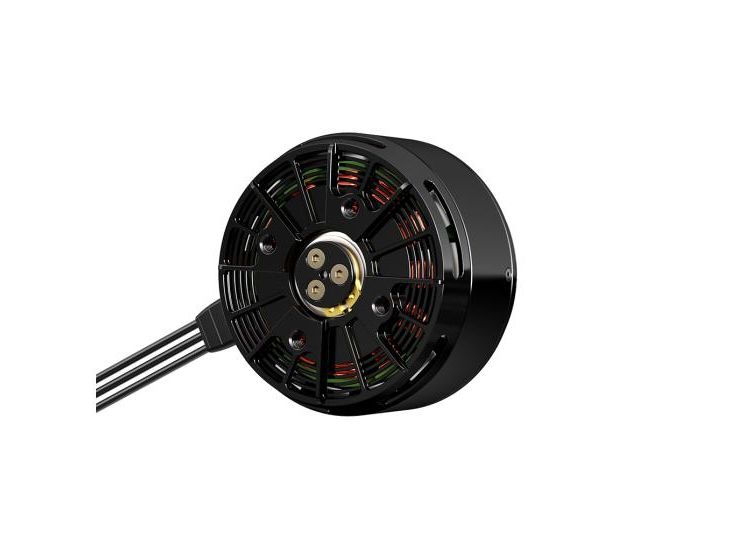

T-Motor U11Ⅱ Power Type UAV Motor KV120
TM-768-3912
Hover on image to enlarge
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor U11Ⅱ Power Type UAV Motor KV120 is part of the T-Motor u power type uav motors range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | U11Ⅱ Power Type UAV Motor KV120 |
| Configuration | KV120 |
| Manufacturer product code | T-MOTOR000768 |
| DroneStore product code | TM-768-3912 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Test Item | KV120 |
|---|---|
| Weight (Incl. Cable) | 772g |
| Motor Dimensions | Φ79.5*51.6 mm |
| Internal Resistance | 80±5mΩ |
| Lead | 14# AWG 1250mm |
| Configuration | 12N14P |
| Shaft Diameter | 15mm |
| Rated Voltage(Lipo) | 12S |
| Idle Current(18V) | 1.5A |
| Peak Current(180s) | 57.3A |
| Max. Power | 2783W |

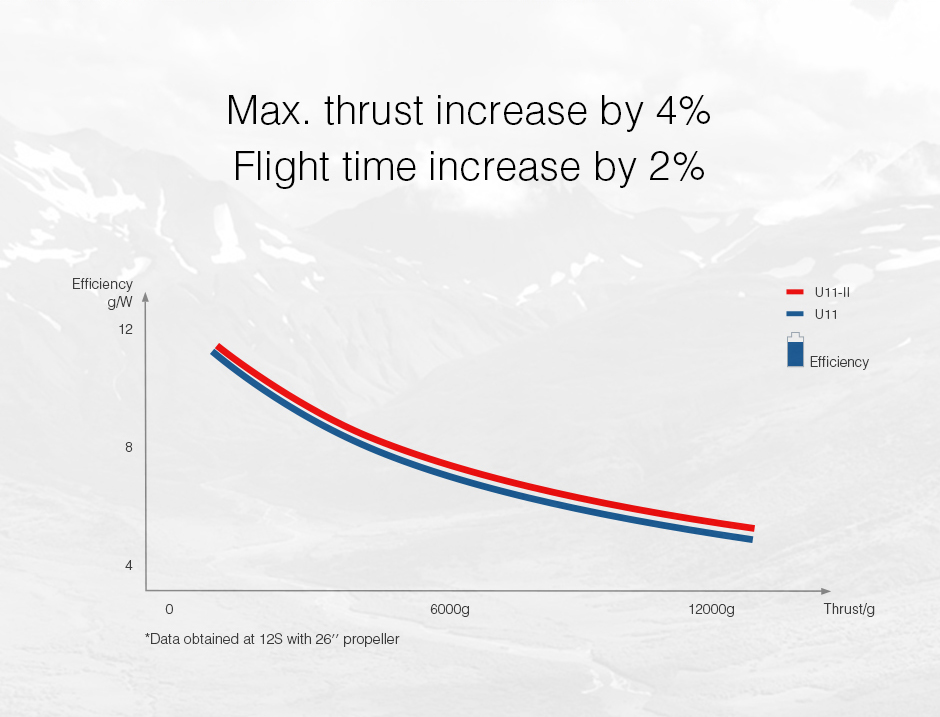

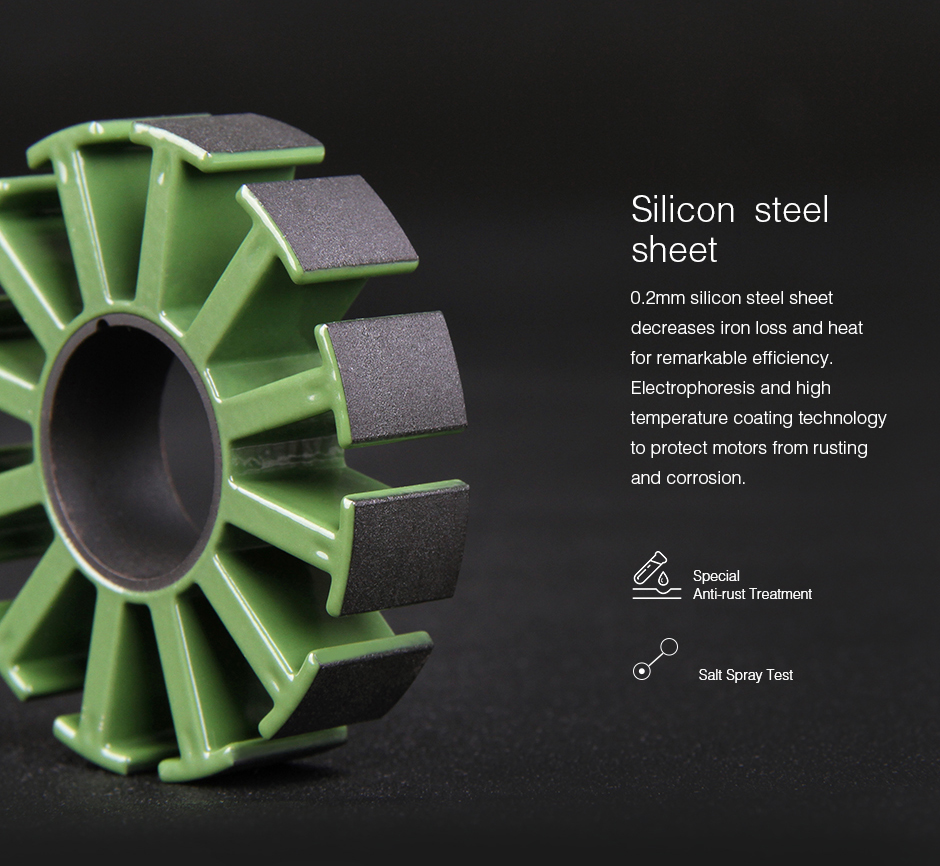

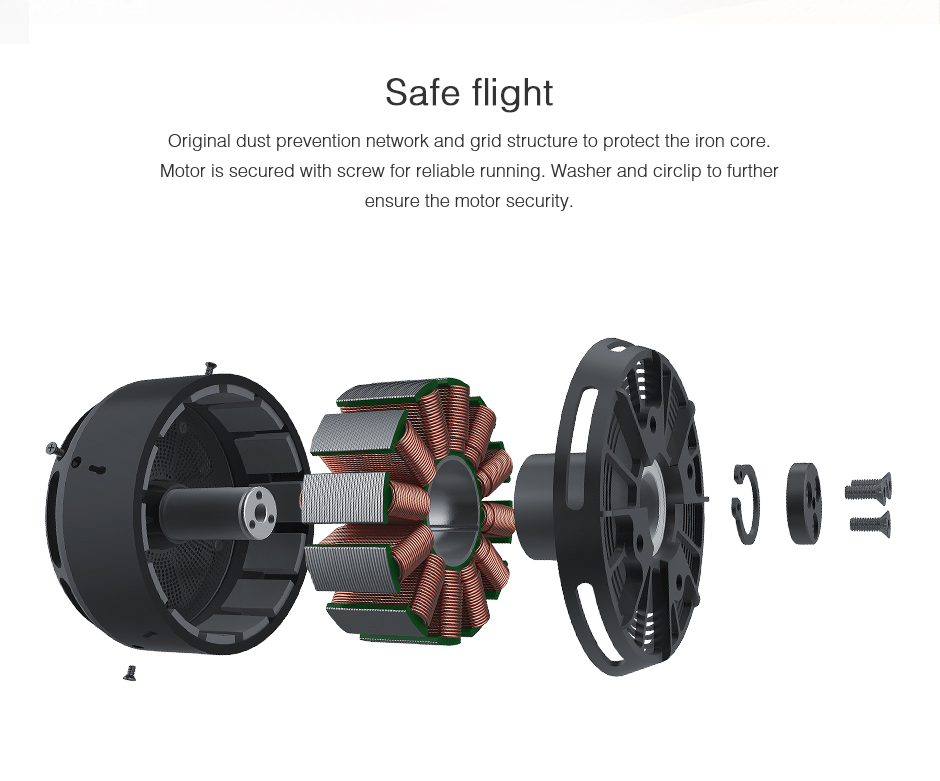

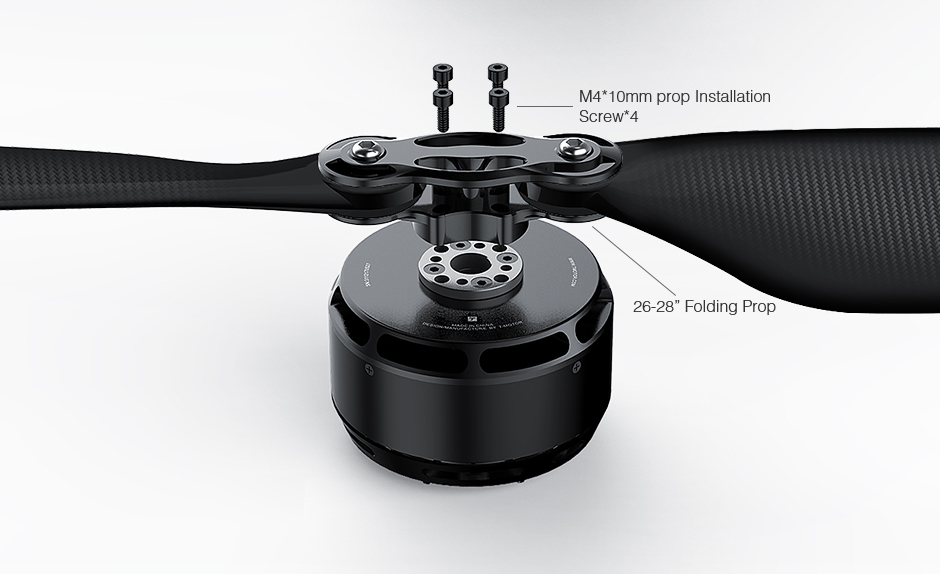

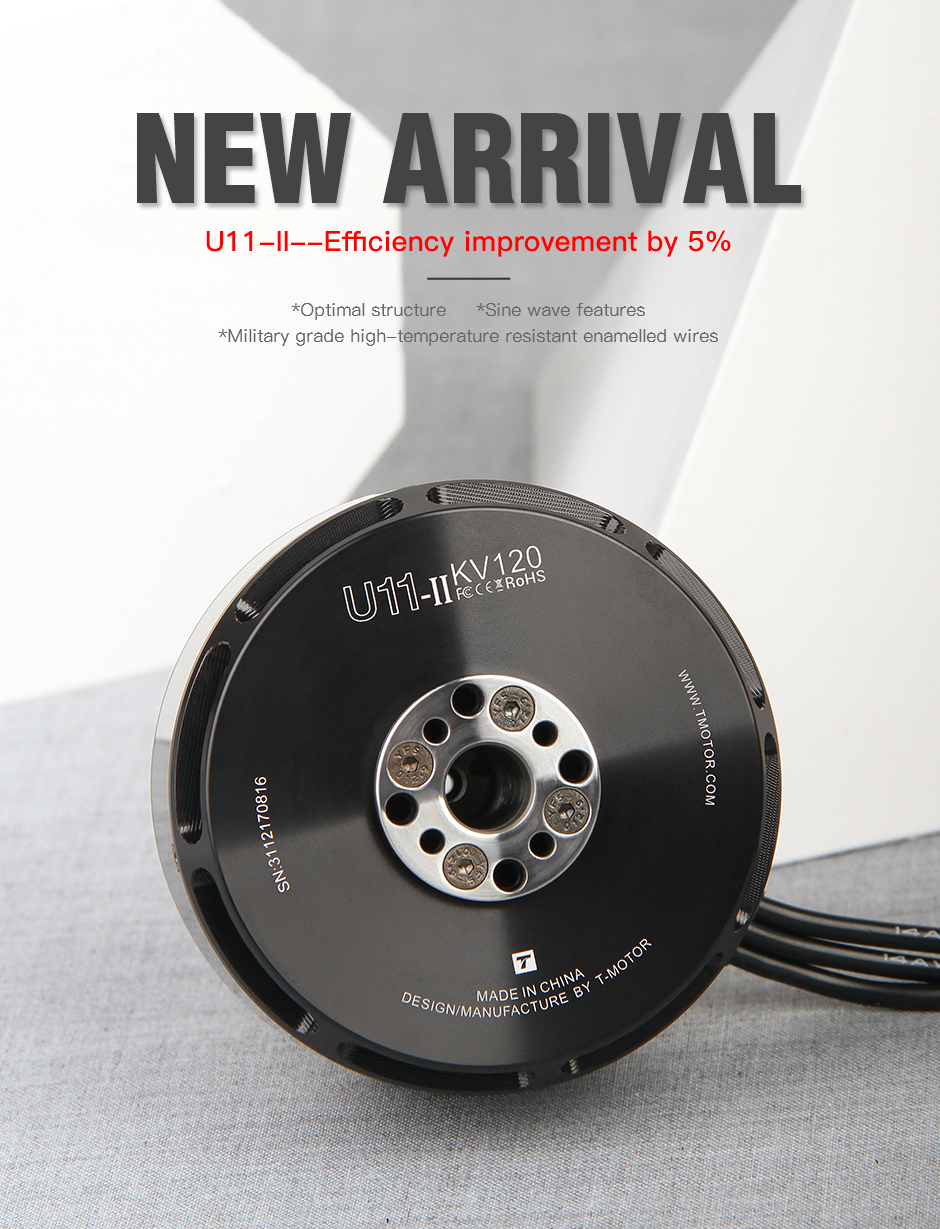

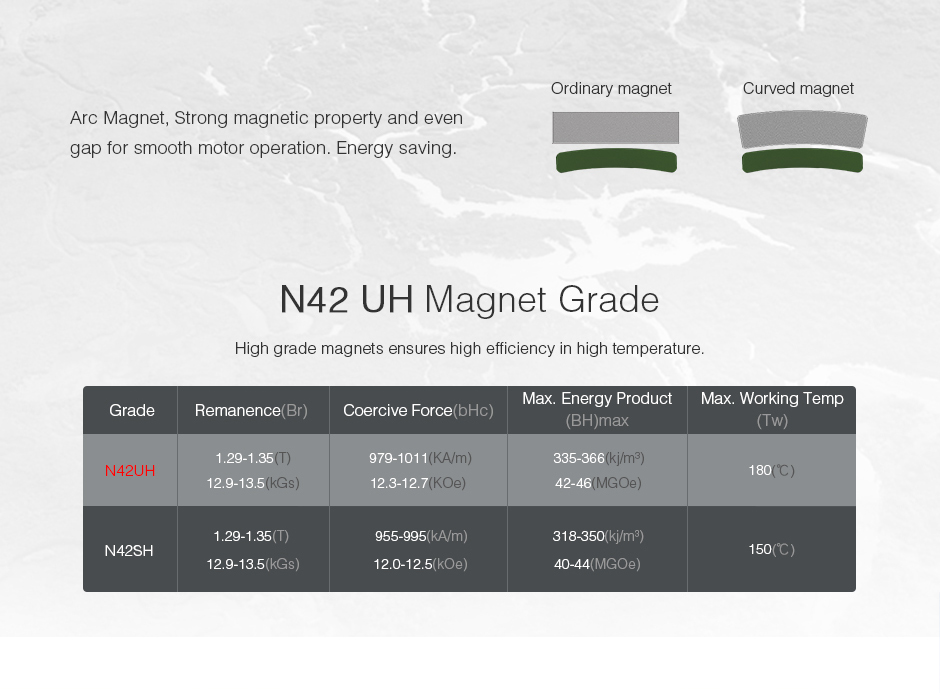

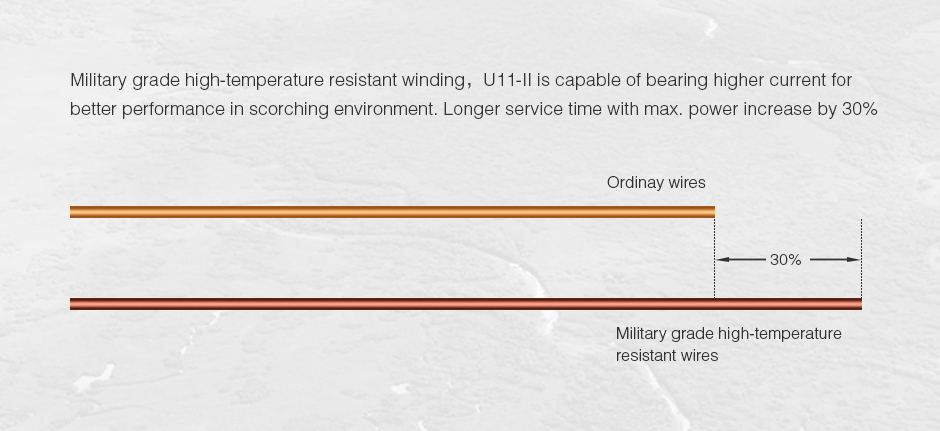

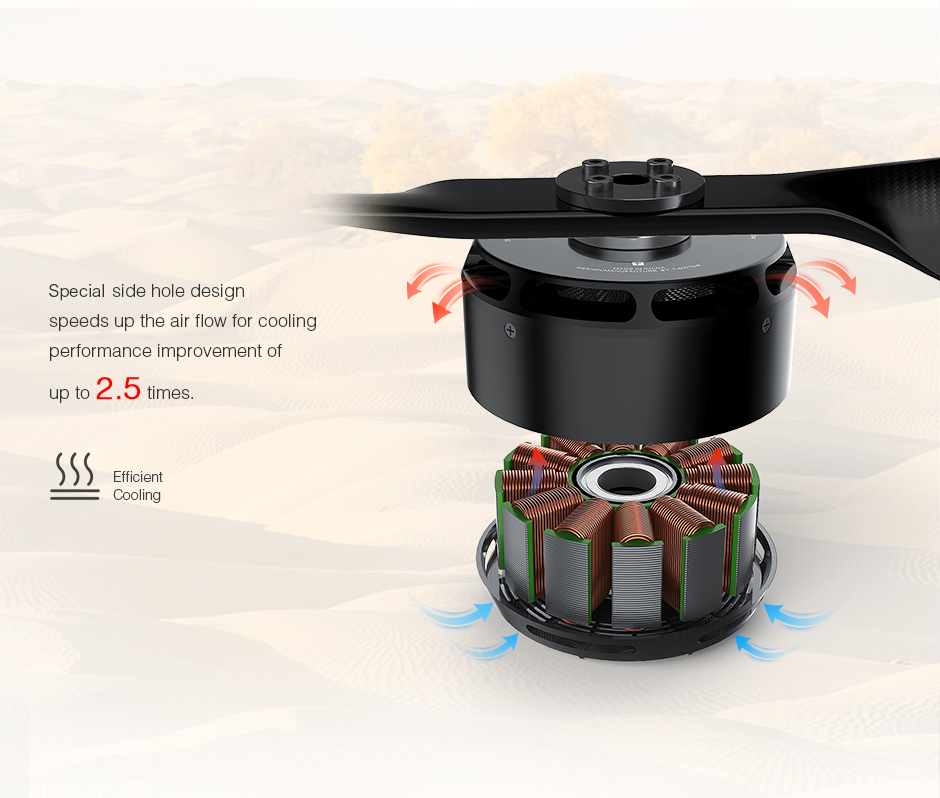

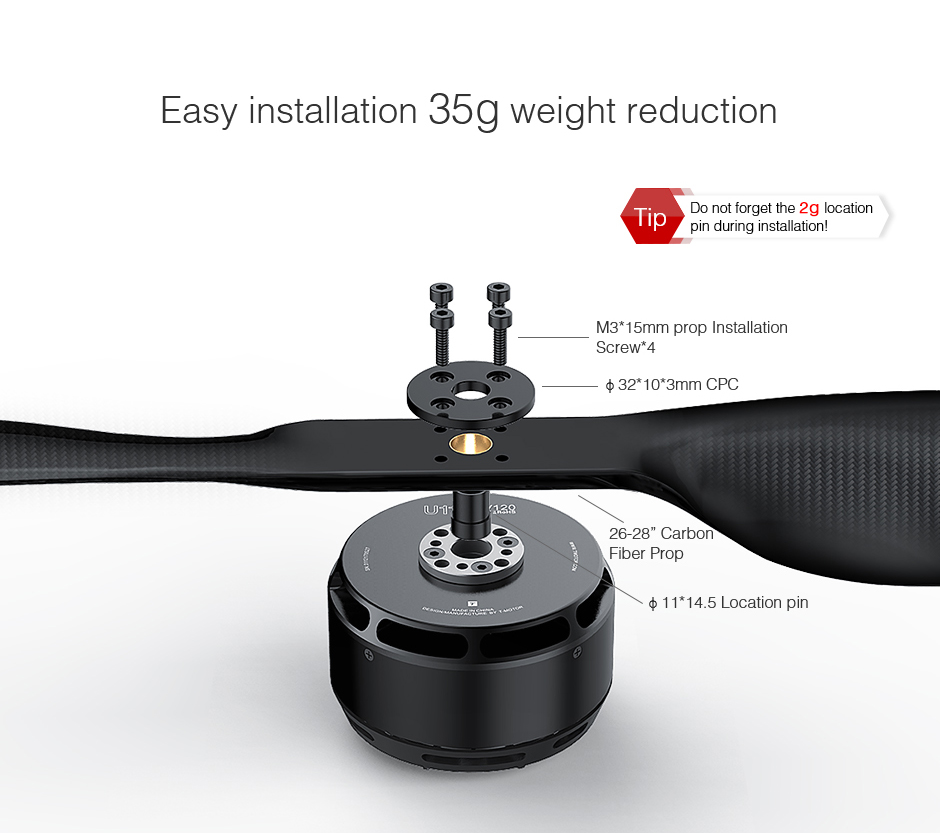

Manufacturer product details

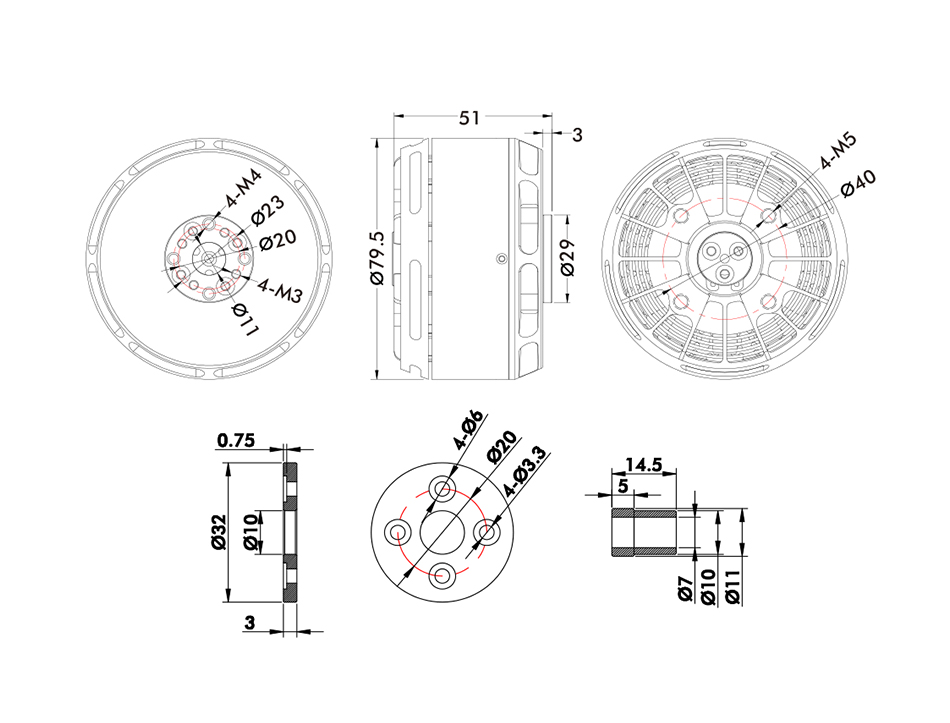

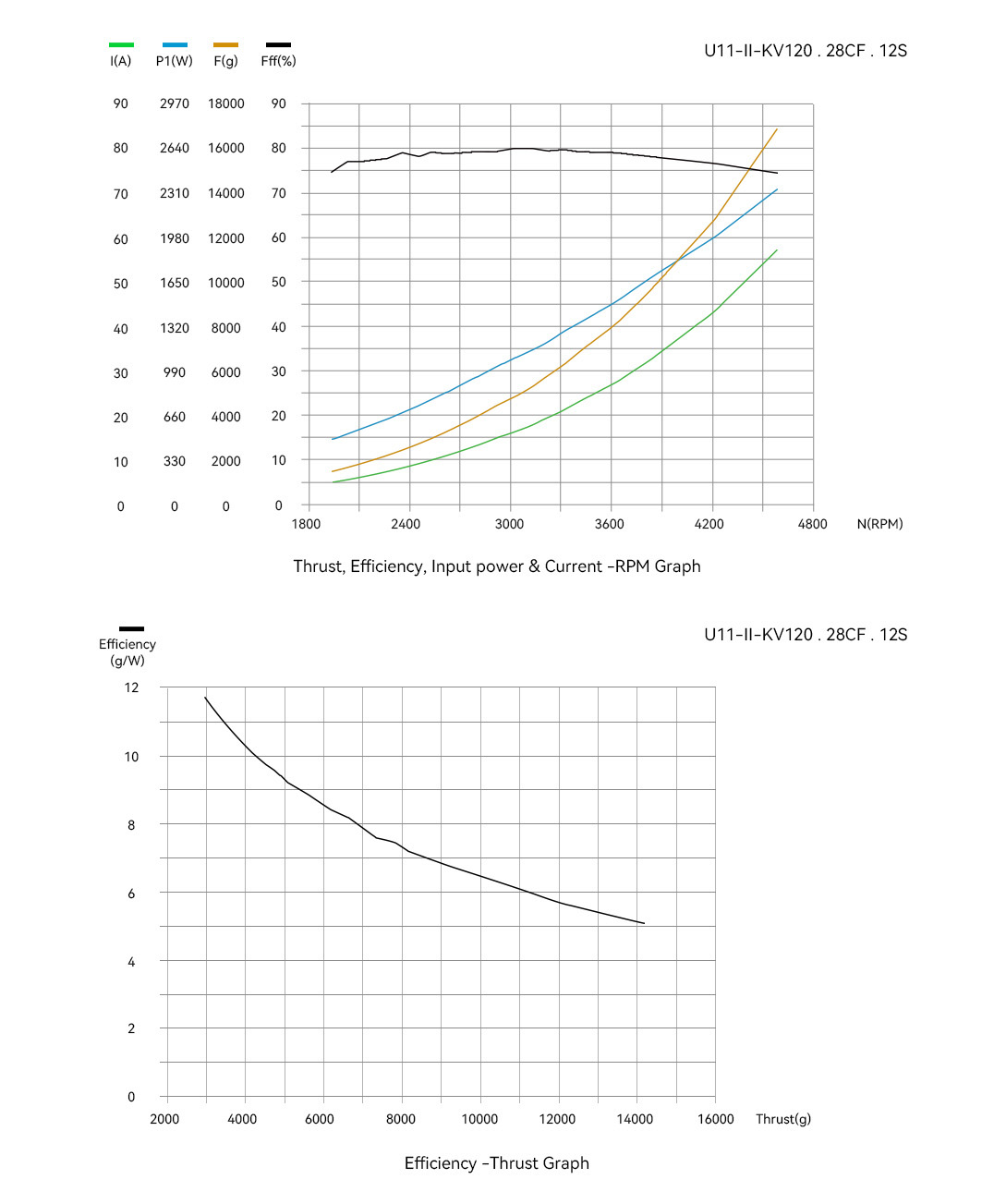

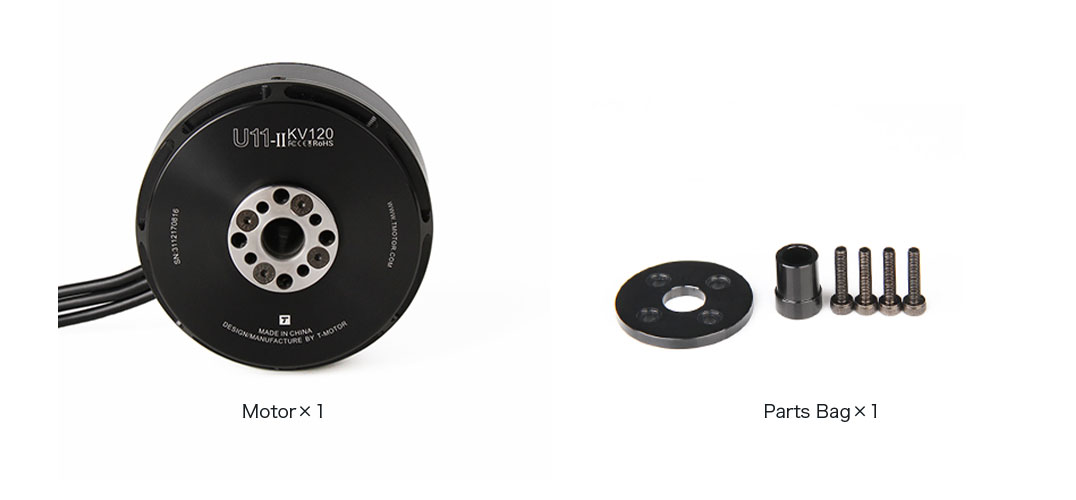

Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Product type:
Motor
Motor KV rating:
120 KV
Compatible LiPo cell count:
- 12S
Motor shaft diameter (mm):
15
