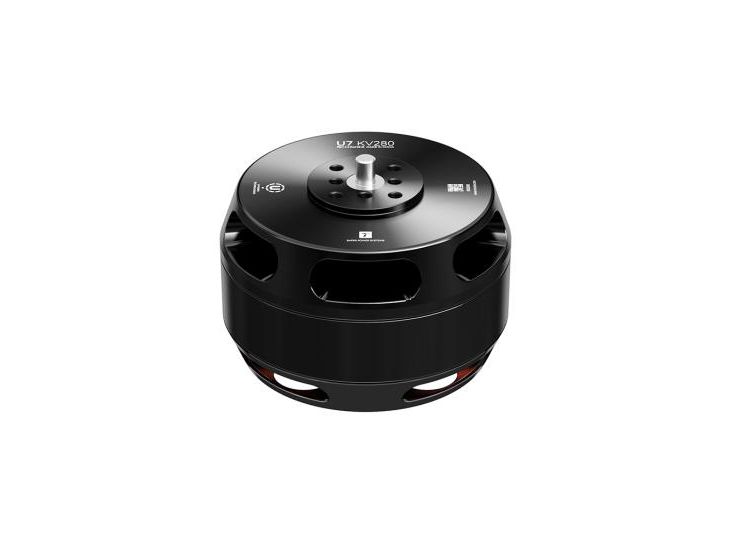

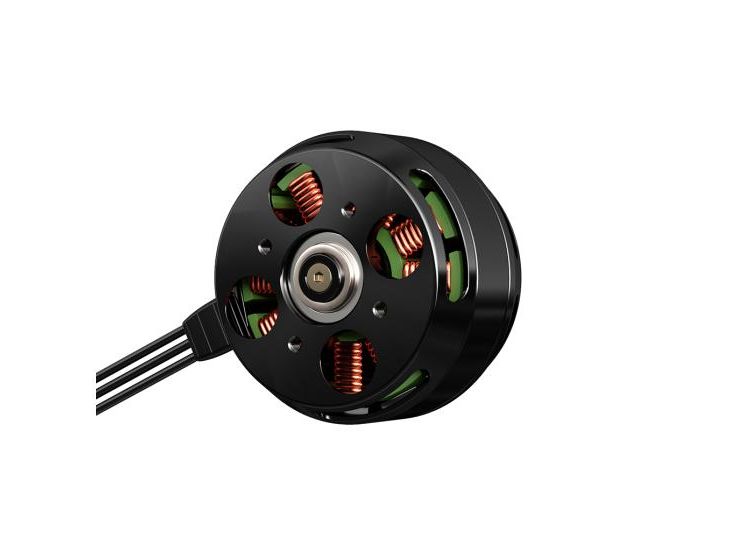

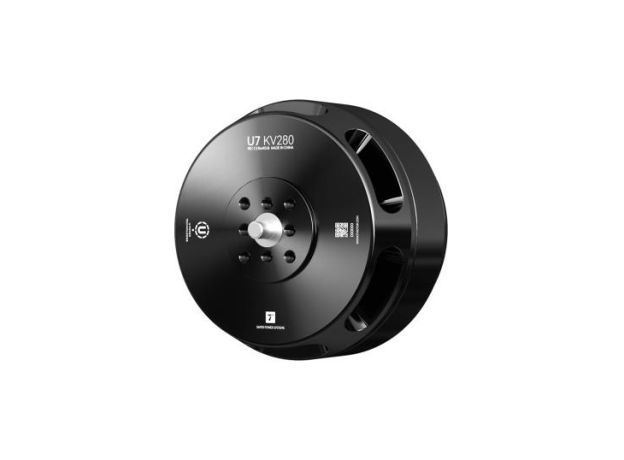

T-Motor U7 Power Type UAV Motor KV280

Home/Motors & Propulsion Systems/Multirotor Motors/T-Motor U7 Power Type UAV Motor KV280

CODE:TM-319-5761

Hover on image to enlarge

T-Motor U7 Power Type UAV Motor KV280 — Image 2

T-Motor U7 Power Type UAV Motor KV280 — Image 3

Sourced to Order

14.703,29 ₺ + VAT 17.643,94 ₺ VAT included Estimated deliveryUsually 9–25 business days

Motor KV rating:

280 KV 420 KV 490 KV

Ask a question

Minimum quantity for "T-Motor U7 Power Type UAV Motor KV280" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 17.643,94 ₺
Deposit at order (50%): 8.821,97 ₺
Balance on delivery (50%): 8.821,97 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor U7 Power Type UAV Motor KV280 is part of the T-Motor u power type uav motors range. This listing covers the model and configuration identified below.

View all variations as list

CODE	Motor KV rating	Price
TM-319-5761	280 KV	14.703,29 ₺ + VAT 17.643,94 ₺ VAT included
TM-319-5762	420 KV	14.703,29 ₺ + VAT 17.643,94 ₺ VAT included
TM-319-5763	490 KV	14.703,29 ₺ + VAT 17.643,94 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

T-Motor U7 Power Type UAV Motor KV280 is part of the T-Motor u power type uav motors range. This listing covers the model and configuration identified below.

Product and configuration details

Brand	T-Motor
Model	U7 Power Type UAV Motor KV280
Configuration	KV280
Manufacturer product code	T-MOTOR000319
DroneStore product code	TM-319-5761

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

KV	280
Configuration	12N14P
Internal Resistance	71mΩ
Motor Dimensions	Φ60.7×39.5mm
Shaft Diameter	6mm
Cable Length	750mm
AWG	16#
Weight Excluding Cables	255g
Weight Including Cables	317g
Idle Current@10v	0.5A
No.of Cells (Lipo)	3-8S
Max Continuous Current 180S	35A
Max Power (180S)	800W

Manufacturer product details

T-Motor U7 Power Type UAV Motor KV280 — Manufacturer product details 3

T-Motor U7 Power Type UAV Motor KV280 — Manufacturer product details 4

T-Motor U7 Power Type UAV Motor KV280 — Manufacturer product details 5

T-Motor U7 Power Type UAV Motor KV280 — Manufacturer product details 6

T-Motor U7 Power Type UAV Motor KV280 — Manufacturer product details 7

T-Motor U7 Power Type UAV Motor KV280 — Manufacturer product details 8

Technical drawings and performance charts

Features
