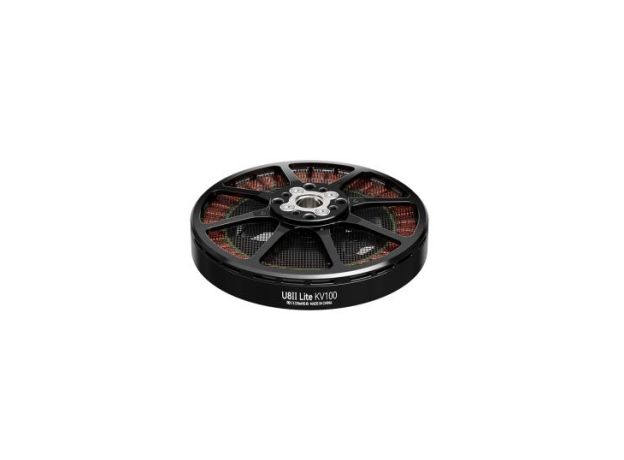

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version

Home/Motors & Propulsion Systems/Multirotor Motors/T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version

CODE:TM-1149-5292-5294

Hover on image to enlarge

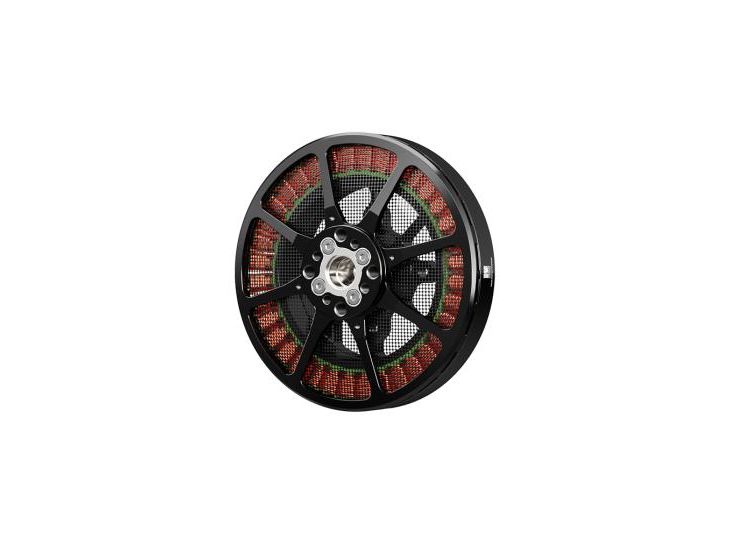

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version — Image 2

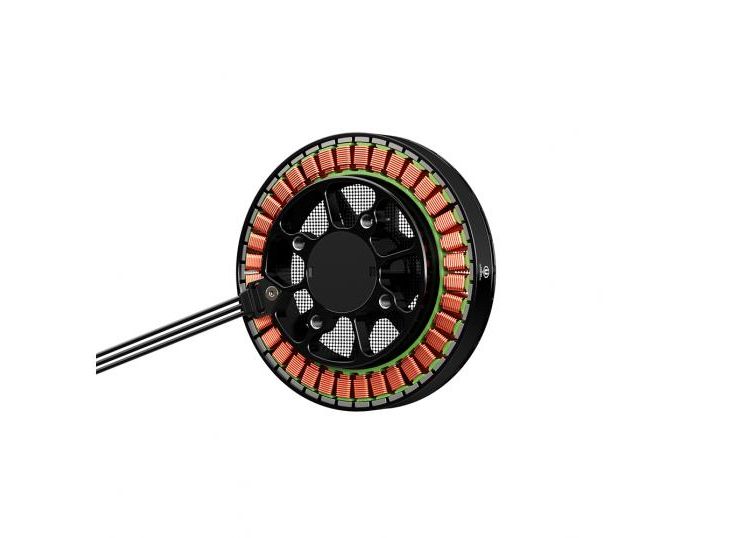

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version — Image 3

Sourced to Order

30.397,25 ₺ + VAT 36.476,70 ₺ VAT included Estimated deliveryUsually 9–25 business days

Version:

Net version Standard

Motor KV rating:

85 KV 100 KV

Ask a question

Minimum quantity for "T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT: 36.476,70 ₺
Deposit at order (50%): 18.238,35 ₺
Balance on delivery (50%): 18.238,35 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version is part of the T-Motor u efficiency type uav motors range. This listing covers the model and configuration identified below.

View all variations as list

CODE	Version	Motor KV rating	Price
TM-1149-5292-5294	Net version	100 KV	30.397,25 ₺ + VAT 36.476,70 ₺ VAT included
TM-1149-5292-5787	Net version	85 KV	30.397,25 ₺ + VAT 36.476,70 ₺ VAT included
TM-1149-5786-5787	Standard	85 KV	29.416,38 ₺ + VAT 35.299,66 ₺ VAT included

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Description

Product and configuration details

Brand	T-Motor
Model	U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version
Configuration	Net version / KV100
Manufacturer product code	T-MOTOR001149
DroneStore product code	TM-1149-5292-5294

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

Motor Size	Φ87.3*26.05mm
Lead Cable	90mm
Stator	Anti-rust treatment; 180℃ high temperature-resisting coatings
Copper Wire	220℃ high temperature resistance
Configuration	36N42P
Coil Insulation Test	1000V/5s
Shaft Diameter	IN：12mm
Rotor Dynamic Balance Standard	≤15Mg
Bearing	Imported 6901ZZ
Packing Size	13011150.6mm
Magnet Level	180℃ high temperature resistance

KV	100
Rated Voltage(Lipo)	12S(4.2V/pc) / 48-52V
Idle Current(24V)	1.0A
Internal Resistance	134-141mΩ
Peak Current(180s)	31A
Weight (Incl. Cable)	253g/256g net version
Max Power (180S)	1450W
Package Weight	420g/423g net version

Manufacturer product details

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version — Manufacturer product details 3

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version — Manufacturer product details 4

T-Motor U8ⅡLite Efficiency Type Multirotor UAV Motor KV100 — Net version — Manufacturer product details 5

Technical drawings and performance charts

Features
