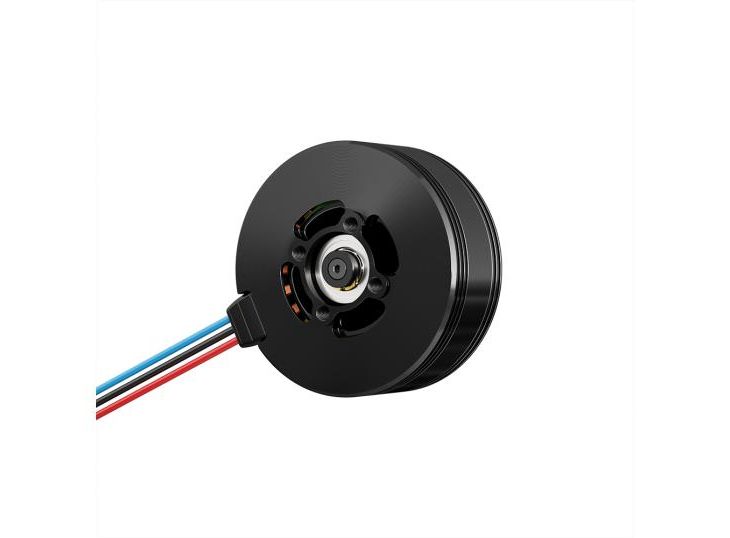

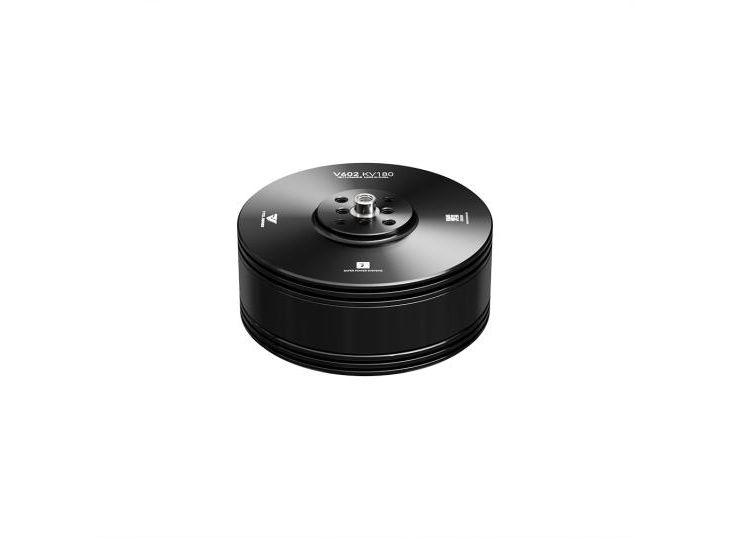

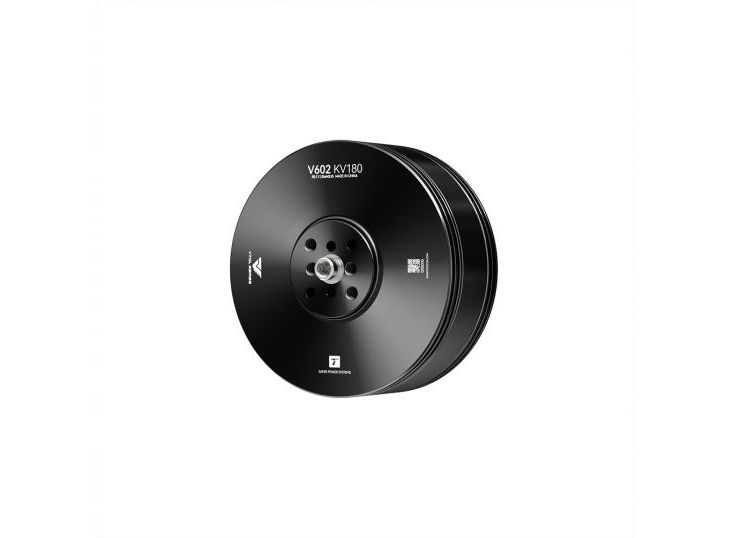

T-Motor V602 12S Vtol Brushless Drone Motor KV180
TM-1108-5610
Hover on image to enlarge
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor V602 12S Vtol Brushless Drone Motor KV180 is part of the T-Motor v type motors for vtol uav range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | V602 12S Vtol Brushless Drone Motor KV180 |
| Configuration | KV180 |
| Manufacturer product code | AWD100100071 |
| DroneStore product code | TM-1108-5610 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Model No./ Kv | V602 KV180 |
|---|---|
| Magnet Temperature Resistance Grade | Class E 150℃ |
| Motor Size（mm） | Φ68.8*36.9 |
| Lead（mm） | 14AWG*600 |
| Stator Technology | Anti-rust treatment;180°C high temperature-resisting coatings |
| Enamelled Wires Temperature Resistance Grade | Class C 220℃ |
| Configuration | 24N28P |
| Coil Withdraw Voltage | 500V/5s |
| Shaft Diameter（mm） | IN:6 OUT:6 |
| Rotor Dynamic Balance Standard | ≤5mg |
| Bearing | Imported 626ZZ |
| IP | IP45 |
| KV Value | KV180 |
|---|---|
| Battery (lipo)/Voltage Recommendation | 12S（4.2V/Sl）/42-52V |
| Idle Current（18V） | 0.9A |
| ESC Recommendation | FLAME 60A 12S |
| Peak Current（A） | 45A/Continuous 180s |
| Propeller Recommendation | V22*7.4 |
| Max. Power（W） | 2000W/Continuous 180s |
| Motor Weight（g） | 300g （345g Weight (incl.cables)） |
| Internal Resistance（mΩ） | 88 |
| Package Weight（g） | 530g |

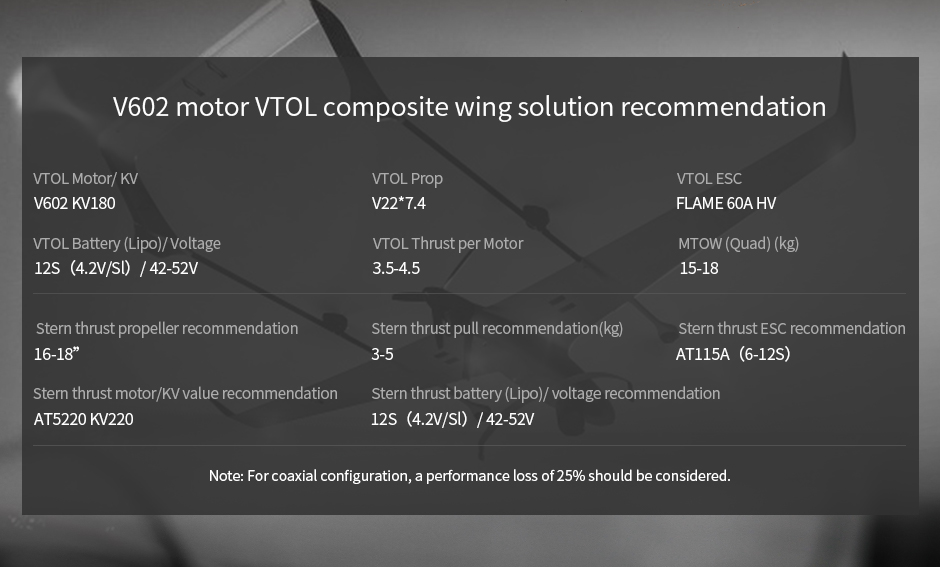

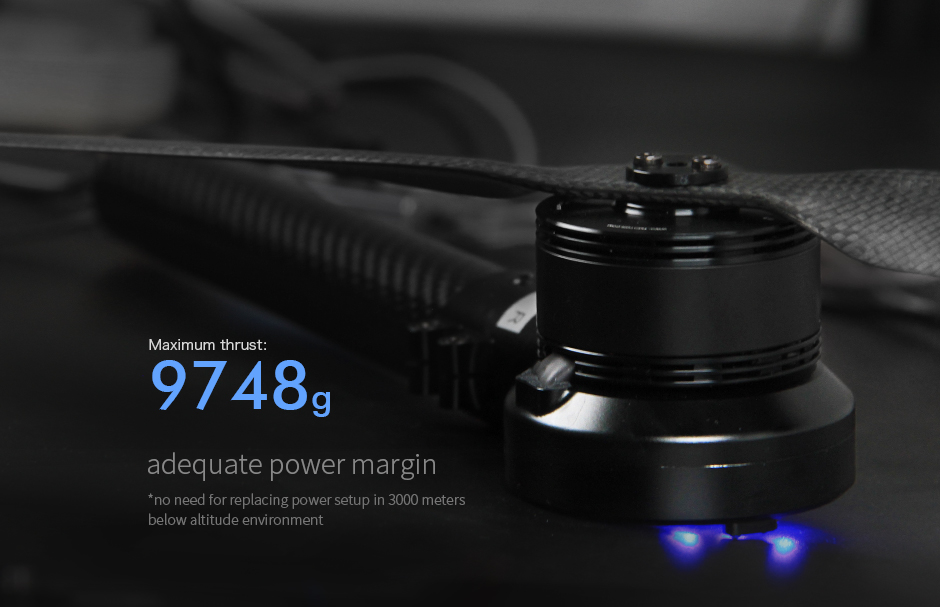

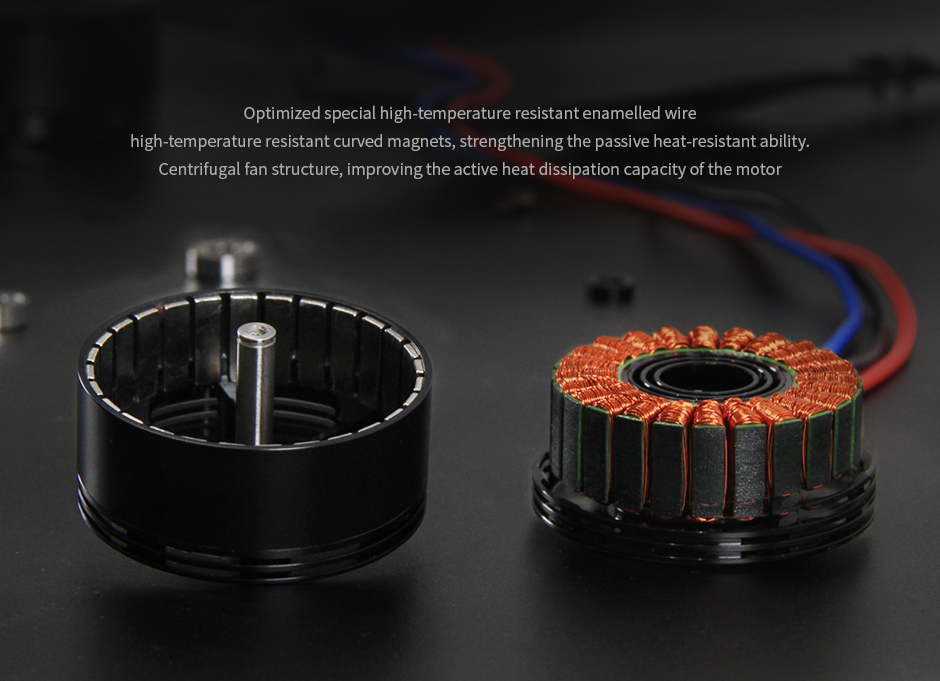

Manufacturer product details

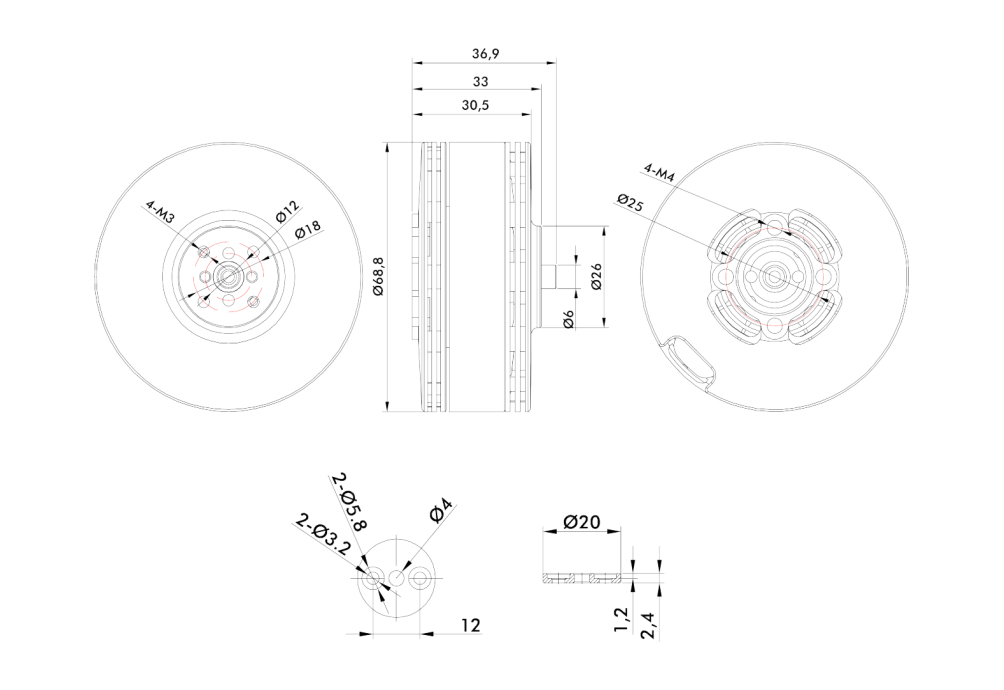

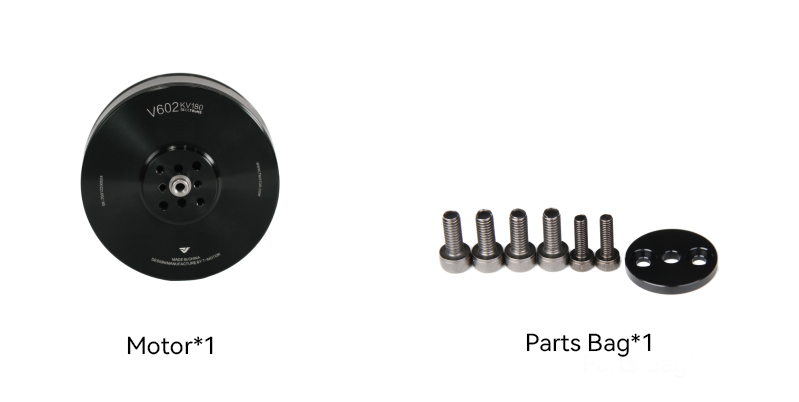

Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Product type:
Motor
Motor KV rating:
180 KV
IP protection rating:
IP45
