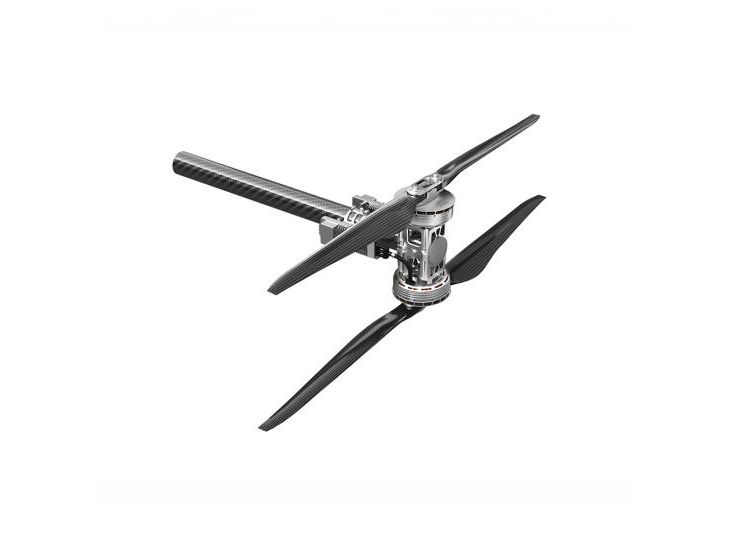

T-Motor X-A16-24S — X-A16-24S KV35+24S FOC 260A
TM-1589-6206
Hover on image to enlarge
- View all variations as list
-
CODE Configuration Availability Price
TM-1589-6206170.956,35 ₺ + VAT 205.147,62 ₺ VAT included
TM-1589-6205210.191,27 ₺ + VAT 252.229,52 ₺ VAT included
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 business days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description
T-Motor X-A16-24S — X-A16-24S KV35+24S FOC 260A is part of the T-Motor a series uav coaxial modular propulsion system range. This listing covers the model and configuration identified below.
Product and configuration details
| Brand | T-Motor |
|---|---|
| Model | X-A16-24S — X-A16-24S KV35+24S FOC 260A |
| Configuration | X-A16-24S KV35+24S FOC 260A |
| Manufacturer product code | T-MOTOR001589 |
| DroneStore product code | TM-1589-6206 |
Manufacturer technical tables
The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.
| Model No. | X-A16-24S KV35 |
|---|---|
| Tube Size | 80mm |
| Setup | A16-24S (Motor)+24S FOC 260A (ESC) +EFZ6324 (Propeller) |
| Wire Material, Wire Gauge, Color | Power Wires: 8#AWG Red & Black Signal Wires: 5+1 Shielded |
| Recommended Battery | 24~28S (LiPo) |
| Wire Length | 2400±5mm |
| Rated Thrust | 55~60kg |
| Weight | 13180±2%g (Incl. Wires+Propeller) |
| Efficiency At Rated Thrust | 7.2g/W (55kg) |
| IP | IPX5 |
| Max. Thrust | 132kg |
| Recommended Ambient Temperature | -20~55℃ |
| Stator Size | 155*23.5mm |
|---|---|
| KV | 35 |
| Throttle Range | 1100~1940us (Fixed) |
|---|---|
| Max. Voltage | 126V |
| Protocol | DRONE CAN、UAV CAN、 CUBE CAN |
| Peak Current (For A Short Time) | 260A (OpenEnvironment AndTemperature≤60℃) |
| Control Method | PWM/CAN |
| BEC | NO |
| Model No. | EFZ6324 (Folding Carbon Fiber) |
|---|---|
| Length | 63 Inch (1600.2mm) |

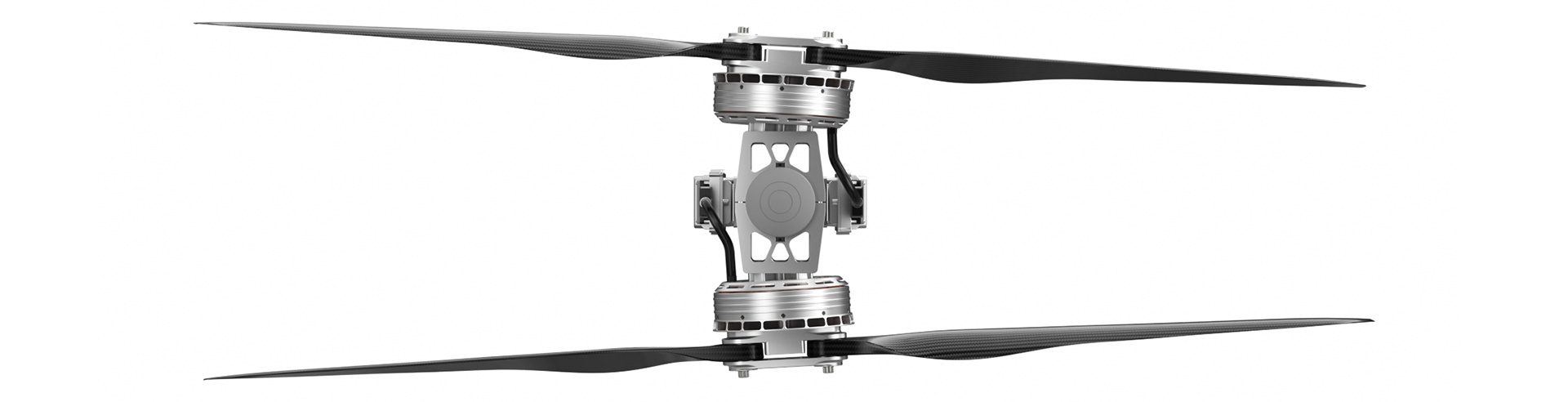

Manufacturer product details

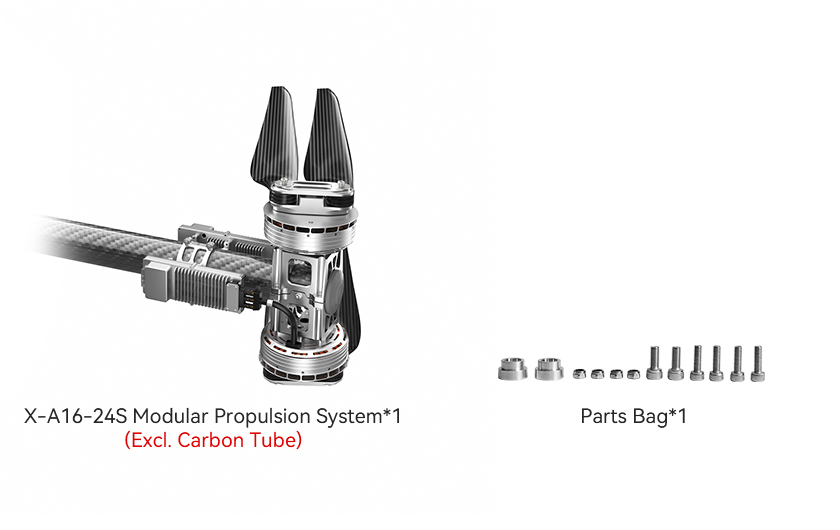

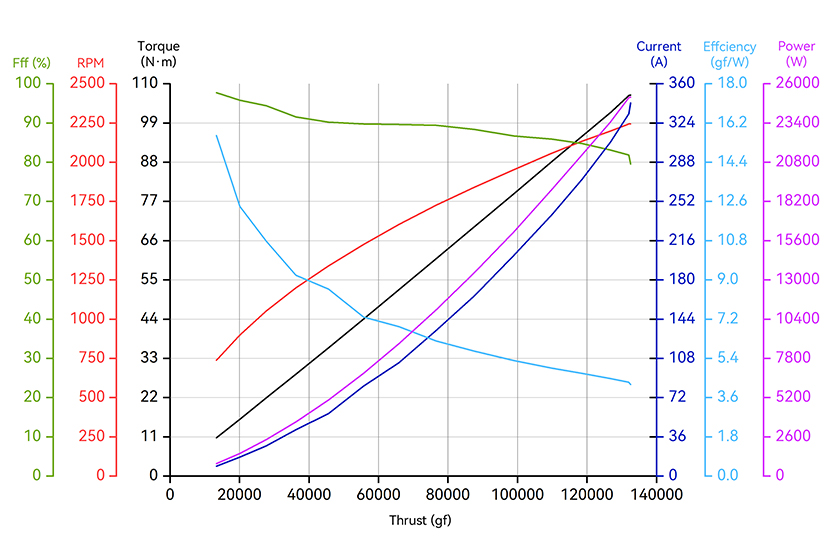

Technical drawings and performance charts
Features
Brand:
T-Motor
Technical specifications
Configuration:
X-A16-24S KV35+24S FOC 260A
Product type:
Propulsion system / combo
Motor KV rating:
35 KV
Compatible LiPo cell count:
- 24S
