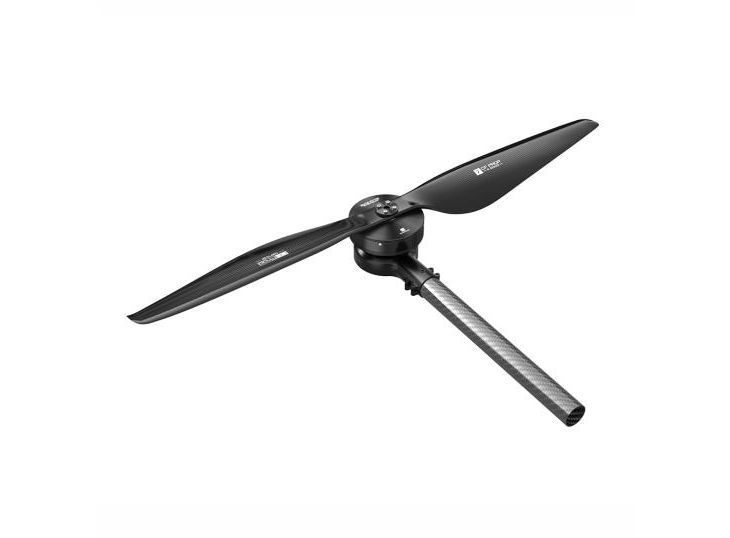

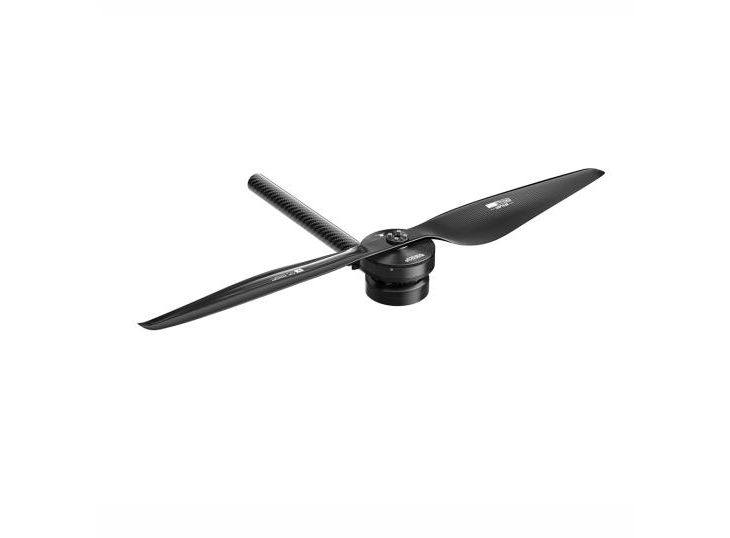

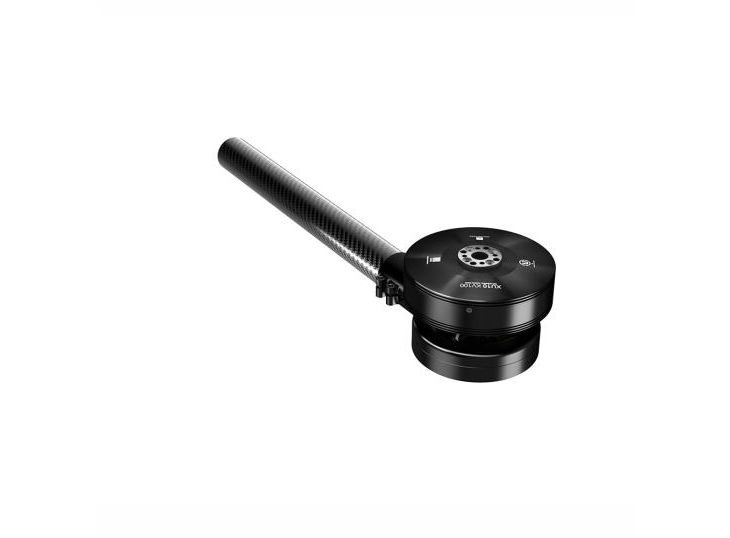

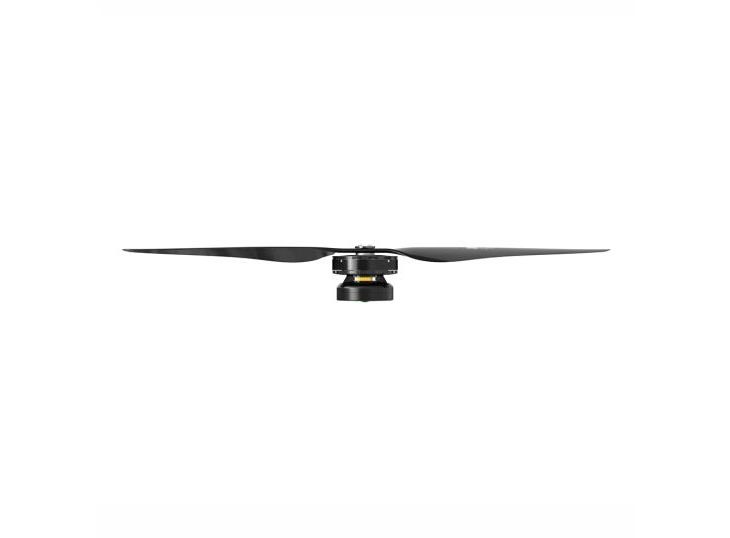

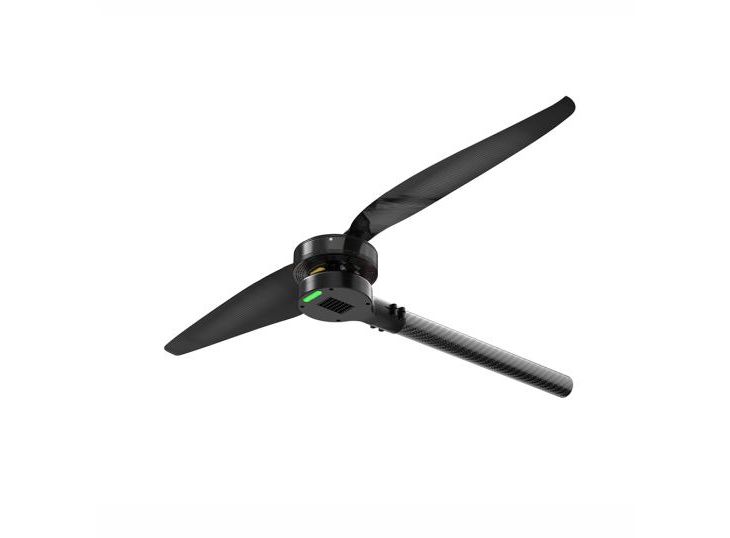

T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW

TM-1515-5894-6076
Hover on image to enlarge
Sourced to Order
47.268,27 ₺ + VAT 56.721,92 ₺ VAT included Estimated deliveryUsually 9–25 business days
Ask a question

Minimum quantity for "T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW" is 1.

This is not local warehouse stock; it is sourced to order after a supplier availability check.

50% deposit, 50% on delivery

Pay 50% of the product price as a deposit when placing your order. We source the product for you, and you pay the remaining 50% when you receive it.

Total including VAT
56.721,92 ₺
Deposit at order (50%)
28.360,96 ₺
Balance on delivery (50%)
28.360,96 ₺

This payment breakdown is based on the displayed price of one item.

T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW is part of the T-Motor high-performance modular uav propulsion range. This listing covers the model and configuration identified below.

DroneStore Benefits

No Full Payment Before Delivery

Pay 50% when ordering and the remaining 50% upon delivery.

Earn 1 TRY in Reward Points per 100 TRY

Earn reward points with your purchases.

Fast, Hassle-Free Shipping

Careful packaging and planned shipping. Estimated delivery: 9–25 business days.

Payment Options up to 9 Installments

Contact us for available payment options.

2-Year Warranty

We are here to support you after your purchase.

Sourcing Tailored to Your Needs

Contact us for the products and parts you need.

Description

T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW is part of the T-Motor high-performance modular uav propulsion range. This listing covers the model and configuration identified below.

Product and configuration details

BrandT-Motor
ModelXU10-X — XU10-X KV100+ALPHA 60A 12S / CCW
ConfigurationXU10-X KV100+ALPHA 60A 12S / CCW
Manufacturer product codeT-MOTOR001515
DroneStore product codeTM-1515-5894-6076

Manufacturer technical tables

The tables below contain manufacturer model and product-family data. Check the model and configuration identified in each table; filterable values for the selected product appear under Technical specifications.

ModelXU10-X KV100
Lead Cable Length630mm
Dimension144.3*98.6*75.4mm
Arm Set Weight(Incl. Cable)705g
Configuration36N42P
Shaft Diameter15mm
Idle Current (24V)1.1A
Rated Voltage (LiPo)12S
Peak Current (180s)30A
ESCRecommendationALPHA 60A 12S V1.2
Max. Power (180s)1400W
PropellerRecommendationG28*9.2/G29*9.5/G30*10.5

Manufacturer product details

T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 1T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 2T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 3T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 4T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 5T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 6T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Manufacturer product details 7

Technical drawings and performance charts

T-Motor XU10-X — XU10-X KV100+ALPHA 60A 12S / CCW — Technical drawings and performance charts 1
Features
Brand:
T-Motor

Technical specifications

Configuration:
XU10-X KV100+ALPHA 60A 12S
Product type:
Propulsion system / combo
Motor KV rating:
100 KV
Compatible LiPo cell count:
  • 12S
Rotation direction:
CCW
Motor shaft diameter (mm):
15
