ToolkitRC M8AC — EU
TKR-OFF-43471
- View all variations as list
-
CODE OPTIONS Availability Price
TKR-OFF-43473Sourced to order9.415,40 ₺ + VAT 11.298,68 ₺ VAT included
TKR-OFF-43471Sourced to order9.317,31 ₺ + VAT 11.180,97 ₺ VAT included
TKR-OFF-43474Sourced to order9.415,40 ₺ + VAT 11.298,68 ₺ VAT included
TKR-OFF-43472Sourced to order9.317,31 ₺ + VAT 11.180,97 ₺ VAT included
DroneStore Benefits
No Full Payment Before Delivery
Pay 50% when ordering and the remaining 50% upon delivery.
Earn 1 TRY in Reward Points per 100 TRY
Earn reward points with your purchases.
Fast, Hassle-Free Shipping
Careful packaging and planned shipping. Estimated delivery: 9–25 calendar days.
Payment Options up to 9 Installments
Contact us for available payment options.
2-Year Warranty
We are here to support you after your purchase.
Sourcing Tailored to Your Needs
Contact us for the products and parts you need.
Please sign in so that we can notify you about a reply
Description

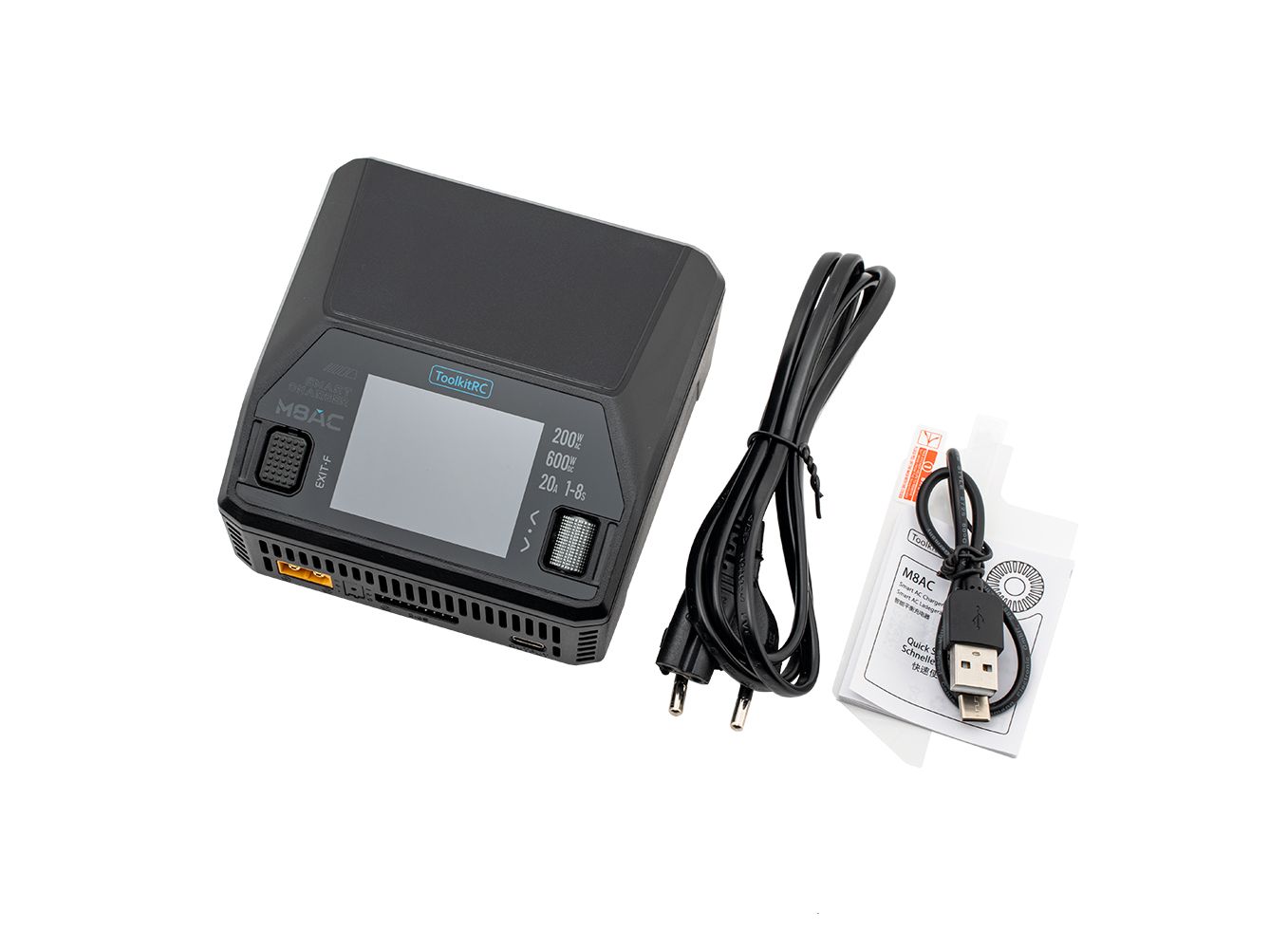

ToolkitRC M8AC — EU
Charger for a compatible battery system. Check chemistry, cell count and connector compatibility.
Selected Configuration
- OPTIONS: EU
Technical Specifications
| Product size | 108×113×62mm |
| Product weight | 500g |
| Packing size | 136×153×67mm |
| Packaging weight | 600g |
| LCD | IPS 2.4″ LCD 320×240px |
| Input voltage | AC 100-240V@MAX 2.5A |
| DC 7-35V@MAX 25A | |
| Battery type | LiPo LiHV LiFe Lilon LTO @1-8S |
| NiMH @1-20S Pb@1-12S | |
| Balance current | 1000mA@4.2V |
| Balance accuracy | <0.005V |
| Charging power | 0.1-20A@600W |
| Discharging power | 0.1-20A@300W Recycle Mode |
| 0.1-3A@20W Normal Mode | |
| USBC | MAX 20.0V@65W Upgrade |
| Voltage | 1.0V-5.0V @1-8S |
| Internal resistance | 0.1mΩ-99mΩ @1-8S |
| PWM | 880us-2200us@20-400Hz |
| PPM | 880us-2200us×8 CH@20-50Hz |
| SBUS | 880us-2200us×16 CH@20-100Hz |
| PWM | 500us-2500us@20-1000Hz |
| PPM | 880us-2200us×8 CH@50Hz |
| SBUS | 880us-2200us×16 CH@74Hz |
| Power | 0.5-15A@1-35V Mode: CC+CV |
