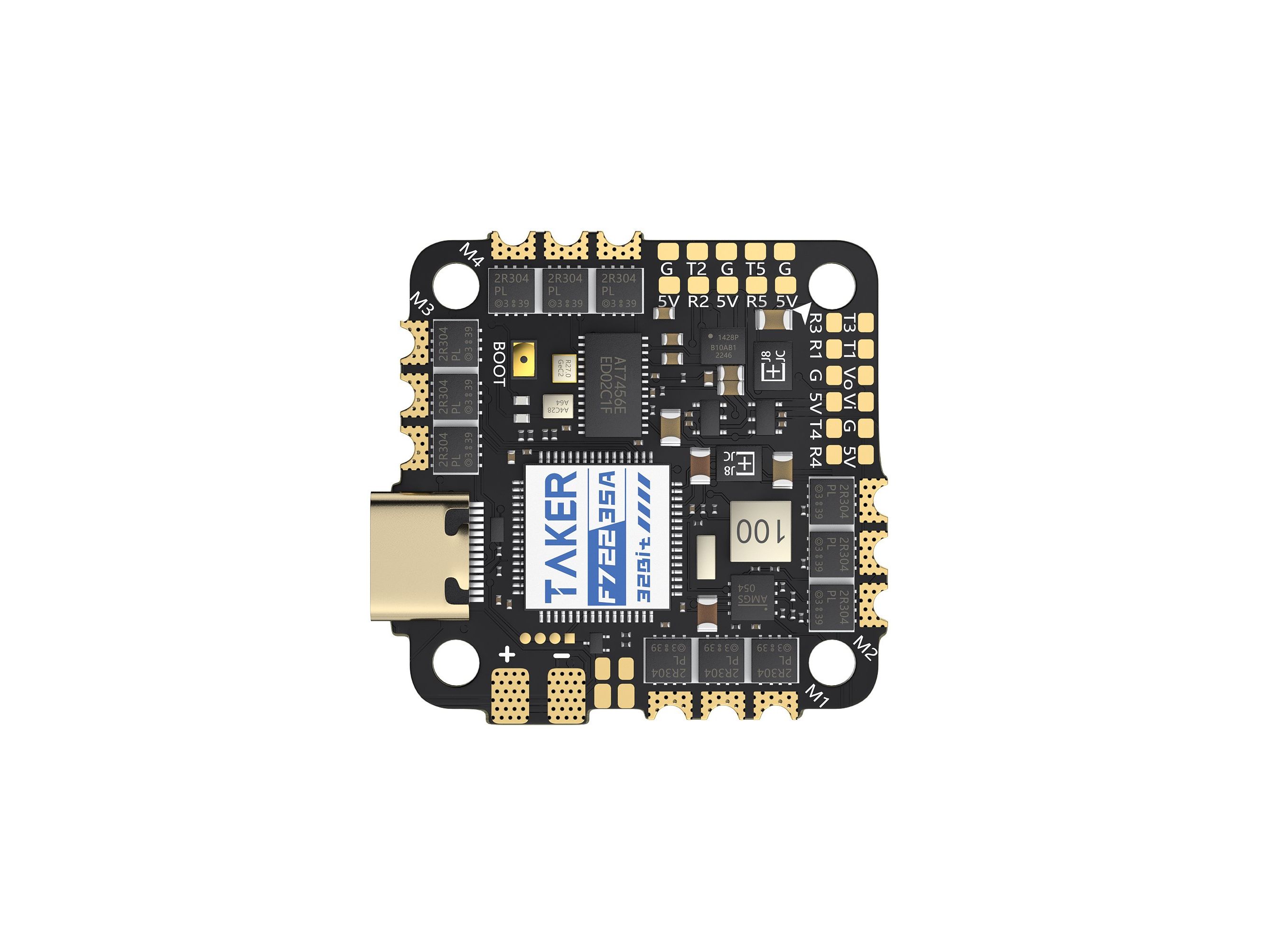

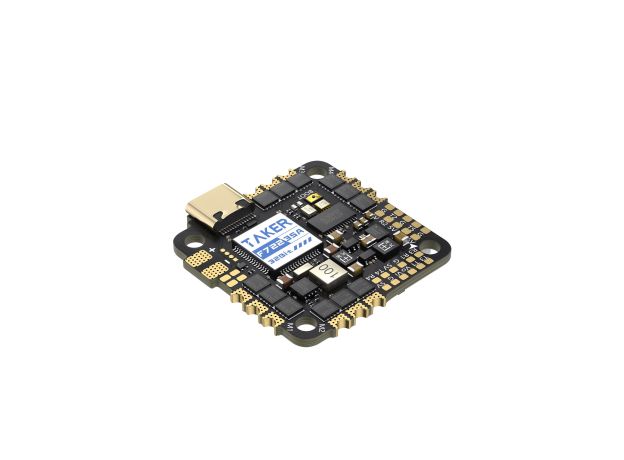

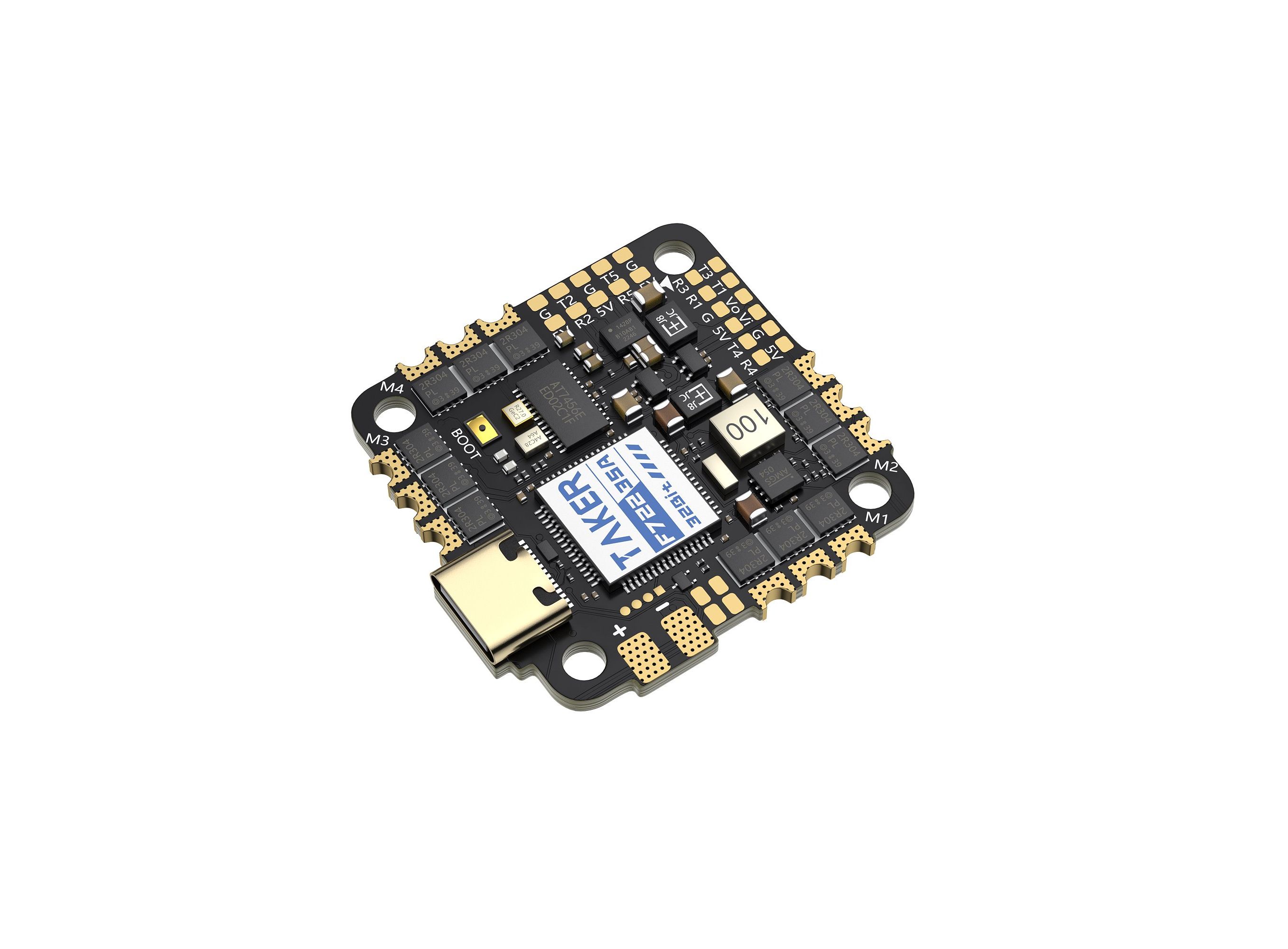

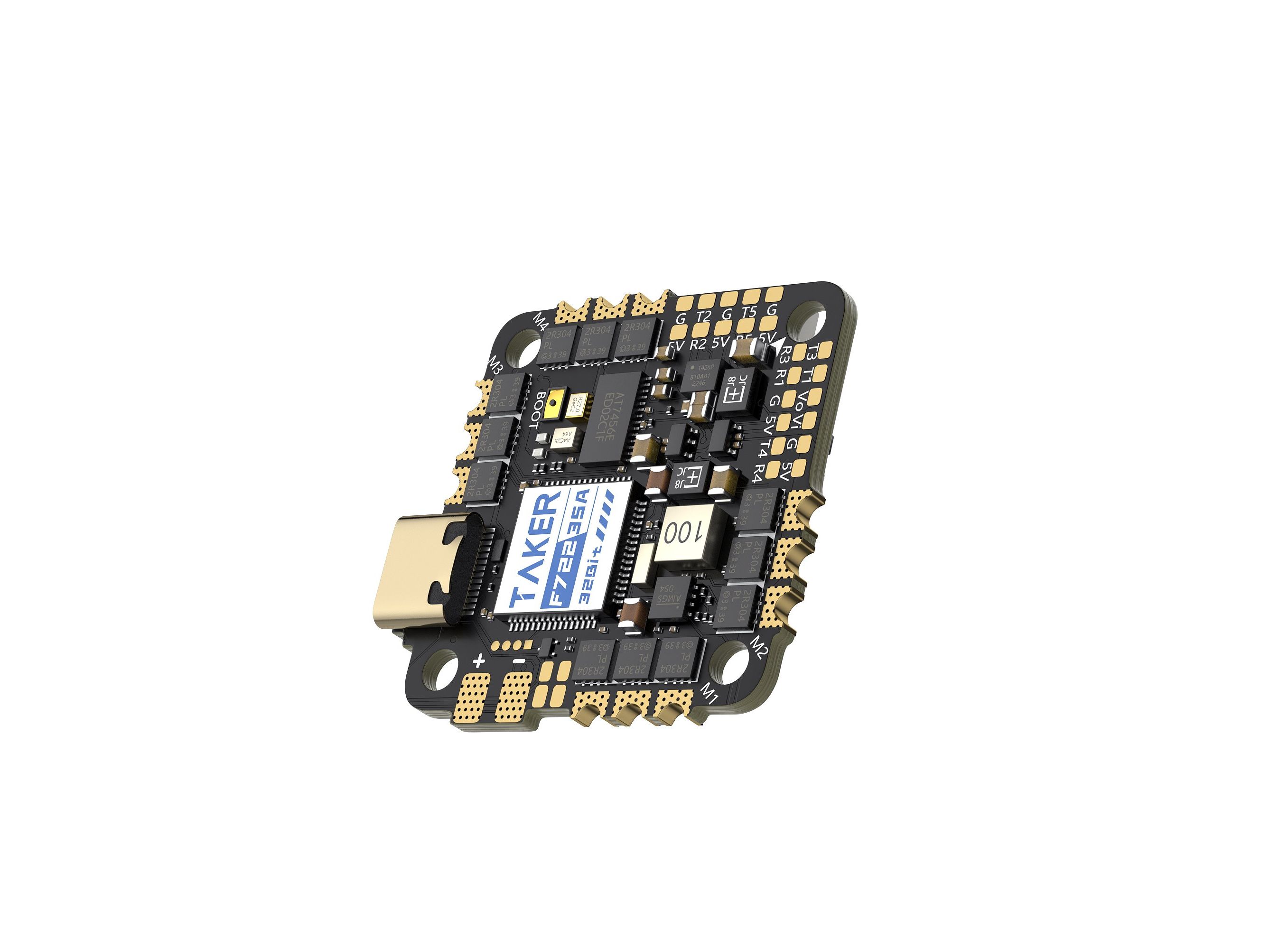

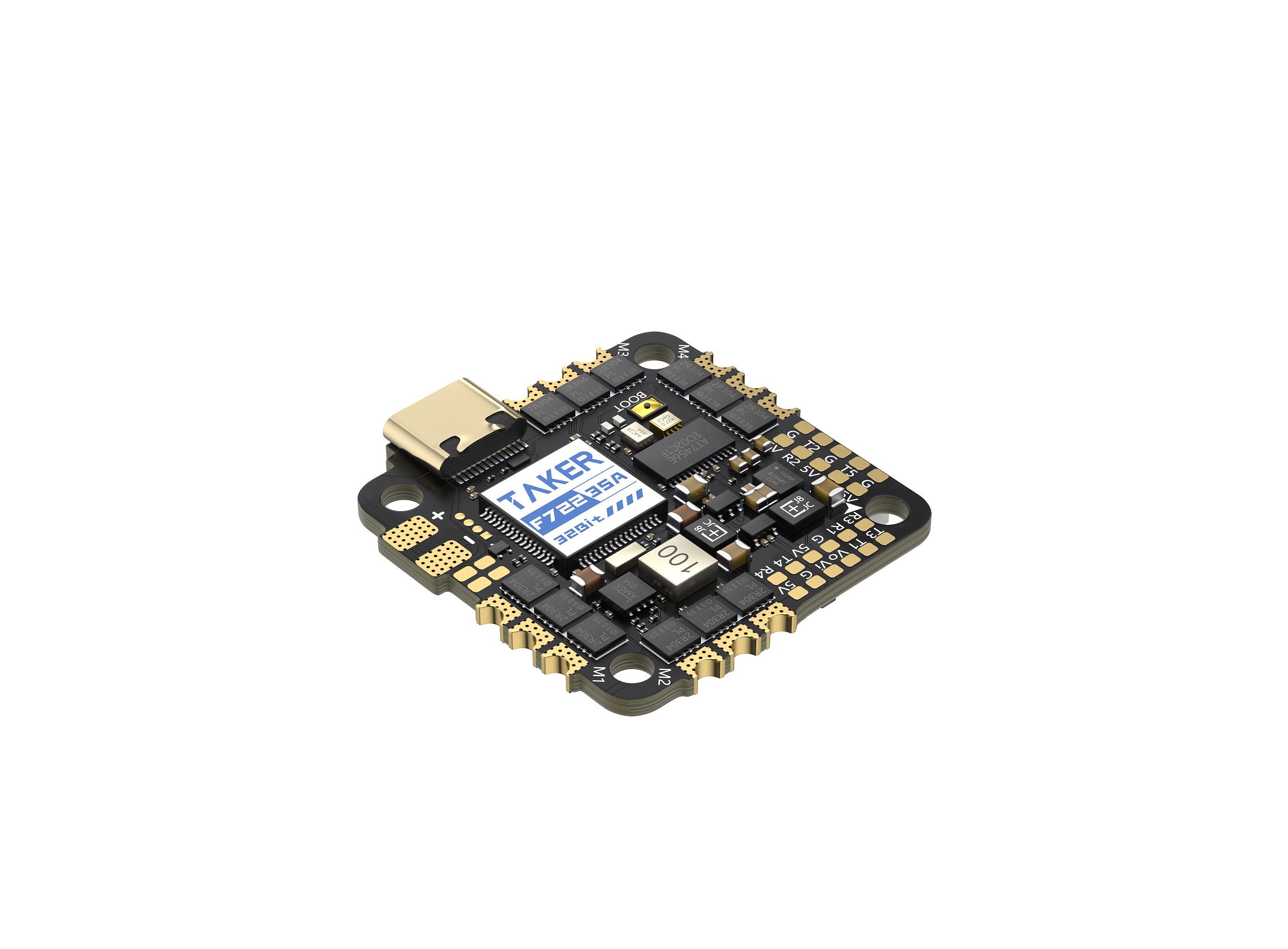

GEPRC TAKER F722 35A 32Bit AIO
FPV flight controller. Check the supply voltage, mounting dimensions and firmware compatibility.
Selected configuration: GEPRC TAKER F722 35A 32Bit AIO
Package contents depend on the selected configuration. Shared gallery photographs may show other colors or packages.
Technical Specifications
- Model: TAKER F722 35A 32Bit AIO
- MCU: STM32F722
- IMU: ICM 42688-P (SPI)
- Firmware Target: GEPRC_F722_AIO
- Blackbox: 16Mb on-board flash memory
- OSD: Betaflight OSD w/ AT7456E chip
- Uart: R1-T1 / R2-T2 / R3-T3 / R4-T4 / R5-T5
- Buzzer: YES
- LED: YES
- USB: Type-C USB
- BEC Output: 5V@3A
- ESC: 32Bit 35A
- Continuous Current: 35A
- Burst Current: 45A(10A)
- Input Voltage: 2~6S (LIPO)
- ESC Protocol: Dshot600, Oneshot, Multishot
- Dimension: 35mm * 33.5mm
- Mounting Hole Size: 25.5 mm * 25.5mm φM3 damping to M2 screw
- Weight: 9.3g
