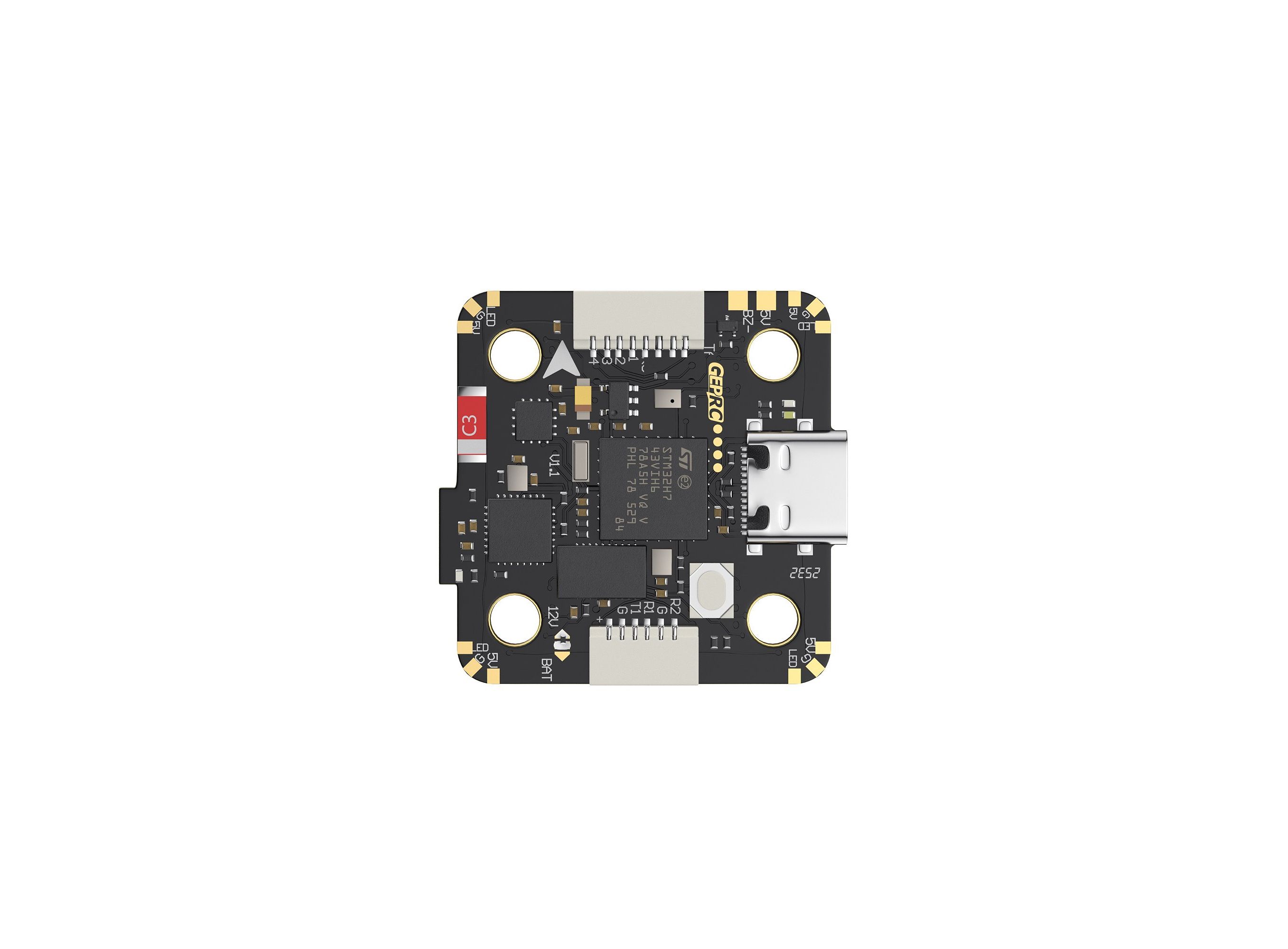

GEPRC TAKER H743 MINI Flight Controller
FPV flight controller. Check the supply voltage, mounting dimensions and firmware compatibility.
Selected configuration: GEPRC TAKER H743 MINI Flight Controller
Package contents depend on the selected configuration. Shared gallery photographs may show other colors or packages.
Technical Specifications
- FC Model: TAKER H743 MINI Flight Controller
- MCU: STM32H743
- IMU: ICM42688-P (Gyro)
- Air Unit Connector: DJI Plug & Play
- Blackbox: 16MB onboard
- Bluetooth: Supported
- BEC Output: 5V@3A, 12V@2.5A (Dual)
- USB: Type-C
- OSD: Betaflight OSD AT7456E
- Barometer: Supported
- Firmware Target: GEPRC TAKER H743 MINI
- Input Voltage: 3–8S LiPo
- FC Dimensions: 31×31mm
- Mounting: 20×20mm
- Power Filtering: Integrated LC filter
- UART: 7 (UART8 reserved for Bluetooth)
- Weight: 6.1g
Features
Brand:
GEPRC
